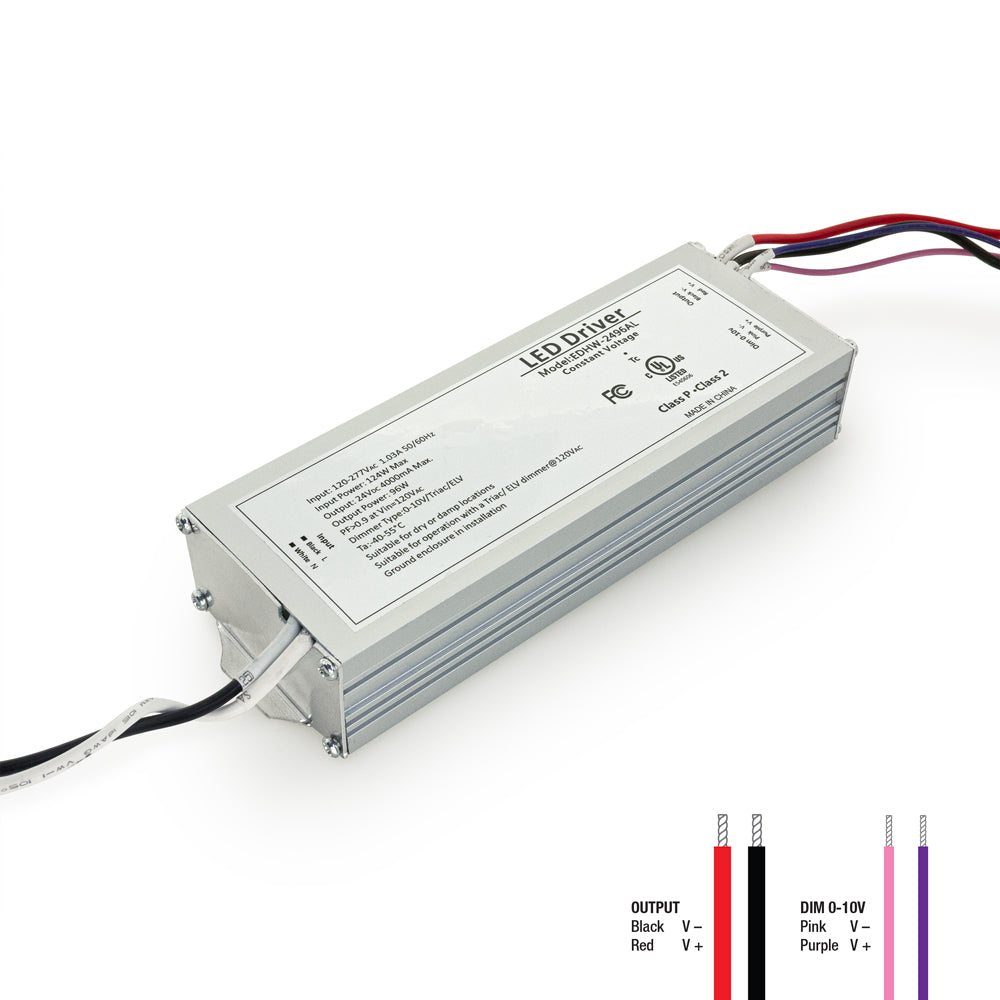

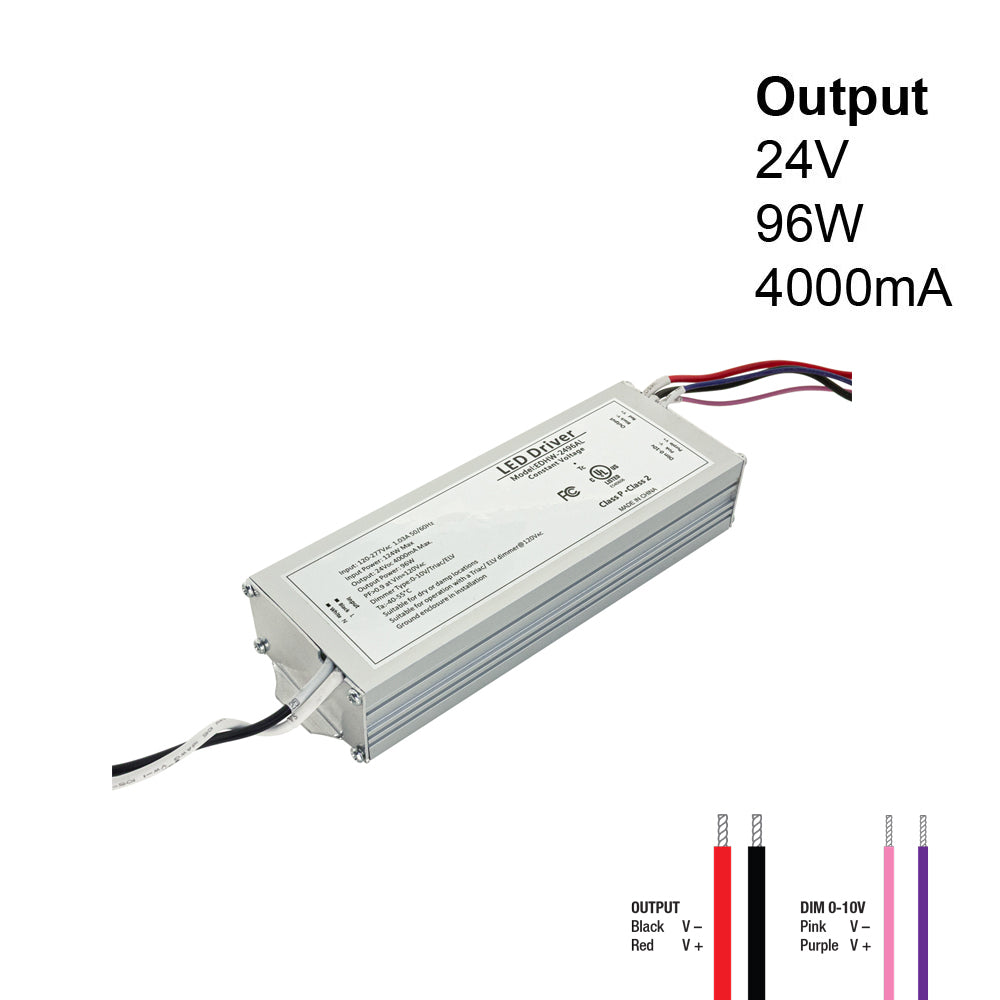

0-10V/Triac/ELV Dimmable Constant Voltage LED Driver 24V 4000mA 96W, EDHW-2496AL

0-10V/Triac/ELV Dimmable Constant Voltage LED Driver 24V 4000mA 96W, EDHW-2496AL

Ask Question!

SKU:666561437961

$135.70 CAD
$135.70 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

  • 10% off on purchases over $300

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Model EDHW-2496AL
Input Voltage 120 – 277V AC
Input Current 1.03A
Frequency 50/60Hz
Power Factor 0.9
Output Voltage 24V DC
Output regulated Current 4000mA
Output Power 96W max
Dimmable Yes (0-10V/Triac/ELV Dimming)
Weight 0.8 kg
Class Certification Class P . Class 2
IP Rating IP20 (Dry or Damp Locations)

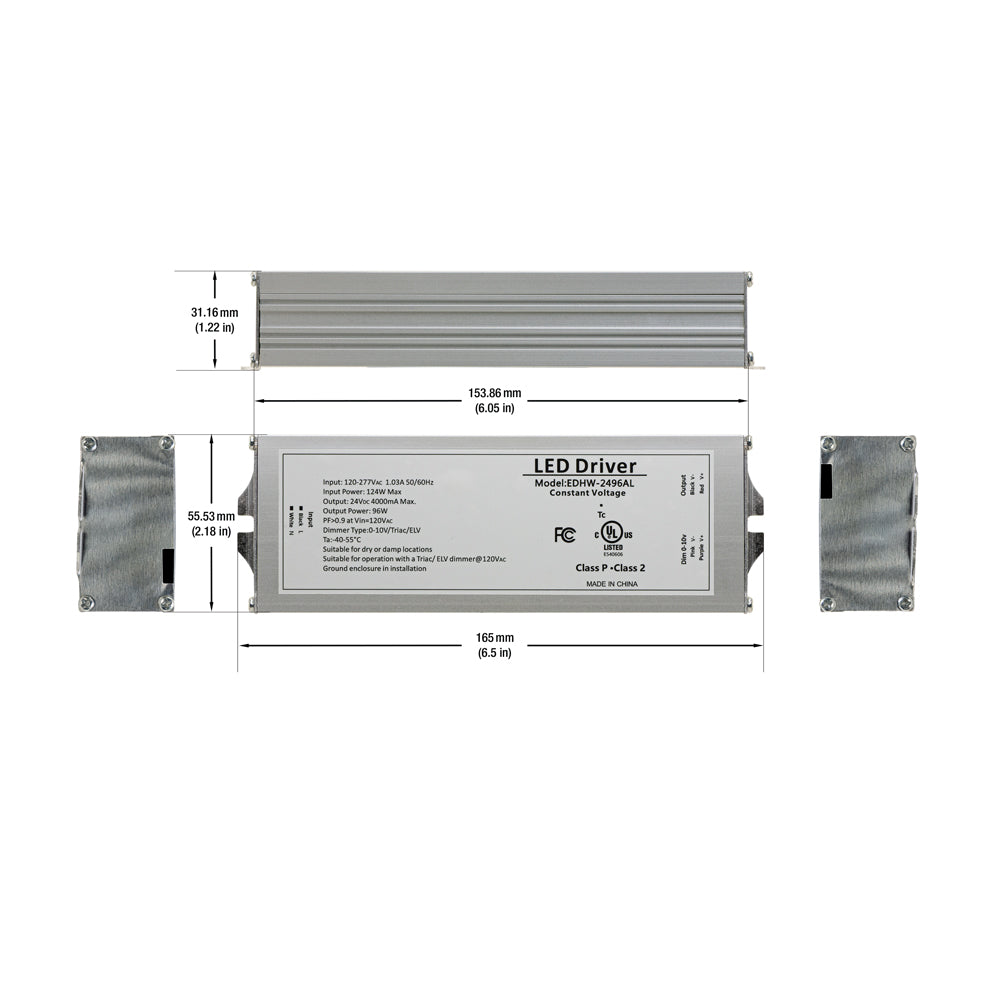

Dimensions 153.8 x 55.5 x 31.1mm (6.05 x 2.1 x 1.2 in)
Certifications



Features:

  • It operates with an input voltage range of 120-277V AC and an input current of 1.03A, with a frequency range of 50/60Hz.
  • The LED driver has a power factor of 0.9, indicating high energy efficiency.
  • Provides a regulated output voltage of 24V DC with a maximum output power of 96W and an output regulated current of 4000mA, suitable for powering high-power LED lights.
  • Features 0-10V/Triac/ELV dimming capability for greater flexibility in controlling the brightness of LED lights.
  • Designed for Dry or Damp Locations, providing resistance to moisture, dust.
  • Certified with Class P and Class 2 certification, indicating compliance with safety standards for use in hazardous locations.
