1.5 inch Round Disc LED Module P01-600-930-120-S1-18S300, 120V 7W 3000K(Warm White)
1.5 inch Round Disc LED Module P01-600-930-120-S1-18S300, 120V 7W 3000K(Warm White)
SKU: SKU:666561432539
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
Important Note:Â
We will ship your order using a different courier during the Canada Post strike
 How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
 Â
Product Description
Product | LED Module |
Model No | P01-600-930-120-S1-18S300 |
No of LEDs | 7 |
Wattage | 7W |
Voltage | 120V AC |
Luminous Flux | 600 lumens |
Color Temperature | 3000K (Warm White) |
Rendering Index | CRI>90 |
Power Source | AC |
Dimmable | Yes |
Base Material | Aluminum (Metallic Base) |
Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

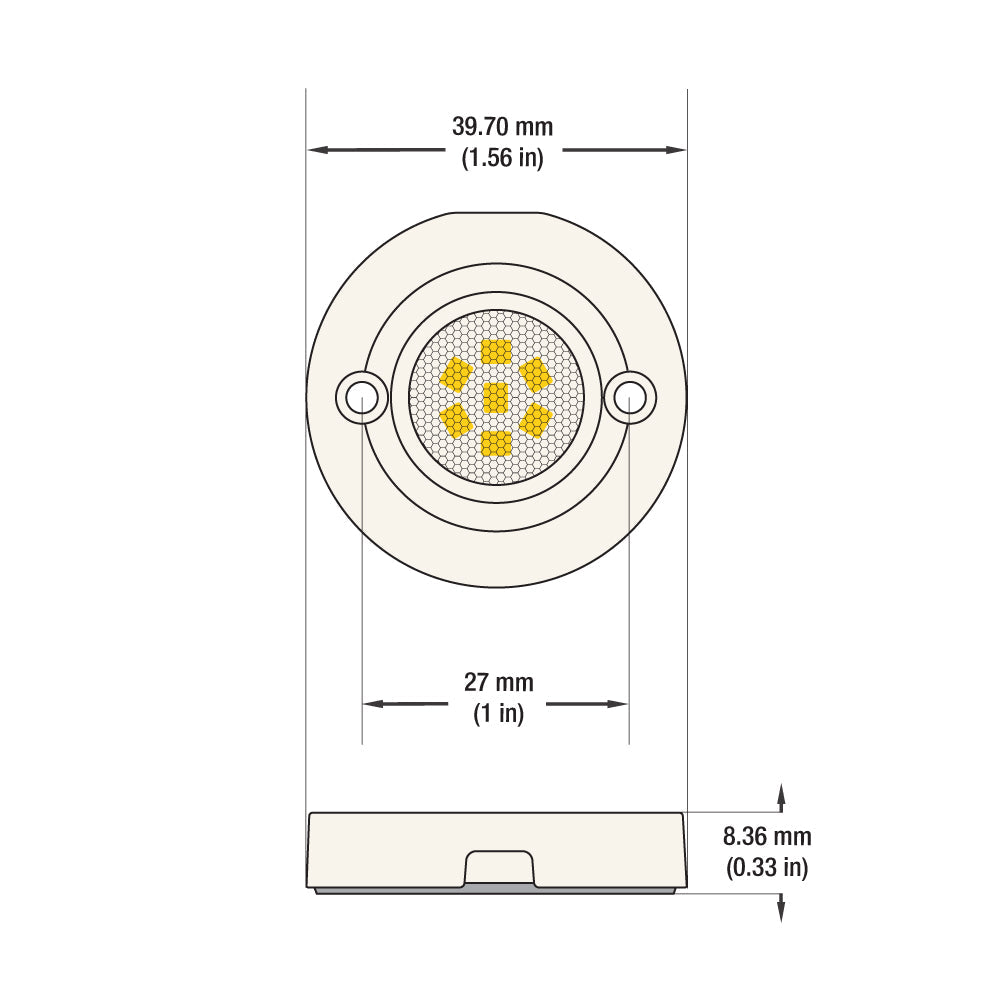

Outer Diameter |
∅39.7mm (1.5 in) |
Diameter of the screw hole | ∅2.5 mm (0.1 in) |
Distance between holes | 27.5mm (1.08 in) |
Height | 8.3mm (0.32 in) |
Certification |

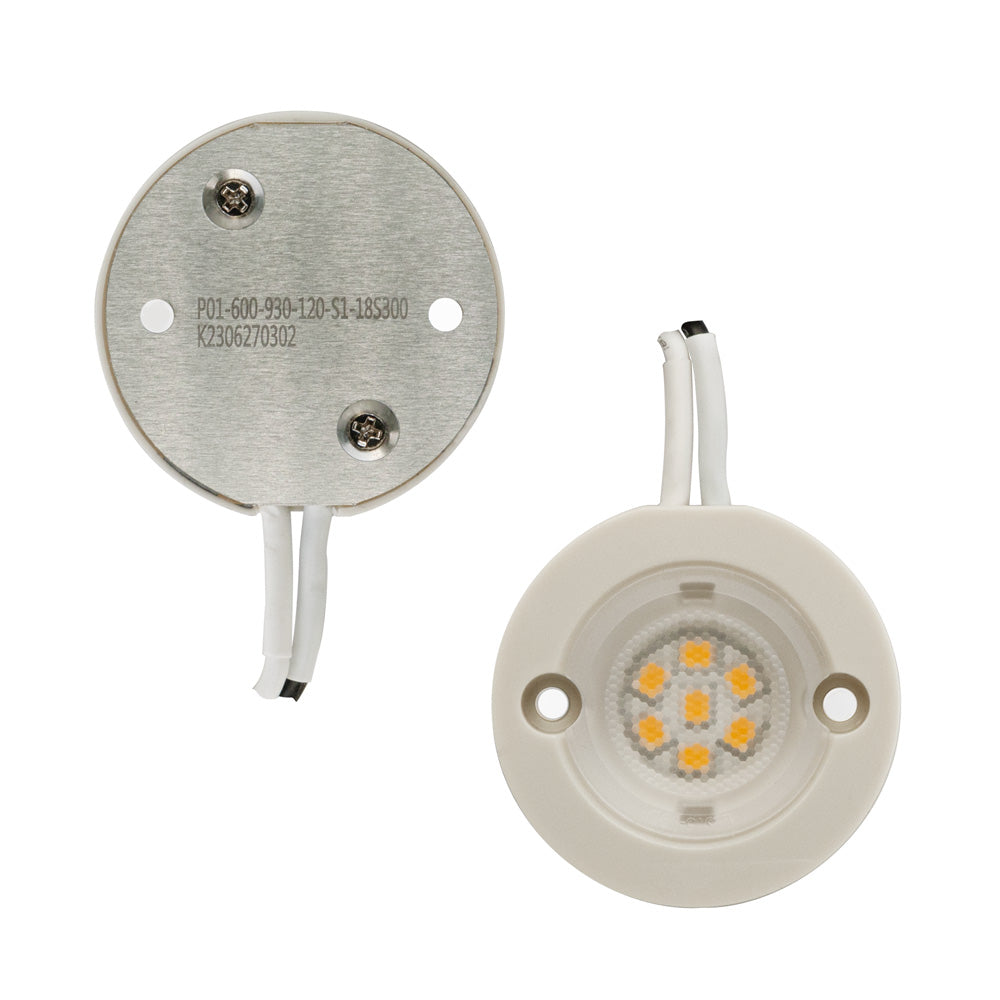

The P01-600-930-120-S1-18S300 LED Module is an excellent lighting solution that offers superior quality and energy efficiency. This module features 7 high-quality LEDs, producing a powerful 600Â lumens of warm white light with a color temperature of 3000K, making it perfect for a wide range of general lighting applications.
With a low power consumption of 7W and a high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.

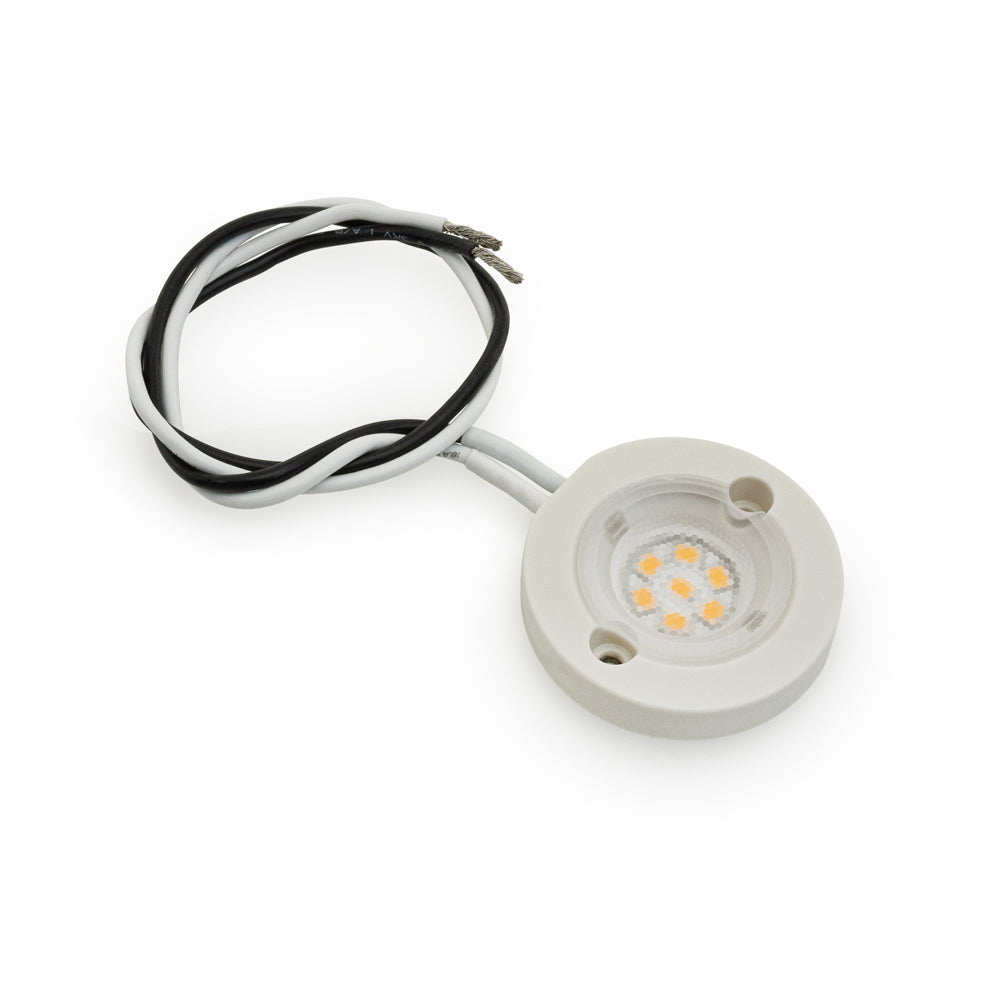

Constructed with an aluminum (metallic base) material, this LED module features an outer diameter of ∅38mm (1.5 in), making it compact and easy to install. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
Features:
- 7 high-quality LEDs that produce 600 lumens of warm white light with a color temperature of 3000K
- Low power consumption of 7W and high energy efficiency that saves on energy costs
- Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
- Constructed with an aluminum (metallic base) material, with an outer diameter of ∅38mm (1.5 in) for easy installation

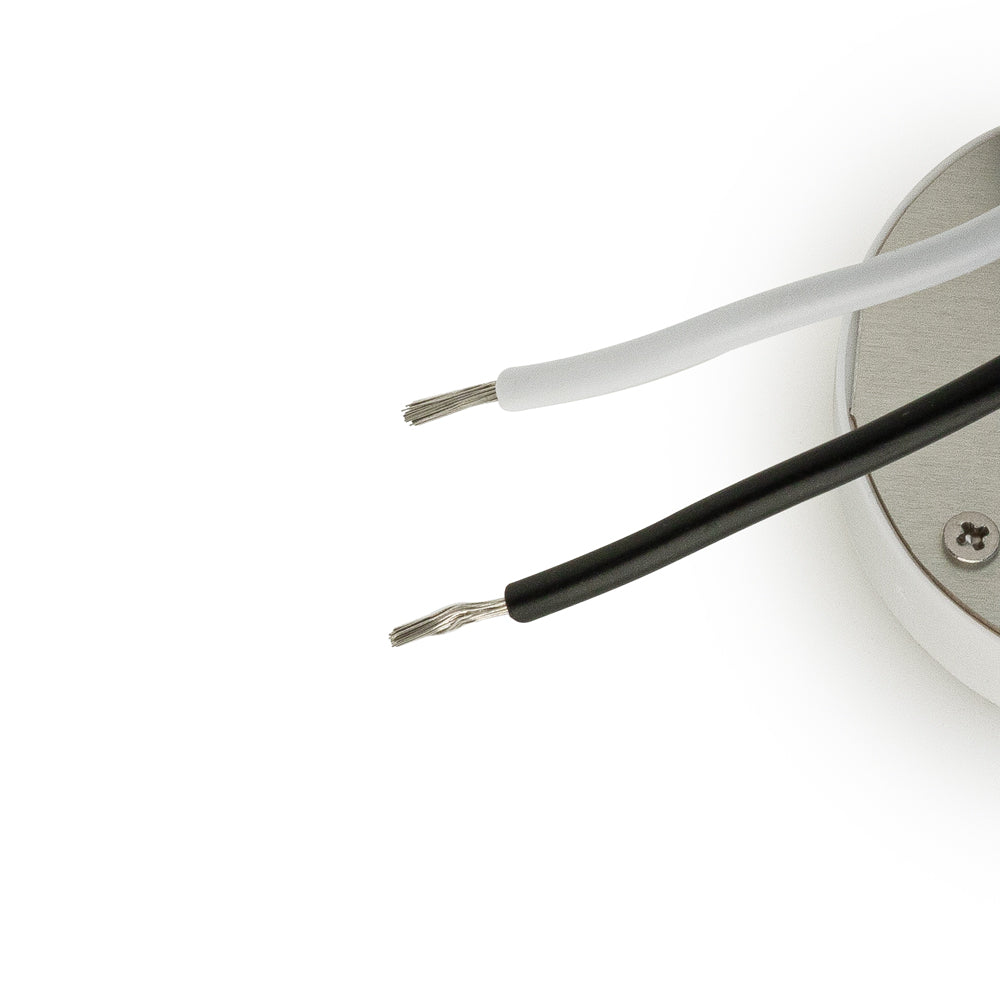

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- etl certified, ensuring that it meets high safety and quality standards
- High rendering index of CRI>90, making colors appear more vibrant and true-to-life
- Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
- A premier quality light engine. It produces up to 600 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

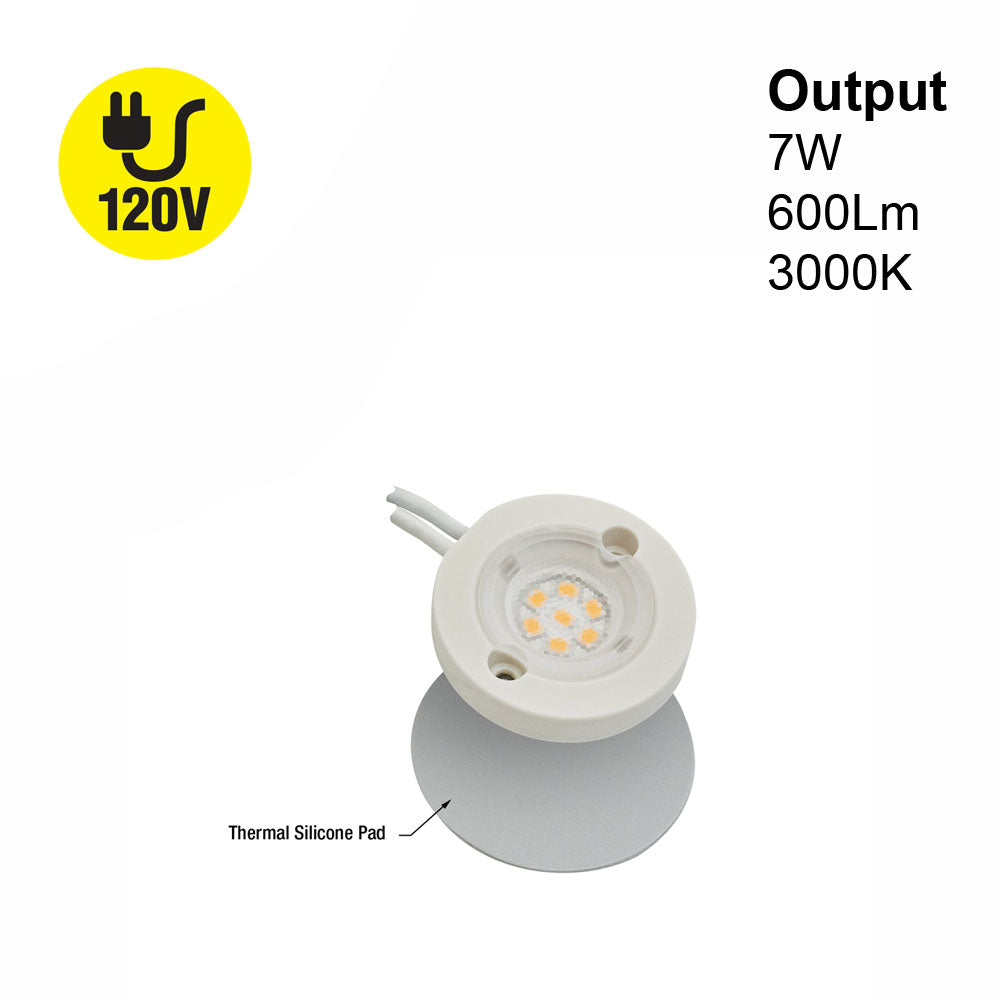

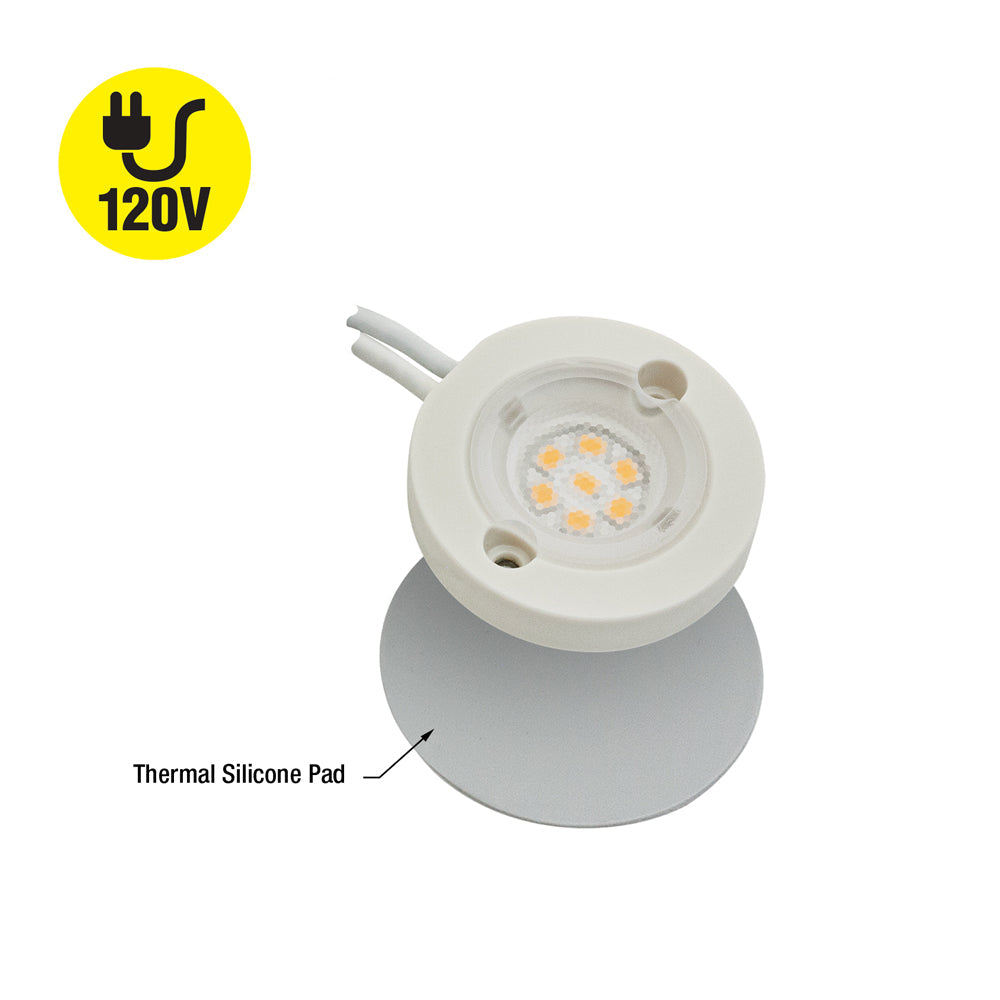

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
