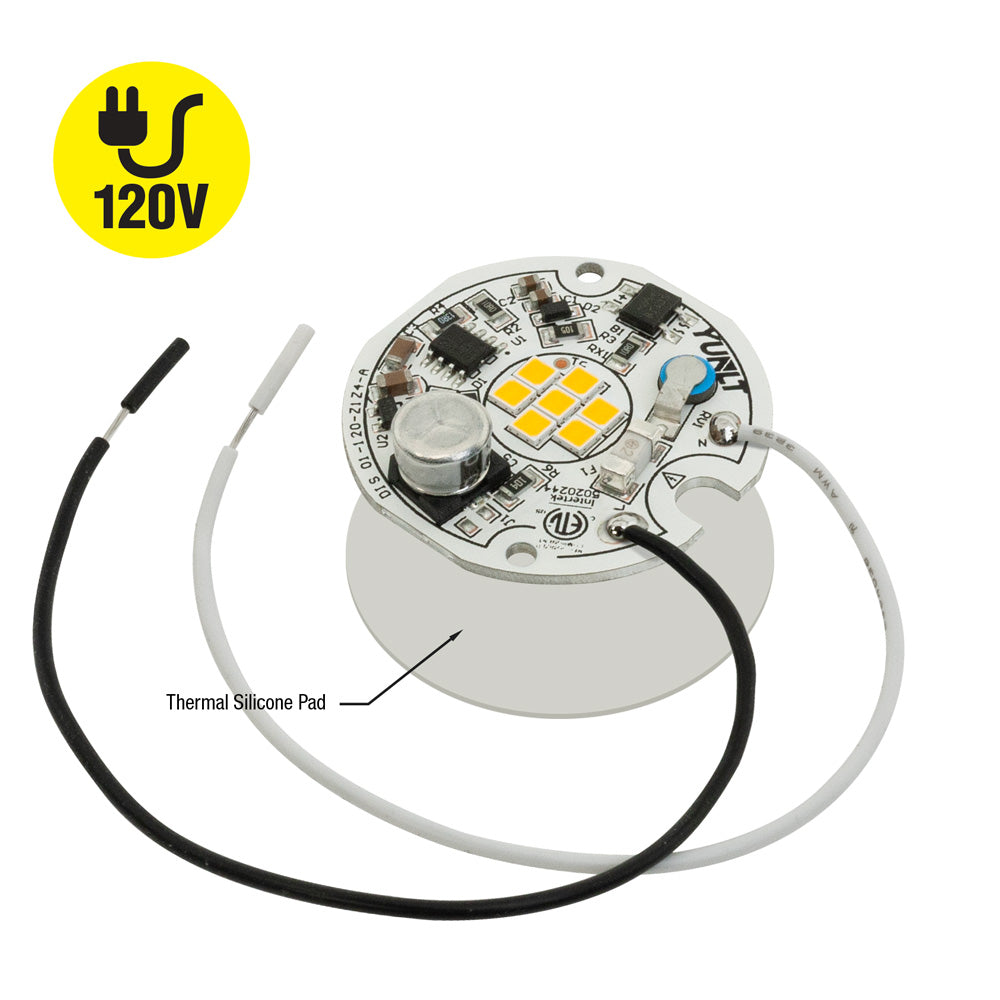

Product Description
| Product | LED Module |
| Model No | DIS 01-005W-930-120-S1-Z4A |
| Brand | YUNLT |
| No of LEDs | 7 |
| Wattage | 5W |
| Voltage | 120V AC |
| Luminous Flux | 400 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Weight | 0.01 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
|
Outer Diameter |
∅38mm (1.5 in) |
| Diameter of the screw hole | ∅2.5 mm (0.1 in) |
| Distance between holes | 33mm (1.3 in) |
| Height | 8mm (0.31 in) |
| Certification |  |
Features:
- 7 high-quality LEDs that produce 400 lumens of warm white light with a color temperature of 3000K
- Low power consumption of 5W and high energy efficiency that saves on energy costs
- Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
- Constructed with an aluminum (metallic base) material, with an outer diameter of ∅38mm (1.5 in) for easy installation
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- etl certified, ensuring that it meets high safety and quality standards
- High rendering index of CRI>90, making colors appear more vibrant and true-to-life
- Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
- A premier quality light engine. It produces up to 400 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
