Product Description

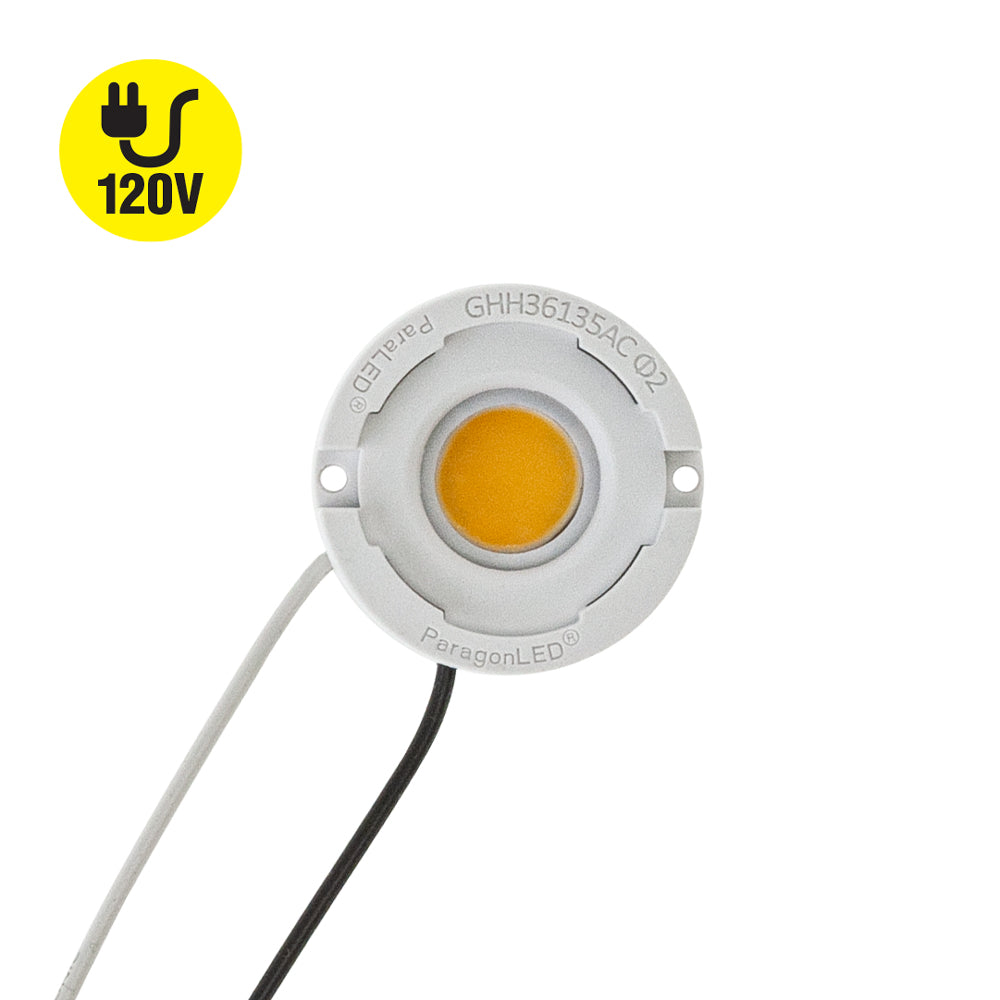

| Product | Paragon LED Module |

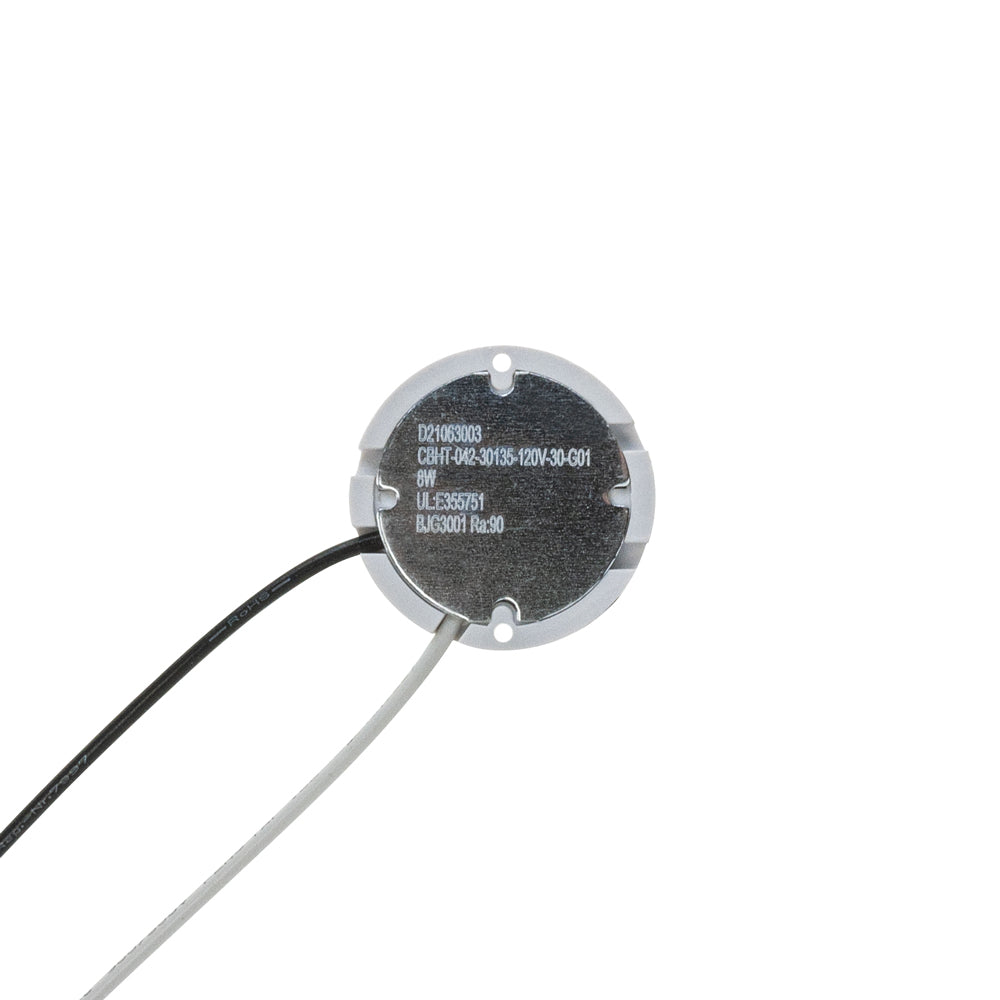

| Model No | CBHT-042-30135-120V-30-G01 |
| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |

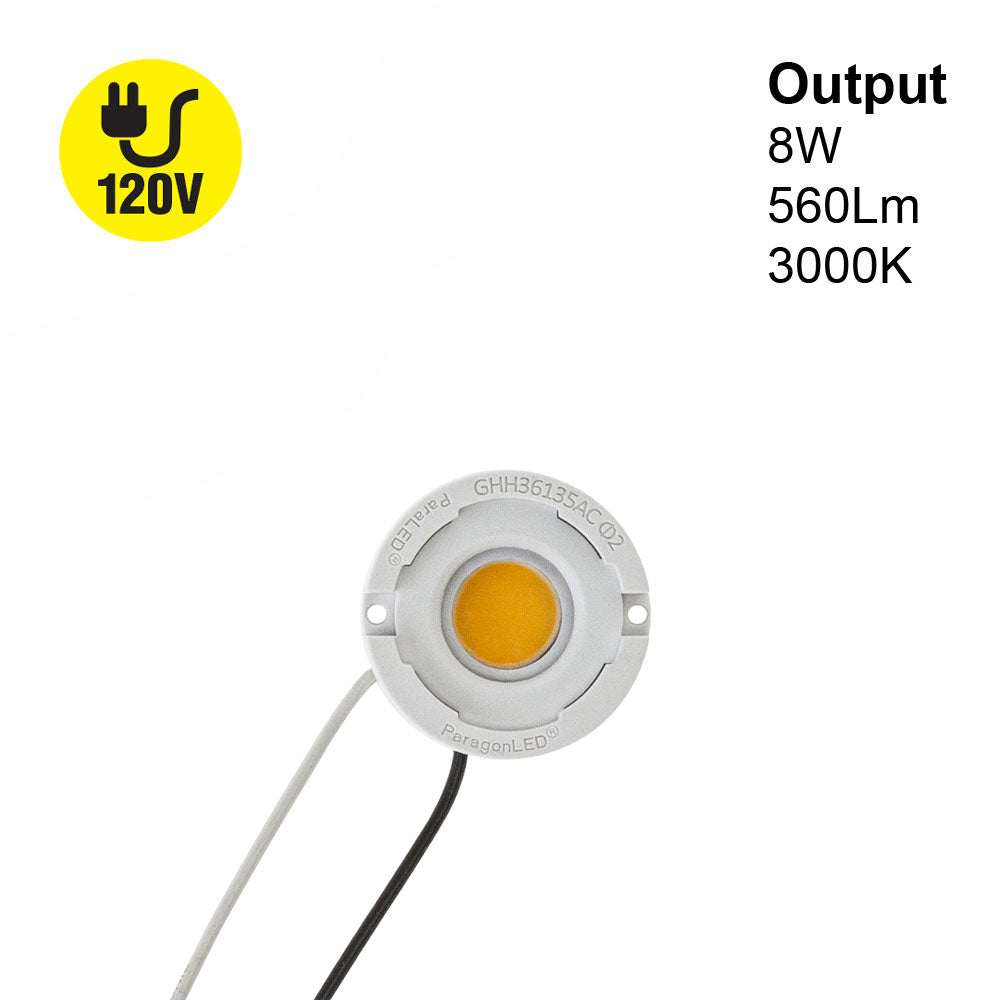

| Wattage | 8W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 560 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| Weight | 0.03 kg |
| IP Rating | IP20 (Indoor rated) |

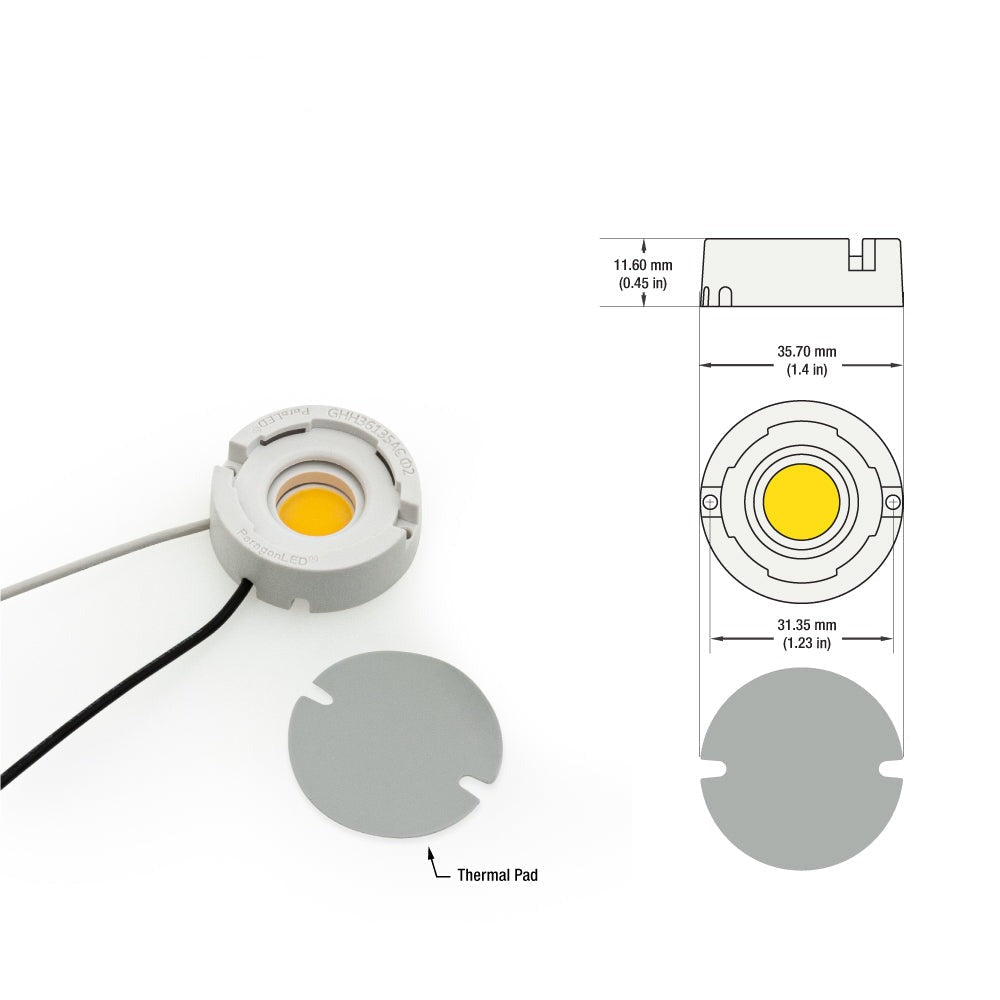

| COB Holder Dimensions | ∅35.7mm (1.4 in) x H11.60mm (0.45 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

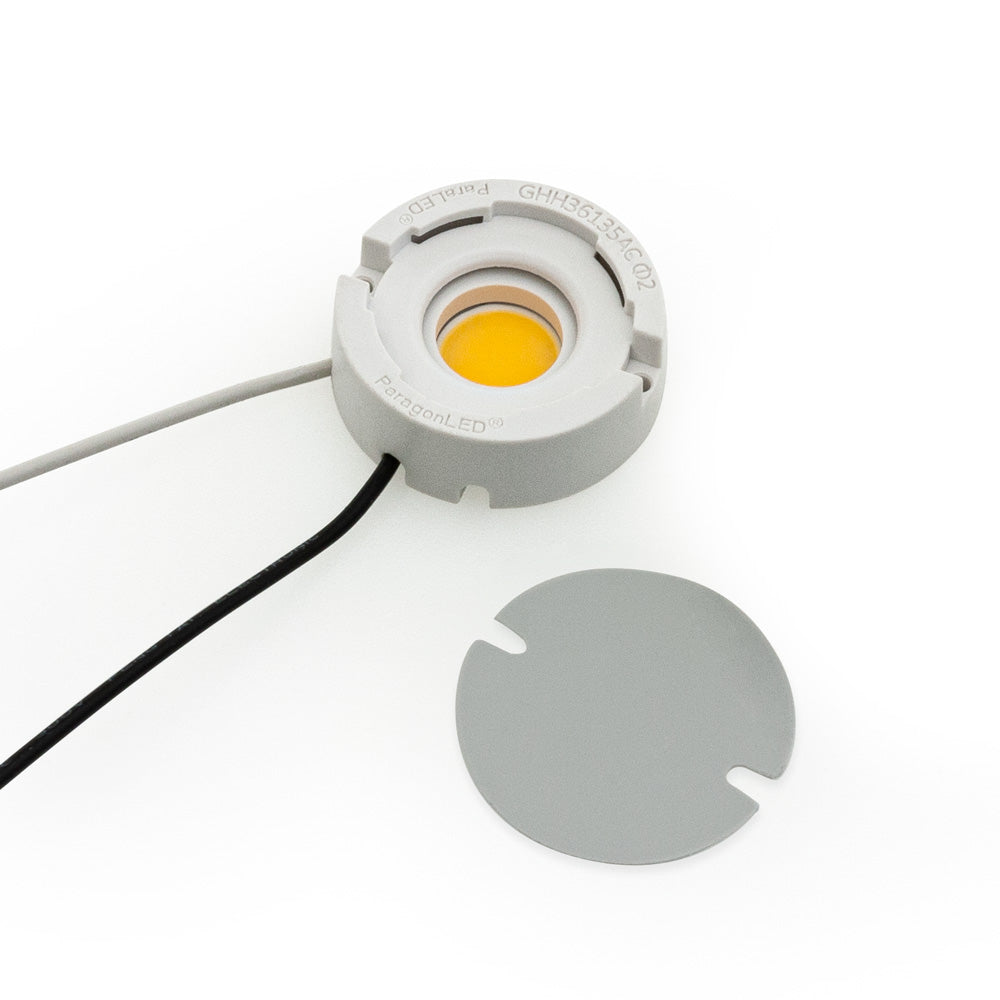

| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |
Features:
- COB LED module designed for indoor use with 42 LED chips and a wattage of 8W
- Voltage of 120V AC and power factor greater than 0.98
- Luminous intensity of 560 lumens and color temperature of 3000K (Warm White), with dimmable feature
- High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
- Operating temperature range of -40 to +105℃
- Dielectric breakdown voltage of thermal pad greater than 4KV
- Package includes COB Module, COB LED Array Holder, and Thermal Pad
- Certified by UL
- Aluminum heat sink required during installation to prevent overheating and increase lifespan
- Polycarbonate diffuser included for reducing glare and refracting light in wider beam

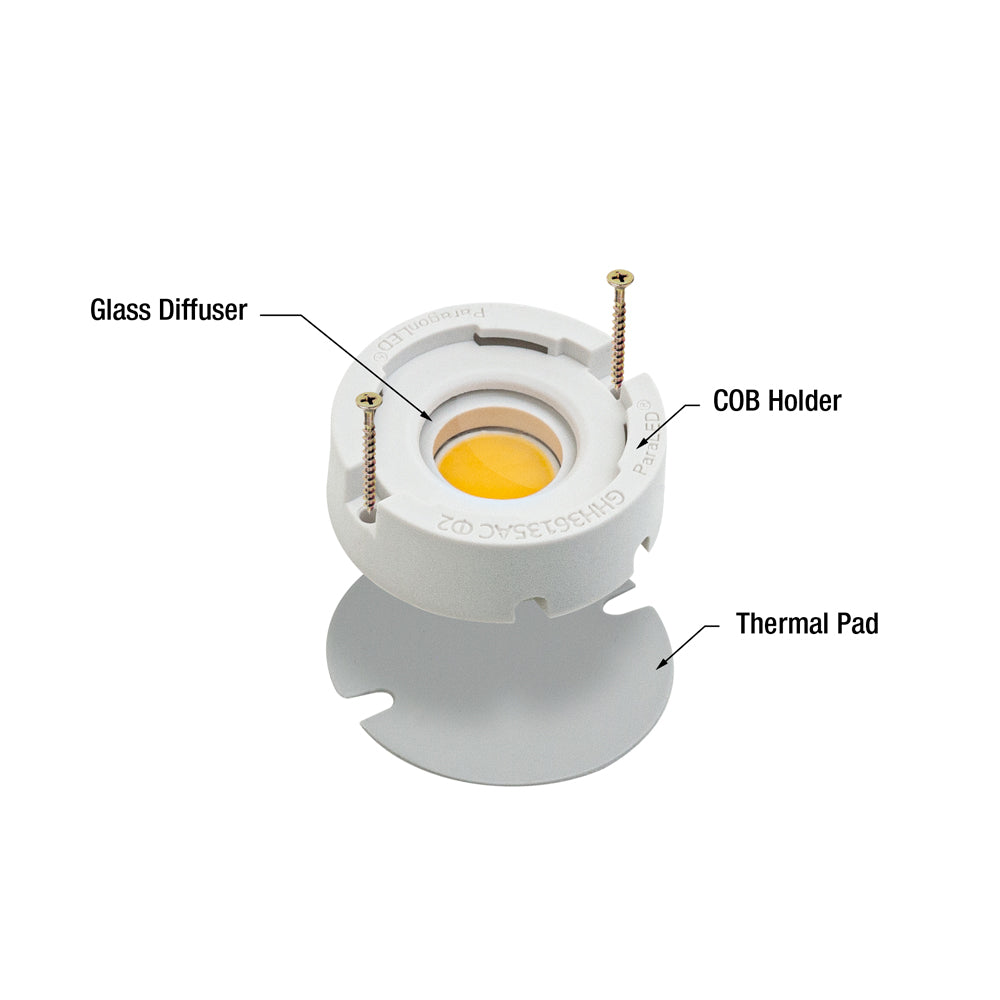

- COB holder allows for mechanical securing, electrical connection, and attachment to heat sink
- Silicone grease thermal pad provides heat sink and improves heat dissipation
- Suitable for various luminaires but important to ground light fixtures while designing lamps.
