Product Description

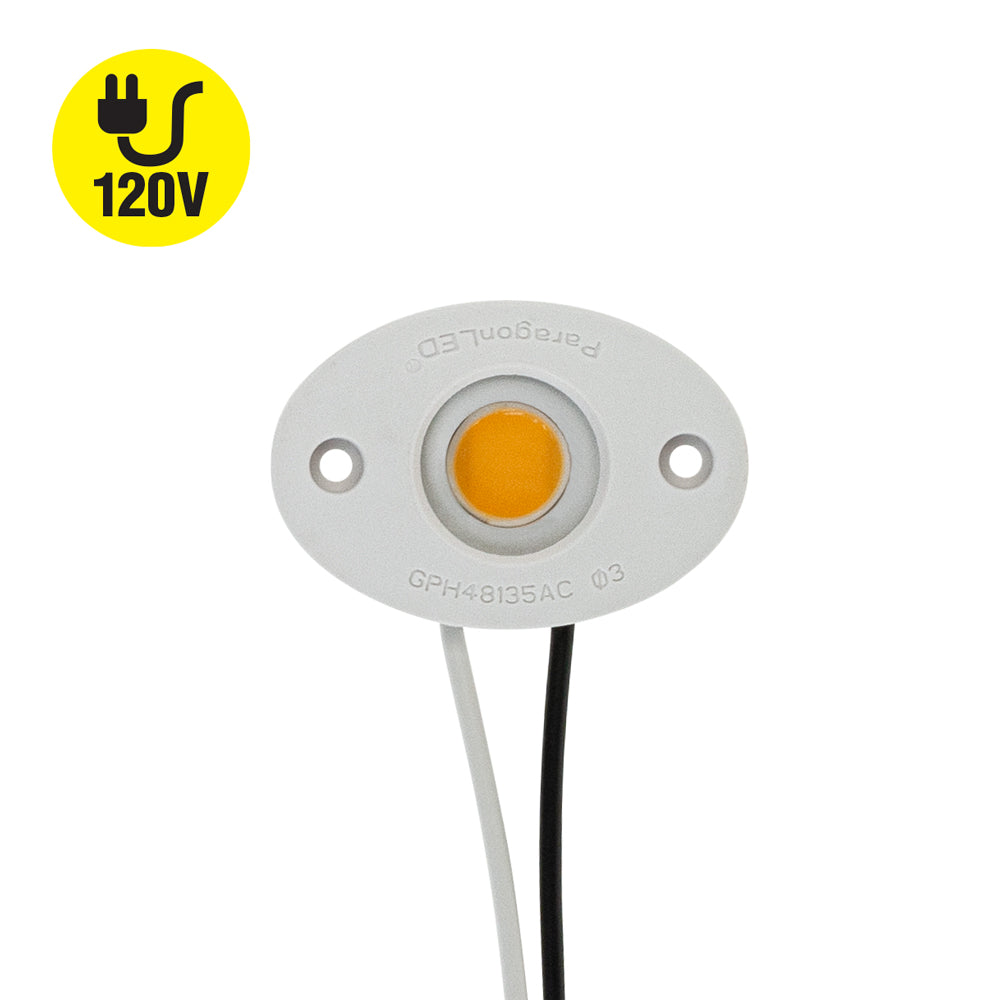

| Product | Paragon LED Module |

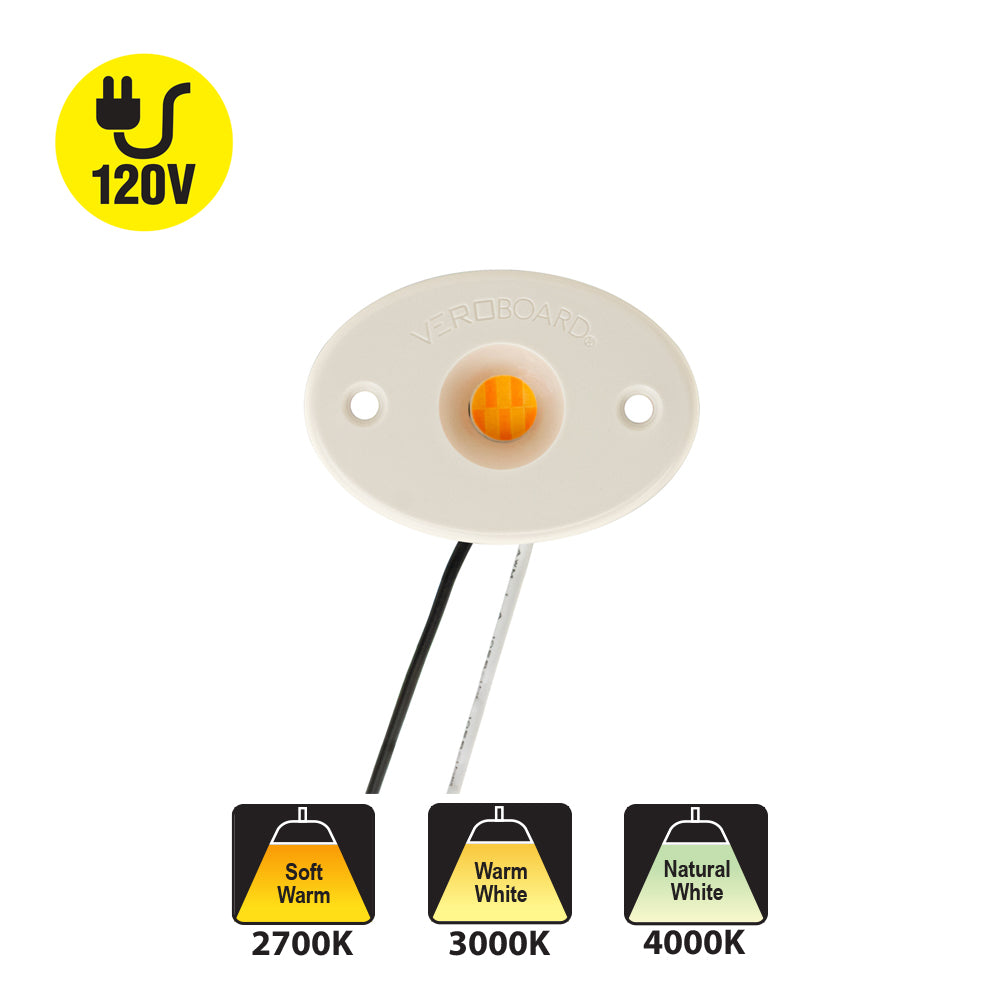

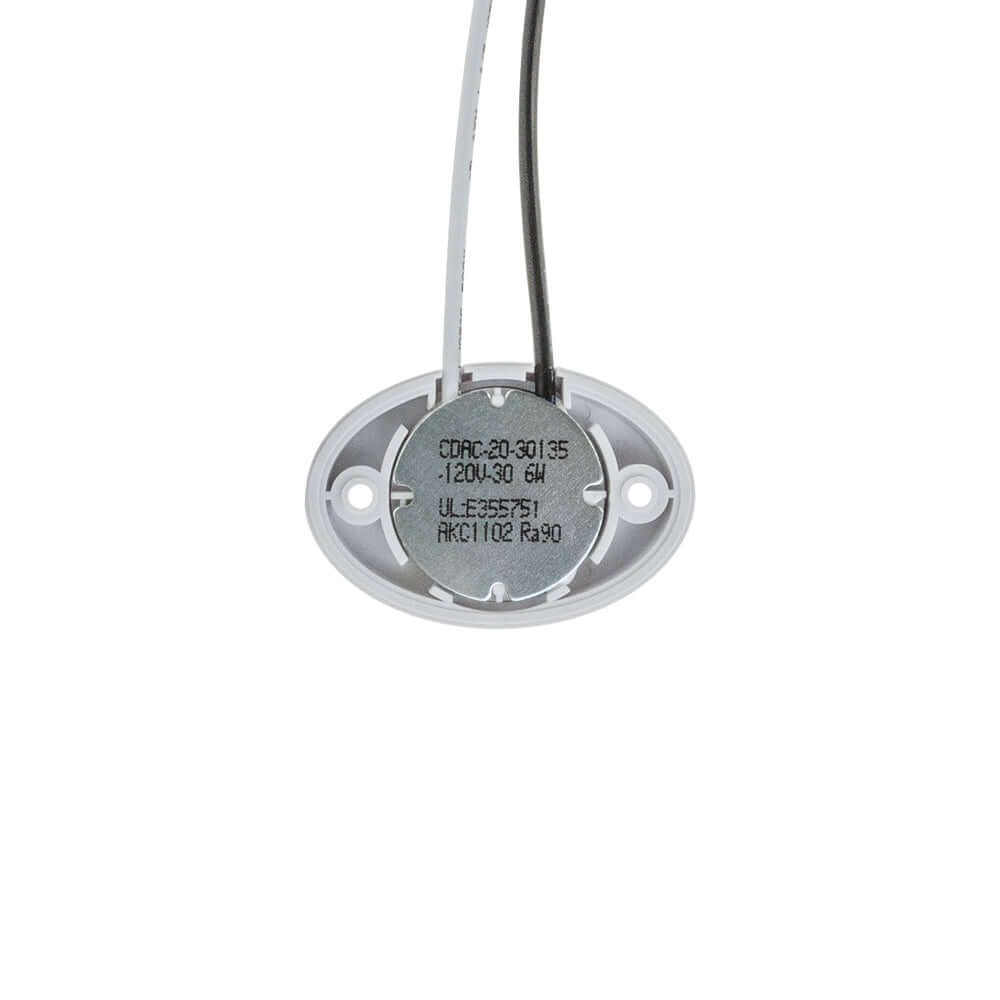

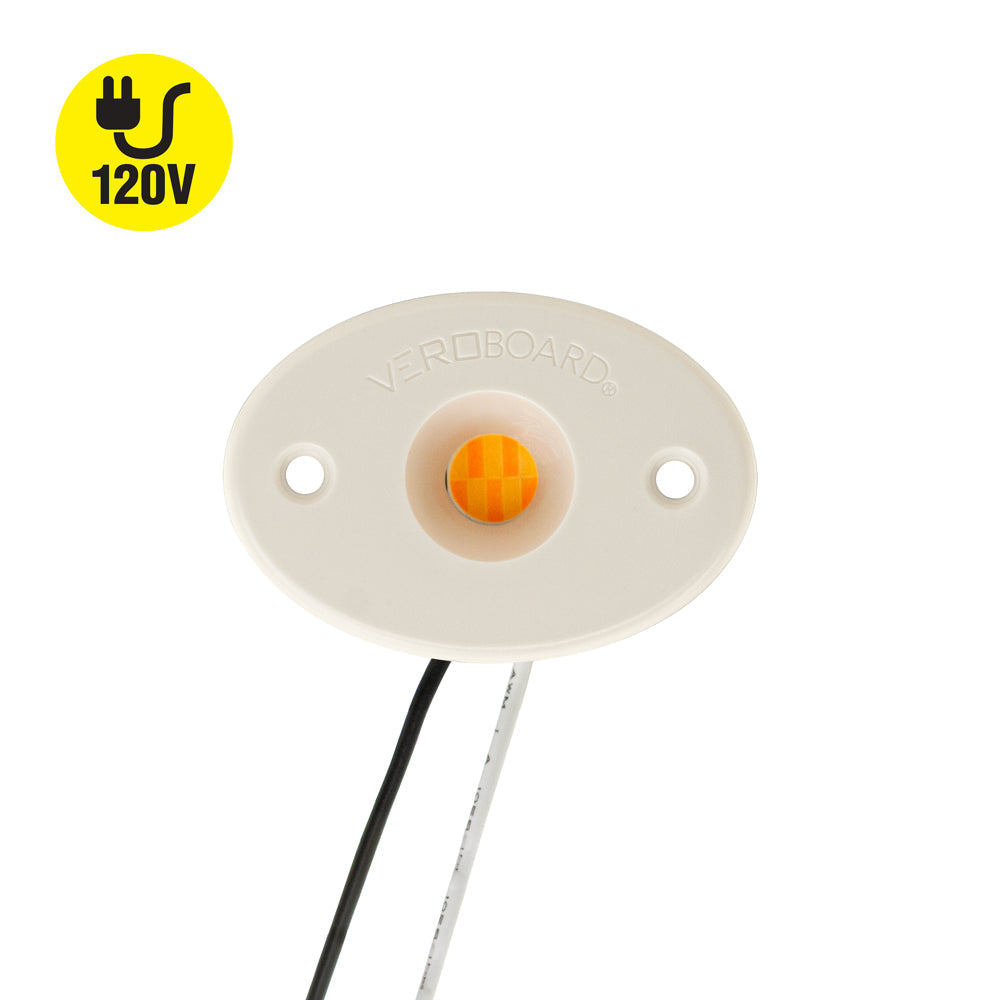

| Model No | CDAC-20-30135-120V-30 (Paragon) VBDMDL-553839-06W-9XXK-120V (Veroboard) |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| No LED chips | 20 |

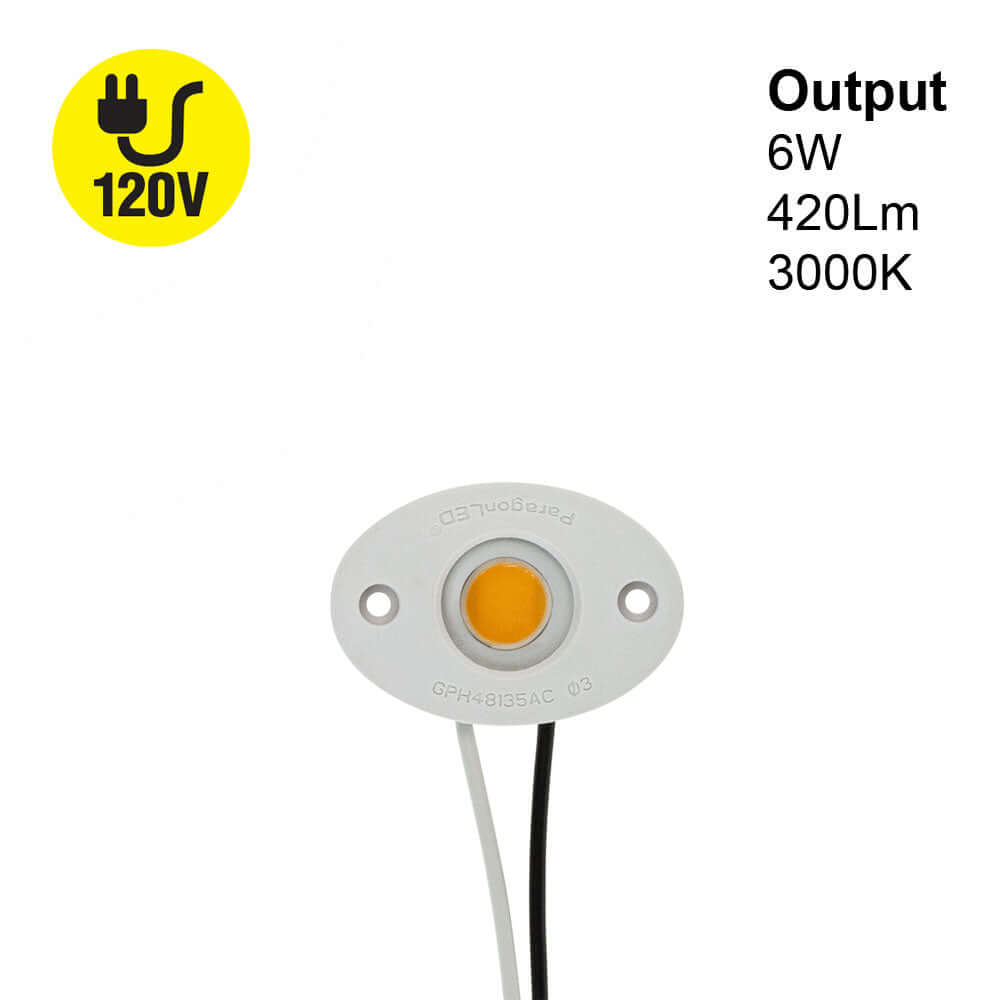

| Wattage | 6W |
| Voltage | 120V AC |
| Luminous Intensity | 420 lumens |
| Color Temperature |
(Paragon) (Veroboard) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

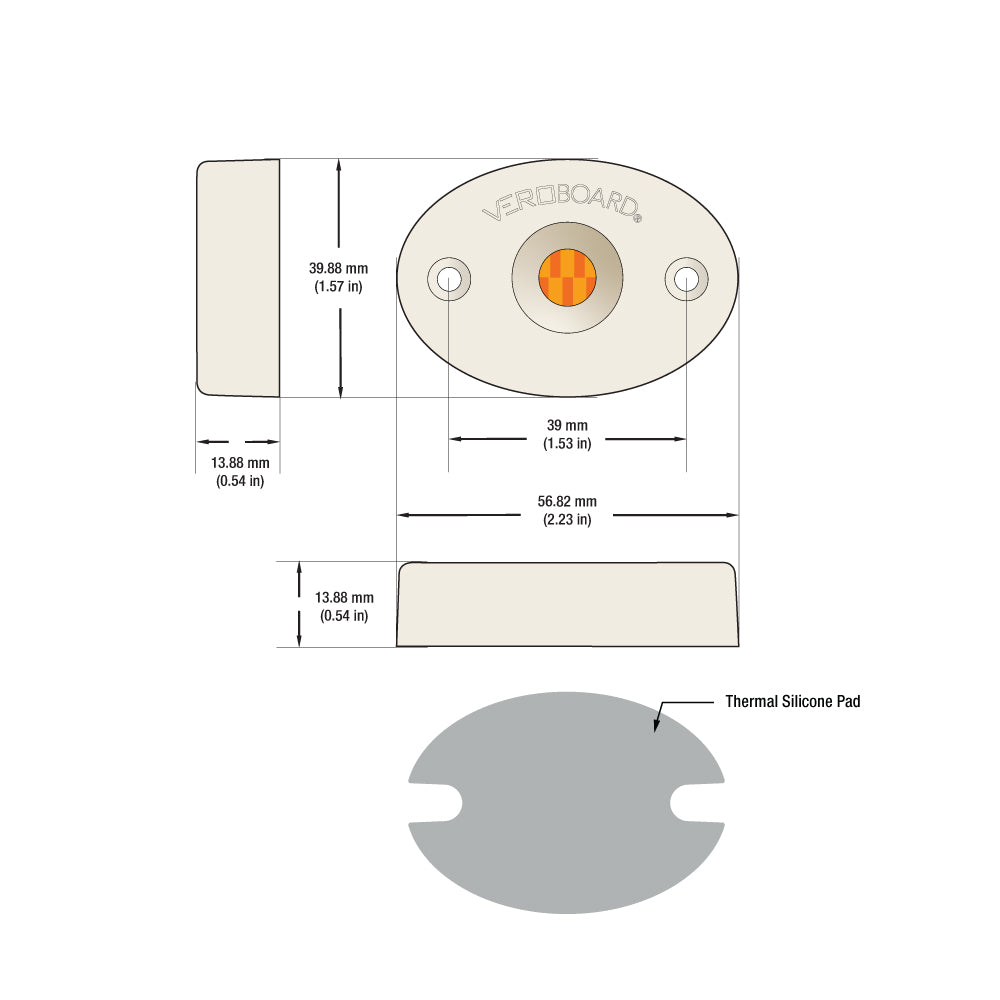

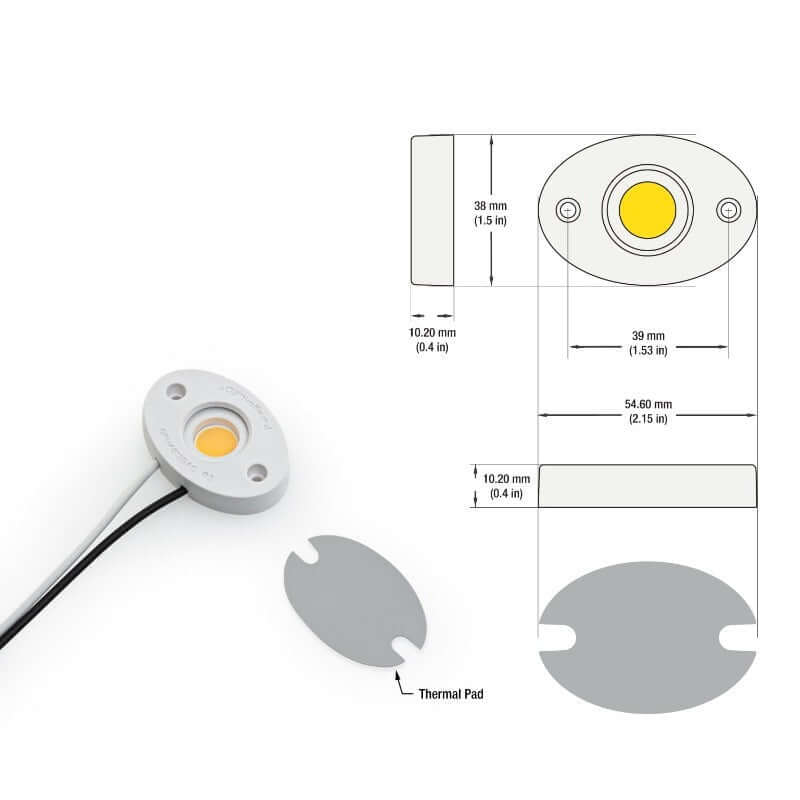

| COB Holder Dimensions |
(Paragon) (Veroboard) |
| COB Module Outer Diameter | ∅27mm (1.06 in) (Paragon) ∅10mm (0.39in) (Veroboard) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

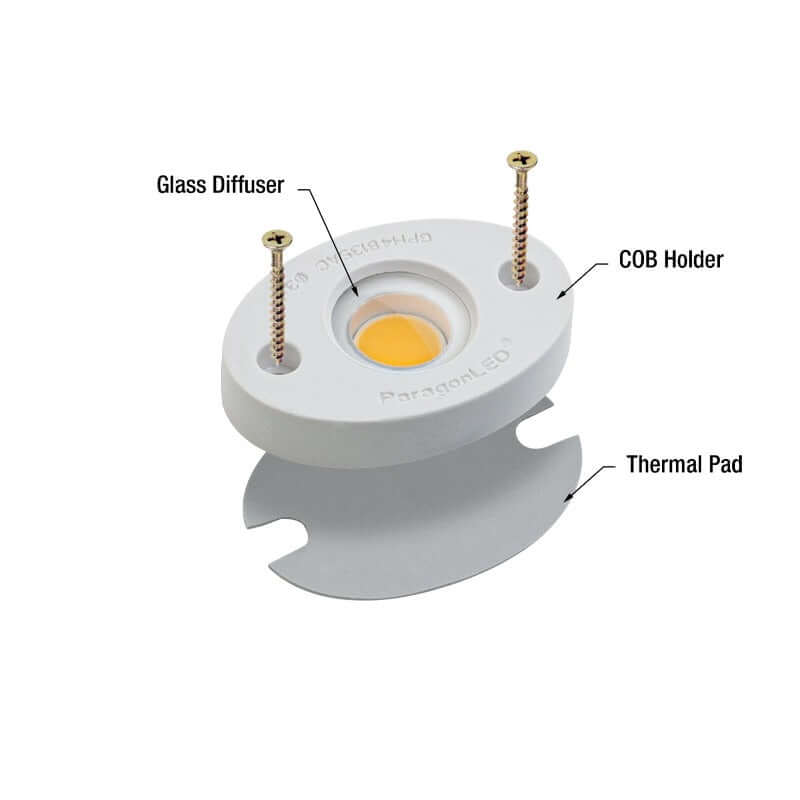

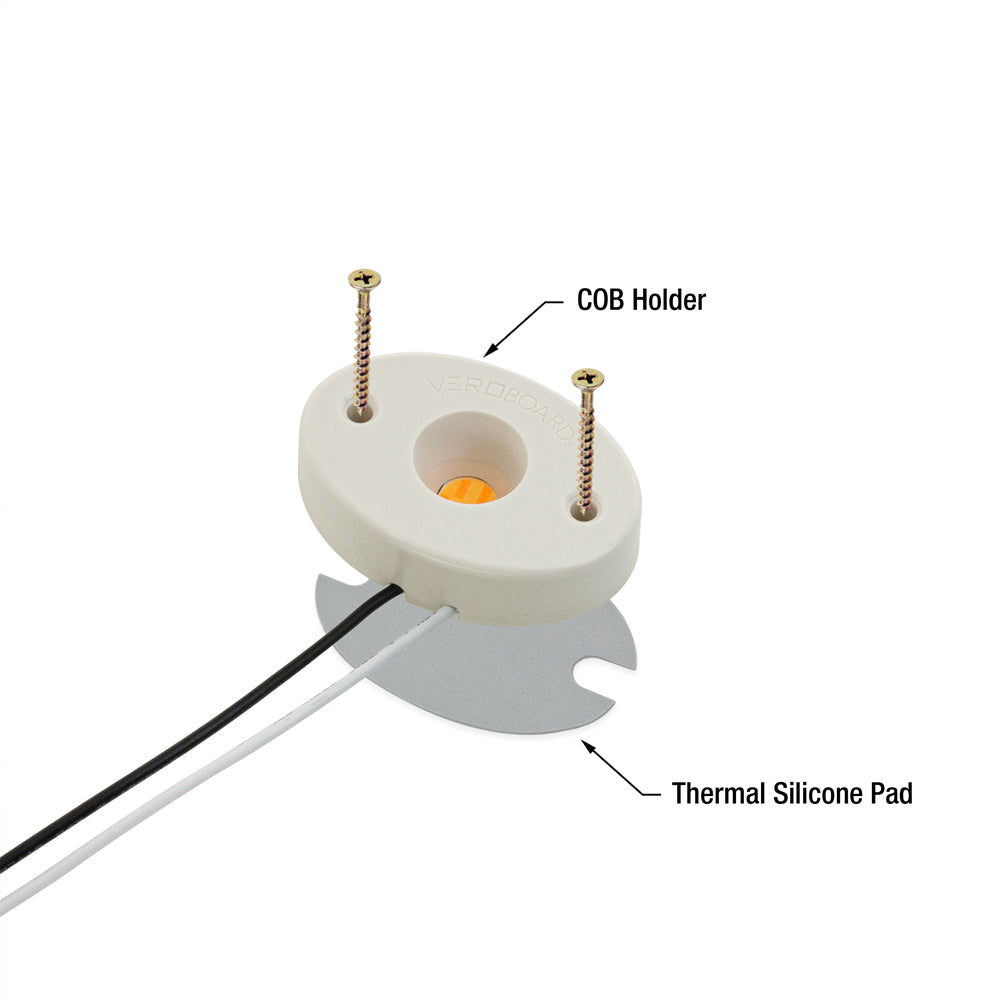

| Included Content | COB Module, COB Holder with Thermal Pad |
| Weight | 0.07 kg |
| Certifications (Paragon) |  |
| Certifications (Veroboard) |

|
Features:
- High-quality COB LED module with 20 LED chips
- Designed to be used with GPH48135A LED Holder
- Operates on 120V AC with a power consumption of 6W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Comes with COB Holder, Thermal Pad, and is UL certified
- Grounding light fixtures is essential for safe and efficient operation
- Silicone grease thermal pad provides heat sink and better heat dissipation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
