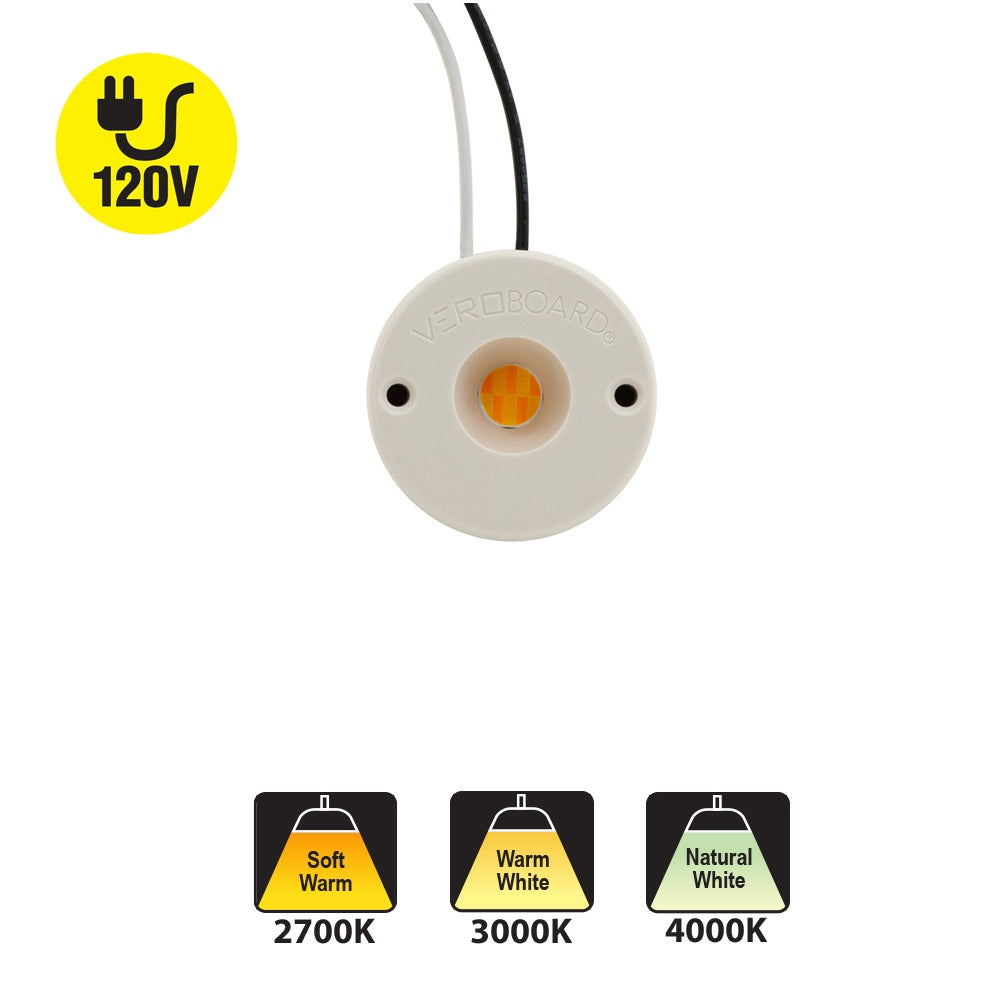

CDAC-20-30135-120V-30 COB Paragon LED Module with H42135AC LED Holder, 120V 6W 3000K(Warm White)

CDAC-20-30135-120V-30 COB Paragon LED Module with H42135AC LED Holder, 120V 6W 3000K(Warm White)

SKU:666561425852

$53.20 CAD
$53.20 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25


Product Description

Product Paragon LED Module
Model  CDAC-20-30135-120V-30
COB Holder Model No H42135AC
LED Type
 COB LED
No LED chips 20

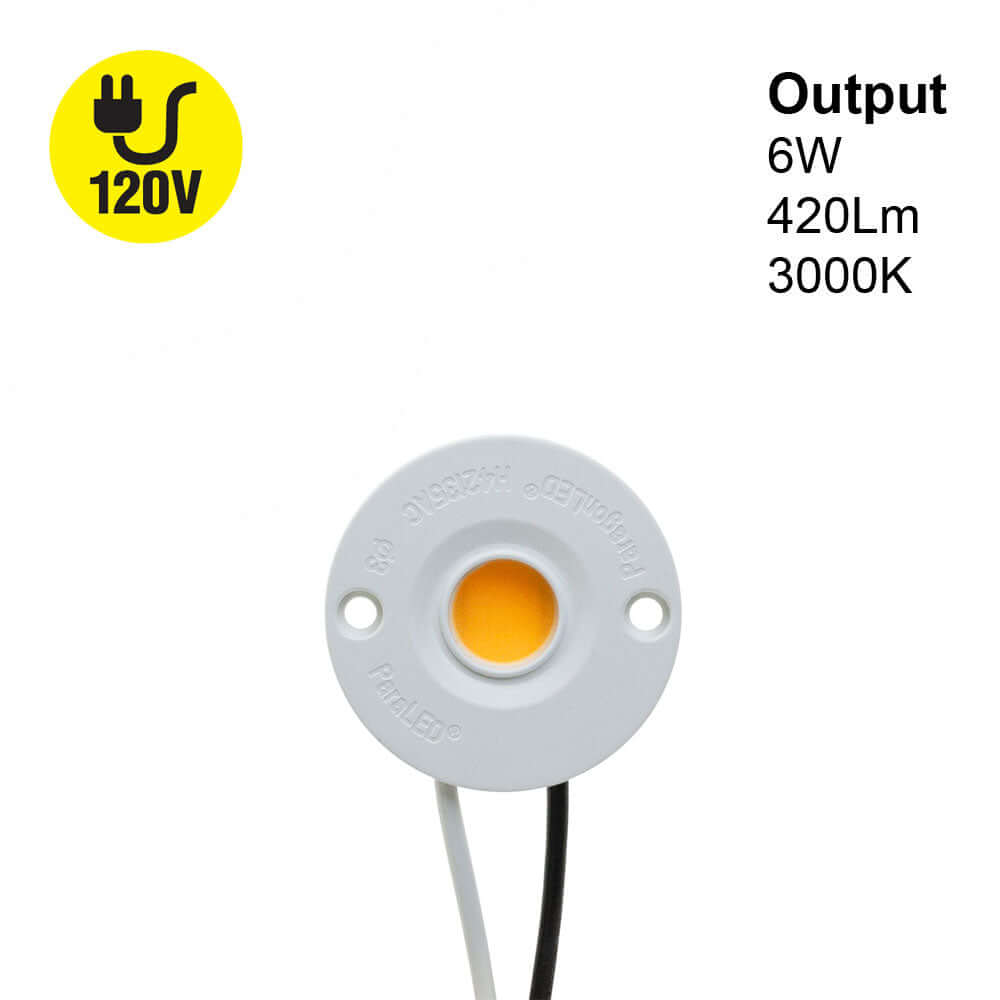

Wattage: 6W
Voltage: 120V AC
Luminous Intensity 420 lumens
Color Temperature 3000K (Warm White)
Dimmable Yes
Rendering Index CRI>90
IP Rating IP20 (Indoor rated)

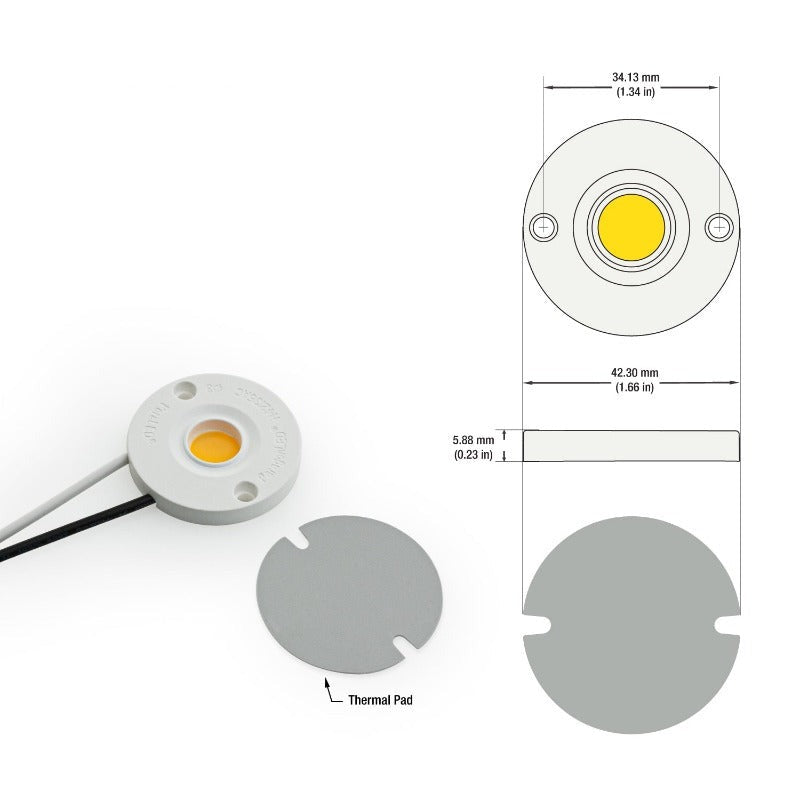

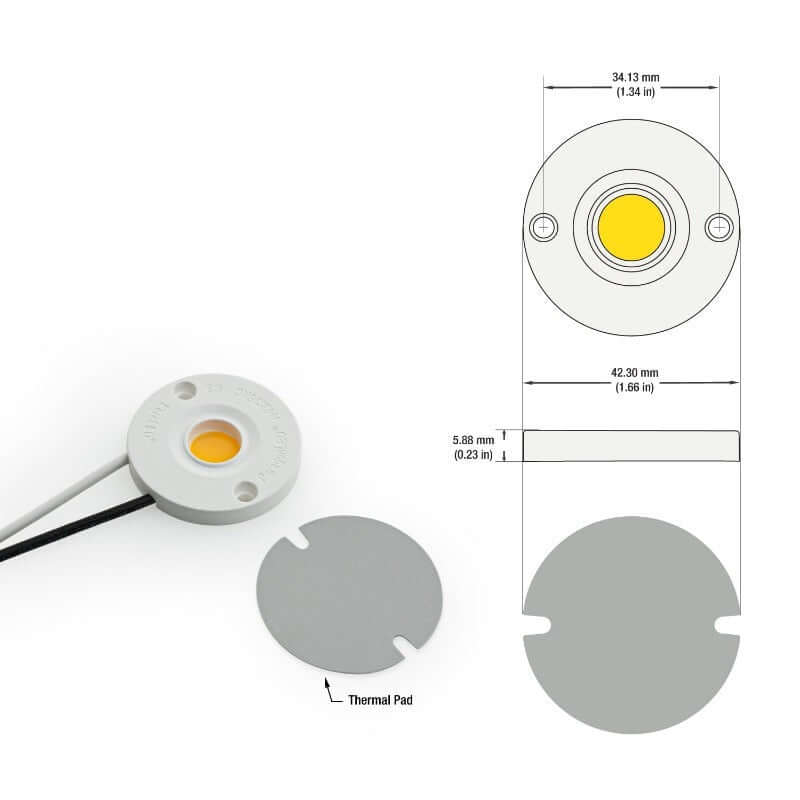

COB Holder Dimensions ∅42.3mm (1.66 in) x H5.88mm (0.23 in)
COB Module Outer Diameter ∅27 mm (1.06 in)
Operating Temperature -60 ~ +105℃
Storage Temperature -60 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV

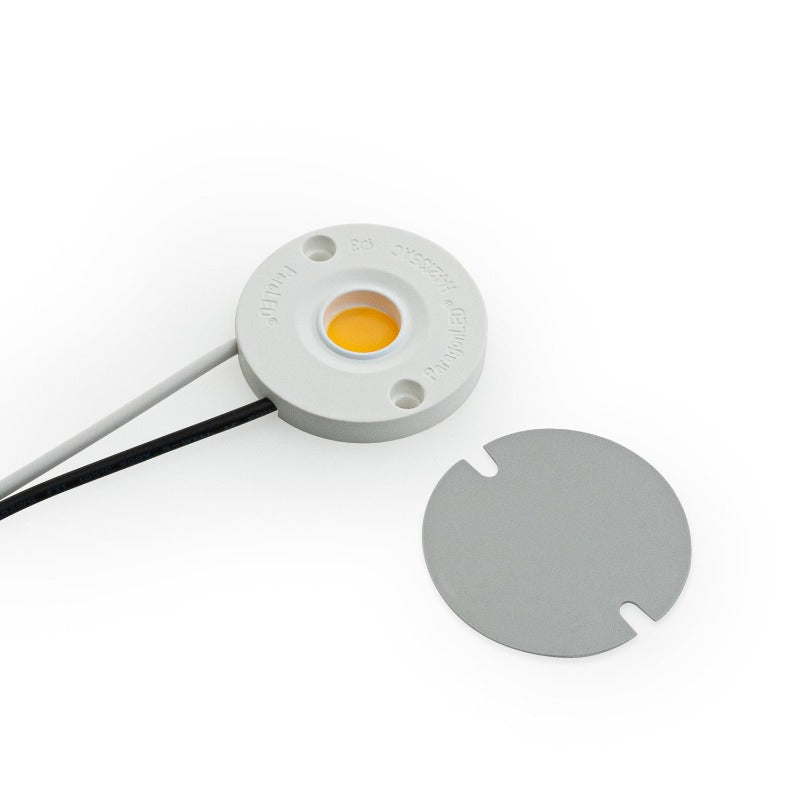

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications



The CDAC-20-30135-120V-30 Paragon LED Module is a high-quality LED lighting component designed for indoor use. It contains 20 COB LED chips that produce a warm white light with a color temperature of 3000K and a high color rendering index (CRI>90) which enhances the quality of light by providing true colors. It operates on 120V AC power and has a power consumption of 6 watts, making it energy-efficient and cost-effective.

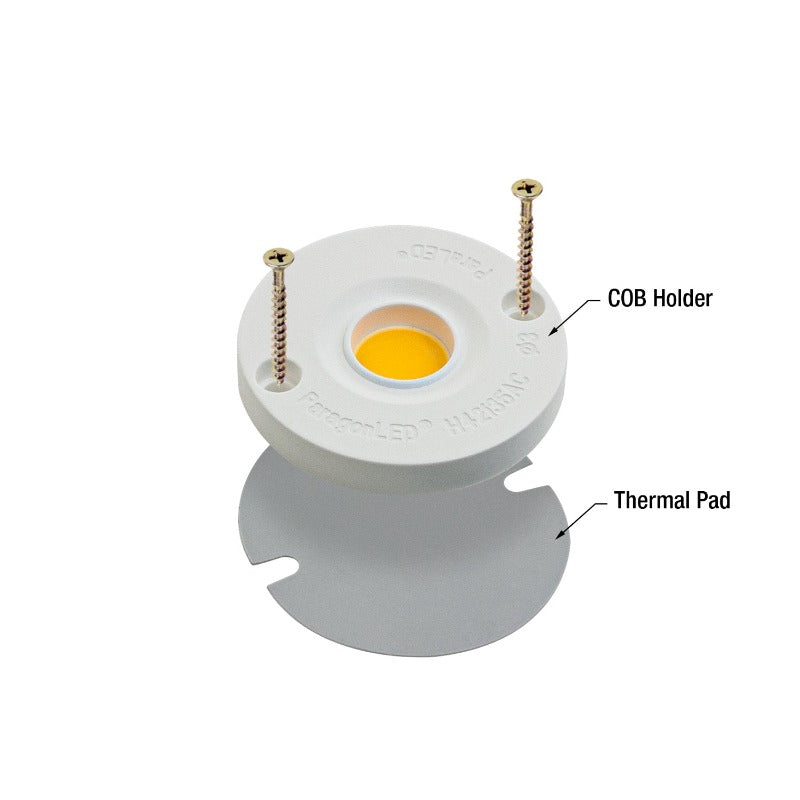

The module is equipped with an H42135AC COB LED holder that provides mechanical and electrical connections to the heat sink, which is essential to prevent the module from overheating. The holder has dimensions of ∅42.3mm (1.66 in) x H5.88mm (0.23 in) and is suitable for use with an aluminum heat sink.

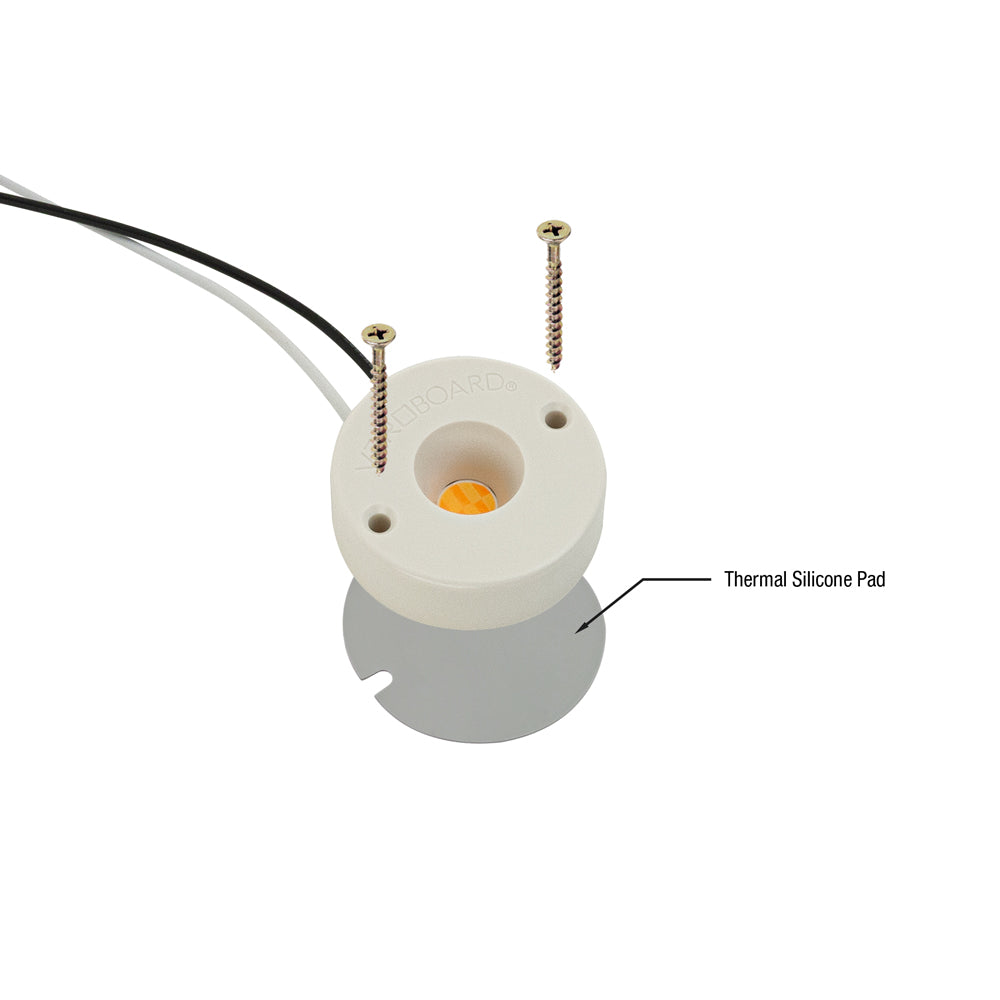

To enhance its heat dissipation, the module comes with a silicone grease thermal pad that can withstand temperatures up to 300℃ and has a dielectric breakdown voltage of over 4KV. This pad increases the life span of the module and improves its overall performance.

Features:

  • High-quality LED lighting component designed for indoor use
  • Contains 20 COB LED chips that produce warm white light with a color temperature of 3000K and CRI>90
  • Operates on 120V AC power with a power consumption of 6 watts
  • Equipped with an H42135AC COB LED holder suitable for use with an aluminum heat sink
  • Comes with a silicone grease thermal pad that can withstand temperatures up to 300℃ and has a dielectric breakdown voltage of over 4KV
  • Dimmable and has an IP20 rating, making it suitable for indoor use in damp locations
  • Certified by UL for safety standards
  • Grounding light fixtures is essential for safe operation
  • Provides energy efficiency, reliability, and superior performance for indoor lighting applications
