Product Description
| Product | Paragon LED Module |
| Model No | CBHT-42-30135-120V-30-G03 |
| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 6WÂ |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |

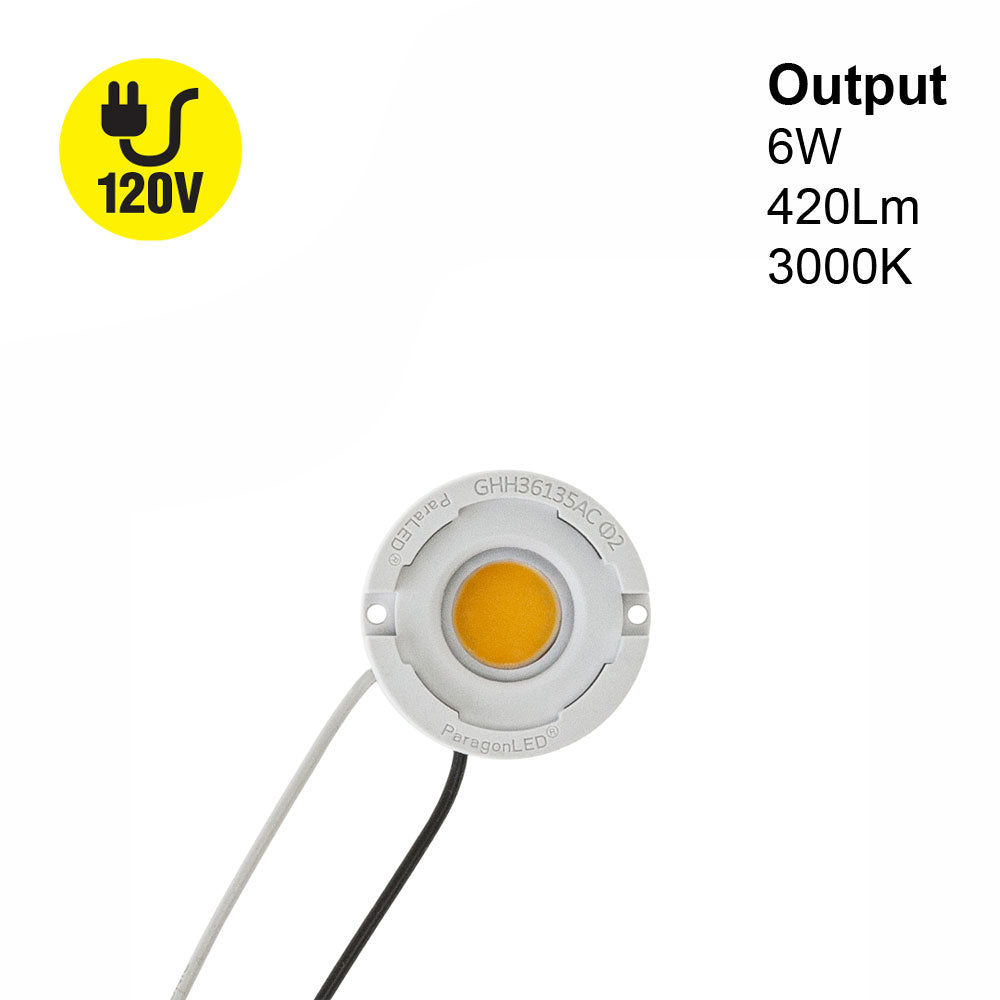

| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

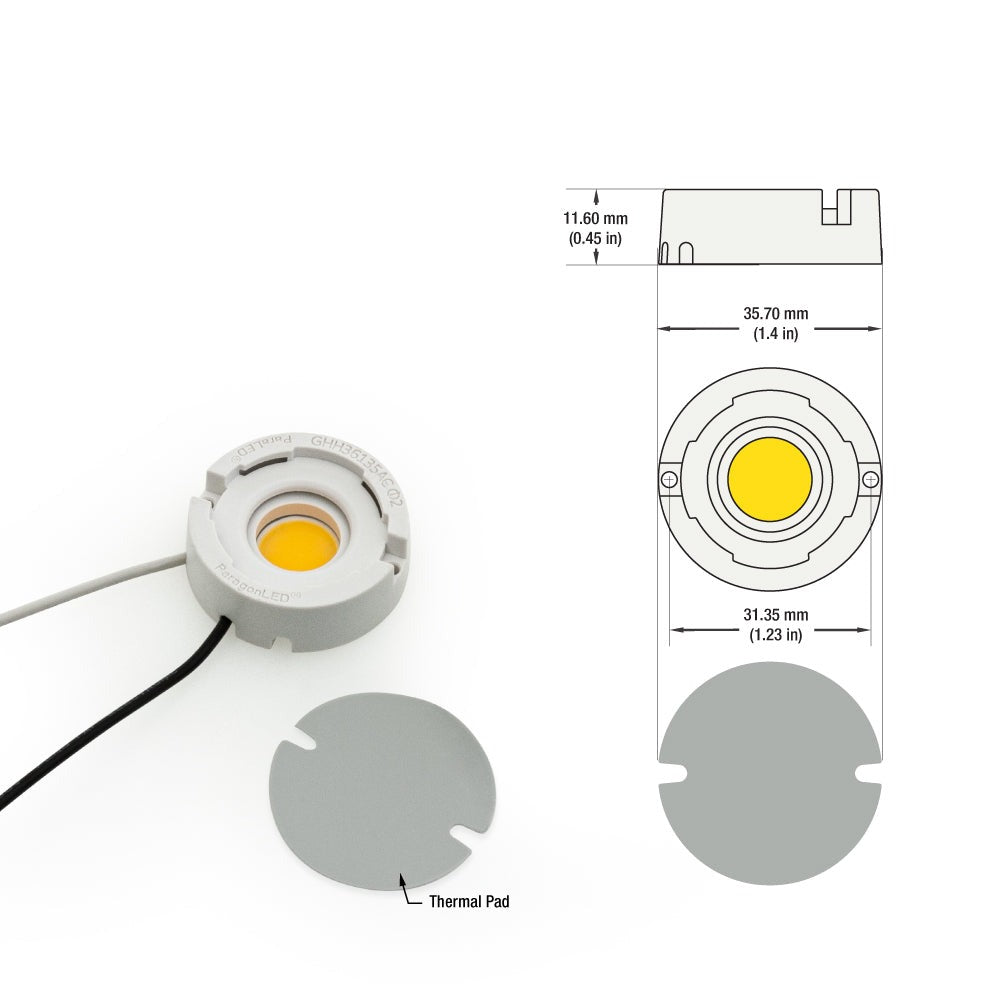

| COB Holder Dimensions | ∅35.7mm (1.4 in) x H11.60mm (0.45 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

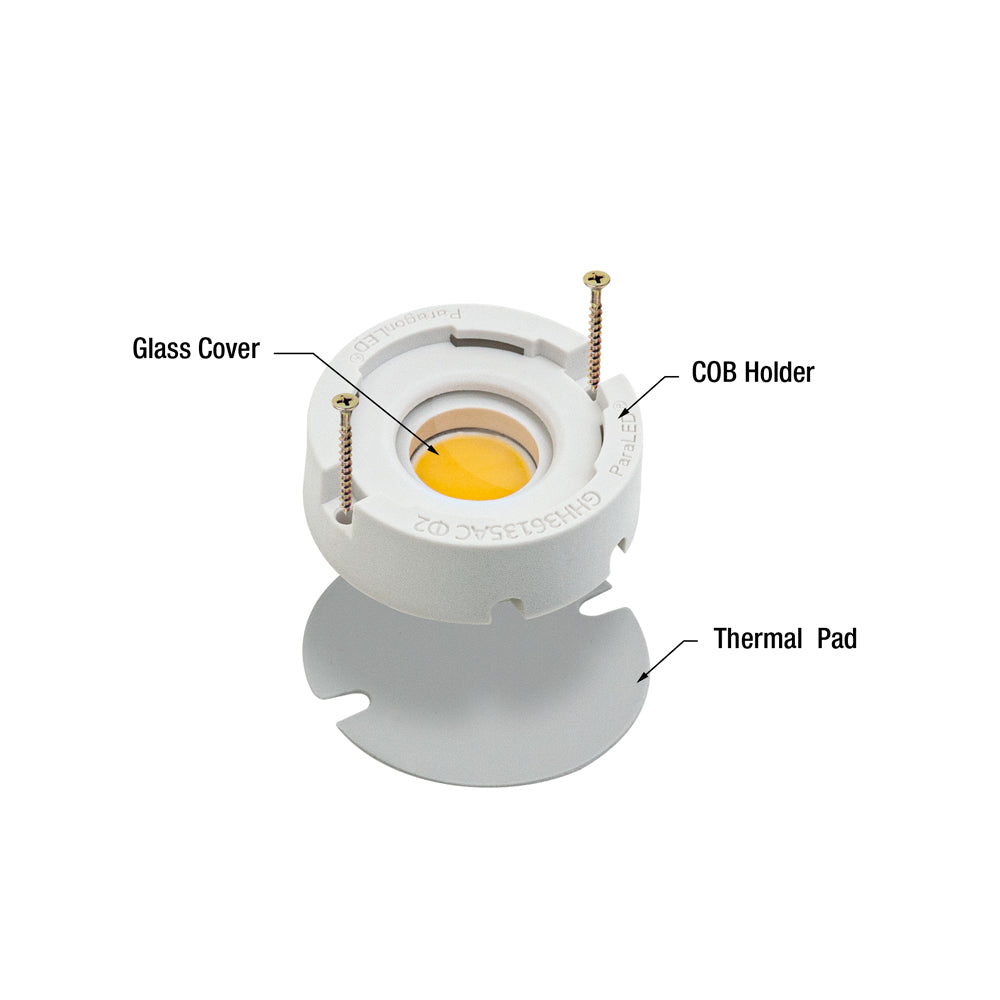

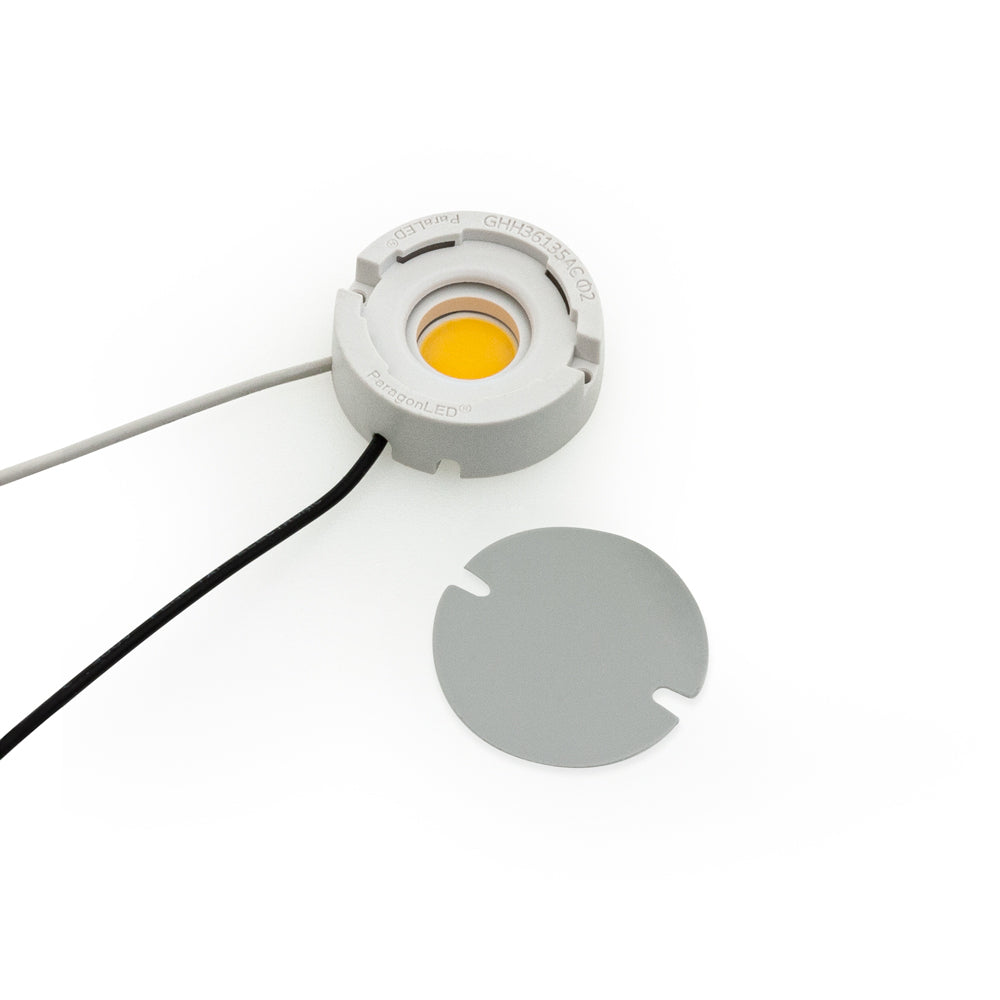

| Included Content | COB Module, COB LED Array Holder, Thermal Pad |
| Certifications |  |
The CBHT-42-30135-120V-30-G03 Paragon LED Module is a high-quality LED lighting component designed for indoor use. It contains 42 COB LED chips that produce a warm white light with a color temperature of 3000K and a high color rendering index (CRI>90) which enhances the quality of light by providing true colors. It operates on 120V AC power and has a power consumption of 6 watts, making it energy-efficient and cost-effective.
The module is equipped with a GHH36135AC COB LED array holder that provides mechanical and electrical connections to the heat sink, which is essential to prevent the module from overheating. The holder has dimensions of ∅35.7mm (1.4 in) x H11.60mm (0.45 in) and is suitable for use with an aluminum heat sink.
To enhance its heat dissipation, the module comes with a silicone grease thermal pad that can withstand temperatures up to 300℃ and has a dielectric breakdown voltage of over 4KV. This pad increases the life span of the module and improves its overall performance.
Features:
- Contains 42 COB LED chips
- Color temperature of 3000K
- High color rendering index (CRI>90)
- Operates on 120V AC power
- Power consumption of 6 watts
- GHH36135AC COB LED array holder provides mechanical and electrical connections to the heat sink
- Suitable for use with an aluminum heat sink
- Silicone grease thermal pad enhances heat dissipation and can withstand temperatures up to 300℃
- Dielectric breakdown voltage of over 4KV
- Dimmable feature
- IP20 rating, suitable for indoor use in damp locations
- Certified by UL
- Grounding light fixtures is important when designing lamps with this module
- Provides energy efficiency, reliability, and superior performance for indoor lighting applications.
