VBD-012-024DM Triac Dimmable Constant Voltage LED Driver, 12V 2.0A 24W

VBD-012-024DM Triac Dimmable Constant Voltage LED Driver, 12V 2.0A 24W

SKU:666561415761

$76.85 CAD
$76.85 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25



Product Description

Product
 Constant Voltage LED Driver
Model VBD-012-024DM
Input Voltage 100-130V AC
Input Current 0.38A
Frequency 47/63 Hz
Output Voltage 12V DC
Output regulated Current 2.0A
Output Power 24W max
Power Factor 0.68
Dimmable Yes (Phase/ Triac/ Magnetic Low Voltage Dimming)
IP Rating IP20
Class Certification Class 2/ Class II/ SELV

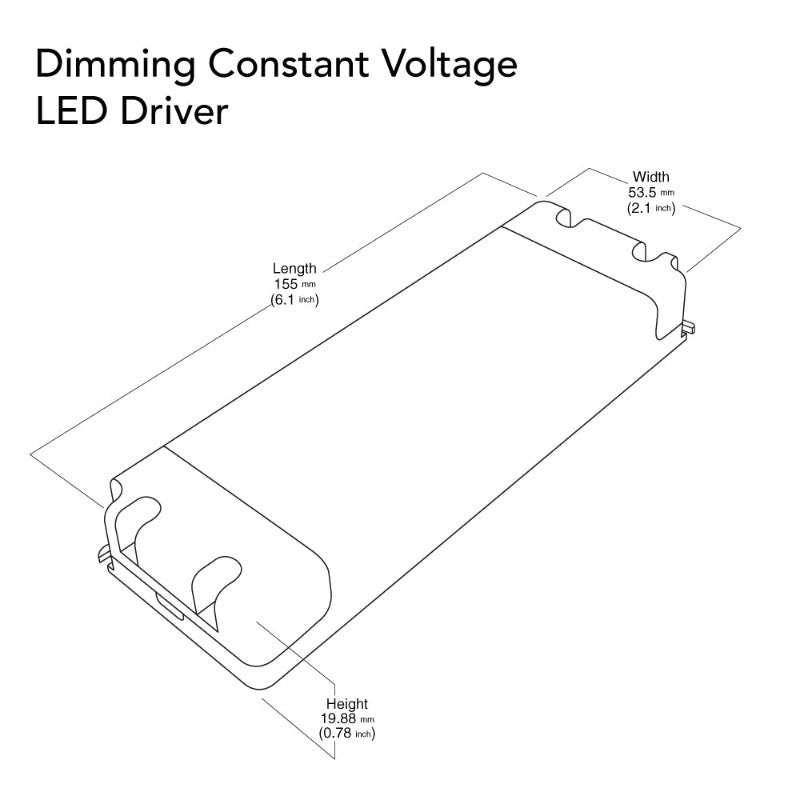

Dimensions (Without Box) 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in)

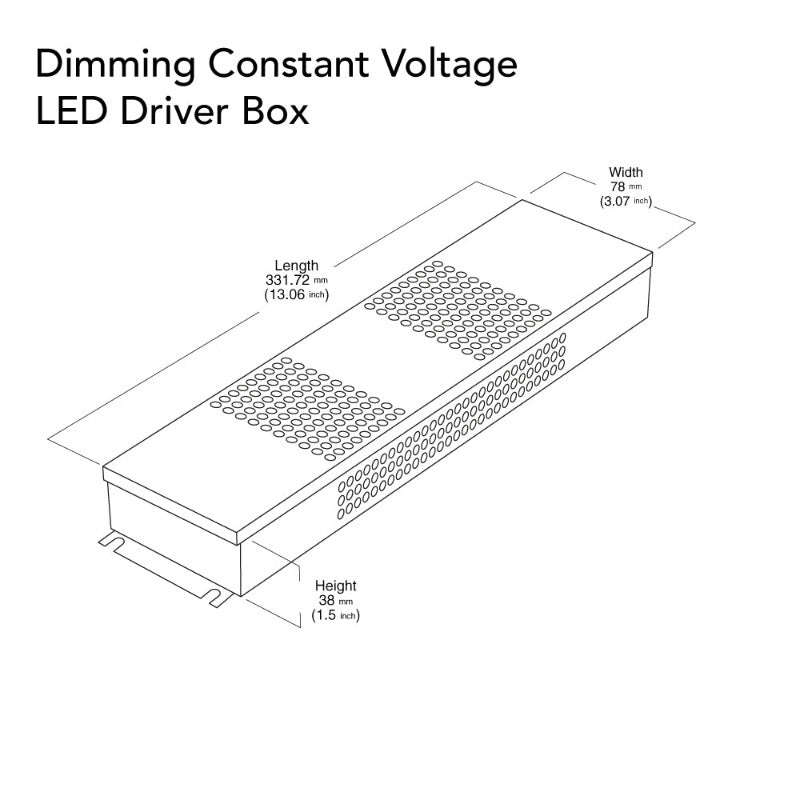

Dimensions (Box) 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certification

Compatible with Forward-Phase, Triac, MLV Dimmers
Suitable for Dry and Damp Locations



The VBD-012-024DM Constant Voltage LED Driver is designed to power LED lighting systems with a constant output voltage of 12 volts and output current of 2.0 amps, which delivers a maximum output power of 24 watts. The constant voltage driver is dimmable using 100-130V AC, making it suitable for a wide range of lighting applications.

The input current required for the device to operate is 0.38A. It is classified as a Class 2 power supply, indicating that it is a low voltage power supply with limited power output.

Furthermore, the VBD-012-024DM LED driver is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization. This certification assures users that the device is safe to use and meets quality standards for electrical devices.

Features:

  • The VBD-012-024DM Constant Voltage LED Driver is designed for LED lighting systems.
  • It provides a constant output voltage of 12 volts and output current of 2.0 amps.
  • The maximum output power of the device is 24 watts.
  • It is dimmable using 100-130V AC, making it suitable for various lighting applications.
  • The input current required for the device to operate is 0.38A.
  • It is classified as a Class 2 power supply with limited power output.
  • The VBD-012-024DM LED driver is certified by ETL, ensuring that it meets safety standards and compliance regulations.
