Flat Round PCB6 SMD 3528 Constant Voltage LED Module, 12V 0.6W 110mA (1.5K-1.7K, 2.2K, 3K, 5K)

Flat Round PCB6 SMD 3528 Constant Voltage LED Module, 12V 0.6W 110mA (1.5K-1.7K, 2.2K, 3K, 5K)

SKU:666561413477

$4.90 CAD
$4.90 CAD
Sale Sold out
Shipping calculated at checkout.
Select Color Temperature

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Constant Voltage LED Module
Voltage 12V
Wattage 0.6W
Current 110mA
Luminous Flux 48 lumens (8 lm/SMD)
Dimmable Yes
LED Quantity 6 SMD
LED Type 3528
Color Temperature 1500-1700K (candle light white)
2200K (Soft White)
3000K (Warm White)
5000K (Daylight)
Material Metallic base
Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

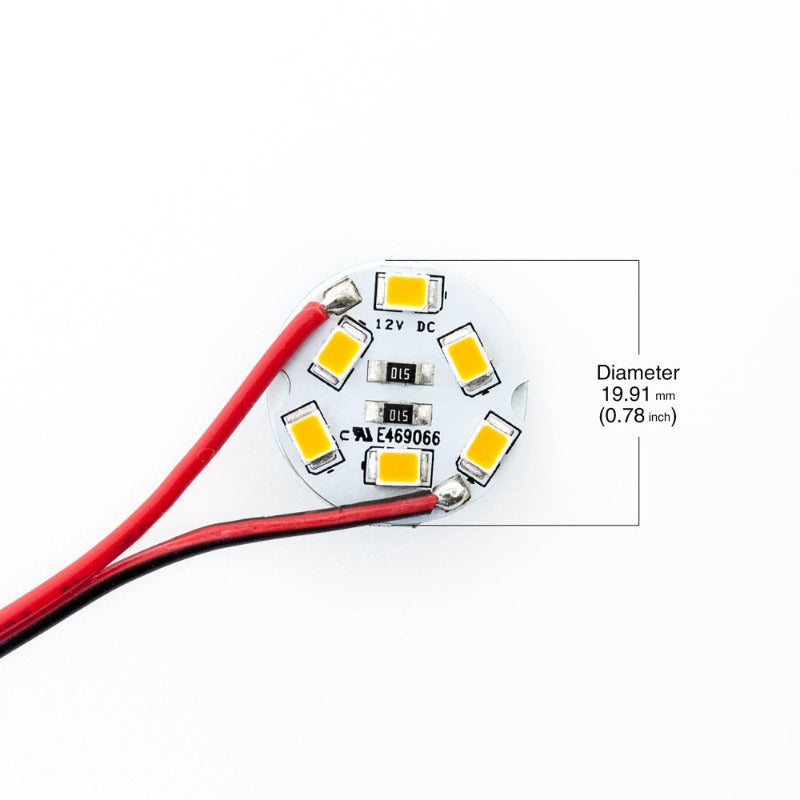

Dimensions Ø 20mm (0.78in)
H 2.6mm (0.1in)
Certification

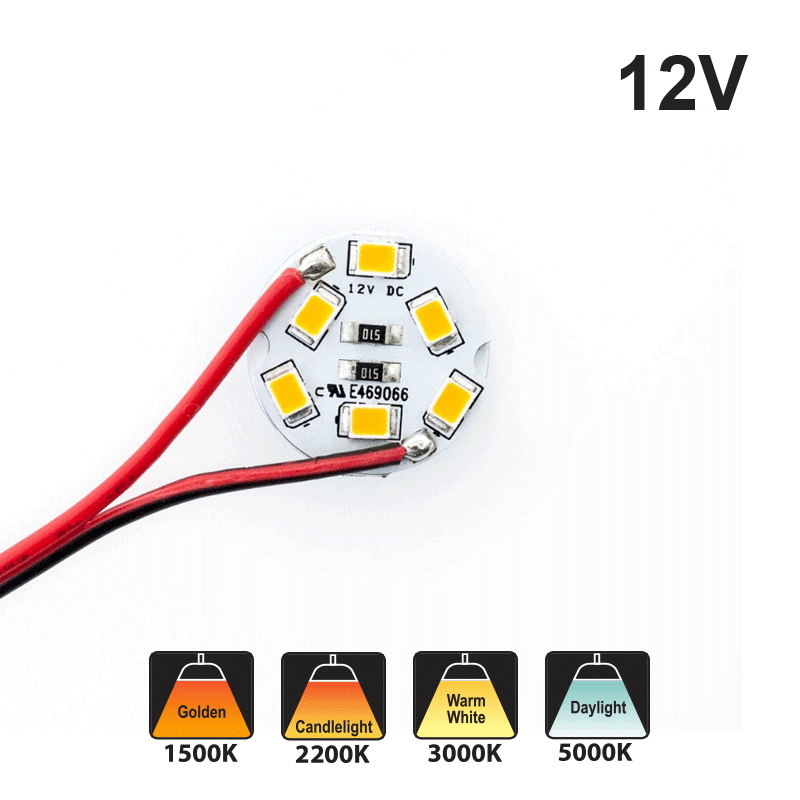

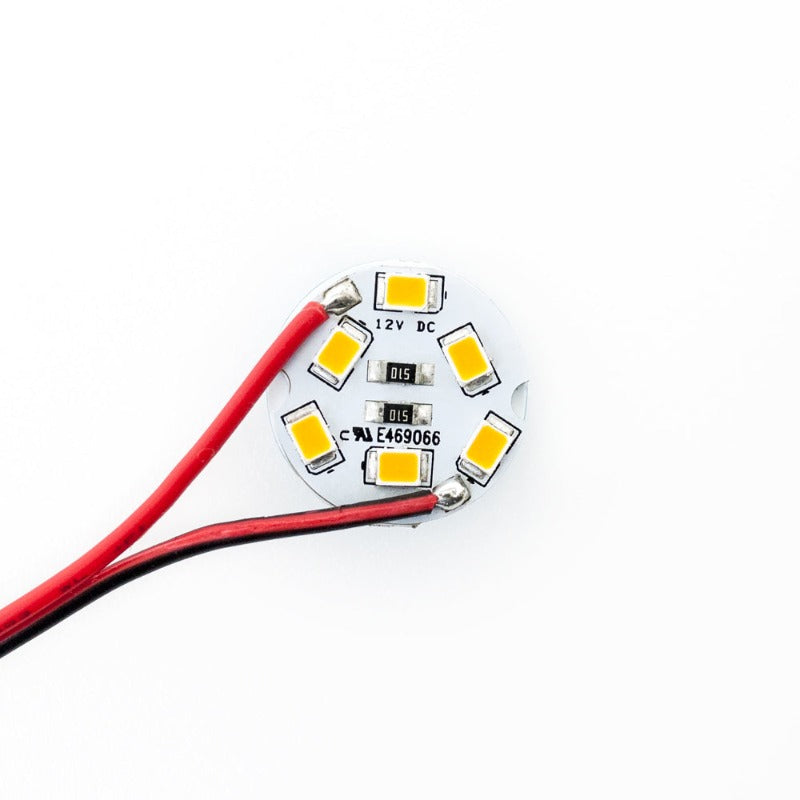

The Flat Round PCB6 SMD 3528 LED is a compact electronic device designed to emit warm and cozy light. Operating at a voltage of 12V, wattage of 0.6W, and a current of 110mA, this LED module comes with 6 SMD 3528 LEDs that provide a total luminous flux of 48 lumens, with 8 lumens per LED. The LED module is dimmable, allowing you to adjust the light output according to your needs.

The LED module has a metallic base material, making it sturdy and durable, ensuring long-lasting use. The PCB size is ø20 mm (0.78 inches) in diameter, making it easy to install.

The LED module is available in multiple color temperatures, including 1500-1700K (candle light white), 2200K (Soft White), 3000K (Warm White), and 5000K (Daylight), making it suitable for a variety of applications. This LED module is highly energy-efficient and has low power consumption, making it an eco-friendly lighting option.

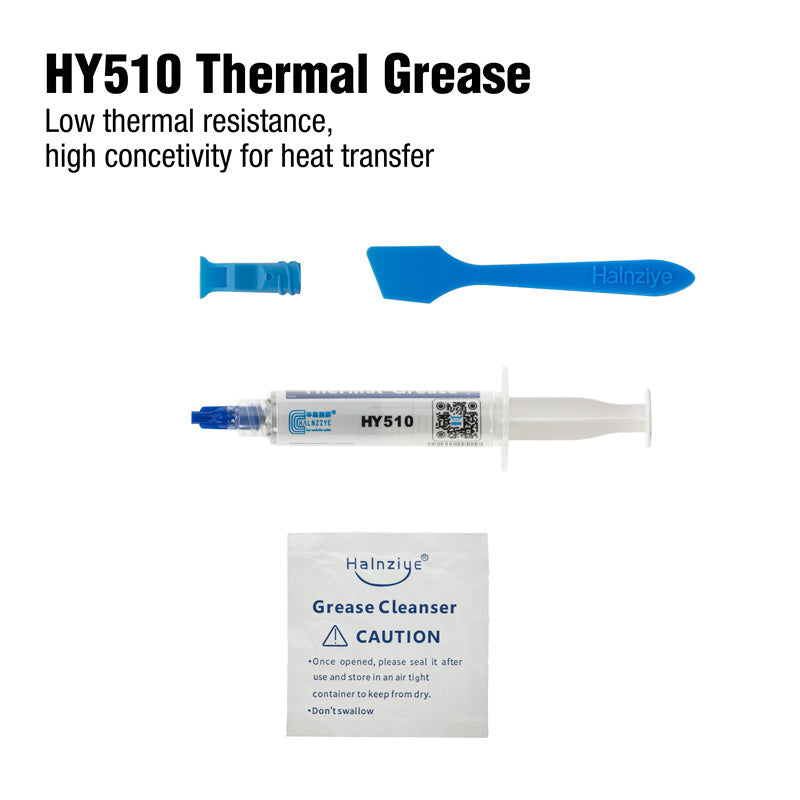

This LED module is an excellent DIY product for replacing damaged LEDs of the same voltage and wattage in any fixture. The package content includes the LED module and Thermal Grease HY510 (5gr), which aids in heat dissipation and prolongs the lifespan of the LED module.

This LED module is certified to meet safety and quality standards, ensuring reliable and safe use. It is a practical and affordable lighting solution suitable for any budget.

Features:

  • Compact design with 6 SMD 3528 LEDs that provide a total luminous flux of 48 lumens, with 8 lumens per LED
  • Dimmable LED module that allows you to adjust the light output according to your needs
  • Metallic base material for durability and longevity
  • Available in multiple color temperatures, including 1500-1700K (candle light white), 2200K (Soft White), 3000K (Warm White), and 5000K (Daylight)
  • Highly energy-efficient and has low power consumption, making it an eco-friendly lighting option
  • An excellent DIY product for replacing damaged LEDs of the same voltage and wattage in any fixture
  • Certified to meet safety and quality standards, ensuring reliable and safe use
  • Package content includes the LED module and Thermal Grease HY510 (5gr), which aids in heat dissipation and prolongs the lifespan of the LED module
  • A practical and affordable lighting solution suitable for any budget.
  • Use Thermal Grease or Thermal Pad for installation.
