Product Description
| Product | Under Cabinet Linear Lighting |
| Model | S5B |
| Light Voltage | 12V |
| Light Wattage | 3W/ft |

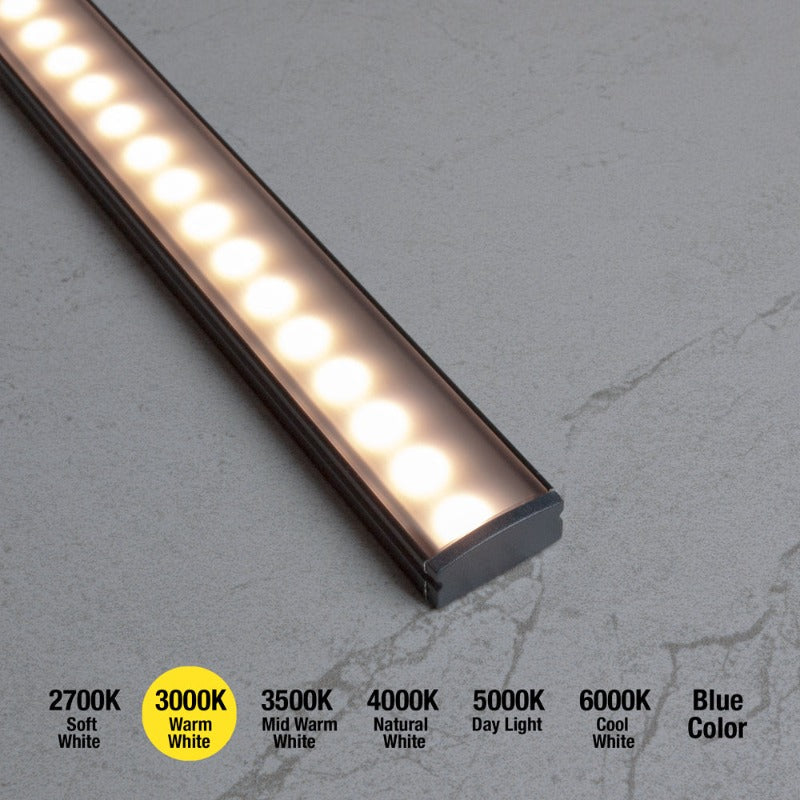

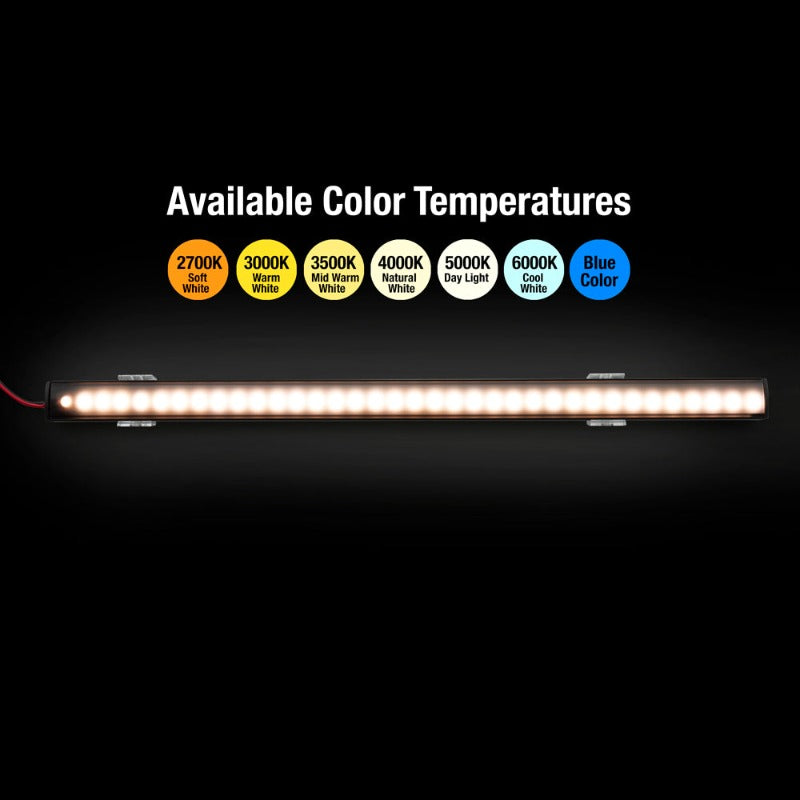

| Available color temperatures | 2700K (Soft White) 3000K (Warm White) 3500K (Mid-Warm White) 4000K (Natural White) 5000K (Daylight) 6000K (Cool White) Blue |
|
Led strip type |
3528 |
| LED Quantity | 40 LEDs/Ft (120 LEDs/m) |
| Luminous Flux: | 306 Lm/Ft |
| Fixture color Finish | Black |
| Dimmable: | Yes |
| Waterproof Rating | IP20 (dry and Damp locations) |
| Package content |
|

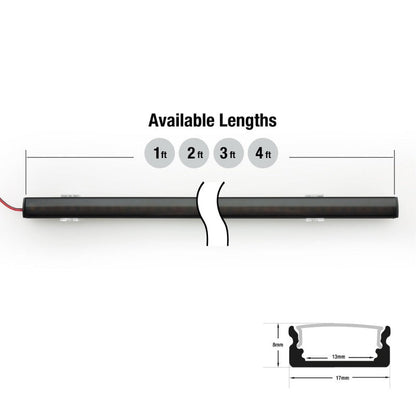

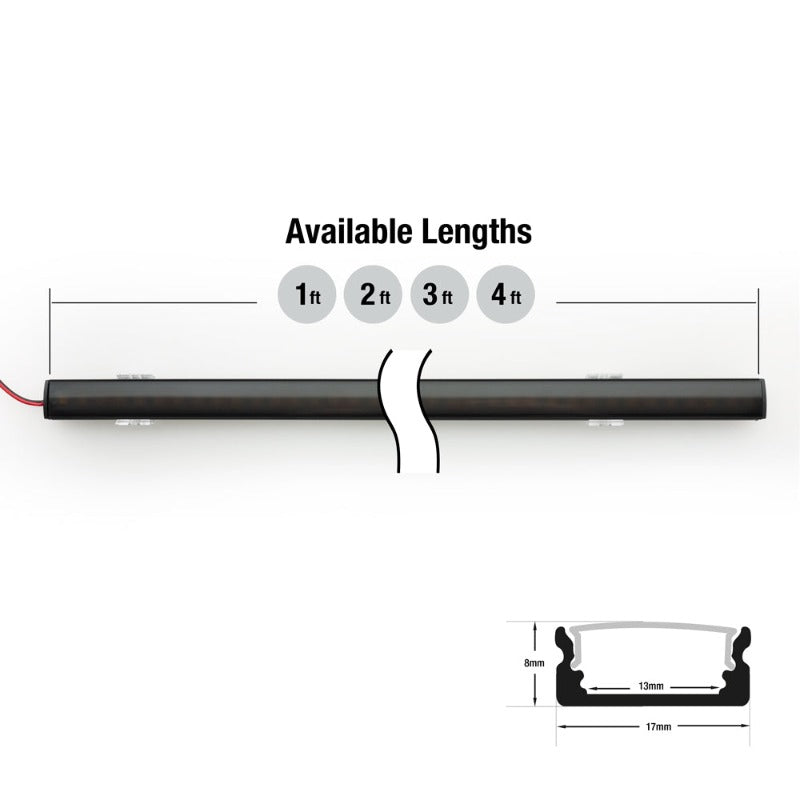

| Dimensions | Custom Length x W17 x H8 mm |
The product needs a 12V constant voltage power supply and a dimmer for dimming the lights.
Features:
- The Aluminum extrusions are anodized and can be spray painted to any desired color.

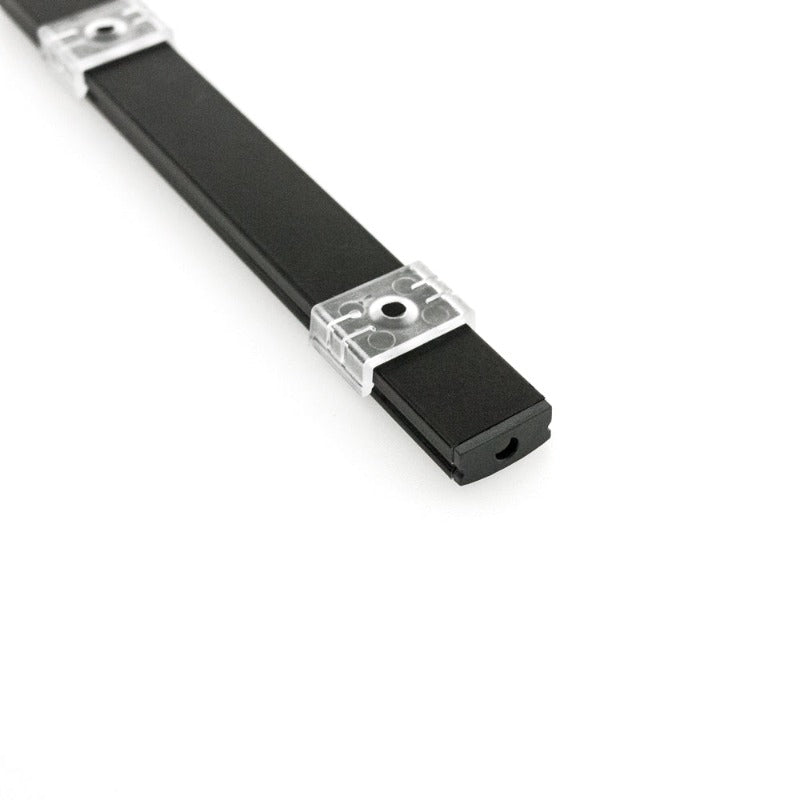

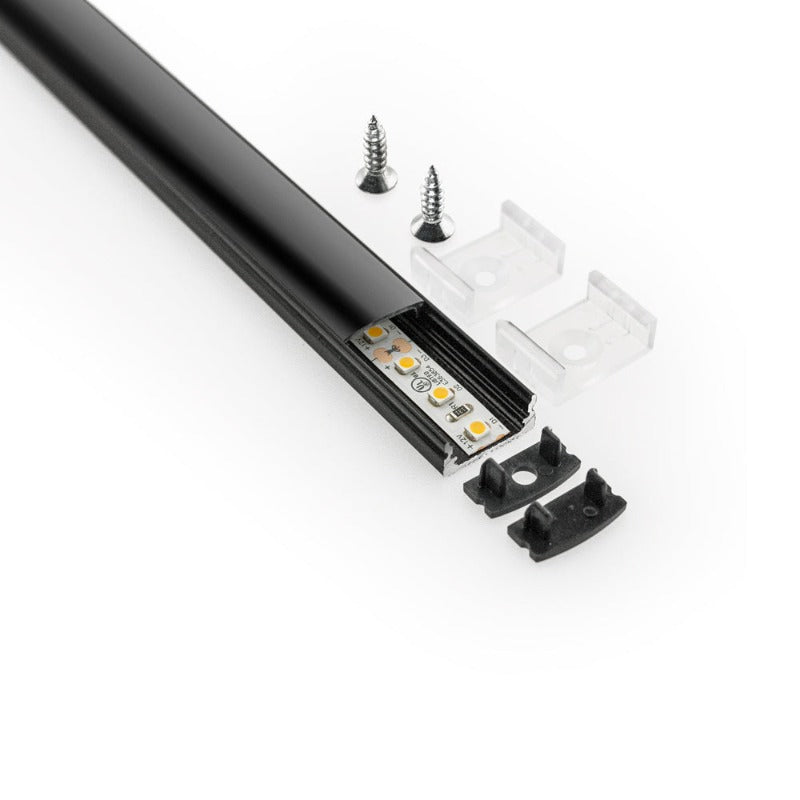

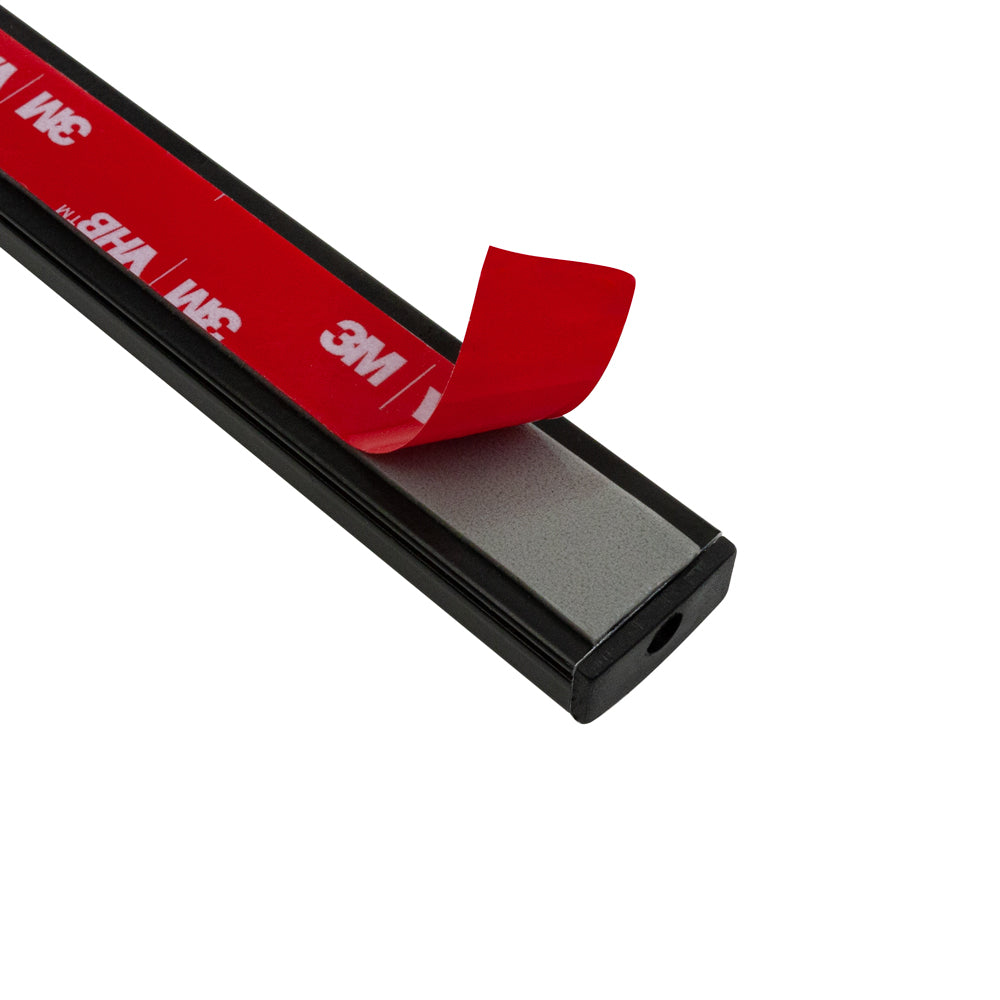

- They can be mounted directly on the surface by either using double-sided tape or screwing them through mounting brackets.
- Provides protection from dust and humidity for the pre-installed LED strips.
- Increases the lifespan of the LED, by acting as a heat sink to the pre-installed LED strips.
- Several lengths can be positioned together.
- The LED strips inside this aluminum channel are well heat dissipated and maintain all North American standards.
- The LED strip lights are manufactured with high-quality materials and designed for professional lighting and durable for a long period.
