Product Description
| Product | LED Module |
| Model No | LIN 18-015W-930-120-S3-Z1B |
| No of LEDs | 80 |
| Wattage | 15W |
| Voltage | 120V AC |
| Luminous Flux | 1500Â lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |

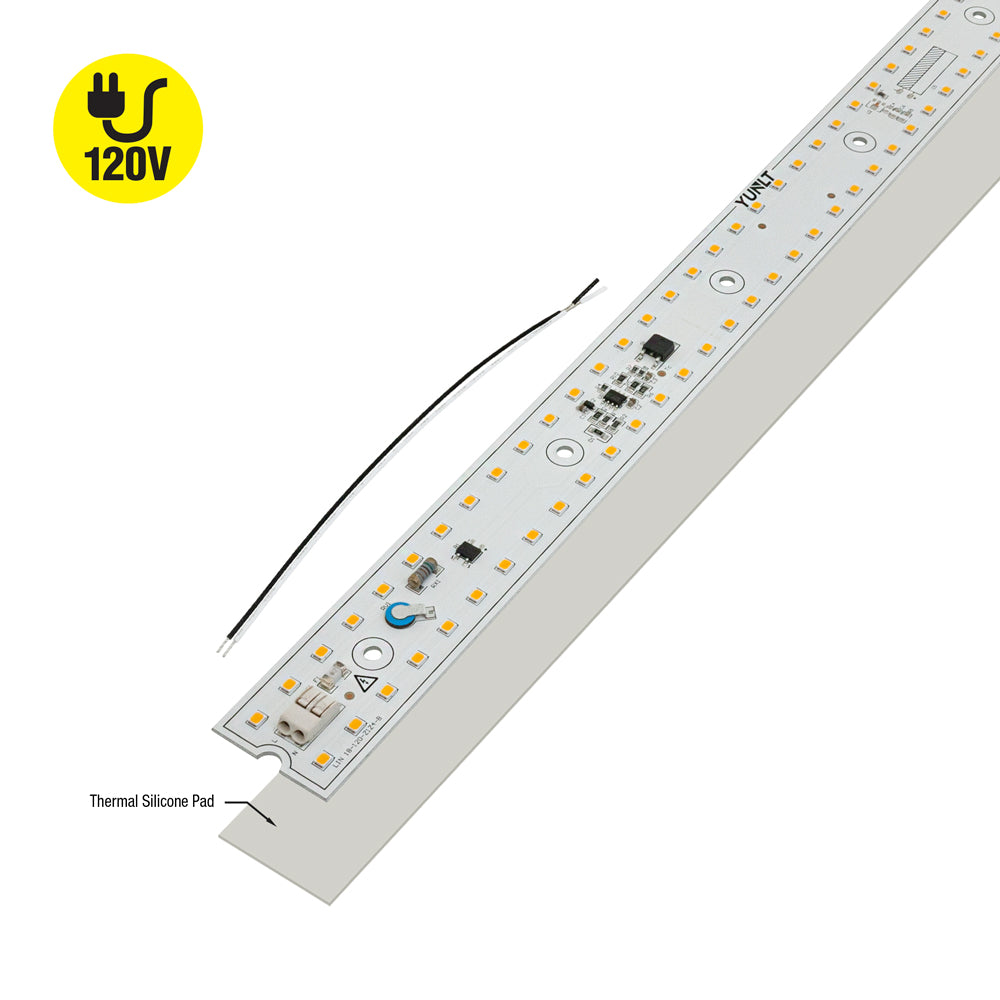

| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

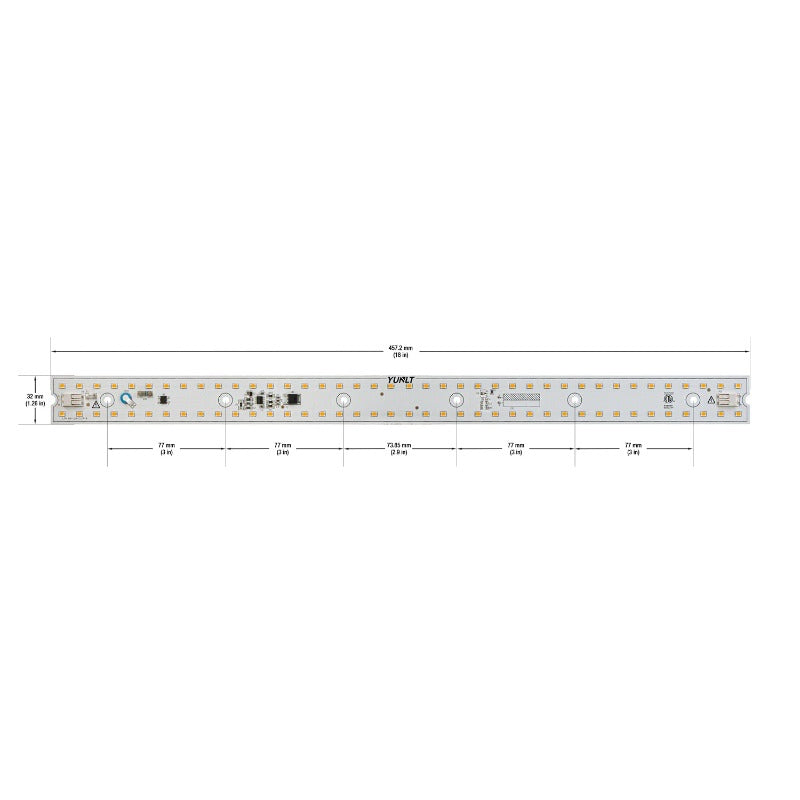

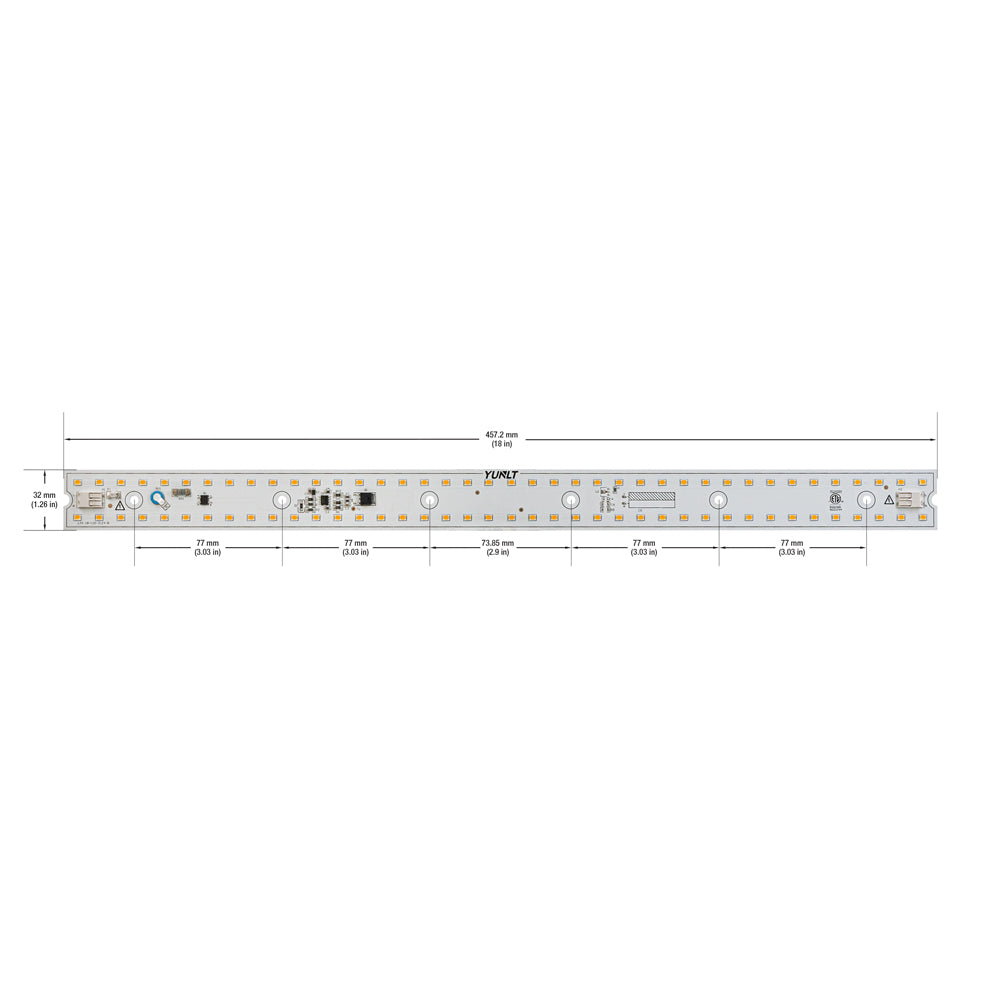

| Dimensions | 457.0mm (18 inch) x 32 mm (1.25 inch) |
| Diameter of the screw hole | 3.5mm (0.14 in) |
| Height | 6mm (0.23in) |
| Certification |
 Â |
The LIN 18-015W-930-120-S3-Z1B is an 18-inch linear LED module driverless engine that provides high-quality, energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 15W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1500 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.
The dimensions of the module are 457.0mm (18 inch) in length and 32 mm (1.25 inch) in width. The diameter of the screw hole is 3.5mm (0.14 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the LIN 18-015W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is a premier quality light engine that produces up to 1500 lumens of exceptional light while consuming low power and providing high energy efficiency. It is a good DIY product for the replacement of a ceiling light or bulb source.
It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a linear profile.
Features:
- 18-inch linear LED module driverless engine
- Contains 80 LEDs with a wattage of 15W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K and CRI>90
- Luminous flux of 1500 lumens suitable for under-cabinet lighting, task lighting, and display lighting
- Dimmable and comes with a thermal silicon pad for even heat distribution
- Dimensions of 457.0mm (18 inch) length, 32 mm (1.25 inch) width, and a 3.5mm (0.14 in) screw hole diameter
- Includes a 6-inch black and white power feed for easy installation
- Premier quality light engine with low power consumption and high energy efficiency
- Designed for DIY replacement of a ceiling light or bulb source
- Certified by ETL for safe and reliable use.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
