Product Description
| Product | Inground Light |
| Model | UL-1020-0500-A |
| Operating Voltage | 24V DC |
| Light Source | 1 x 5W |
| Total Power Consumption | 5W |
| Color Temperature | 3000K (Warm White) |
| Brightness | 400-500 Lumens |
| Bulb Type | Integrated COB LED |
| Housing Material | Die-cast Aluminum body |
|
Cap Color Finish |
Stainless Steel |
|
Optics |
Primary optics (Fresnel lens) |
| Beam Angle | 36° lens |
| IP Rating | IP67 |
| IK Rating | IK06 |
| Dimmable | Yes |
| Weight | 0.6 kg |

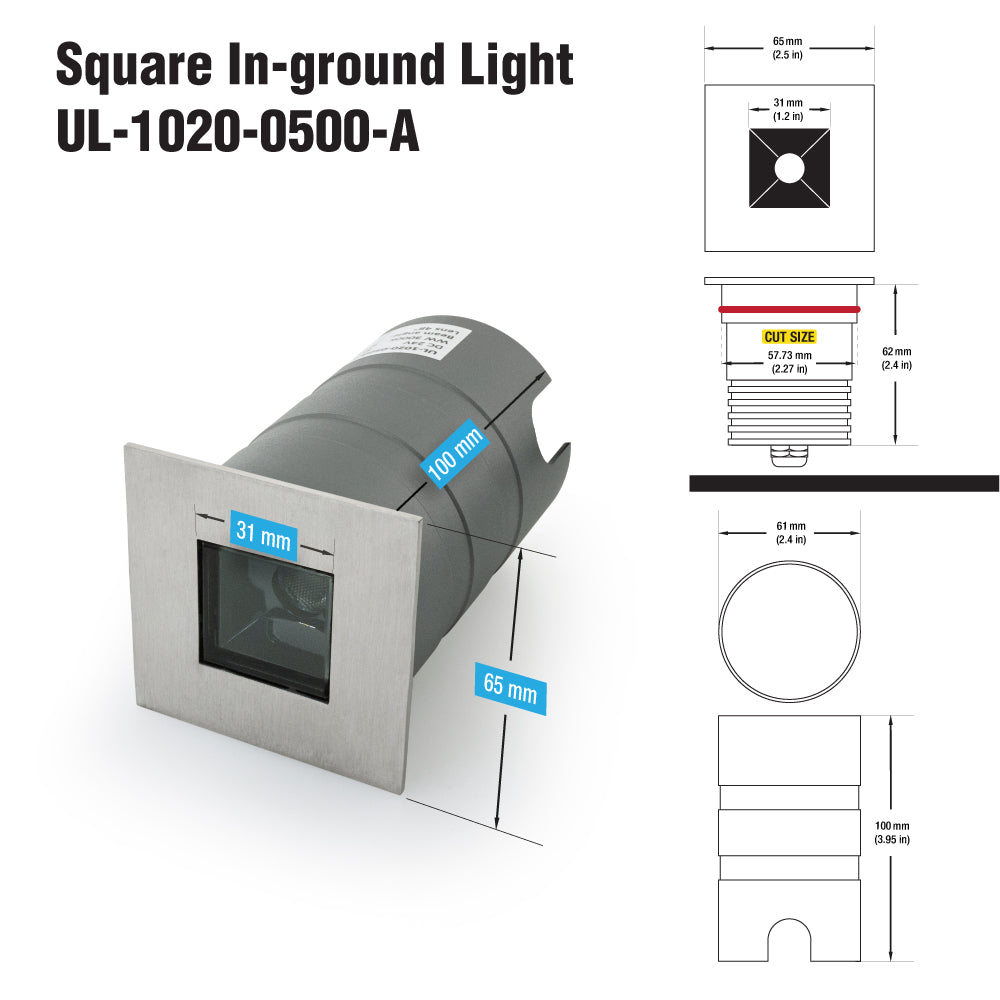

| Cut Size | Ø57.73mm (2.27in) |
| Cable Size |
Length: 1m (39.3in) Ø7.5mm (0.29in) 18AWG |
|
Dimensions with Housing |
Side – 65 mm (2.5 inches) |
|
Dimensions without Housing |
Side – 65 mm (2.5 inches) |
| Certification |

|
Features:

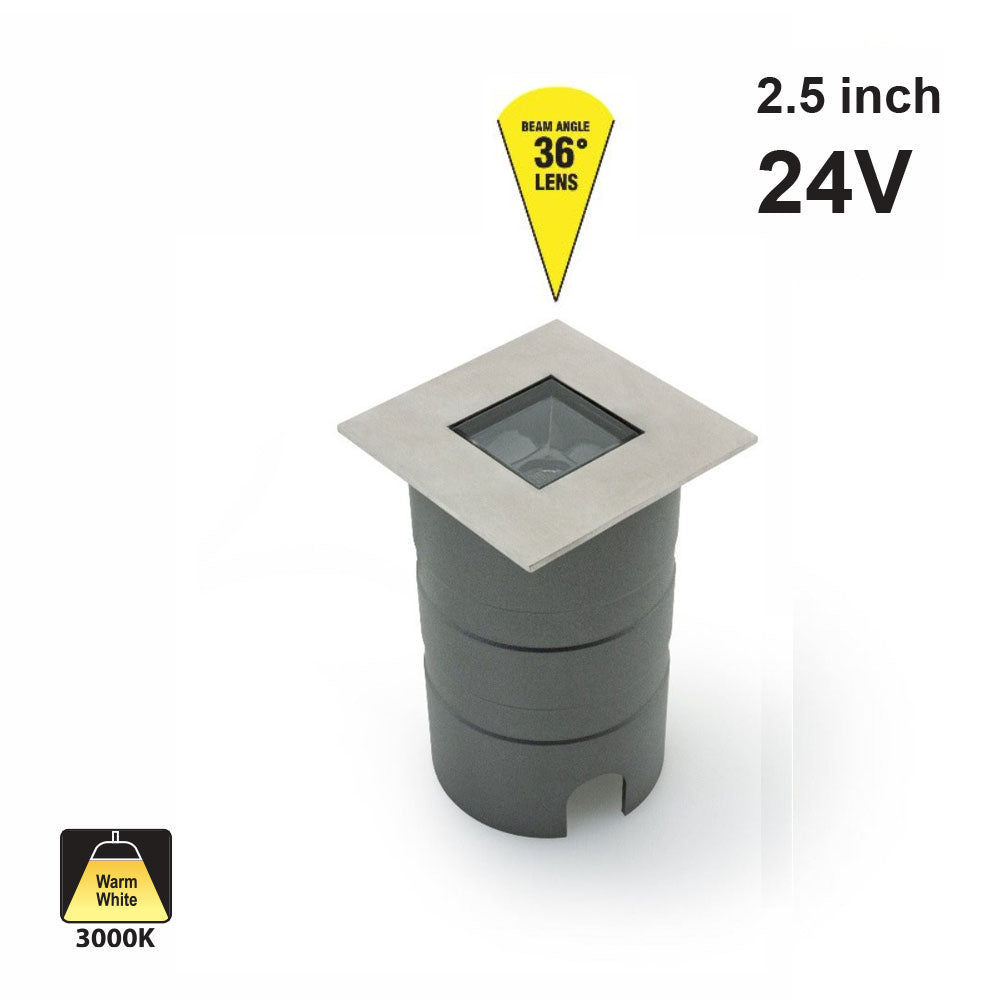

- High-quality 2.5 inch square recessed inground light fixture for outdoor applications
- Integrated COB LED bulb produces warm white (3000K) light with 5W total power consumption

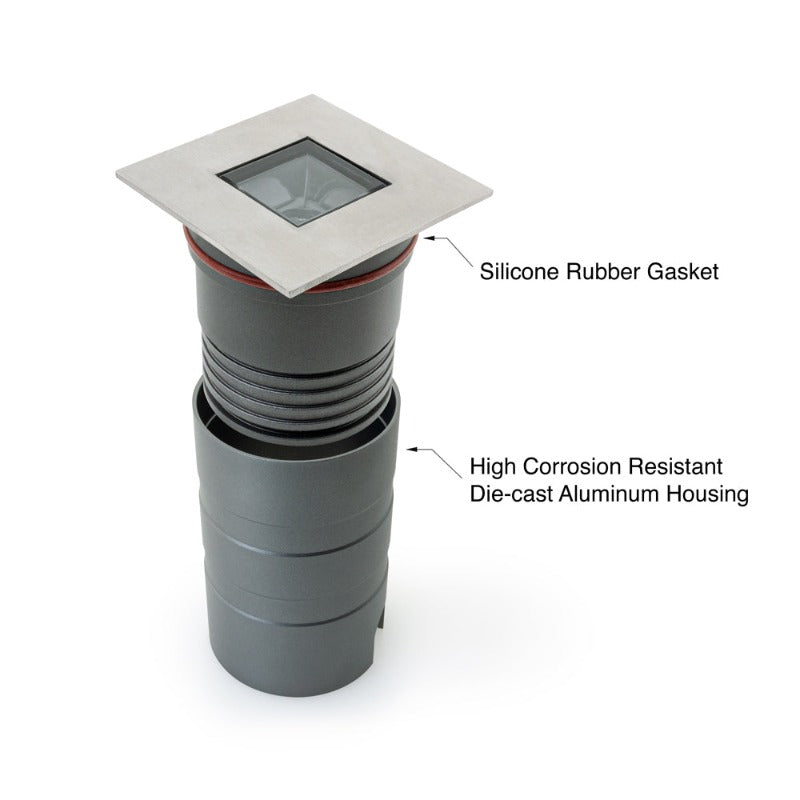

- Sturdy die-cast aluminum body with cap material of 316 stainless steel for durability and longevity
- IP67 rating for all-weather use and resilience to being stepped upon
- Dimmable for adjustable brightness, with cable size of Ø7.5mm (0.29in) and length of 1m (39.3in) and 18AWG

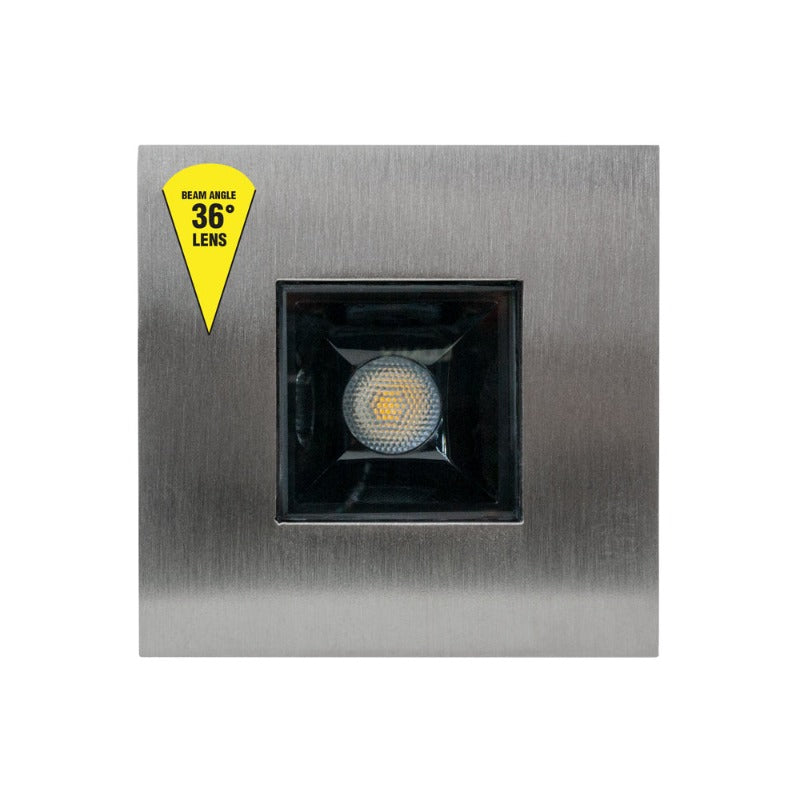

- Secondary optics reflector with narrow 36° beam angle for concentrated illumination
- Certified and meets safety standards, with optional installation using included housing
- Versatile and functional lighting solution for residential and commercial outdoor applications
- Maximum flexibility in power options with single or multiple LED light transformers, in both dimmable and non-dimmable transformers

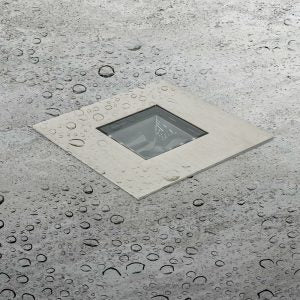

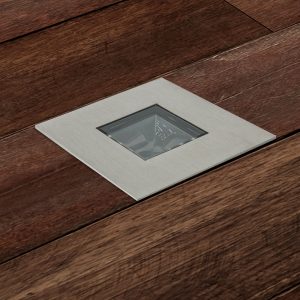

- Aesthetic appeal popularly installed as LED pathway lights, pool deck lights, and patio lights.
