Product Description
| Product | Inground Light |
| Model | UL-1020-0500-A |
| Operating Voltage | 24V DC |
| Light Source | 1 x 5W |
| Total Power Consumption | 5W |
| Color Temperature | 3000K (Warm White) |
| Brightness | 400-500 Lumens |
| Bulb Type | Integrated COB LED |
| Housing Material | Die-cast Aluminum body |
|
Cap Color Finish |
Stainless Steel |
|
Optics |
Secondary optics (Reflector) |
| Beam Angle | 48° Reflector |
| IP Rating | IP67 |
| IK Rating | IK06 |
| Dimmable | Yes |
| Weight | 0.6 kg |

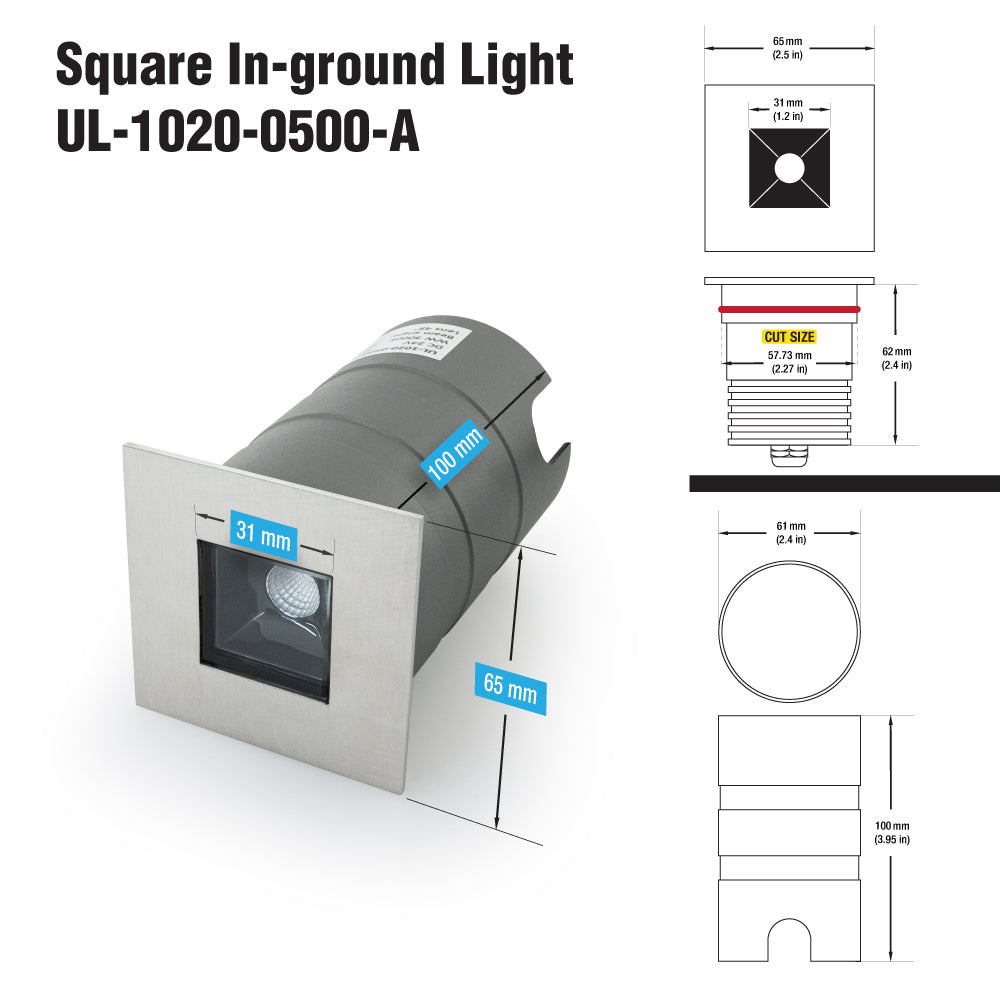

| Cut Size | Ø57.73mm (2.27in) |
| Cable Size |
Length: 1m (3.2ft) Ø7.5mm (0.29in) 18AWG |
|
Dimensions with Housing |
Side – 65 mm (2.5 inches) |
|
Dimensions without Housing |
Side – 65 mm (2.5 inches) |
| Certification |

|
Features:

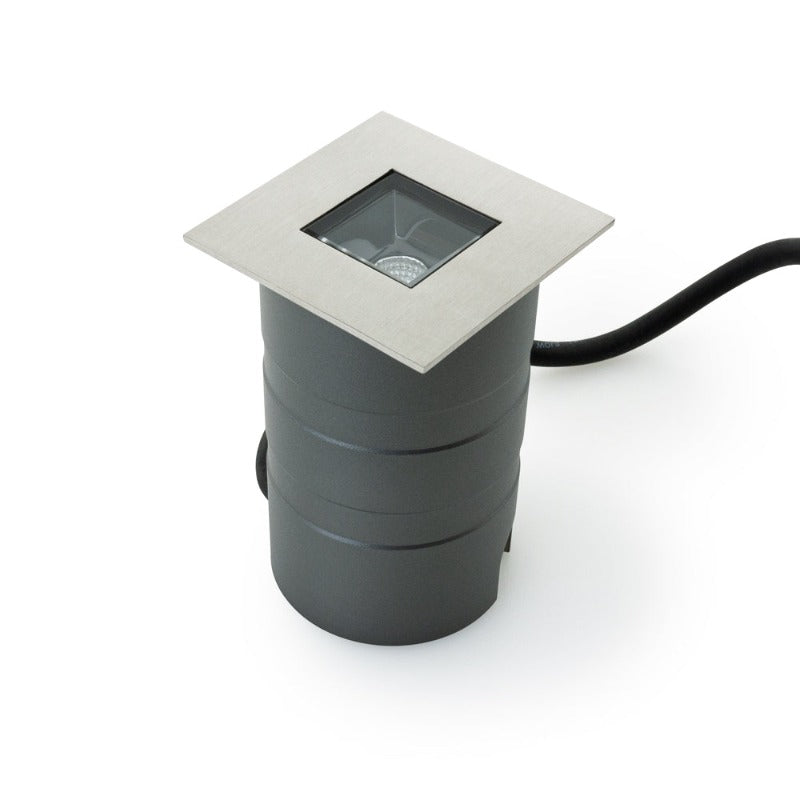

- Square-shaped in-ground light designed for outdoor applications
- 5W integrated COB LED bulb with a warm white color temperature of 3000K
- Powered by a 24V DC operating voltage and has a total power consumption of 5W

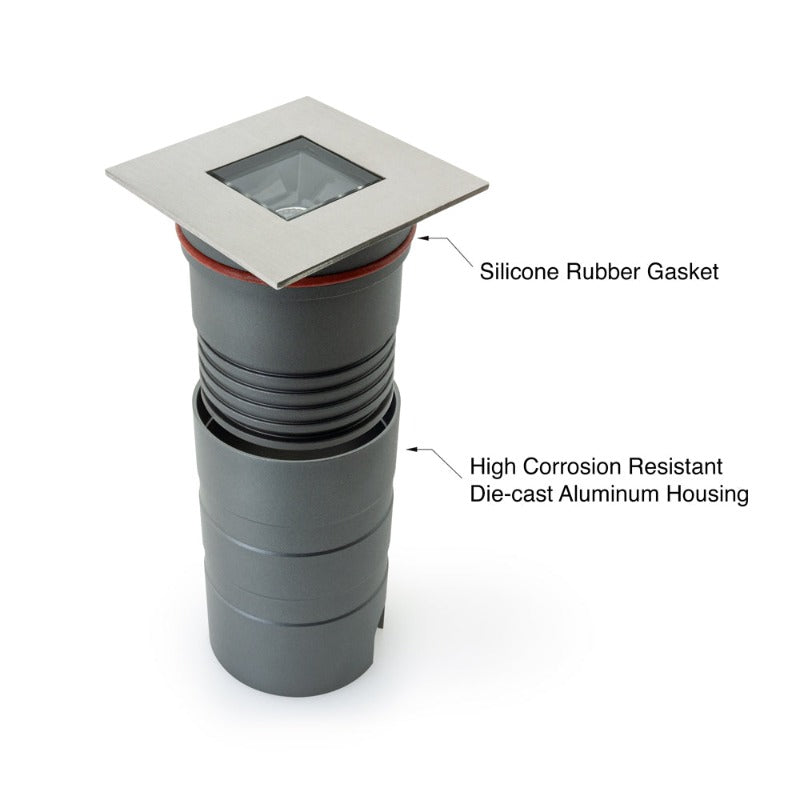

- Made of a die-cast aluminum body with a 316 stainless steel cap color finish

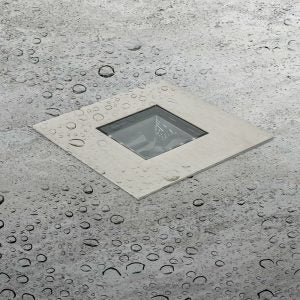

- IP67 rating, making it resistant to weather and being stepped upon
- Dimmable, allowing you to adjust the brightness as per your requirements

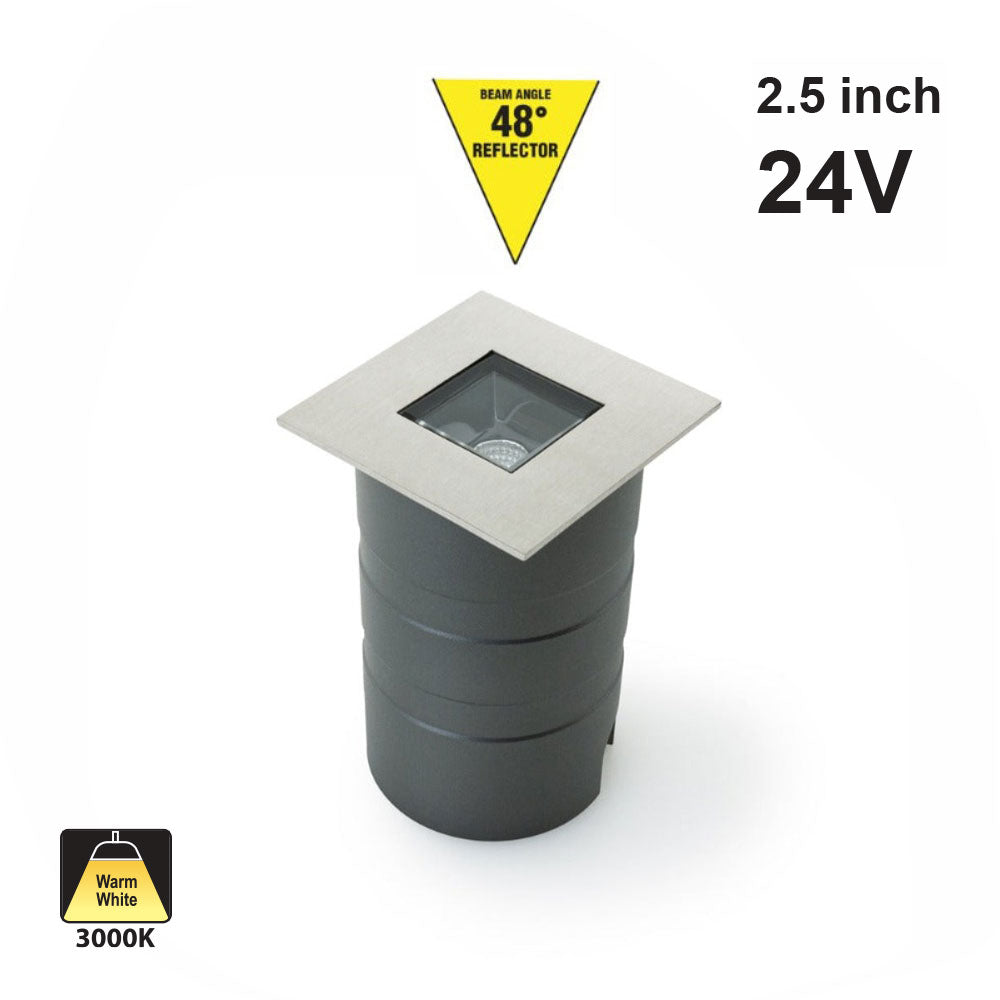

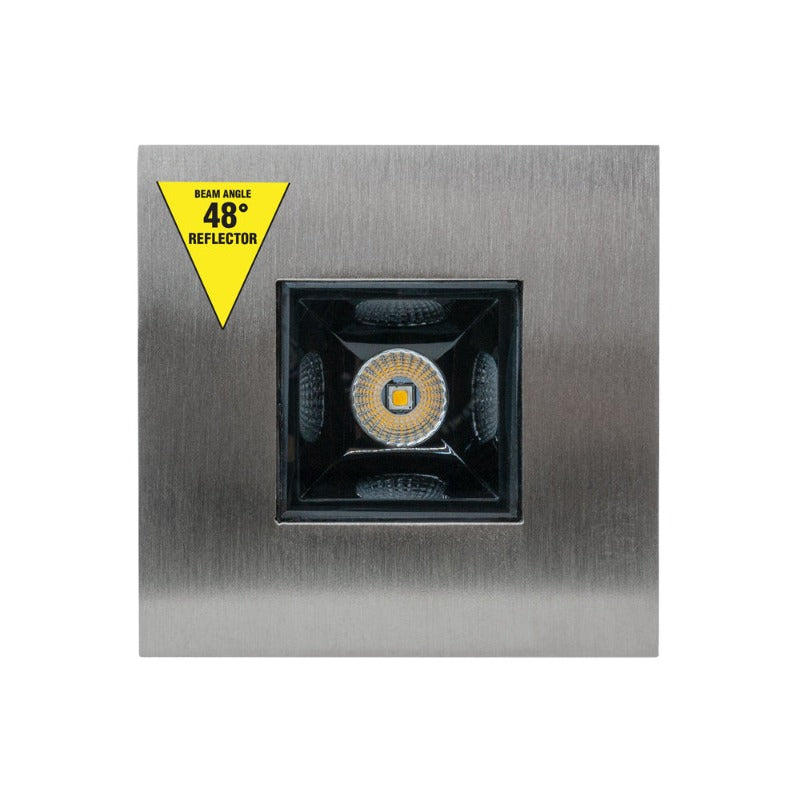

- Secondary optic (reflector) with a beam angle of 48° for scattering more light and creating glare for a spotlight application
- Comes with a 1m (3.2ft) cable with a diameter of 7.5mm (0.29in) and 18AWG

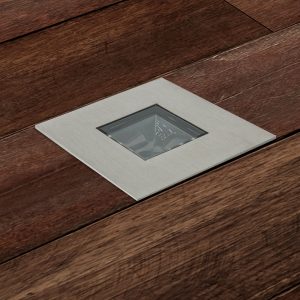

- Versatile light suitable for walkways, garden lighting, pool deck lights, and patio lights
- Maximum flexibility in power options, with single or multiple LED Light transformers in both dimmable or non-dimmable transformers

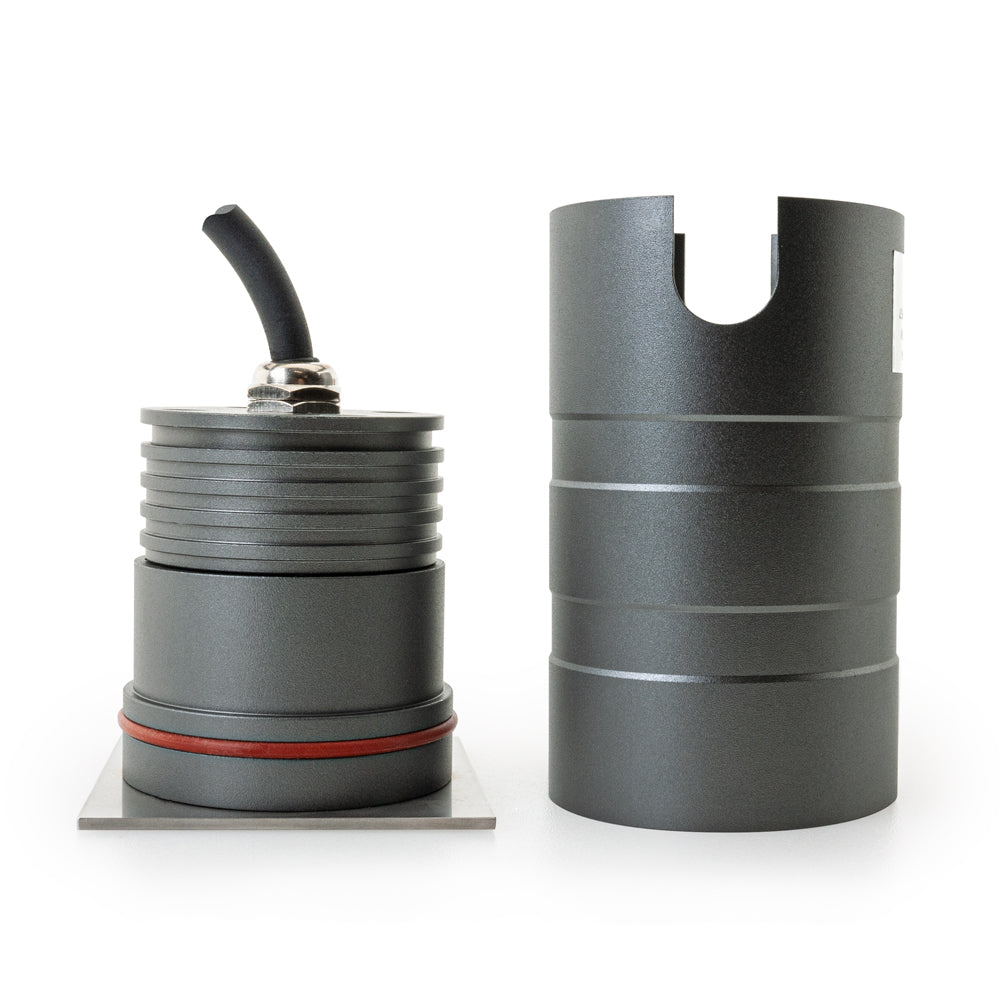

- Optional installation using housing.
