Product Description
| Product | LED Module |

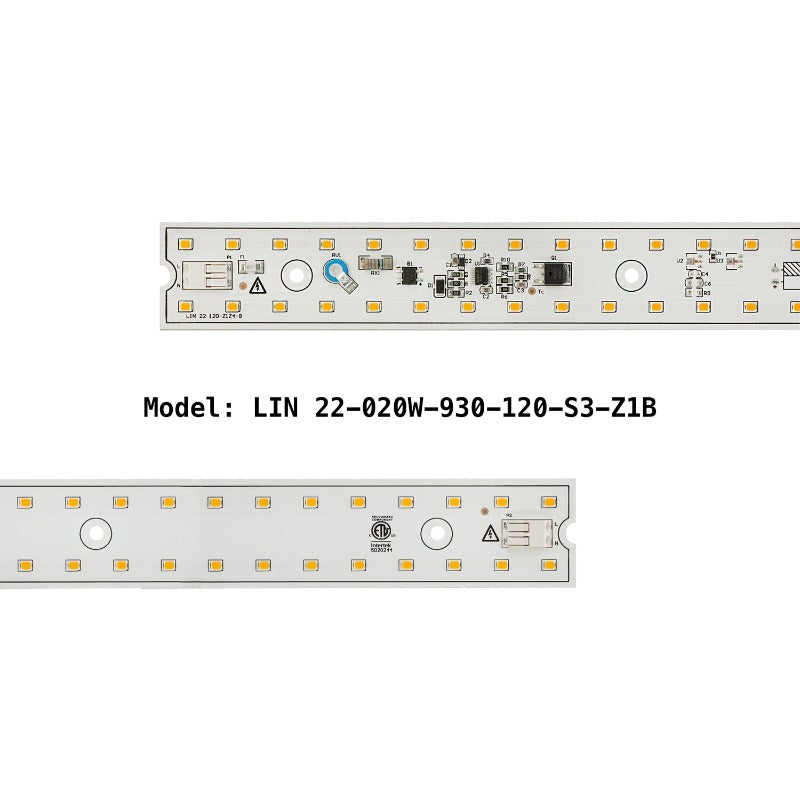

| Model No | LIN-22-020W-930-120-S3-Z1B |
| No of LEDs | 80 |
| Wattage | 20W |
| Voltage | 120V AC |
| Luminous Flux | 1800 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | >90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.1 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

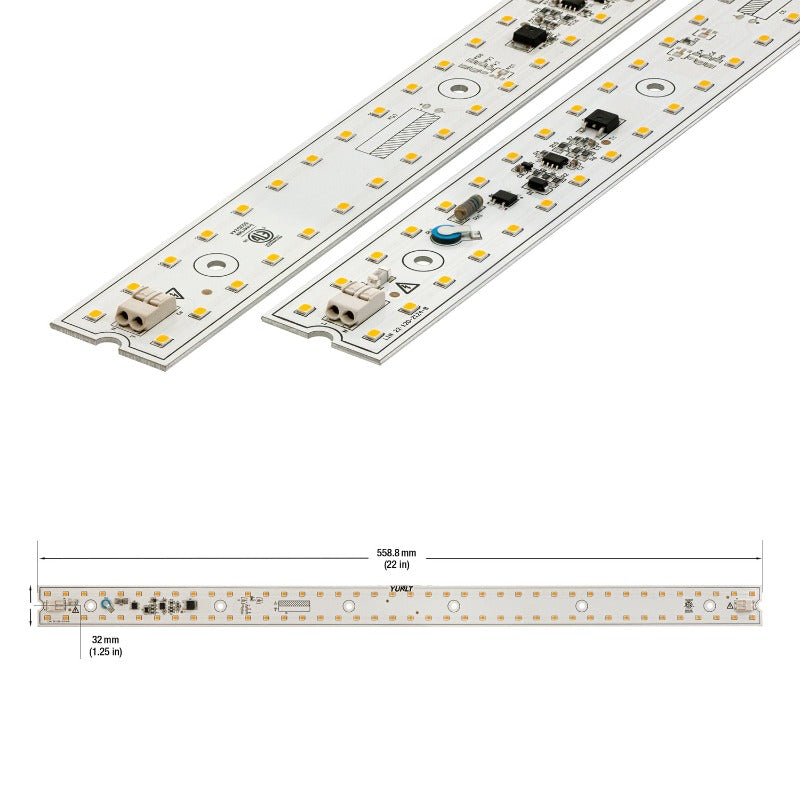

| Dimensions | 558.8 x 32 mm (22 x 1.25 in) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
Features:
- 22-inch linear LED module suitable for various applications
- Contains 80 LEDs and has a wattage of 20W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K with a high color rendering index (CRI) of over 90
- Luminous flux of 1800 lumens provides bright and efficient lighting

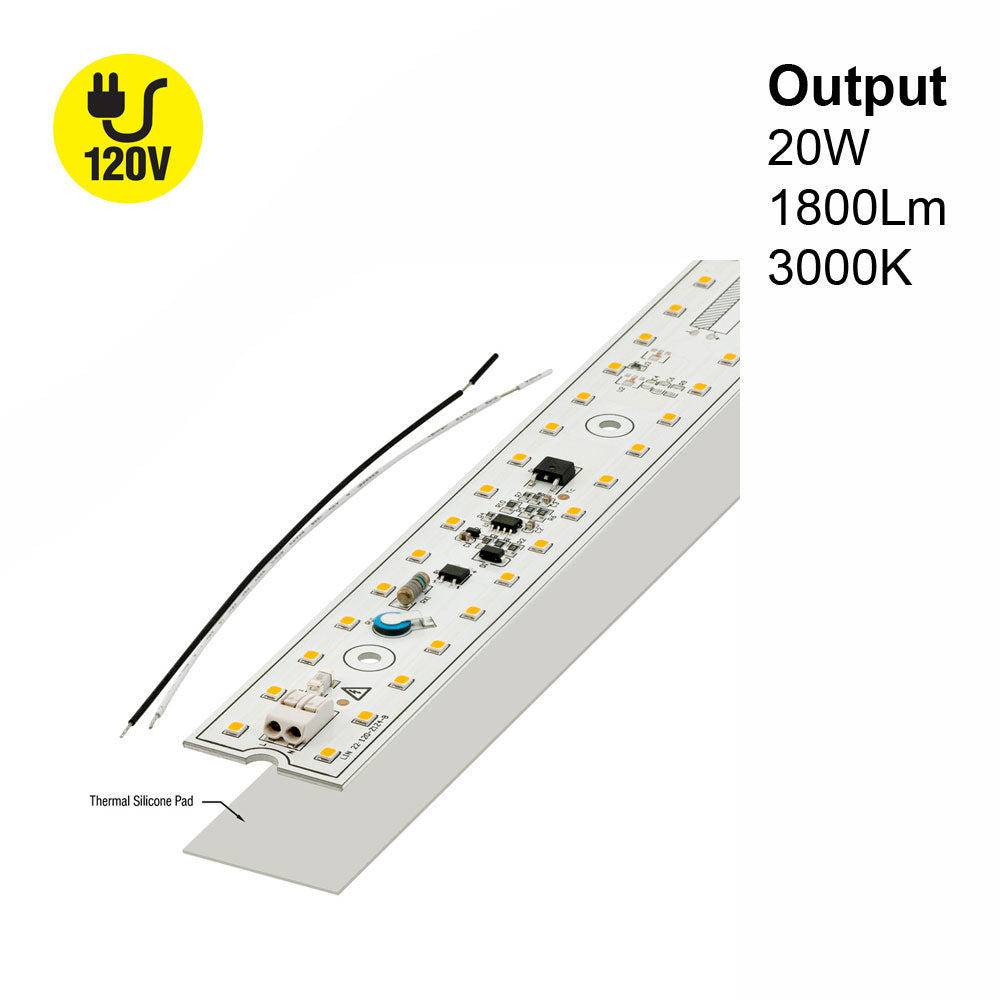

- Dimmable and comes with a thermal silicon pad for even heat distribution, prolonging the life of the module
- Dimensions are 558.8 x 32 mm (22 x 1.25 in) with a diameter of the screw hole of 3.9mm (0.15 in)
- Comes with a 6-inch black and white power feed for easy installation
- Certified by ETL for safe and reliable use
- Ideal choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a linear profile.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

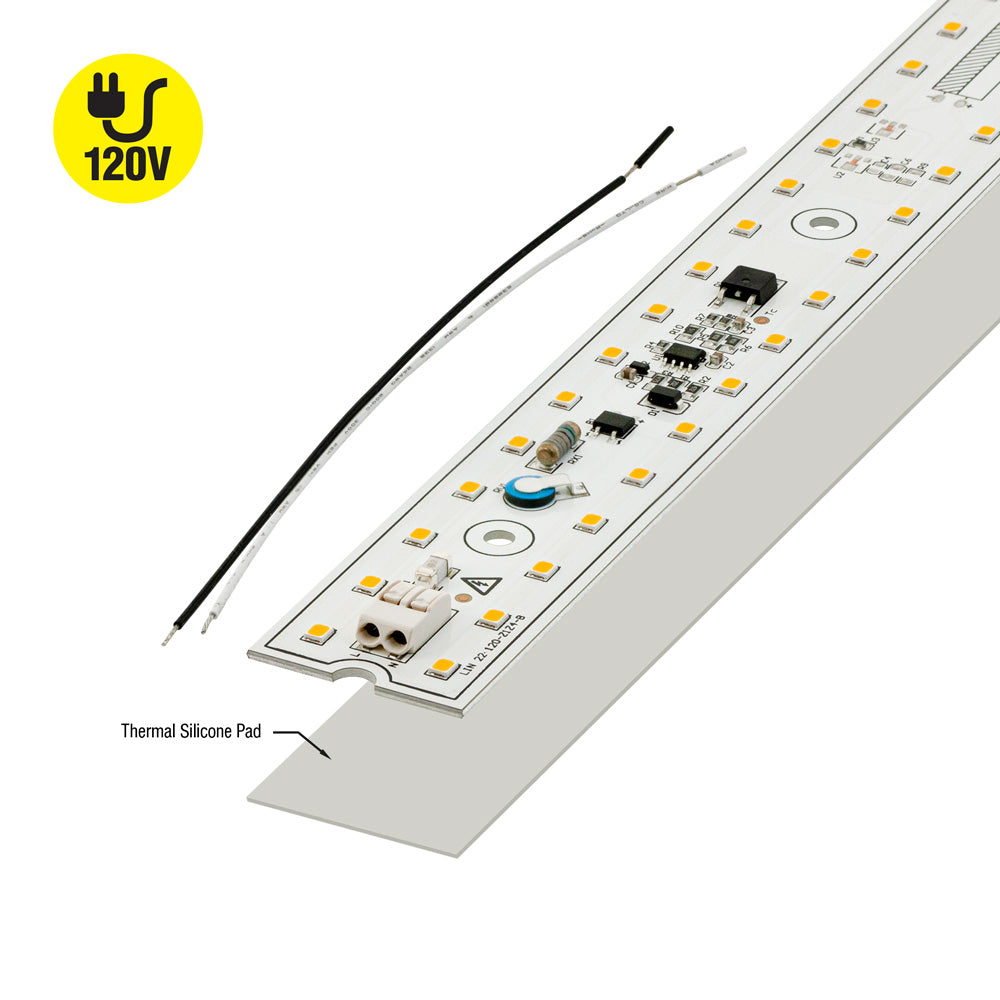

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
