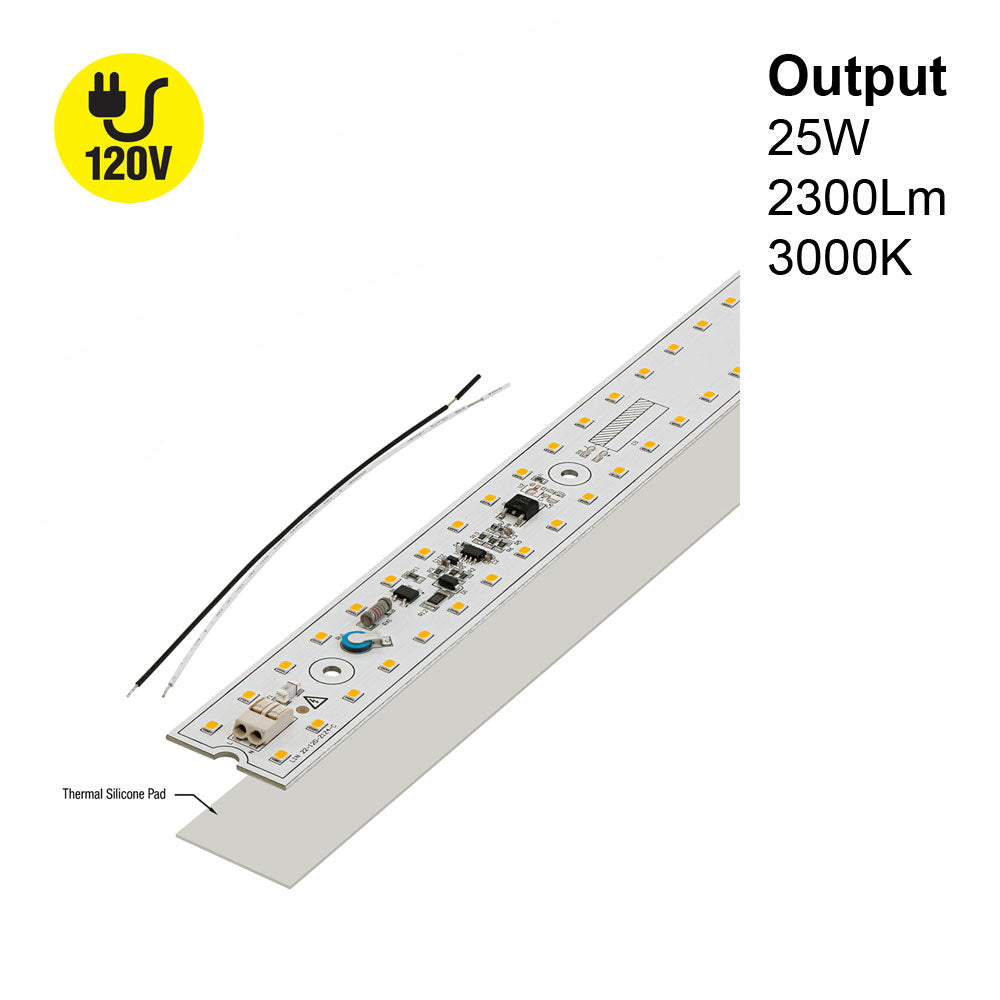

Product Description
| Product | LED Module |

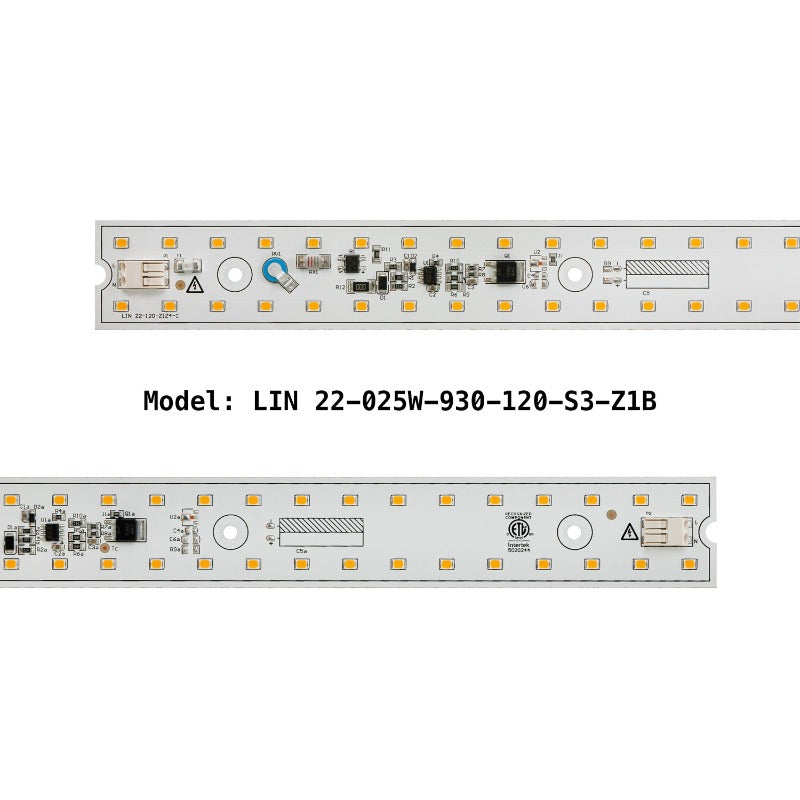

| Model No | LIN-22-025W-930-120-S3-Z1B |
| No of LEDs | 80 |
| Wattage | 25W |
| Voltage | 120V AC |
| Luminous Flux | 2300 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | >90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.1 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

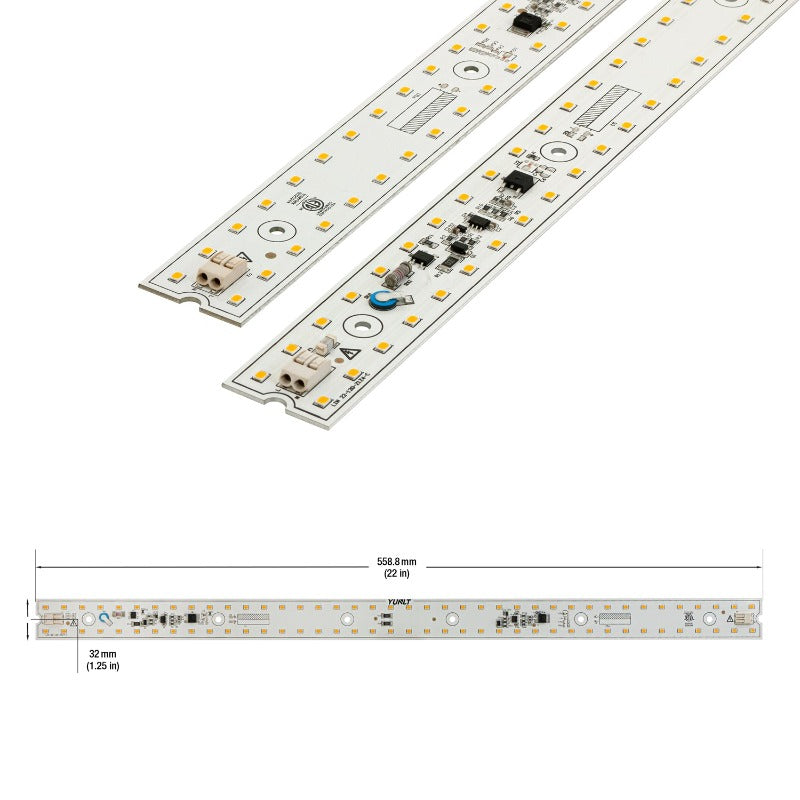

| Dimensions | 558.8 x 32 mm (22 x 1.25 in) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
Features:
- 22-inch linear LED module with 80 LEDs and 25W wattage
- Warm white light at 3000K color temperature with a high CRI of over 90
- Luminous flux of 2300 lumens for bright and efficient lighting

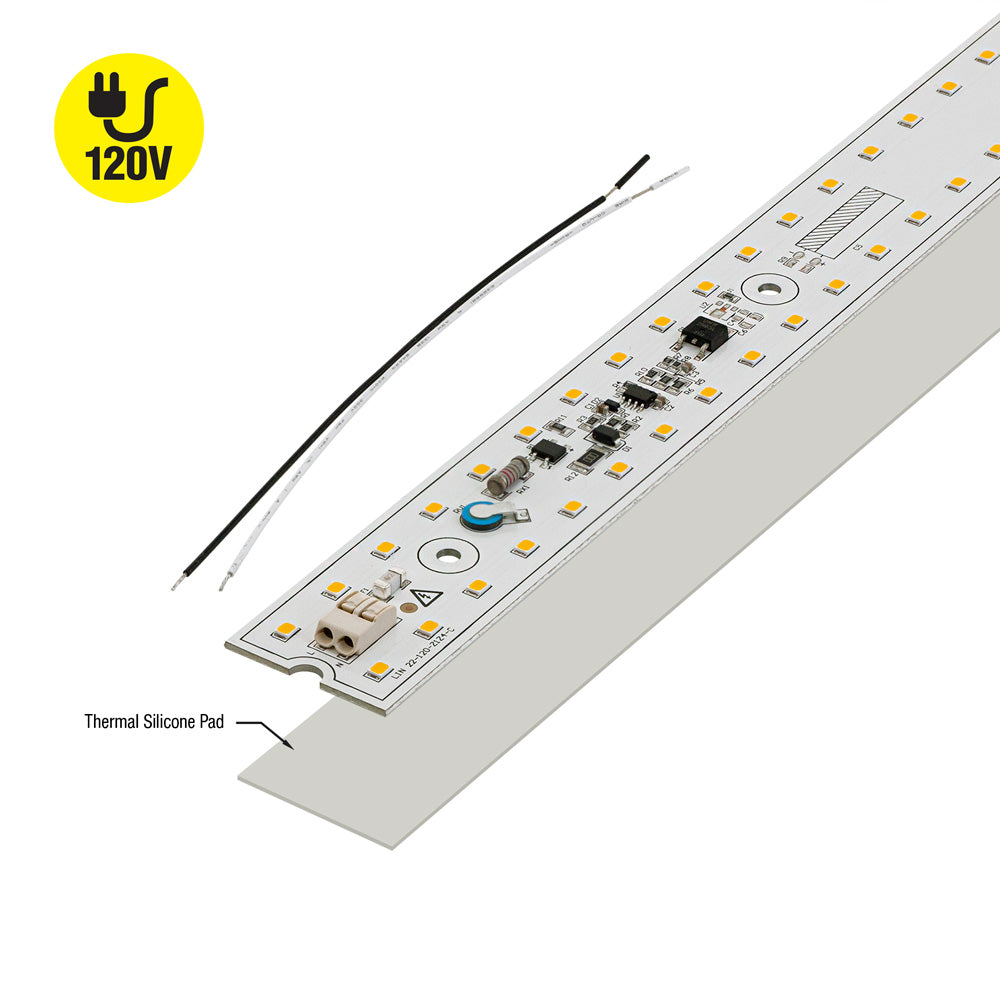

- Comes with a thermal silicon pad for even heat distribution and longer lifespan
- Dimmable and easy to install with 6-inch black and white power feed
- Dimensions of 558.8 x 32 mm (22 x 1.25 in) and diameter of screw hole is 3.9mm (0.15 in)
- ETL certified for safe and reliable use
- Ideal for under-cabinet lighting, task lighting, and display lighting applications
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
