Product Description
| Product | LED Module |
| Model No | LIN-22-030W-930-120-S3-Z1B |
| No of LEDs | 80 |

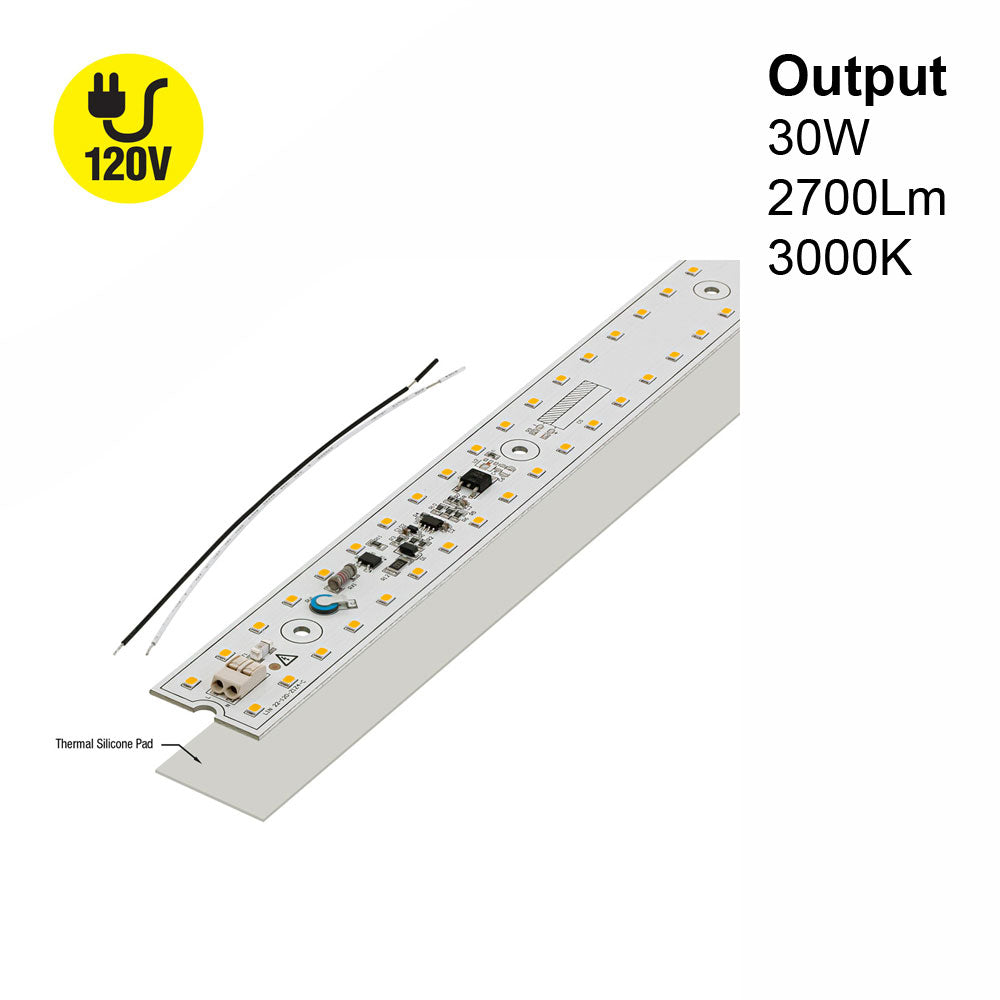

| Wattage | 30W |
| Voltage | 120V AC |
| Luminous Flux | 2700 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | >90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.1 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

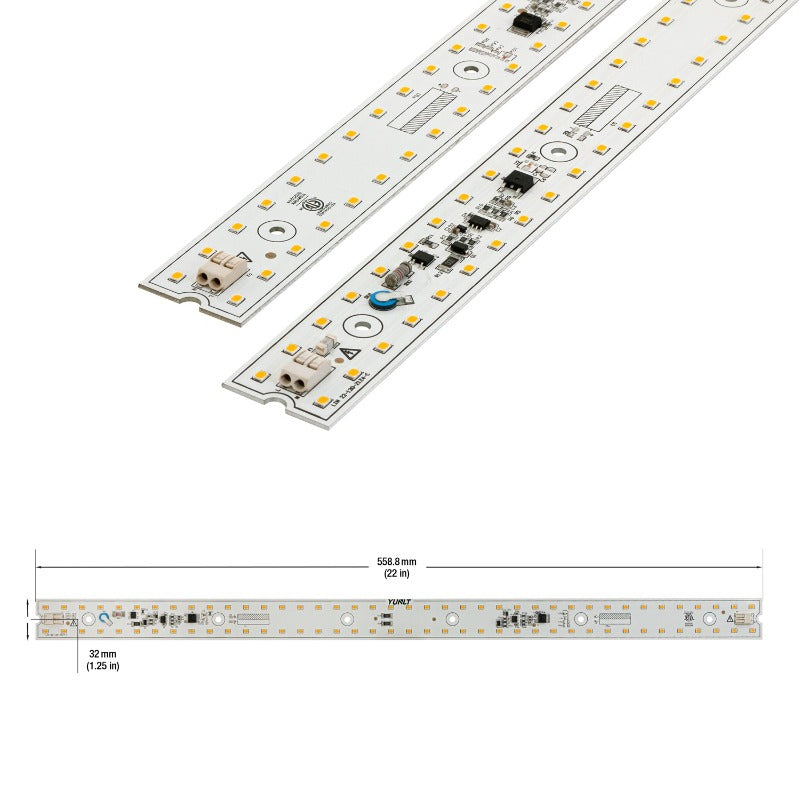

| Dimensions | 558.8 x 32 mm (22 x 1.25 in) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
Features:
- 22-inch linear LED module made of aluminum for excellent heat dissipation
- Contains 80 LEDs with a wattage of 30W and powered by 120V AC
- Emits warm white light at a color temperature of 3000K with a high CRI of over 90
- Provides a luminous flux of 2700 lumens, suitable for various applications

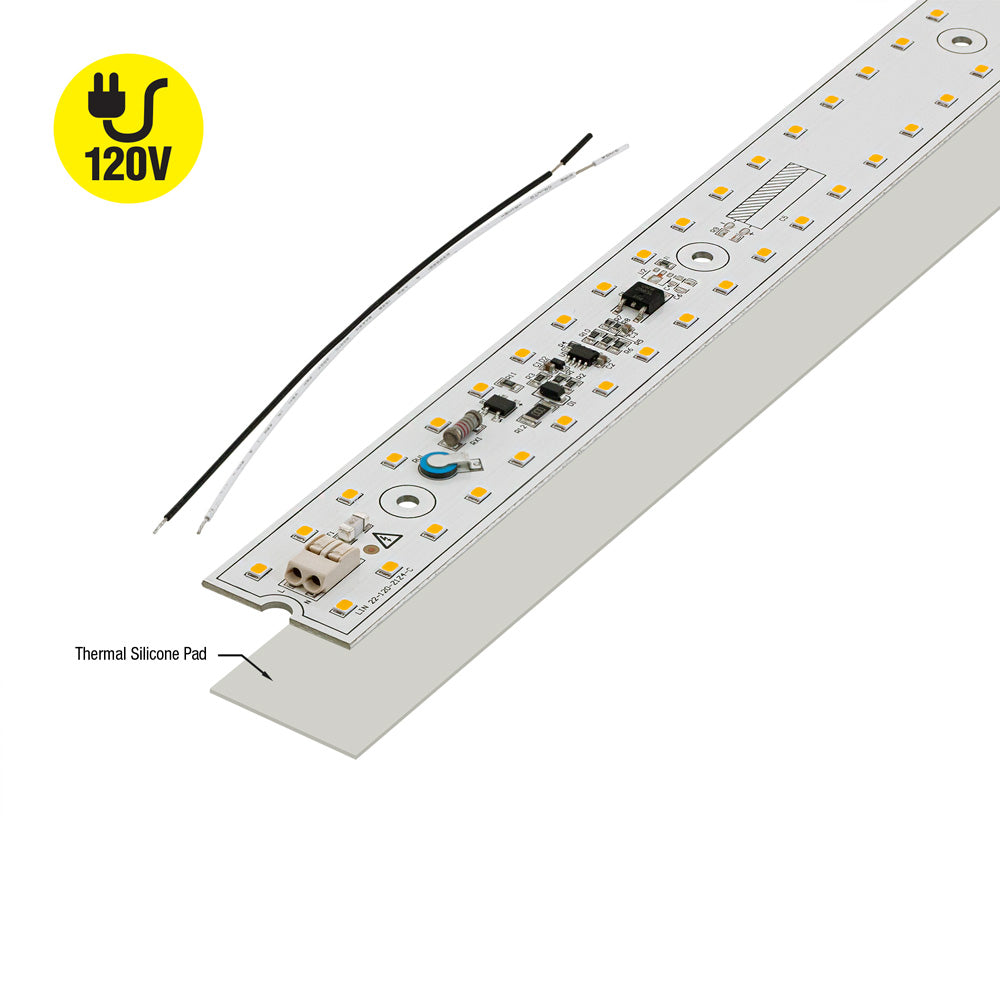

- Dimmable and comes with a thermal silicon pad for even heat distribution and longer life
- Includes a 6-inch black and white power feed for easy installation
- Ideal for under-cabinet lighting, task lighting, and display lighting
- Designed to be installed with a thermal silicon pad for safe and reliable use
- Certified by ETL for quality and safety assurance
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
