VBD-024-024DM Triac Dimmable Constant Voltage LED Driver, 24V 1A 24W

VBD-024-024DM Triac Dimmable Constant Voltage LED Driver, 24V 1A 24W

SKU:666561415839

$76.85 CAD
$76.85 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25



Product Description

Model VBD-024-024DM
Input Voltage 100-130V AC
Input Current 0.38A
Frequency 47/63Hz
Power Factor 0.68
Output Voltage 24V DC
Output regulated current 1.0A
Output Power 24W max
Dimmable Yes (Phase/ Triac/ Magnetic Low Voltage)
IP Rating IP20
Class Certification Class 2/ Class II

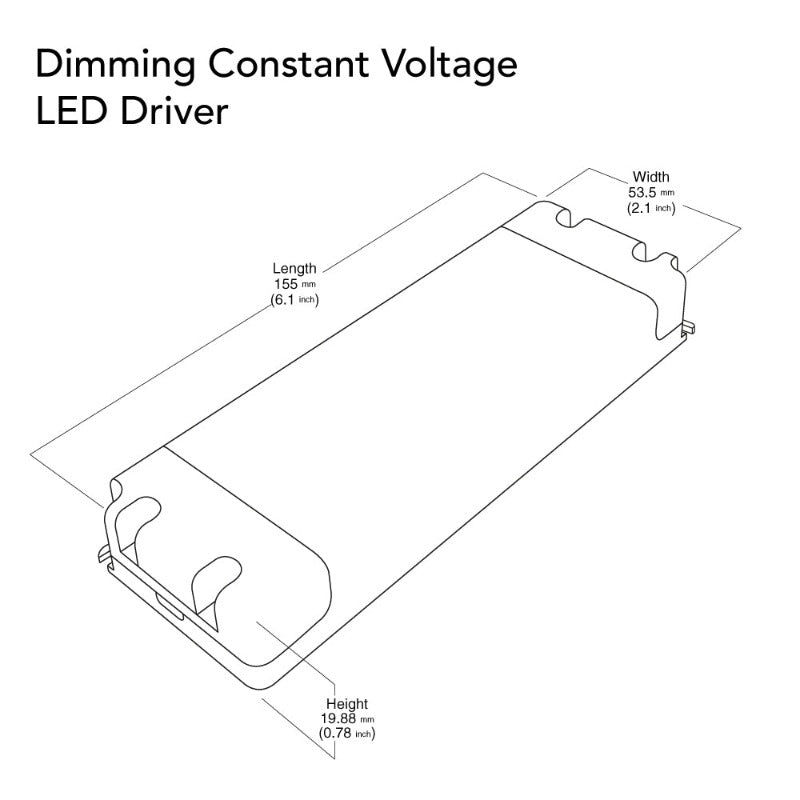

Dimensions (Without Box) 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in)

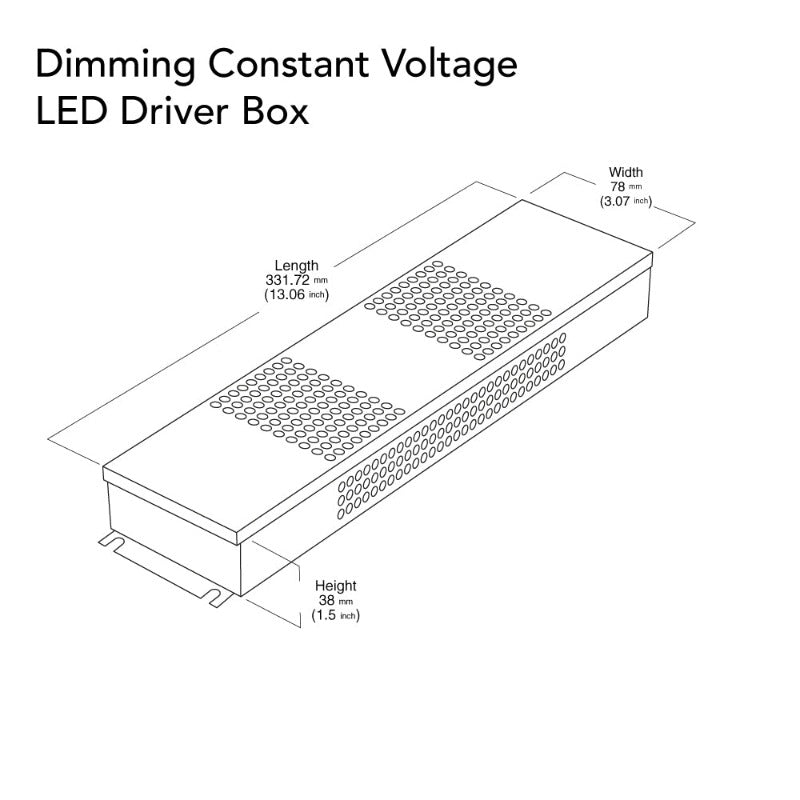

Dimensions (Box) 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certifications
Applicable for Dry and Damp locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers

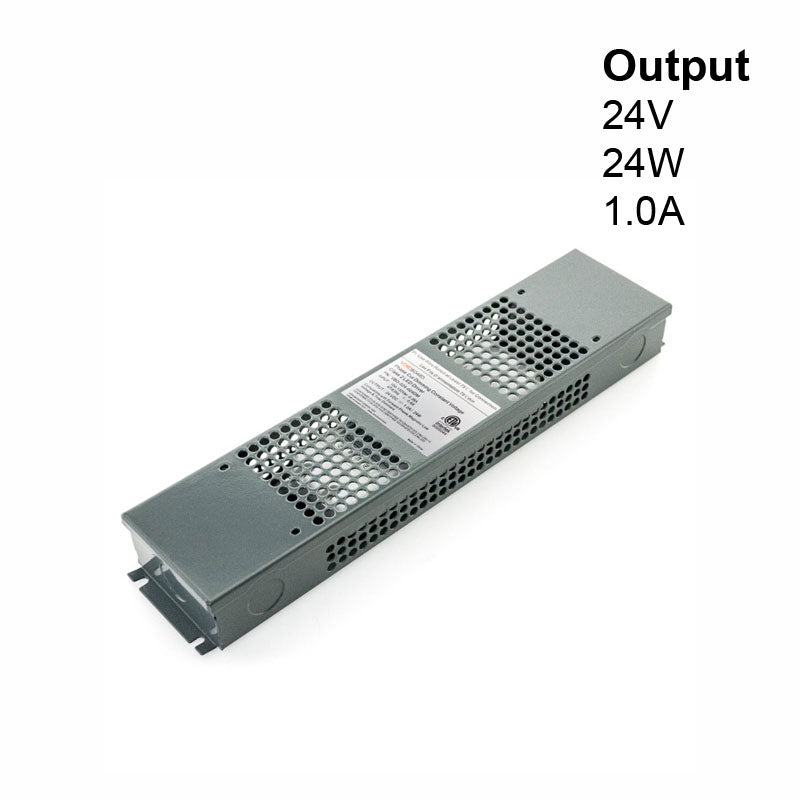

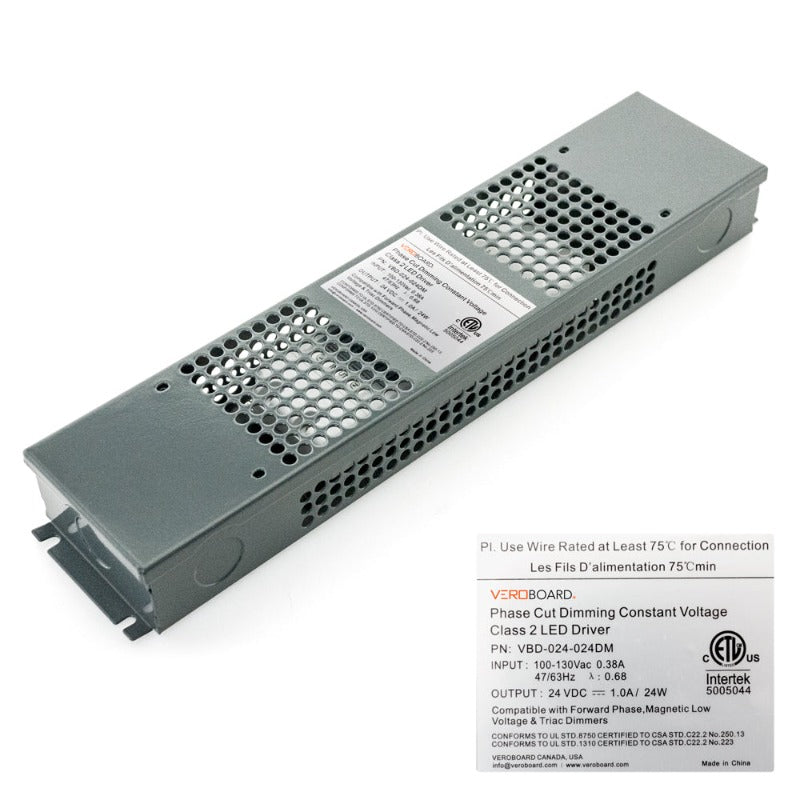

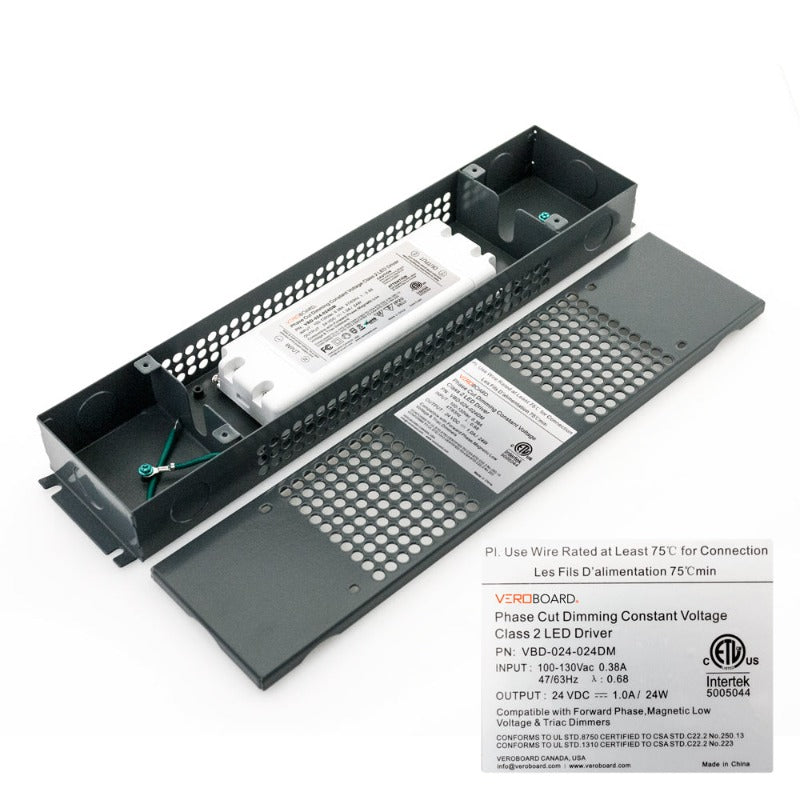

The VBD-024-024DM is a constant voltage LED driver designed to power LED lighting systems. It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 0.38A and a power factor of 0.68. The driver is capable of delivering an output voltage of 24V DC and a regulated output current of 1A, providing a maximum output power of 24W.

One of the notable features of this driver is its Triac and phase-cut dimming capability, which allows for smooth and seamless dimming of LED lights. It also has an IP20 rating, indicating that it is suitable for use in indoor environments where it is not exposed to moisture and dust.

The driver has dimensions of 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box. It is Class 2/ Class II certified, indicating that it has a low output voltage and is safe to use in applications where electrical shock could be a hazard. It is also ETL certified, ensuring that it meets safety and performance standards for electrical products.

Features:

  • The VBD-024-024DM is a constant voltage LED driver designed to power LED lighting systems.
  • It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 0.38A and a power factor of 0.68.
  • The driver is capable of delivering an output voltage of 24V DC and a regulated output current of 1A, providing a maximum output power of 24W.
  • It features Triac and phase-cut dimming capability for smooth and seamless dimming of LED lights.
  • The driver has an IP20 rating, making it suitable for indoor environments where it is not exposed to moisture and dust.
  • Its dimensions are 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box.
  • It is Class 2/ Class II certified, indicating that it has a low output voltage and is safe to use in applications where electrical shock could be a hazard.
  • It is ETL certified, ensuring that it meets safety and performance standards for electrical products.
