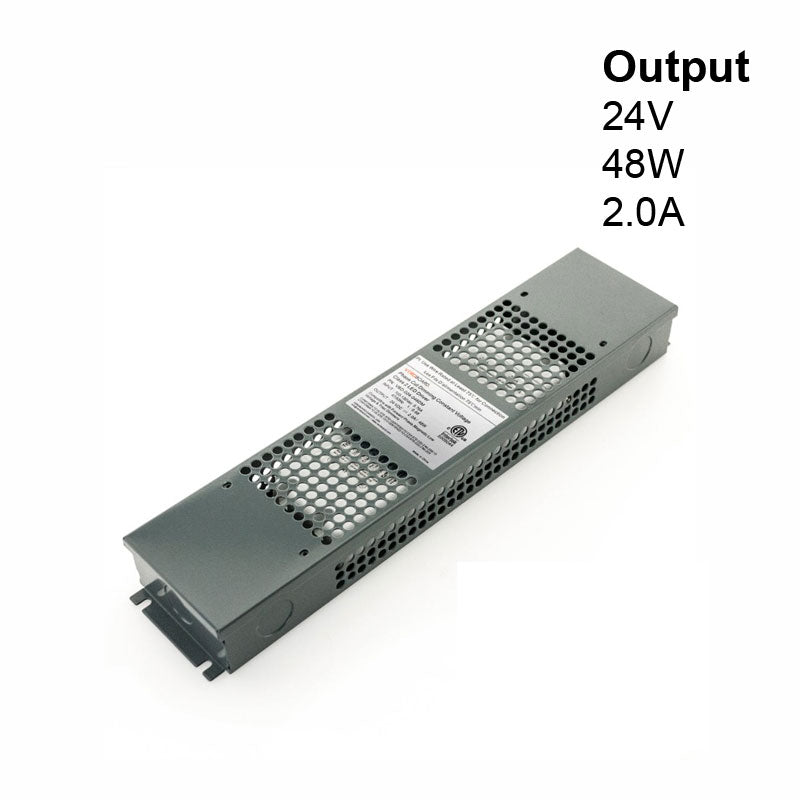

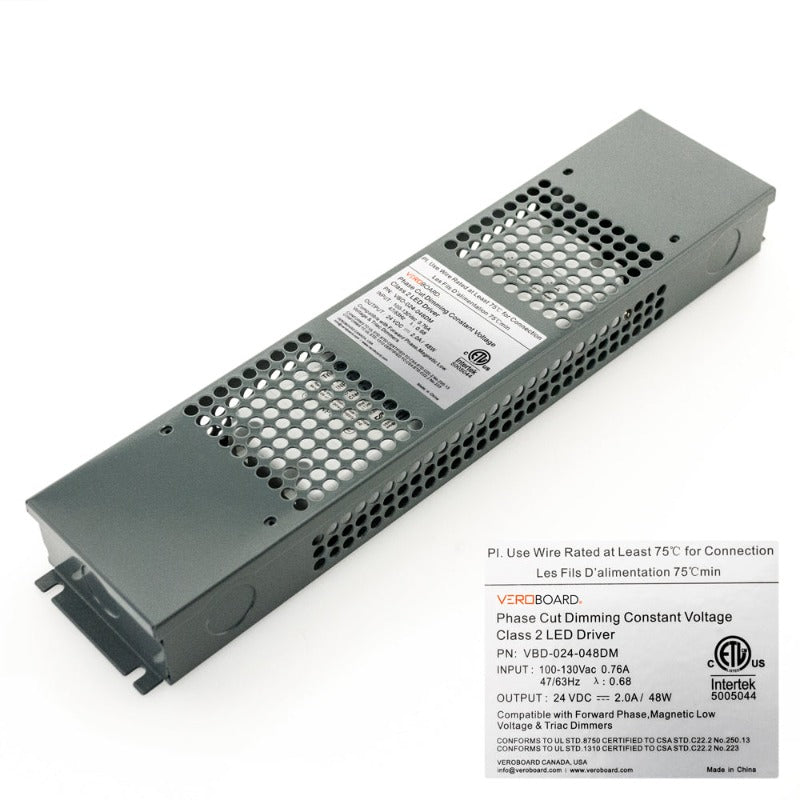

VBD-024-048DM Triac Dimmable Constant Voltage LED Driver, 24V 2A 48W

VBD-024-048DM Triac Dimmable Constant Voltage LED Driver, 24V 2A 48W

SKU:666561415822

$107.77 CAD
$107.77 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25



Product Description

Model VBD-024-048DM
Input Voltage 100-130V AC
Input Current 0.76A
Frequency 47/63Hz
Power factor 0.68
Output Voltage 24V DC
Output regulated Current 2.0A
Output Power 48W max
Dimmable Yes (Phase/ Triac/ Magnetic Low Voltage)
IP Rating IP20
Class Certification Class 2/ Class II

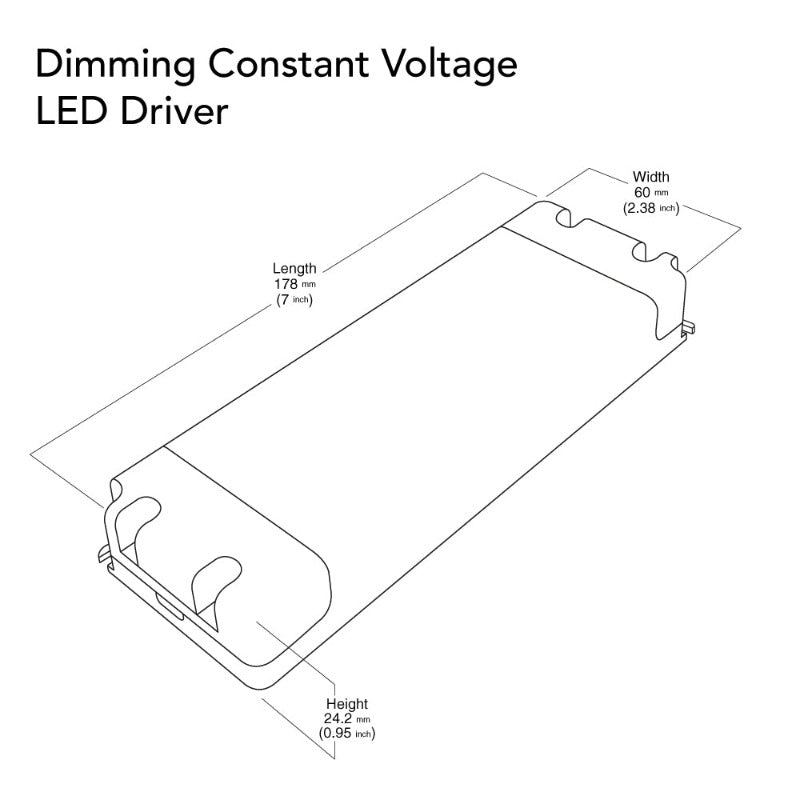

Dimensions (Without Box) 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in)

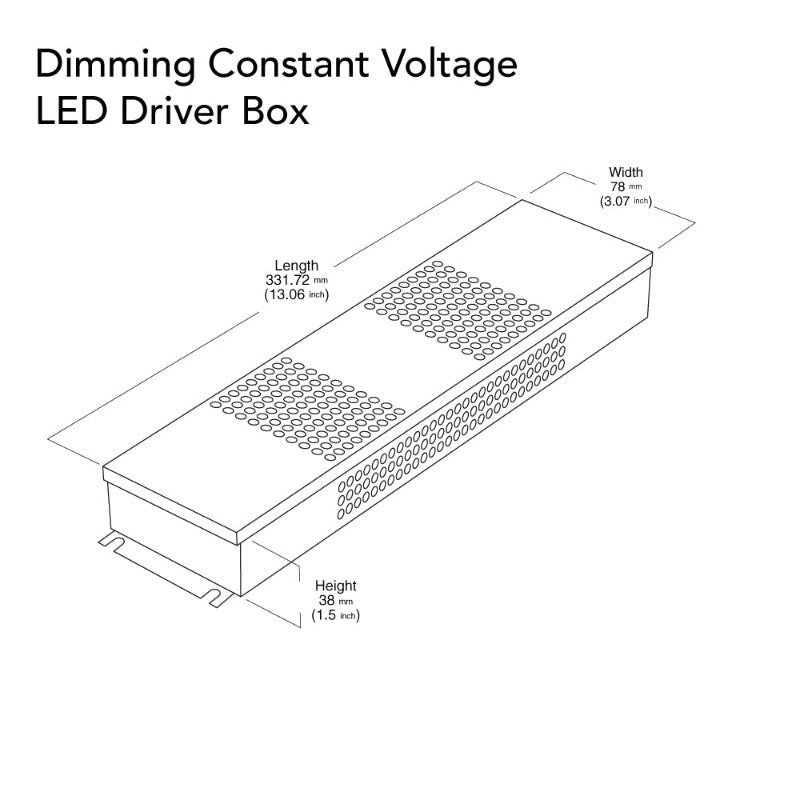

Dimensions (Box) 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certifications
Suitable for Dry and Damp locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers



The VBD-024-048DM Triac Dimmable Constant Voltage LED Driver is a power supply designed to power LED lighting systems with a constant output voltage of 24V DC and output current of 2.0A, delivering a maximum output power of 48 watts. This LED Driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.

The LED Driver operates with an input voltage range of 100-130V AC and an input current of 0.76A. It has a frequency range of 47/63Hz and a power factor of 0.68. The device is designed to regulate output voltage at 24V DC and provide a constant output current of 2.0A, delivering a maximum output power of 48W.

The driver is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization. This certification assures users that the driver is safe to use and meets quality standards for electrical devices. The LED Driver is also certified as Class 2 or Class II, which indicates that it has limited power output and is protected against electric shock, making it suitable for use in low-voltage lighting applications.

Features:

  • The VBD-024-048DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems with a constant output voltage of 24V DC and output current of 2.0A, delivering a maximum output power of 48 watts.
  • The LED driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
  • It operates with an input voltage range of 100-130V AC and an input current of 0.76A, with a frequency range of 47/63Hz and a power factor of 0.68.
  • The device is designed to regulate output voltage at 24V DC and provide a constant output current of 2.0A, delivering a maximum output power of 48W.
  • It is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization.
  • The LED Driver is also certified as Class 2 or Class II, which indicates that it has limited power output and is protected against electric shock, making it suitable for use in low-voltage lighting applications.
