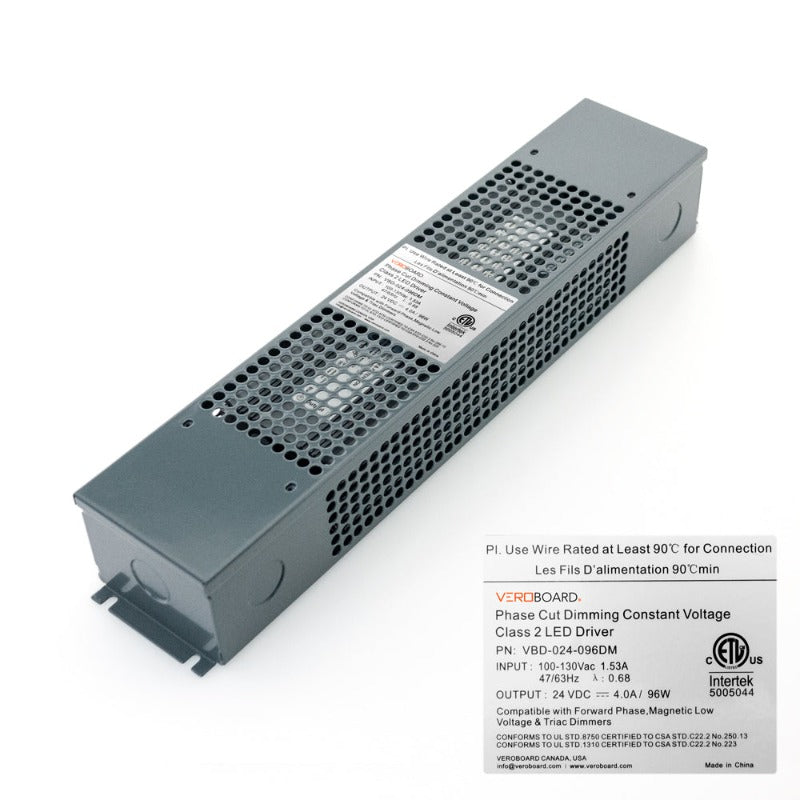

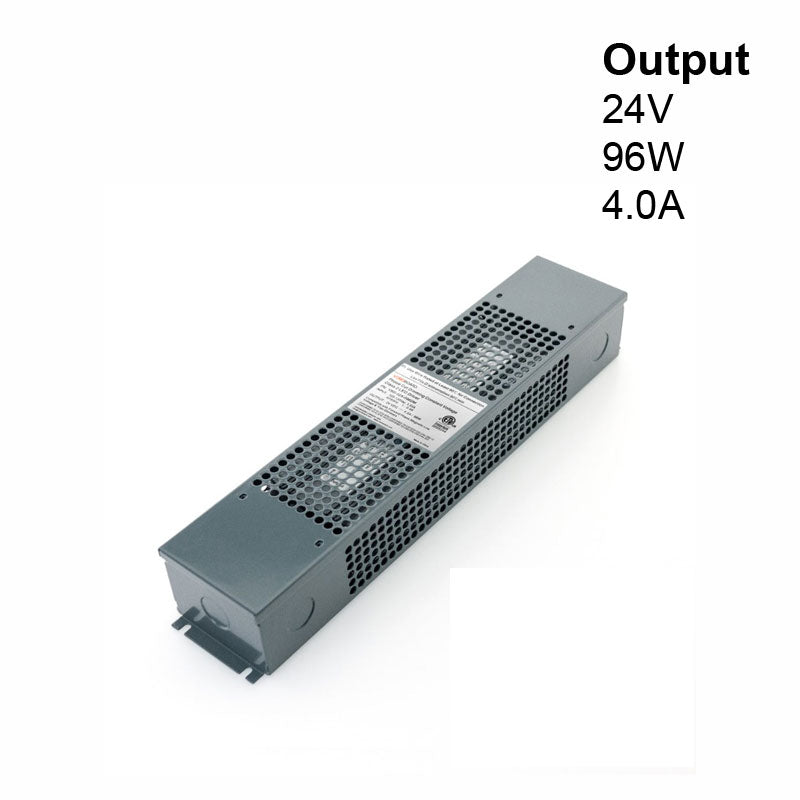

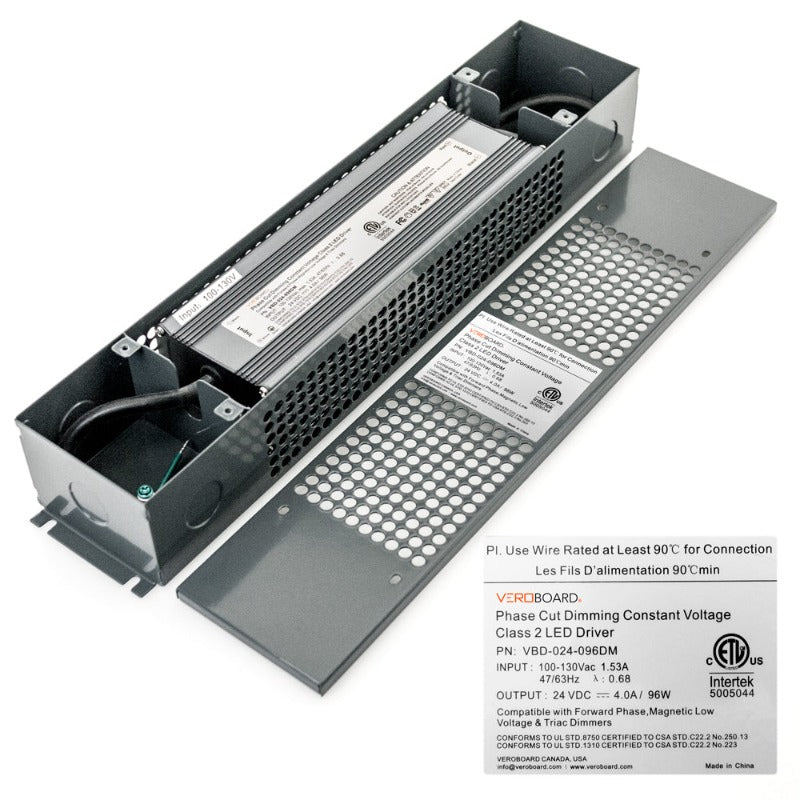

VBD-024-096DM Triac Dimmable Constant Voltage LED Driver, 24V 4A 96W
VBD-024-096DM Triac Dimmable Constant Voltage LED Driver, 24V 4A 96W
SKU: SKU:666561415808
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â

Product DescriptionÂ
| Model | VBD-024-096DM |
| Input Voltage | 100-130V AC |
| Input Current | 1.53A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output Voltage | 24V DC |
| Output regulated Current | 4.0A |
| Output Power | 96W max |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage) |
| IP Rating | IP67 (Outdoor rated) |
| Class Certification | Class 2 |

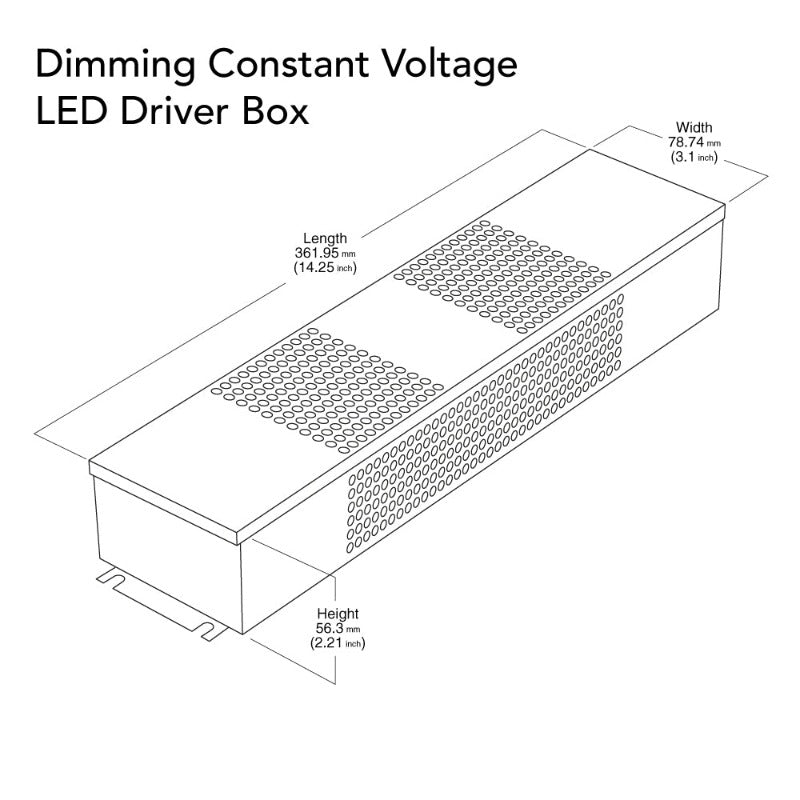

| Dimensions (without Box) | 203 x 70.41x 42mm (8 x 2.77 x 1.65 in) |
| Dimensions (Box) | 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) |
| Certifications |

|
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers |
Â
The VBD-024-096DM Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems. It operates with an input voltage of 100-130V AC and an input current of 1.53A, with a frequency range of 47/63Hz. The power factor of this LED driver is 0.68.
This model provides a regulated output voltage of 24V DC, with a maximum output power of 96W. The output regulated current of this LED driver is 4.0A, making it suitable for powering a variety of LED lights.
One of the notable features of this LED driver is its dimming capability, which allows for both Phase-Cut and Triac Dimming. This allows for greater flexibility in controlling the brightness of LED lights.
The VBD-024-096DM LED driver is designed to be used in outdoor environments, with an IP67 rating. It also has Class 2 certification, which indicates that it has been tested and meets certain safety standards.
The dimensions of this LED driver are 203 x 70.41x 42mm (8 x 2.77 x 1.65 in) without the box, and 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 221 in) with the box. Additionally, it has ETL certification, which is a safety certification for electrical products in North America.
Features:Â
- The VBD-024-096DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems and operates with an input voltage of 100-130V AC, with a frequency range of 47/63Hz, and an input current of 1.53A.
- This LED driver provides a regulated output voltage of 24V DC, with a maximum output power of 96W and an output regulated current of 4.0A, suitable for various LED lights.
- The LED driver features both Phase-Cut and Triac Dimming capability, which provides greater flexibility in controlling the brightness of LED lights.
- With an IP67 rating, the VBD-024-096DM LED driver is suitable for outdoor use, and it also has Class 2 certification, indicating that it has been tested and meets certain safety standards.
- The dimensions of this LED driver are 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box and 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 221 in) with the box.
- The VBD-024-096DM LED driver is also ETL certified, ensuring that it meets safety and performance standards for electrical products in North America.
