Product Description
| Product | Downlights/ Ceiling Lights |
| Model | AD-35S12W-1224V-5CCTWH-REY-SQ |
| Input Voltage | 12V~36V DC (Constant Voltage) |
| Output Voltage | 36V DC (Constant Current) |
| Output Current | 280mA |
| Wattage | 12W |

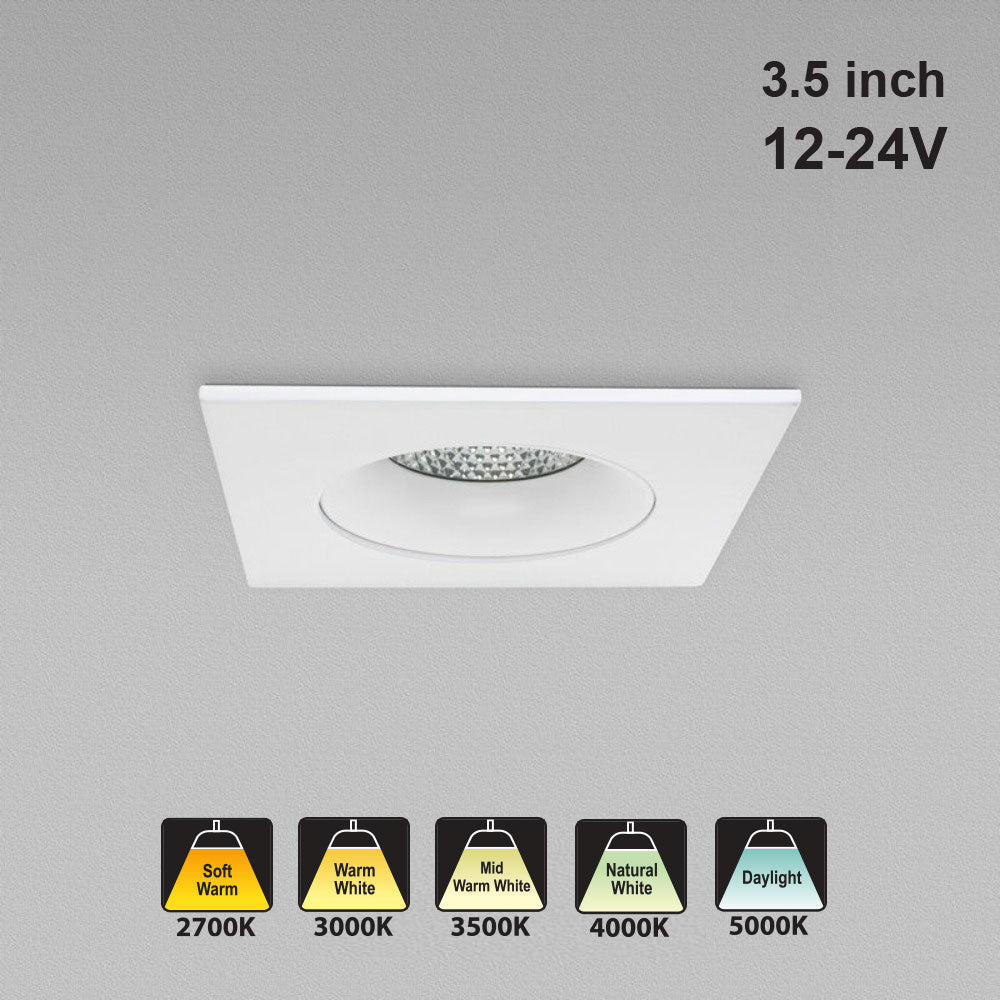

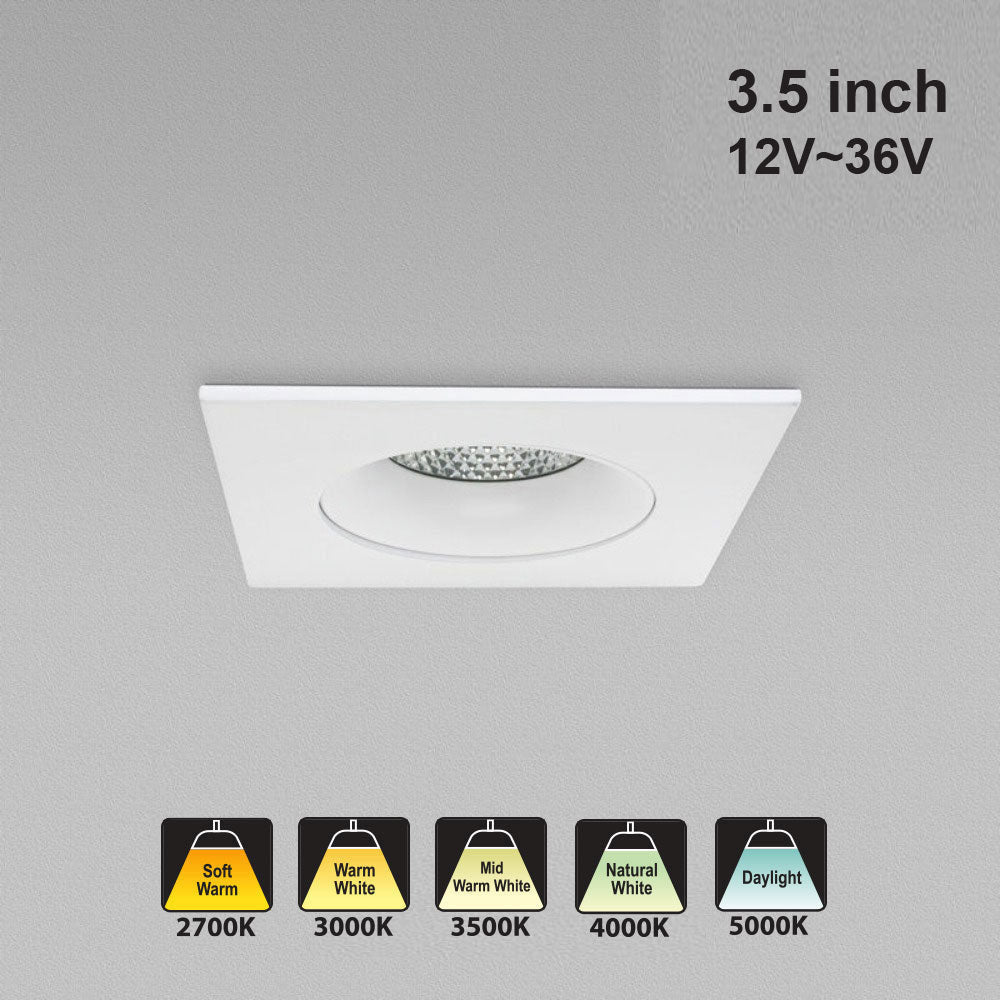

| Color Temperature: | 5CCT Selectable Color Temperature (2700K-3000K-3500K-4000K-5000K) |
| Brightness | 800 Lumens |
| Beam Angle | 40° |
| Dimmable | Yes (PWM Dimmable) |
| Rendering Index | CRI>90 |
| LED Type | Integrated COB LED |
| IP Rating | IP44 |
| Weight | 0.7 kg |

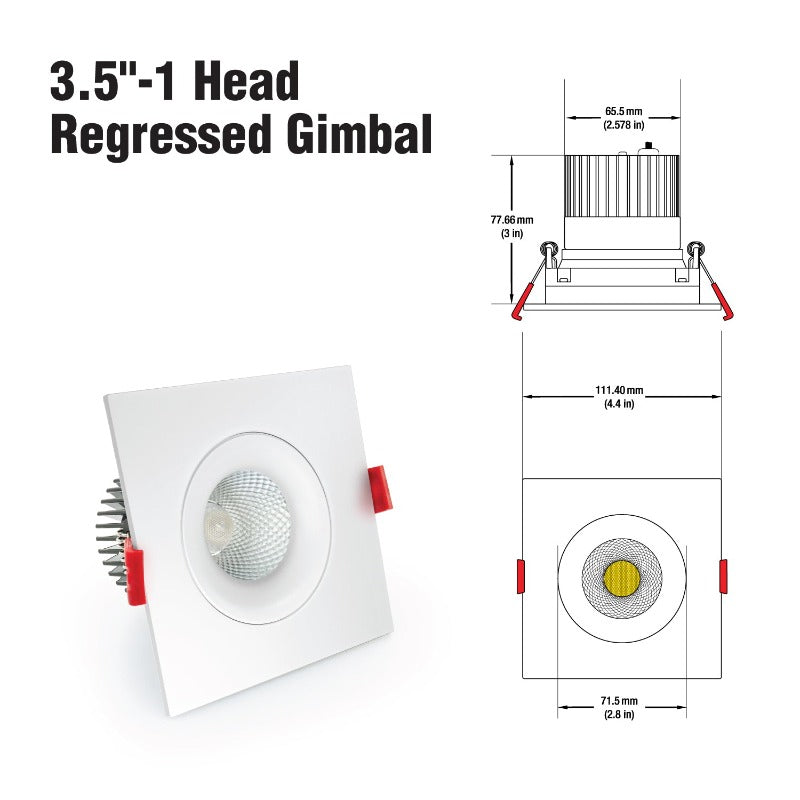

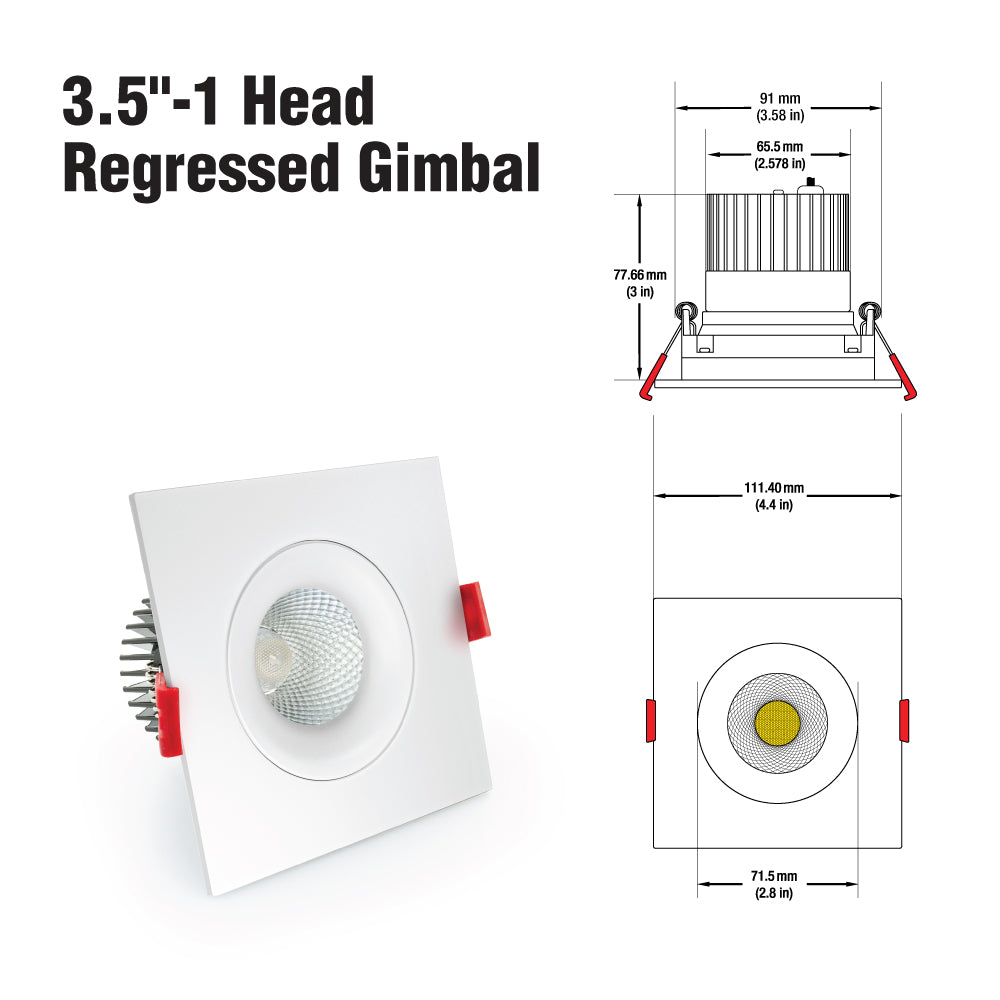

| Outer Dimensions |
Length – 52.35mm (2.06 inches) Width – 27.54 mm (1.08 inches) Depth – 18.76mm (0.73 inch) Cut Size - 91mm (3.58in) |

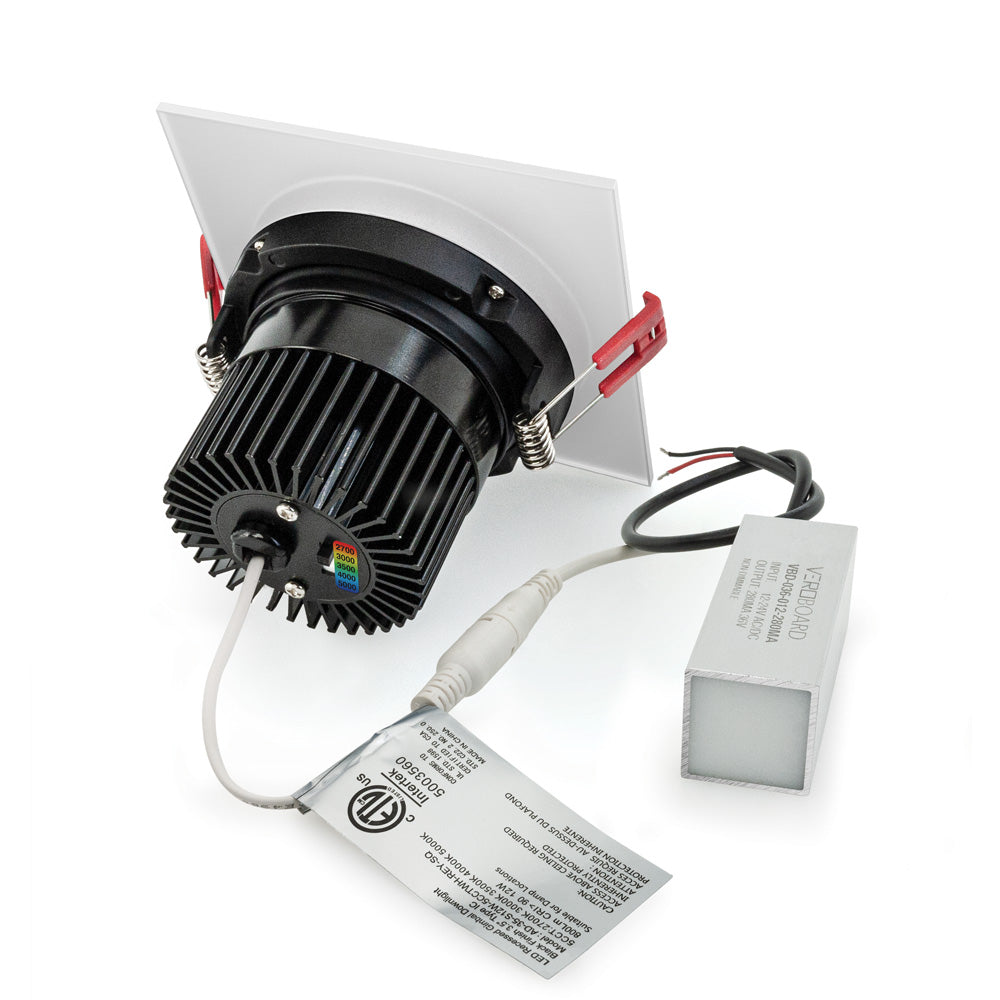

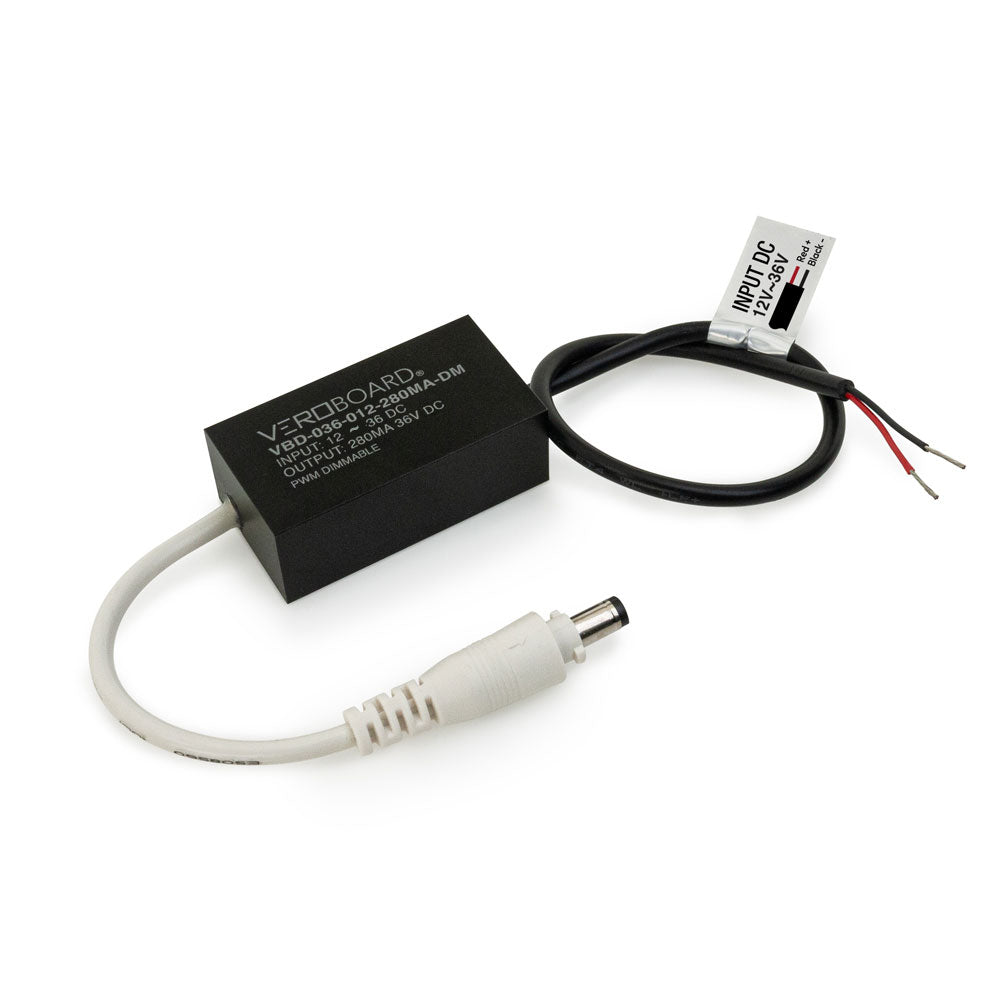

| LED Driver | Included |
| LED Driver Dimensions | 67.76mm x 25.4mm x 25.4mm (2.67in x 1in x 1in) |
| Certification |

|
Features:

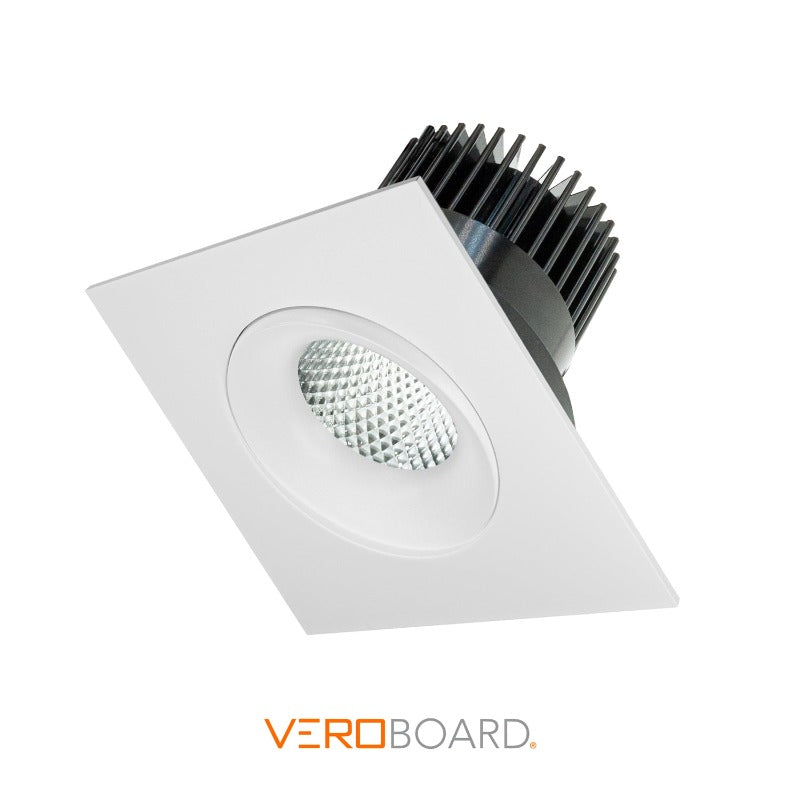

- This downlight works in various indoor applications. It has universal ceiling applications with its adjusting angle feature

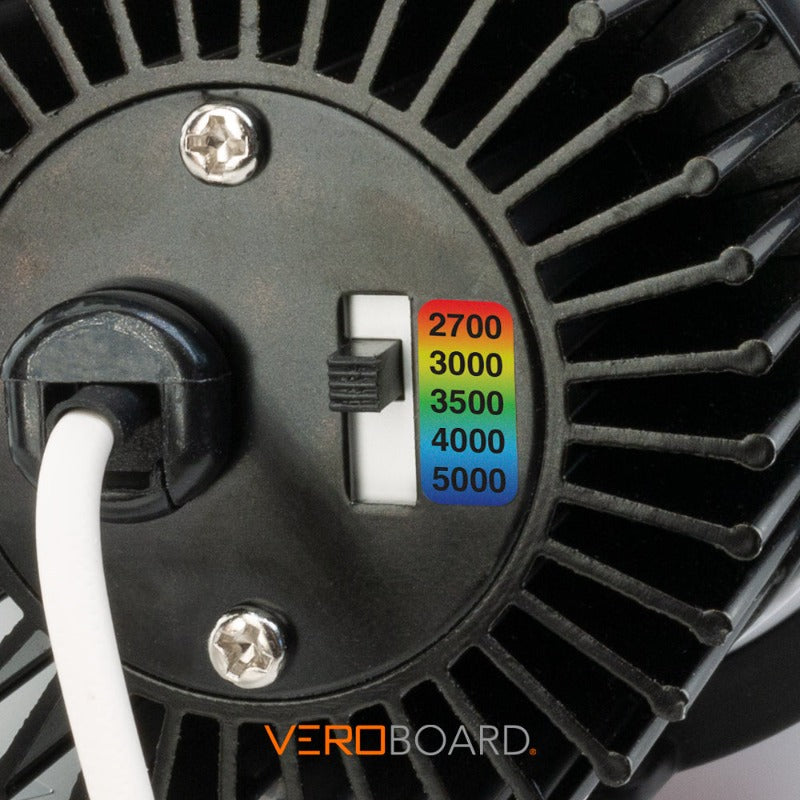

- The temperature of the light can be adjusted to the desired application from the junction box DIP switch.
- Selectable color Temperature option 2700K-3000K-3500K-4000K-5000K from the junction box.
- Well suited for both residential and commercial indoor spaces.
- low voltage LED downlight designed for RV, camper, trailer, yacht, and boat lighting applications
- Provides bright, energy-efficient LED light for marine cabins, RV ceilings, and camper interiors
- Durable housing, vibration-resistant for rough roads and marine conditions on boats and motorhomes
