VBD-012-030C2DM5i1(Class 2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver 12V 30W

VBD-012-030C2DM5i1(Class 2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver 12V 30W

SKU: SKU:666561425999

Regular price $102.20 CAD
Regular price Sale price $102.20 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

Important Note:
We will ship your order  using a different courier during  the Canada Post strike

 How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

Model VBD-012-030C2DM5i1
Input Voltage 100-277V AC
Input Current 0.5A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 12V DC
Output regulated Current 2.5A
Output Power 30W max
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)

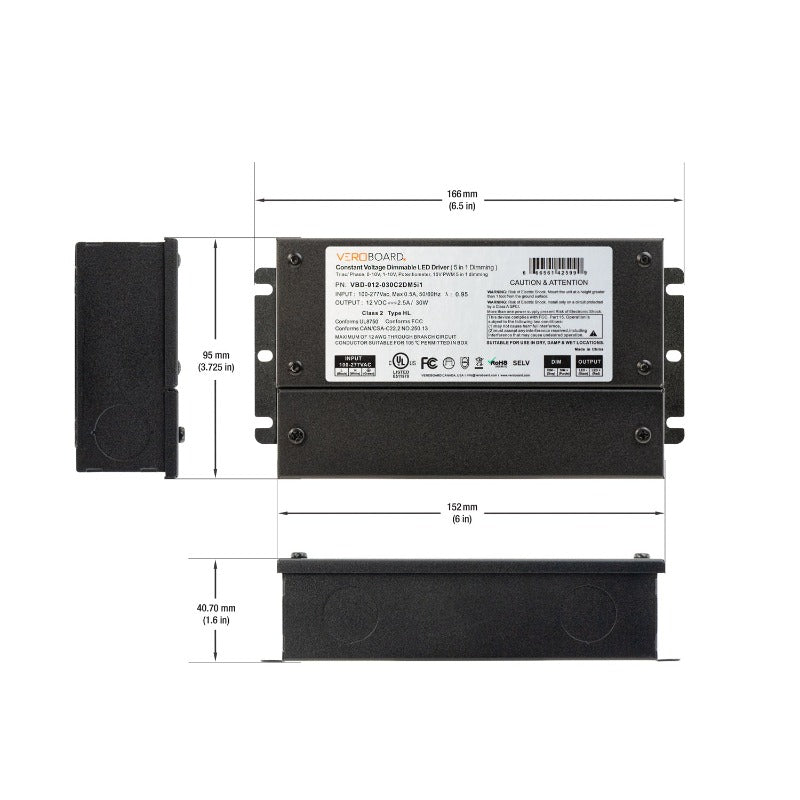

Dimensions  166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in)
Class Certification Class2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



The VBD-012-030C2DM5i1 is a 5 in 1 dimming LED driver that allows for dimming via Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM signals. It has an input voltage range of 100-277V AC, input current of 0.5A, and operates at a frequency of 50-60 Hz. The power factor is greater than 0.95, ensuring efficient power usage. The output voltage is 12V DC, with a regulated output current of 2.5A and maximum output power of 30W. This LED driver is dimmable and can be used with dry, damp, and wet locations due to its IP67 rating. The dimensions are 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in), and it has a Class 2 certification, as well as UL and FCC certifications.

Features:

  • 5-in-1 dimming LED driver with support for Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming signals
  • Input voltage range of 100-277V AC, input current of 0.5A, and frequency range of 50-60 Hz
  • Power factor greater than 0.95 for efficient power usage
  • Output voltage of 12V DC, regulated output current of 2.5A, and maximum output power of 30W
  • Dimmable driver suitable for use in dry, damp, and wet locations with IP67 rating
  • Dimensions of 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in)
  • Class 2 certified and UL and FCC certified for safety and electromagnetic interference standards
