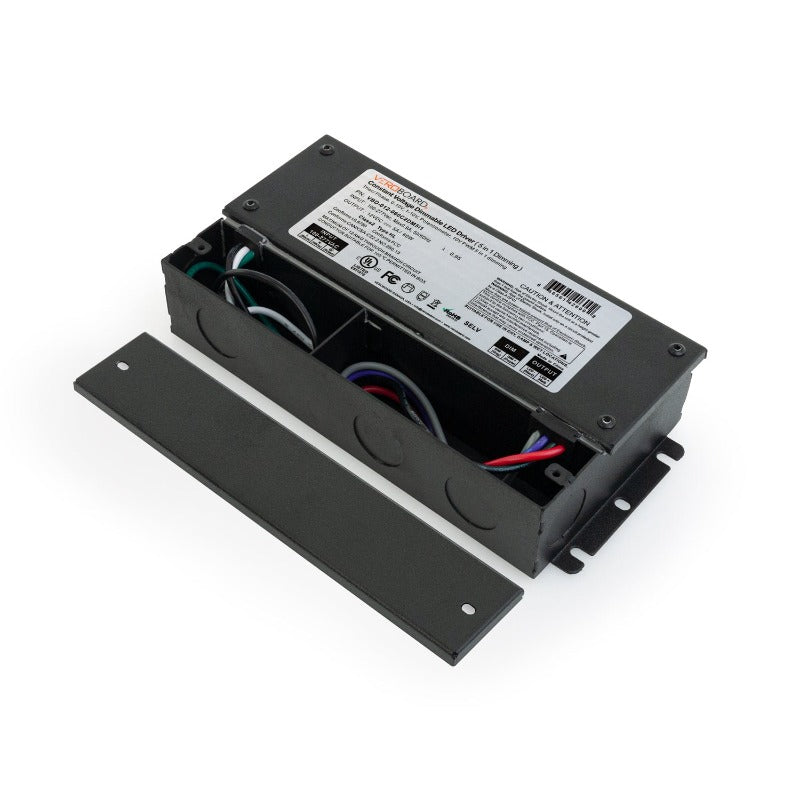

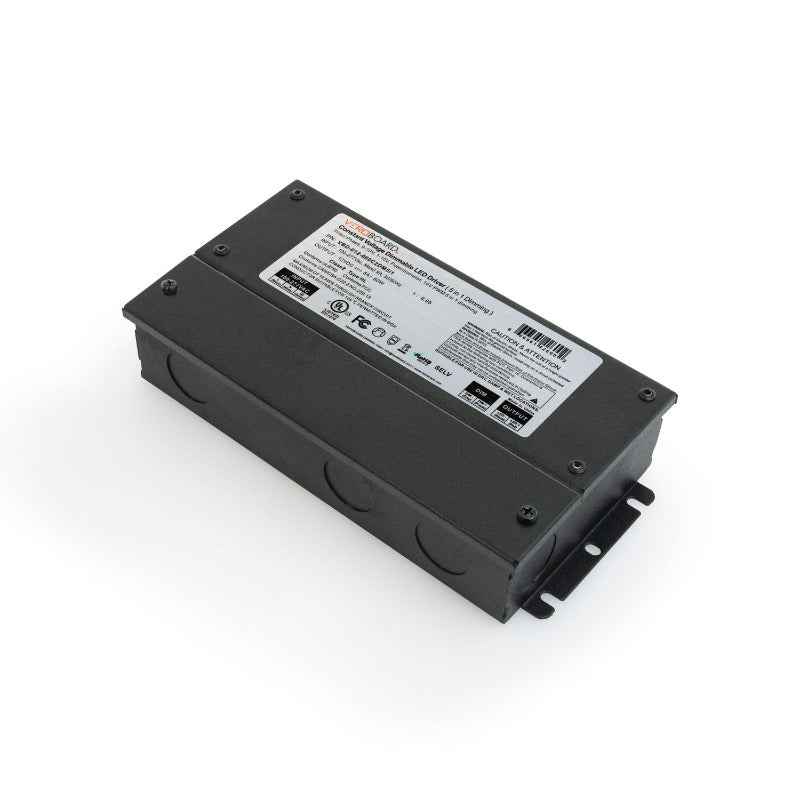

VBD-012-060C2DM5i1(Class 2) 5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 12V 60W

VBD-012-060C2DM5i1(Class 2) 5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 12V 60W

Ask Question!

SKU: SKU:666561426002

Regular price $134.77 CAD
Regular price Sale price $134.77 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Model VBD-012-060C2DM5i1
Input Voltage 100-277V AC
Input Current 0.9A
Frequency 50-60 Hz
Power Factor >0.95

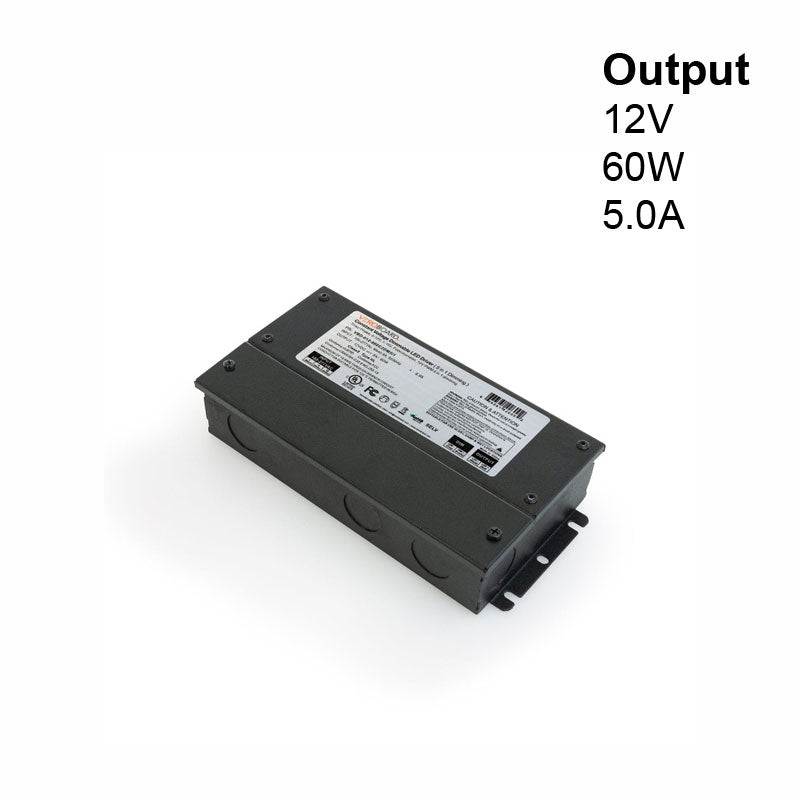

Output Voltage 12V DC
Output regulated Current 5A
Output Power 60W max
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)
Weight 1.2 kg

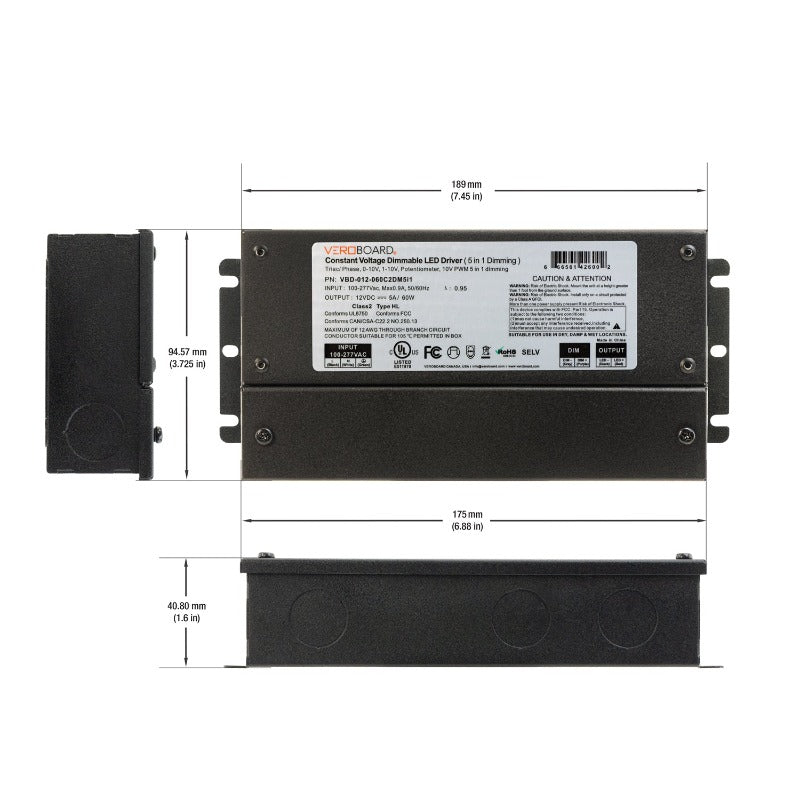

Dimensions  189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

  • The LED driver is a Class 2 and supports Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming methods.
  • It has an input voltage range of 100-277V AC, an input current of 0.9A, and a frequency range of 50-60Hz. The power factor is greater than 0.95.
  • The output voltage is 12V DC, with a regulated output current of 5A and a maximum output power of 60W.
  • The driver has an IP rating of IP67, making it suitable for use in dry, damp, and wet locations.
  • The dimensions of the driver are 189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in).
  • The driver is certified by UL and FCC.
