VBD-012-180C2DM5i1(Class2 3x60w) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 12V 180W

VBD-012-180C2DM5i1(Class2 3x60w) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 12V 180W

Ask Question!
Wholesalers, Resellers, Traders, Click here!

SKU: SKU:666561426019

Regular price $348.60 CAD
Regular price Sale price $348.60 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • Customers are responsible for return shipping fees. Additionally, if an order is returned, the original shipping cost must also be reimbursed.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Model VBD-012-180C2DM5i1
Input Voltage 100-277V AC
Input Current 2.2A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 12V DC
Output regulated Current 3 x 5A
Output Power 180W max (3 x 60W)
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)

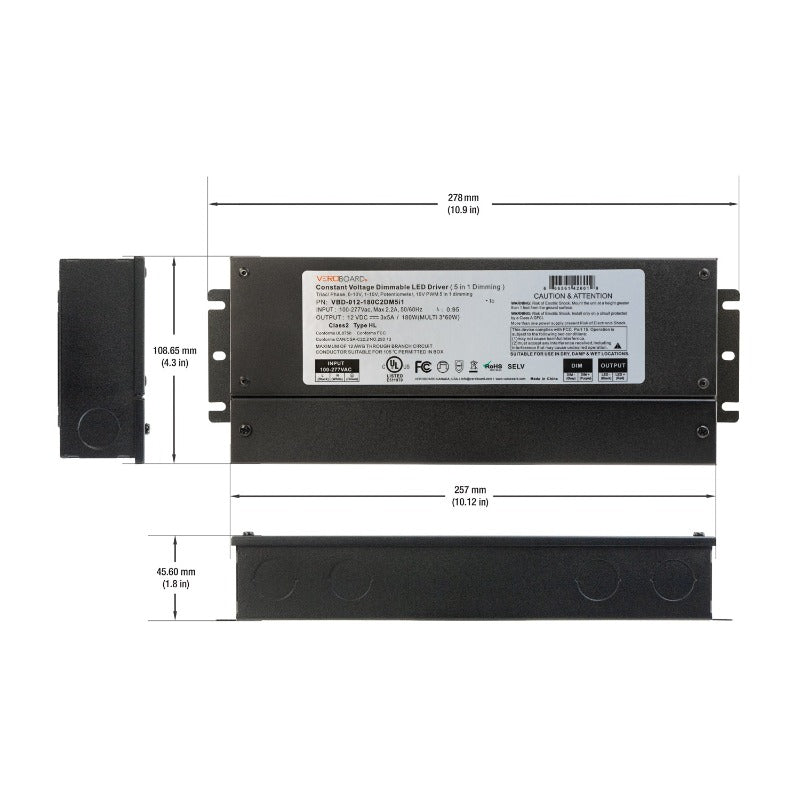

Dimensions  278mm x 108.65mm x 45.60mm(10.9in x 4.3in x 1.8in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

  • 5-in-1 dimming driver for LED lighting systems
  • Accepts input voltages between 100-277V AC
  • Power factor of >0.95
  • Regulated output voltage of 12V DC
  • Maximum output power of 180W
  • 3 regulated current outputs of 5A each, maximum power per output is 60W
  • Dimmable using Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM
  • IP67 rating, suitable for dry, damp, and wet locations
  • Dimensions of 278mm x 108.65mm x 45.60mm (10.9in x 4.3in x 1.8in)
  • Class 2 certified for safety in low voltage applications
  • UL and FCC certified for electrical safety and electromagnetic interference standards
