Product Description

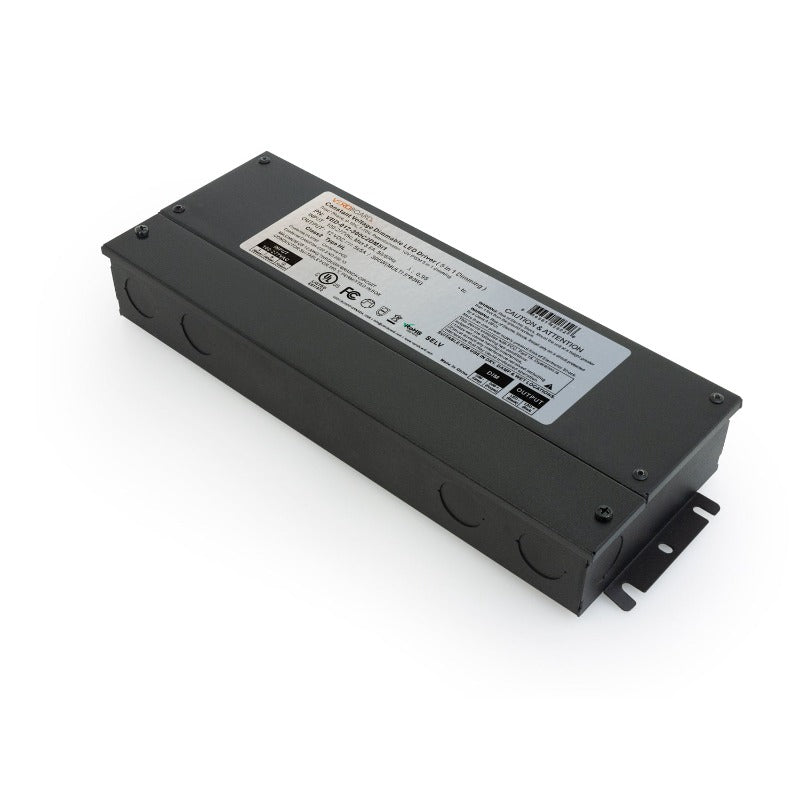

| Model | VBD-012-300C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 3.6A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |

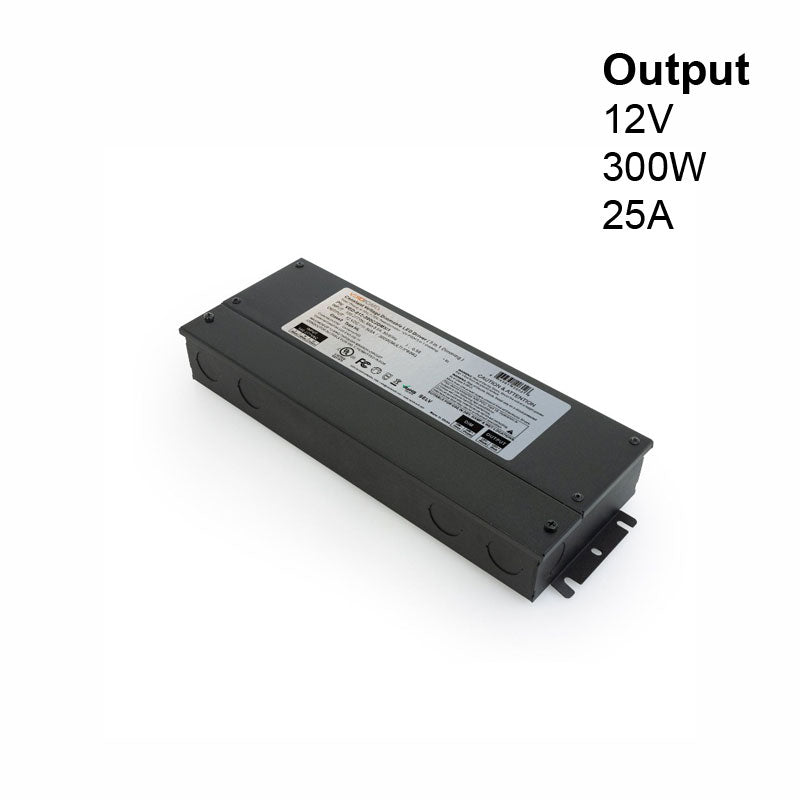

| Output Voltage | 12V DC |
| Output regulated Current | 5 X 5A |
| Output Power | 300W max (5 x 60W) |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| Weight | 2.5 kg |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

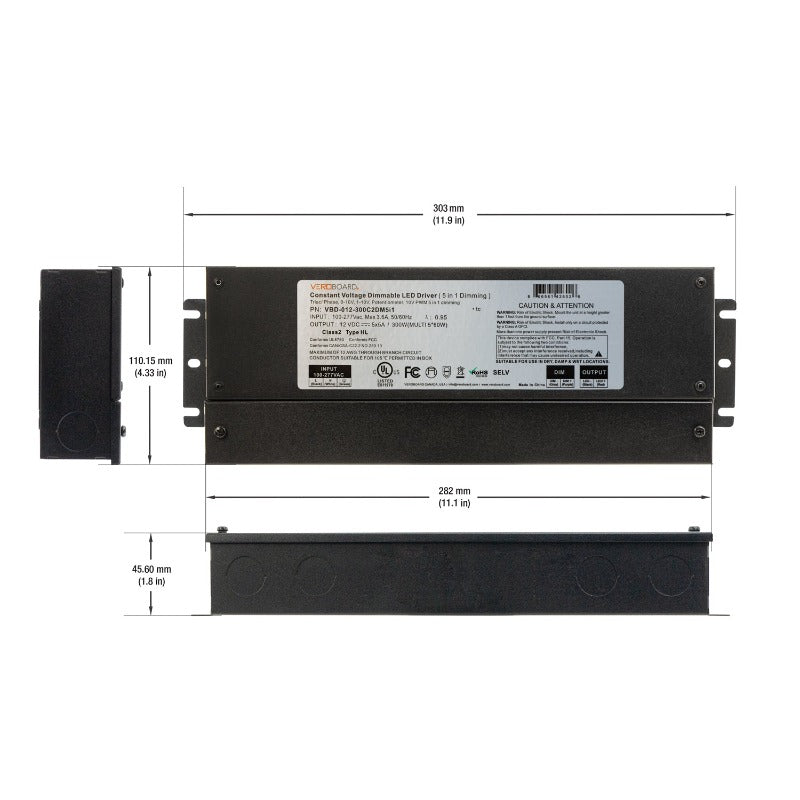

| Dimensions | 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in) |
| Class Certification | Class 2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Input voltage range: The driver can accept input voltages between 100-277V AC, making it suitable for use in a variety of locations and applications.
- Output voltage regulation: The output voltage is regulated at 12V DC, ensuring a stable and consistent supply of power to the connected LED lighting systems.
- Maximum output power: The driver can supply a maximum output power of 300W, which is split between 5 regulated current outputs of 5A each. The maximum power per output is 60W.
- Dimming compatibility: The driver is dimmable using multiple methods, including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM, making it compatible with most dimming systems.
- IP67 rating: The driver has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to a depth of 1 meter for up to 30 minutes. This makes it suitable for use in dry, damp, and wet locations.
- Class 2 certified: The driver is Class 2 certified, which means it meets certain safety standards for low voltage applications.
- UL and FCC certified: The driver has UL and FCC certifications, indicating that it has been tested and meets the safety and performance requirements of those organizations.
- Dimensions: The dimensions of the driver are 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in), making it compact and easy to install.
