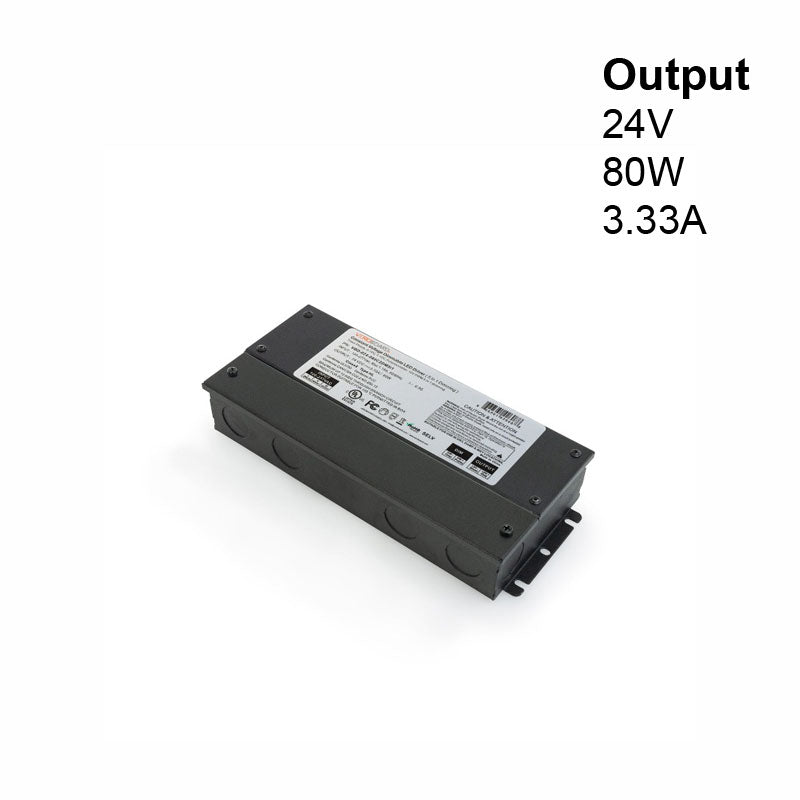

VBD-024-080C2DM5i1(Class2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 80W
VBD-024-080C2DM5i1(Class2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 80W
SKU: SKU:666561426088
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Product DescriptionÂ
Model | VBD-024-080C2DM5i1 |
Input Voltage | 100-277V AC |
Input Current | 1.15A |
Frequency | 50-60 Hz |
Power Factor | >0.95 |
Output Voltage | 24V DC |
Output regulated Current | 3.33A |
Output Power | 80W max |
Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
IP Rating | IP67 (Dry, Damp and Wet Locations) |

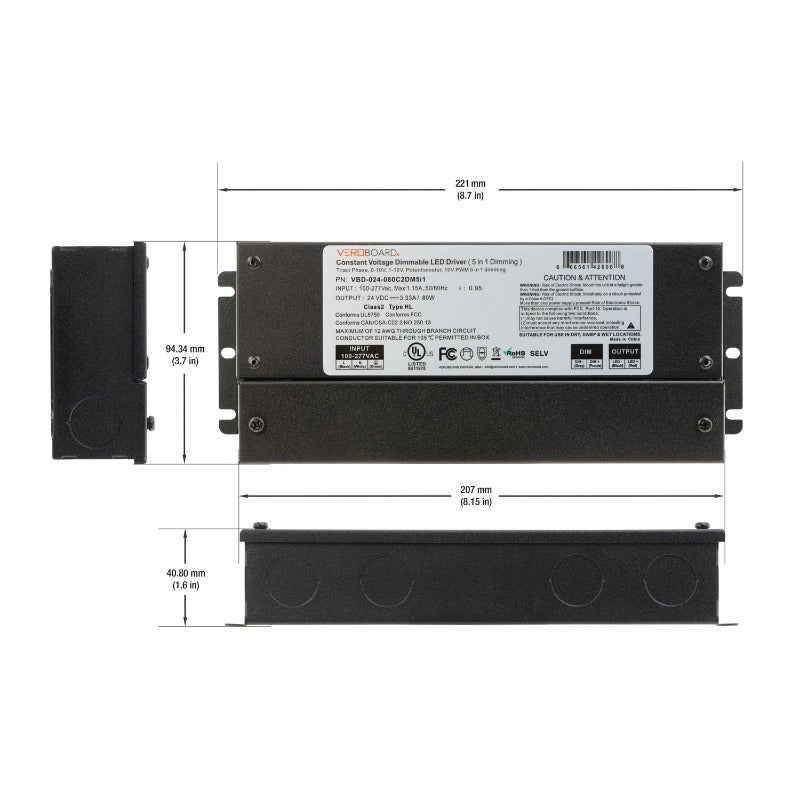

Dimensions | 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in) |
Class Certification | Class 2 |
Certifications: |
Applicable for dry, damp, and wet locations |
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Â
The VBD-024-080C2DM5i1 LED driver is a versatile dimming driver designed for use with LED lighting systems. It has an input voltage range of 100-277V AC, an input current of 1.15A, and a frequency of 50-60 Hz. The driver has a high power factor of greater than 0.95, indicating high power efficiency. It has an output voltage of 24V DC and can regulate output current up to 3.33A, with a maximum output power of 80W. The driver is dimmable, allowing for Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming control.
The driver is rated IP67, making it suitable for use in dry, damp, and wet locations. It has dimensions of 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in), making it a relatively compact driver. The driver is Class 2 certified, indicating it meets relevant safety standards. It is UL and FCC certified, indicating it meets relevant safety and electromagnetic interference standards. Overall, the VBD-024-080C2DM5i1 LED driver is a versatile and reliable option for powering and dimming LED lighting systems.
Features:Â
- Versatile dimming driver for LED lighting systems
- Input voltage range of 100-277V AC with an input current of 1.15A and frequency of 50-60 Hz
- High power factor of >0.95 for high power efficiency
- Output voltage of 24V DC with regulated output current up to 3.33A
- Maximum output power of 80W
- Dimmable with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming control
- Rated IP67 for use in dry, damp, and wet locations
- Dimensions of 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
- Class 2 certified for safety in low voltage applications
- UL and FCC certified for electrical safety and electromagnetic interference standards
