Product Description
| Model | VBD-012-150DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 1.8A |
| Frequency | 50-60Hz |
| Power Factor | >0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 12.5A |
| Output Power | 150W max |
| Weight | 2 kg |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

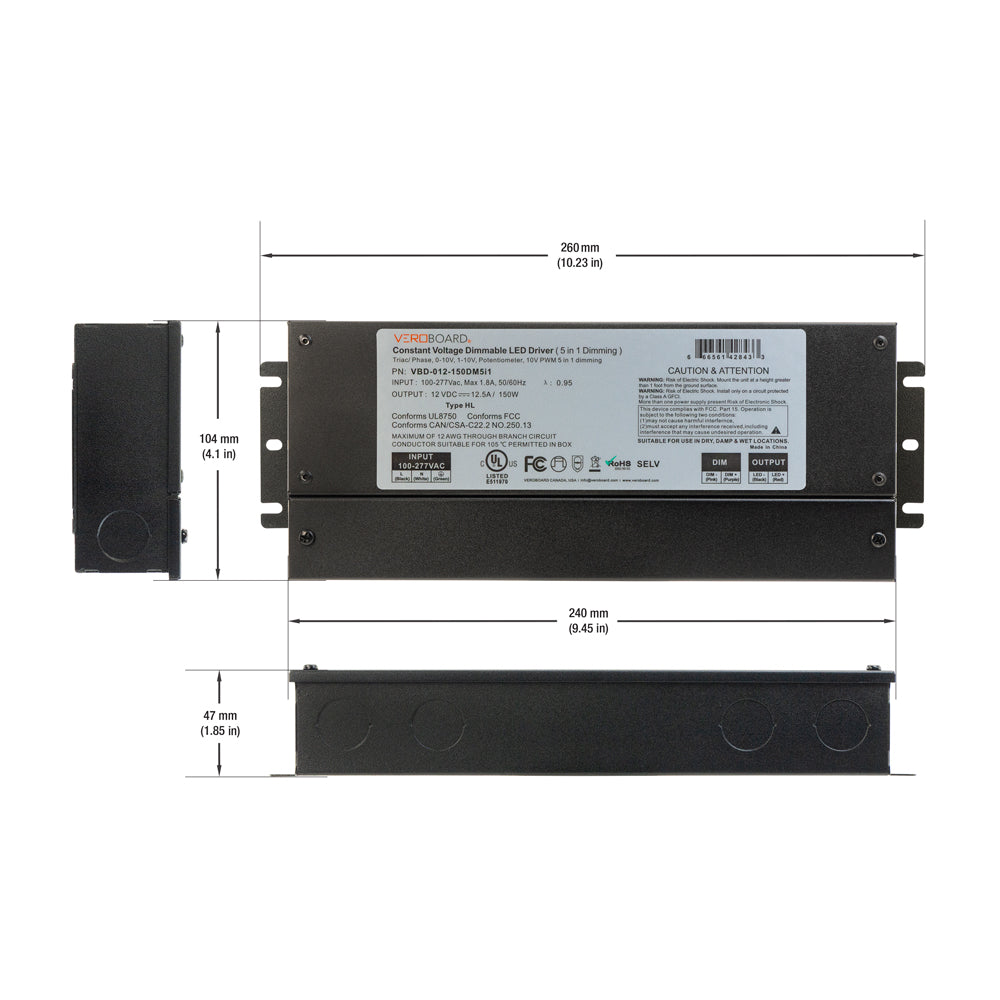

| Dimensions | 260mm x 104mm x 47mm (10.23in x 4.1in x 1.8in) |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- The LED driver has a high power rating of 150W, with a regulated output voltage of 12V DC and an output current of 12.5A.
- It is designed to operate with input voltages ranging from 100-277V AC and input current of 1.8A at a frequency of 50-60Hz.

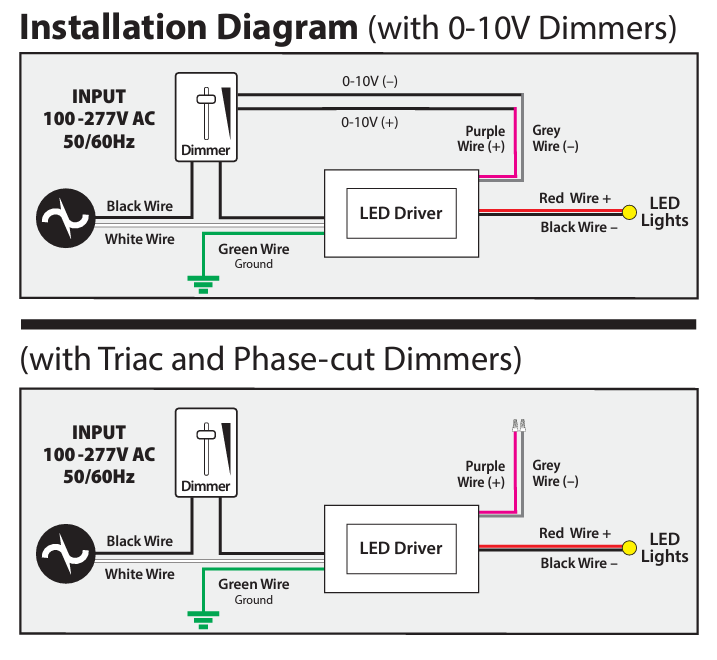

- The driver offers five dimming options, including Triac, Phase, MLV, ELV, and 0-10V, as well as Potentiometer and 10V PWM, providing a wide range of lighting control options.
- It has a high power factor of over 0.95, ensuring efficient power usage and reducing energy costs.
- The LED driver is rated IP67, making it suitable for use in dry, damp, and wet locations, and is designed to withstand harsh environmental conditions.
- The dimensions of the driver are 260mm x 104mm x 47mm (10.23in x 4.1in x 1.8in), allowing for easy installation in a variety of lighting fixtures.
- The driver is certified by UL and FCC, ensuring compliance with relevant safety and performance standards, and providing peace of mind for users.
- Overall, the VBD-012-150DM5i1 LED driver is a high-performance and versatile solution for powering LED lights in a wide range of applications, providing precise lighting control and reliable performance.
