Product Description
| Model | VBD-036-300TR010 |
| Input Voltage | 110-277V AC |
| Input Current | 3.2A |
| Input Wattage | 335W |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Weight | 2.5 kg |

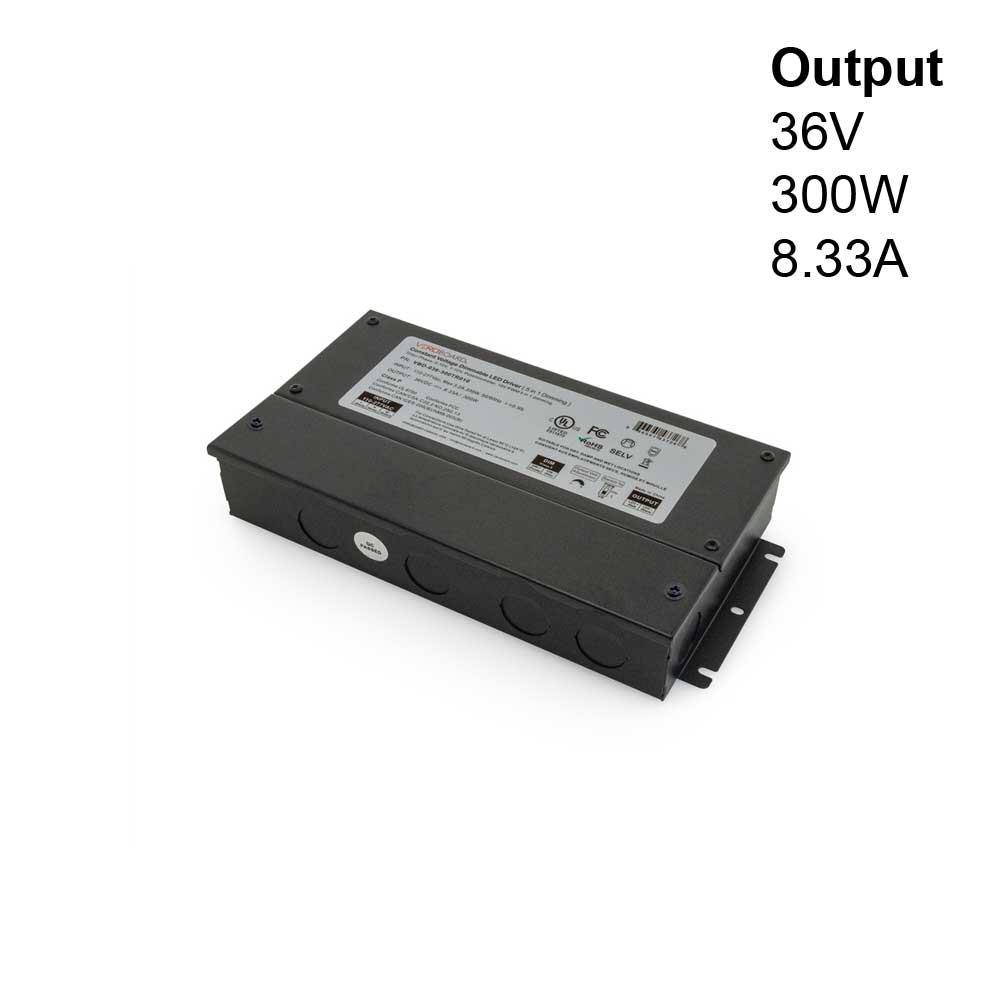

| Output Voltage | 36V DC |
| Output regulated Current | 8.33A |
| Output Power | 300W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP65 (Dry, Damp and Wet Locations) |

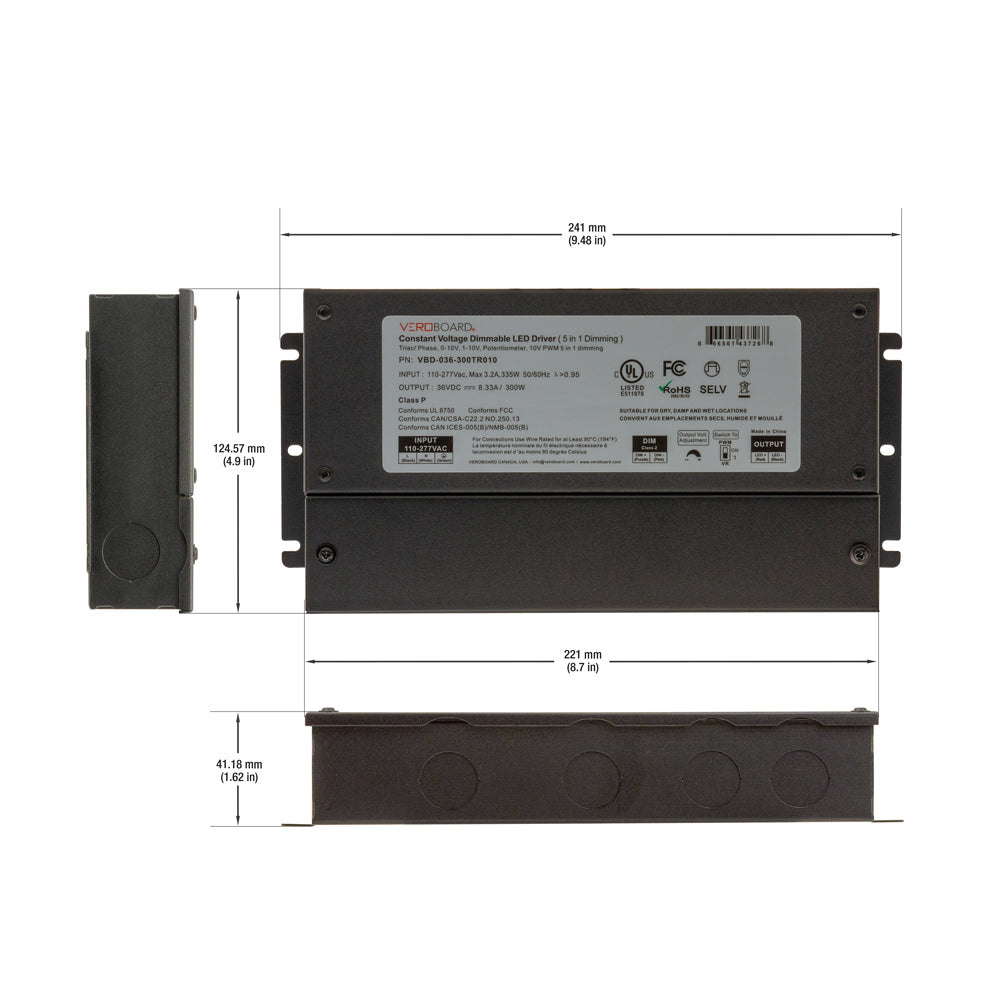

| Dimensions | 241 x 124.5 x 41.1mm (9.48 x 4.9 x 1.62in) |
| Class Certification | Class P |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- 5in1 Dimming LED Driver with support for Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming signals
- Input voltage range of 110-277V AC, input current of 3.2A, and frequency range of 50-60 Hz
- Power factor greater than 0.95 for efficient power usage
- Dimmable driver suitable for use in dry, damp, and wet locations with IP67 rating
- Class P certified and UL and FCC certified for safety and electromagnetic interference standards

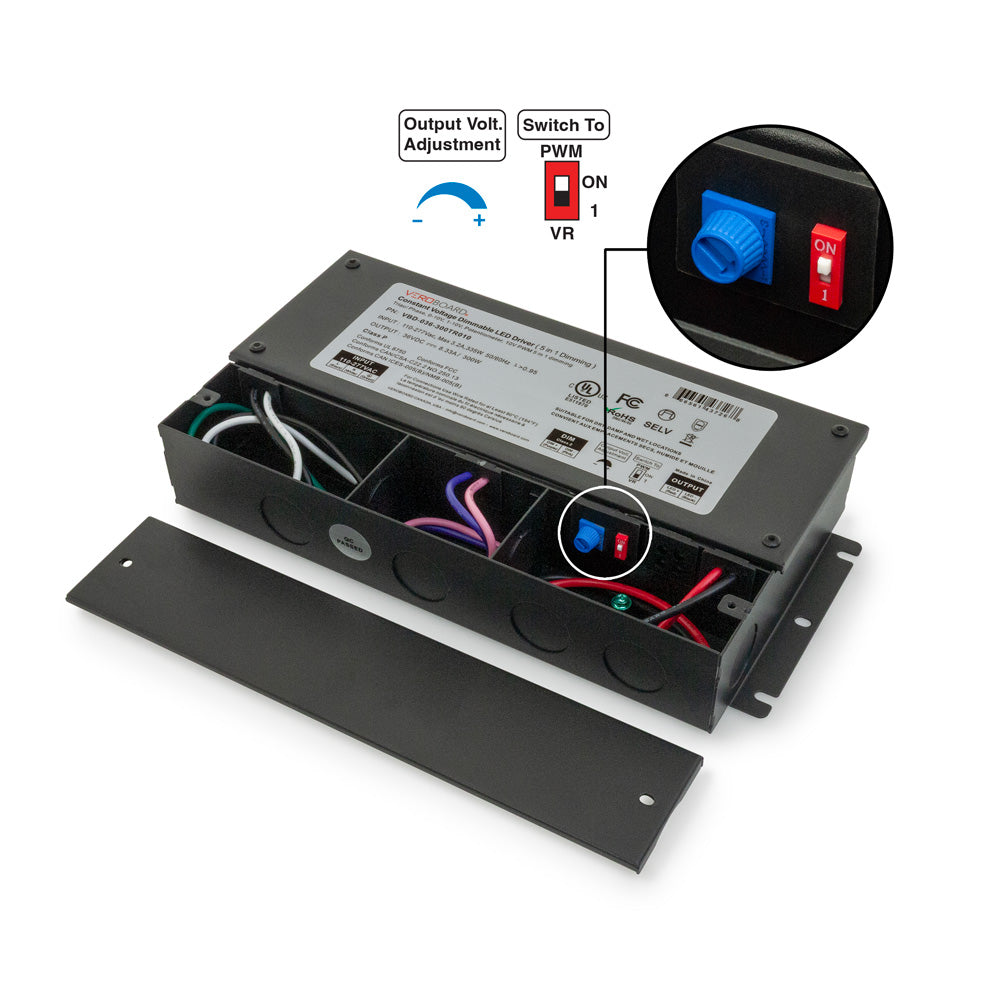

Dimming Mode (Red DIP Switch) - Selects PWM Output or Voltage Reduction (VR) dimming mode.
- Set the DIP switch to the desired mode before powering the driver. Ensure power is OFF before changing the switch position.
Output Voltage Adjustment (Blue Dial) - Adjustable output range: 36-40V DC (factory set at 36V).
- Turn clockwise to increase voltage and counterclockwise to decrease. Use a small screwdriver and verify voltage after adjustment.
