Product Description
| Model | VBDFS-COB480W4.5-xxxx-24S (xxxx indicate Color Temperature) |
| Wattage | 14W Per meter (4.5W/ft) |
| Input Voltage | 24V DC |
| LED Qty | 480 LEDs per meter |
| Brightness | 1190 Lm/meter (363 Lm/ft) |
| Dimmable | Yes |
| Rendering Index | CRI>95+ |
| Cut Size | Every 2 inches |

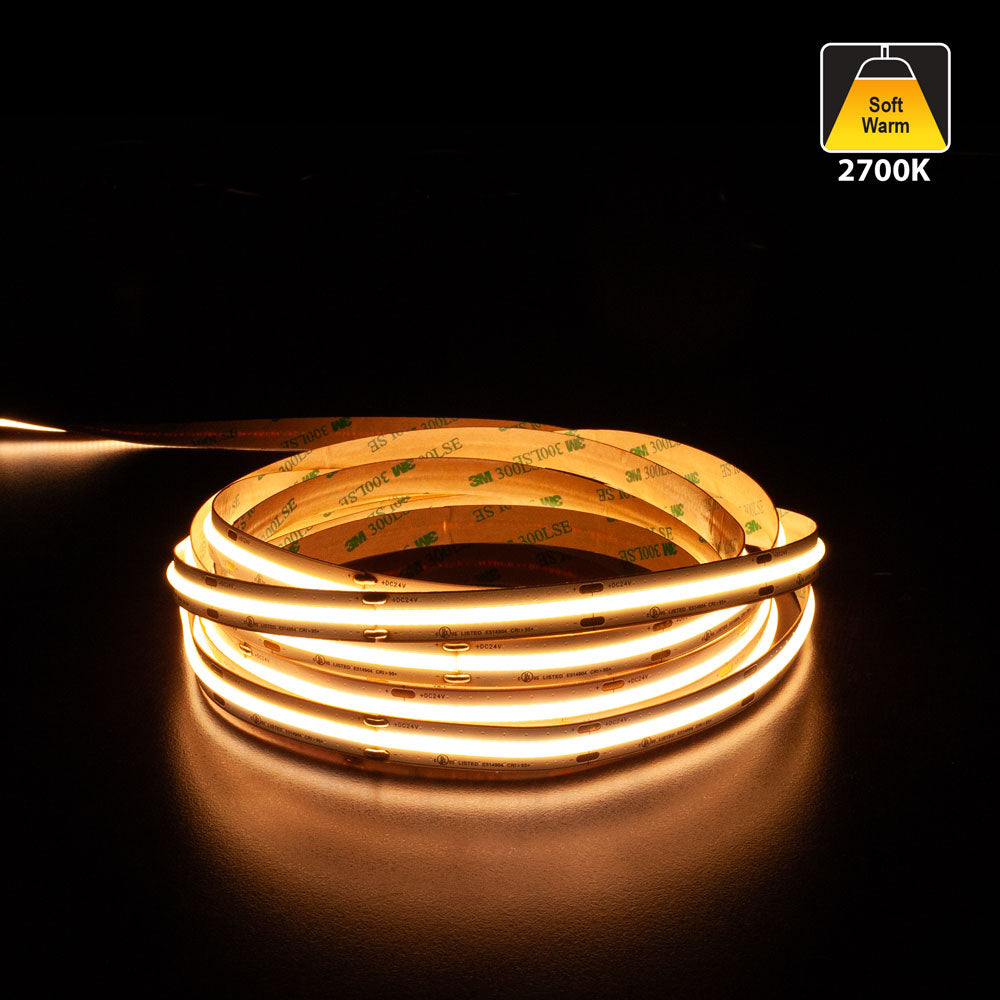

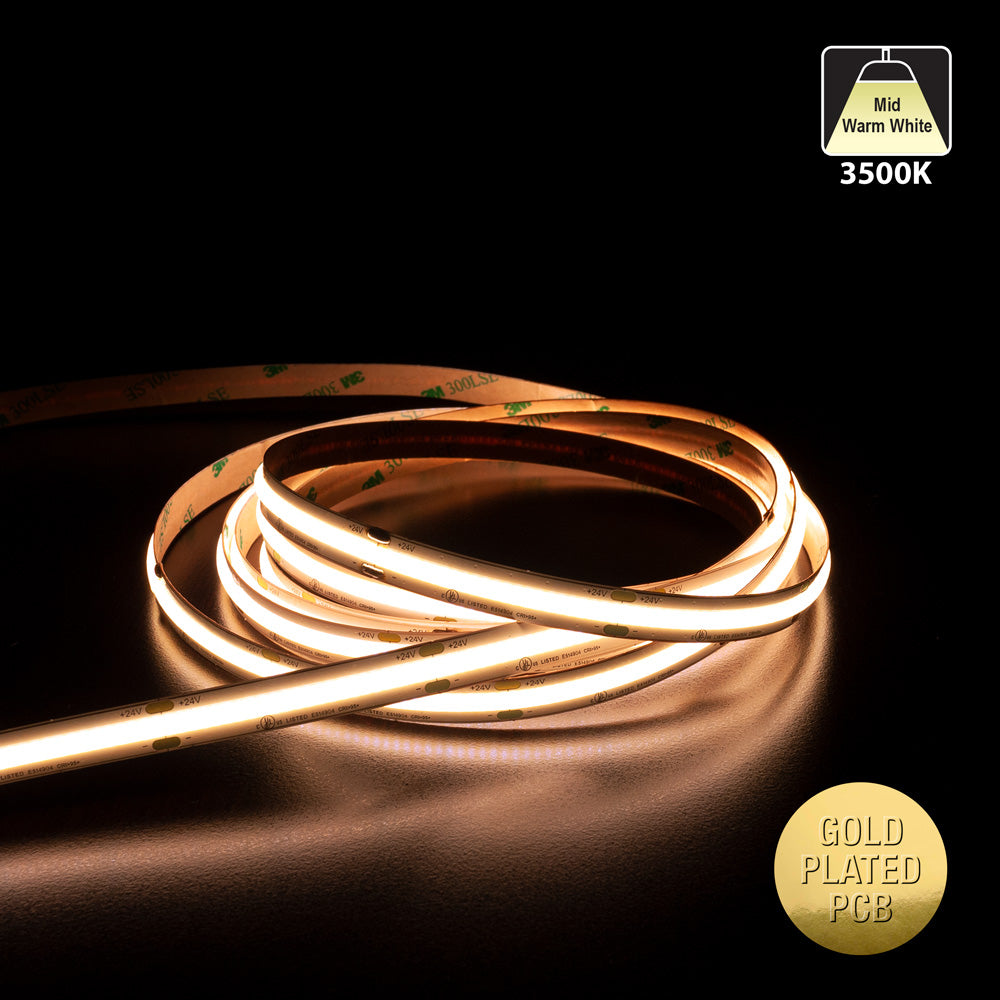

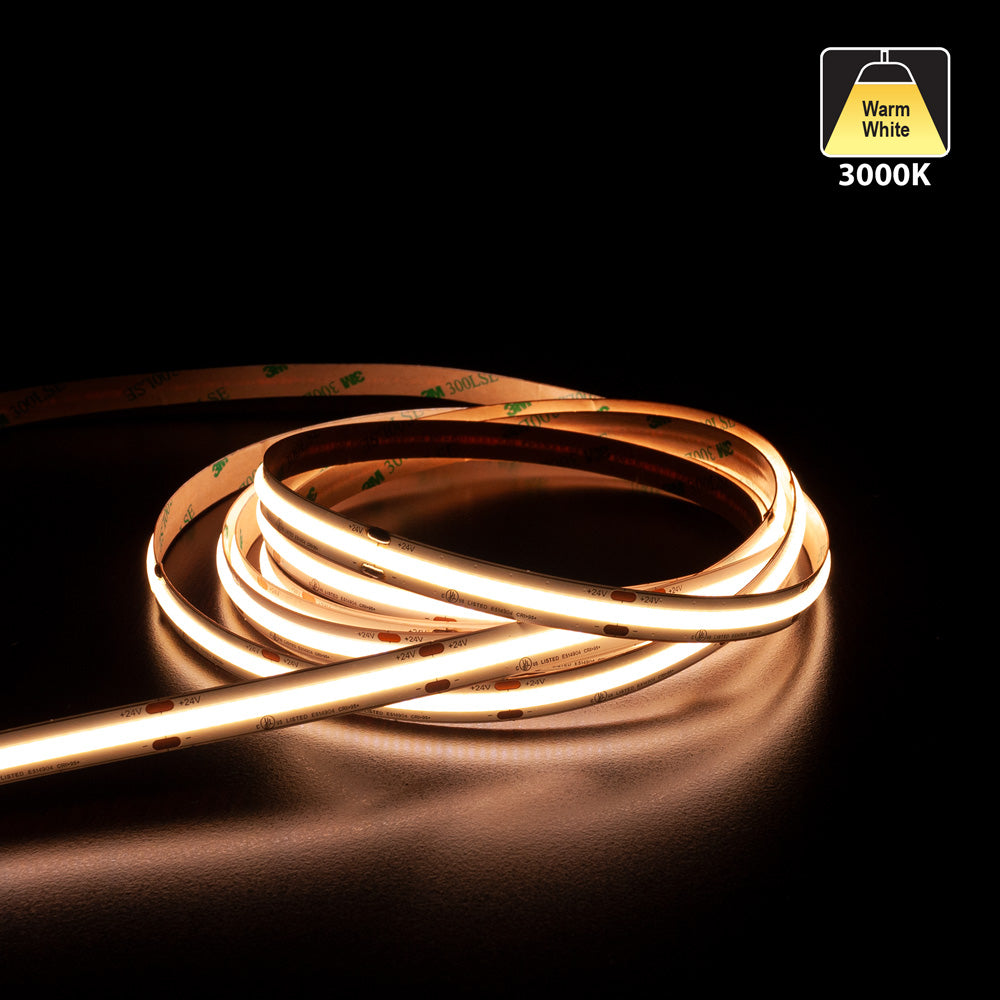

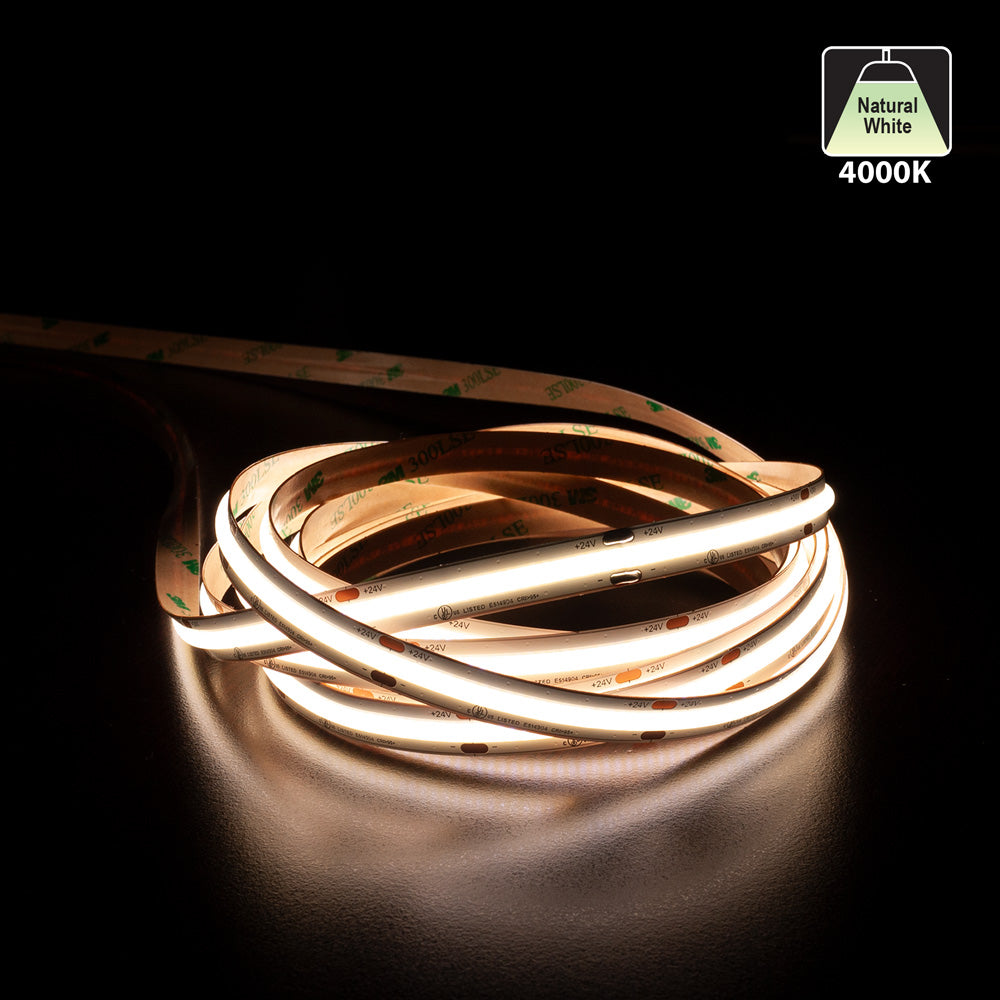

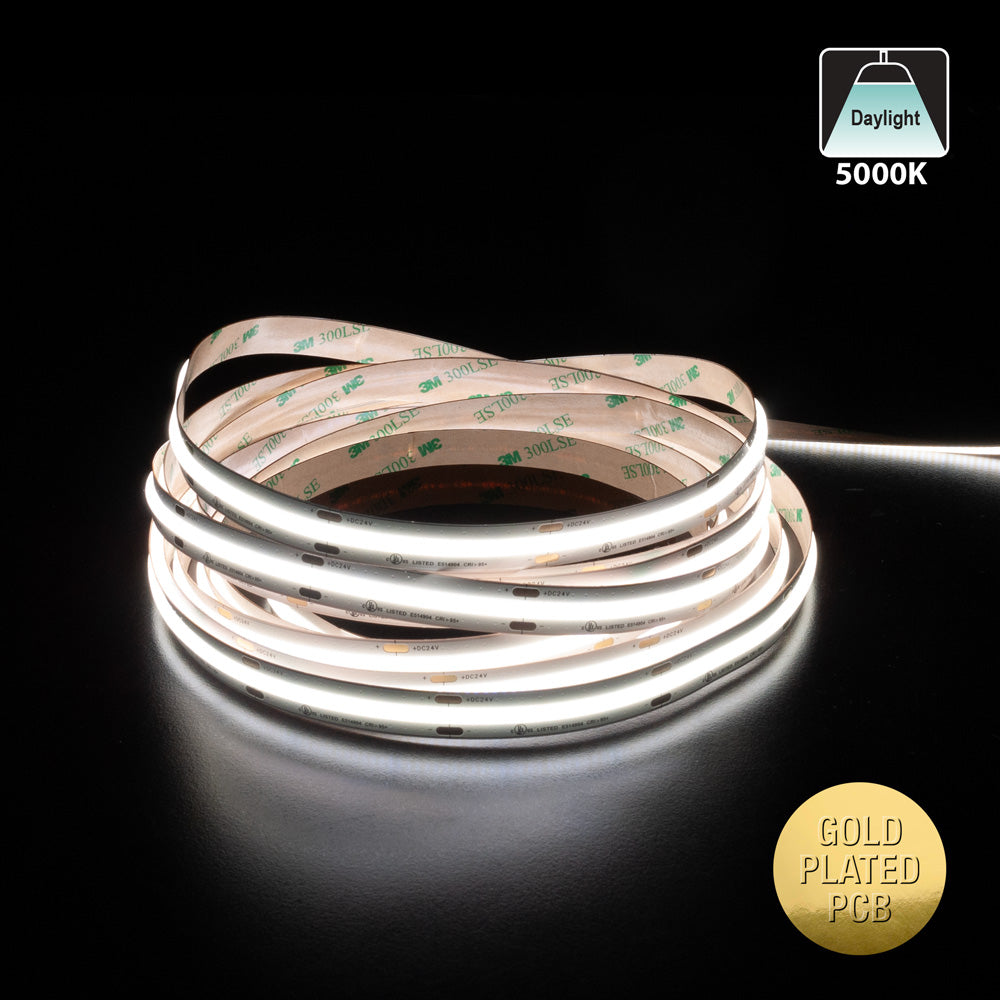

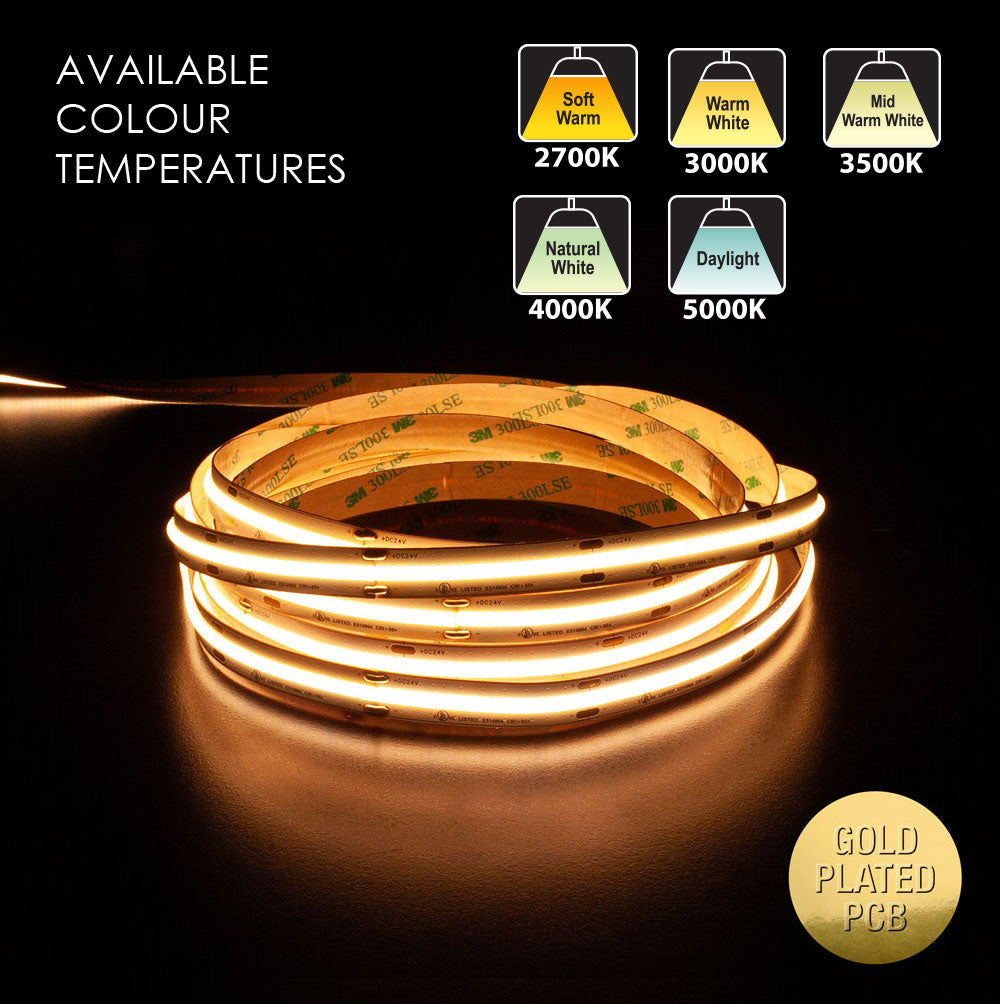

| Available Color Temperatures | 2700K (Soft White) 3000K (Warm White) 3500K (Mid-Warm White) 4000K (Natural White) 5000K (Daylight) |
| IP Rating | IP20 [Indoor use only] |
| Dimensions | 5,000mm x 12mm x 2.15mm (196.8in x 0.47in x 0.08in) |
| Certificates |
|
|
Model No. (For each Color Temperature) |
SKU |
| VBDFS-COB480W4.5-2700-24S | 666561432911 |
| VBDFS-COB480W4.5-3000-24S | 666561429287 |
| VBDFS-COB480W4.5-3500-24S | 666561432324 |
| VBDFS-COB480W4.5-4000-24S | 666561429270 |
| VBDFS-COB480W4.5-5000-24S | 666561432928 |
Features:
- Chip-on-Board (COB) technology provides high-intensity lighting with low power consumption and high energy efficiency
- Powered by 24V DC with a wattage of 14W per meter (4.5W per foot)
- 480 LED chips per meter for a brightness of 1190 lumens per meter (363 lumens per foot)

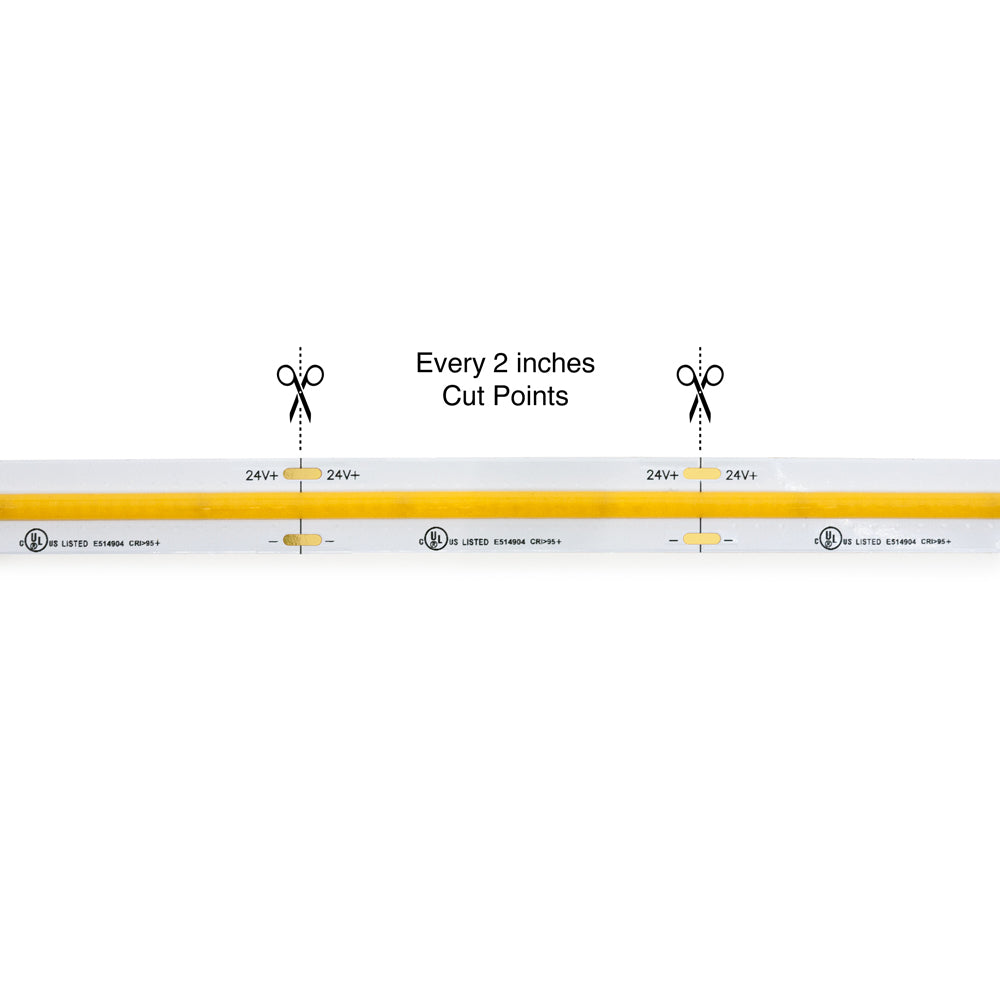

- Can be cut every 2 inches, allowing for customized length
- Recommended to use metallic aluminum channels or LED profiles for a good heat sink to increase LED lifespan

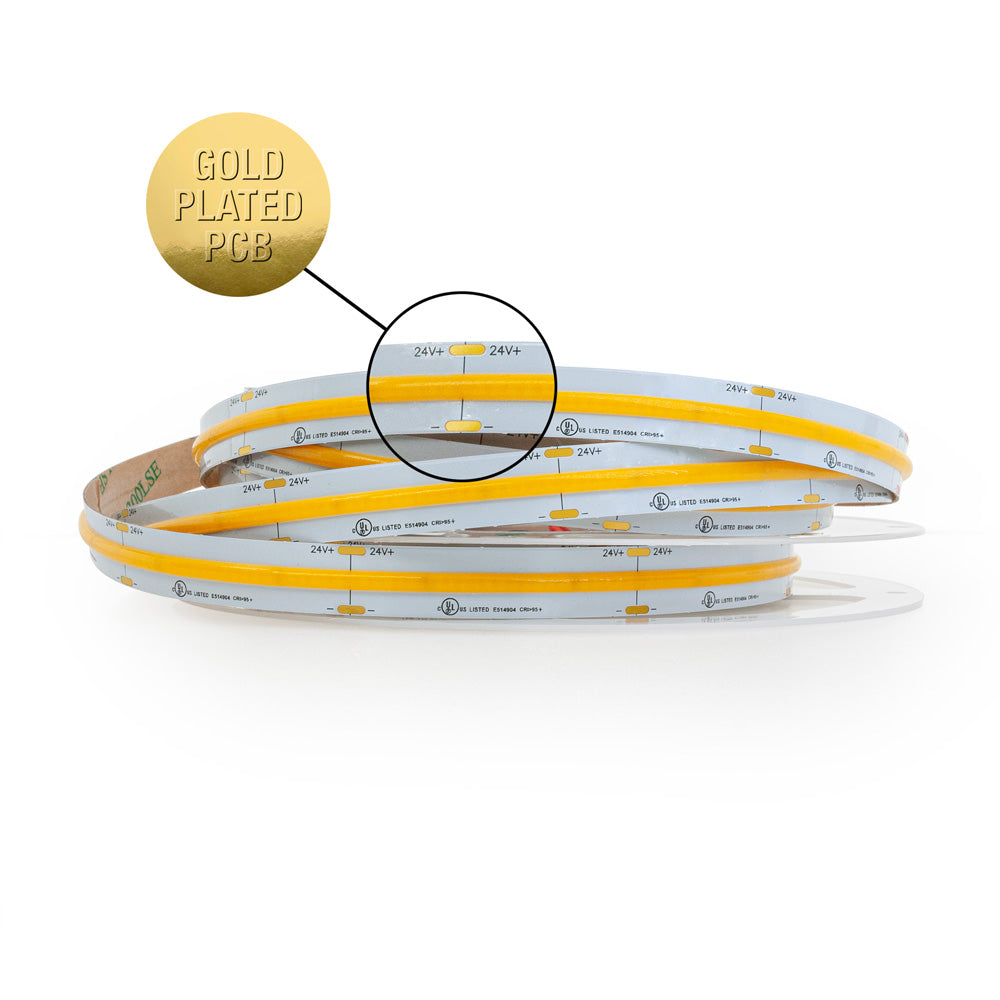

- High-quality flexible PCBs with at least 2 ounces or 3 ounces in particular models for low voltage drop and good heat dispersion
- Ideal for task lighting, direct lighting in homes, businesses, interior lighting, movie and theater lighting, cove lighting, under cabinet lighting, and more
- IP rating of IP20 for indoor use only
- Accessories sold separately upon request
- Certified with UL certification.
