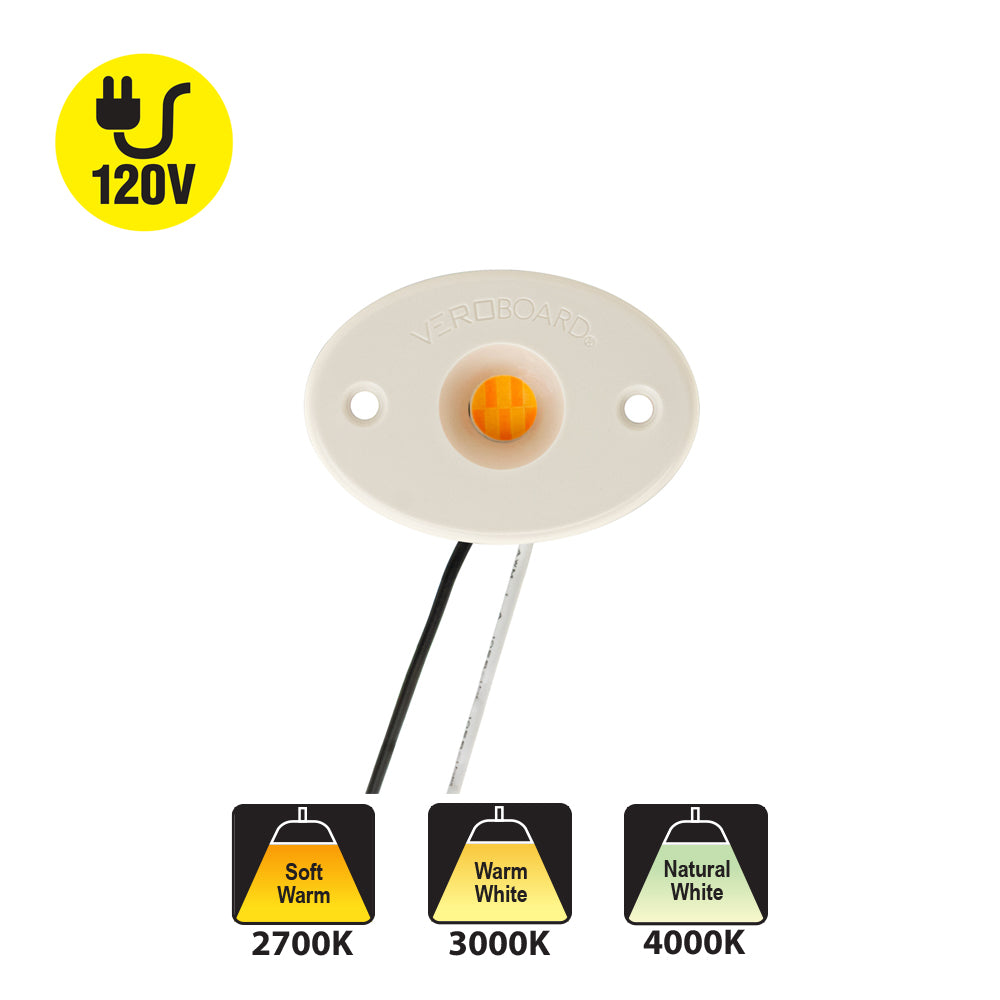

CBAC-084-30135-120-3000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 3000K (Warm White)
CBAC-084-30135-120-3000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 3000K (Warm White)
SKU: SKU:666561430429
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Product Description
| Product | Paragon LED Module |
| Model No | CBAC-084-30135-120-3000-G12 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| Wattage | 16WÂ |
| Voltage | 120V AC |
| Brightness | 1280 Lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

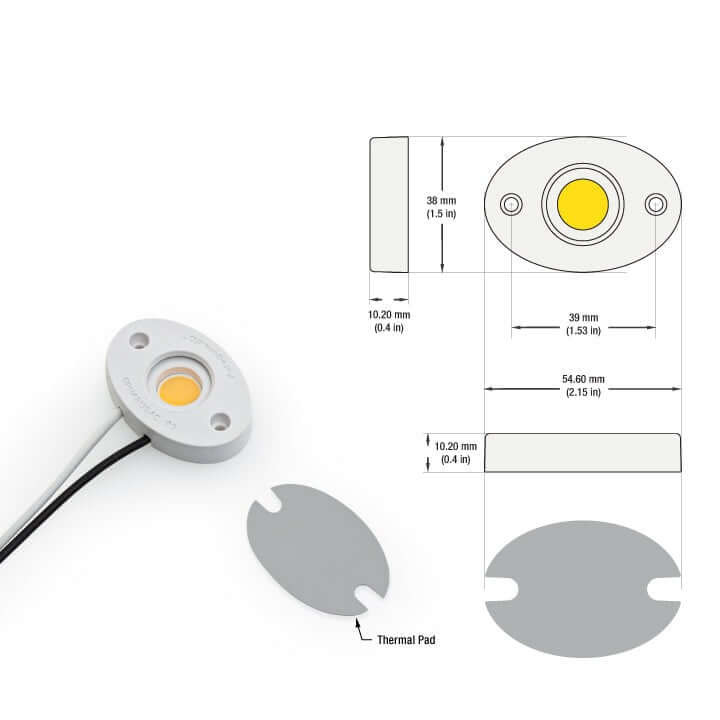

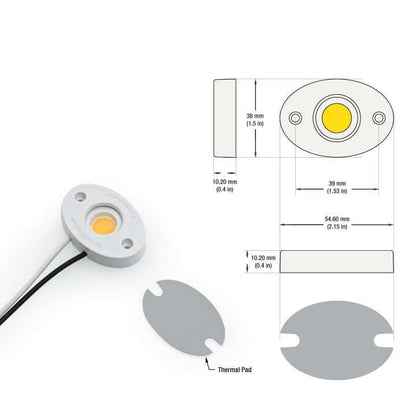

| COB Holder Dimensions | ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder with Thermal Pad |
| Certifications |  |

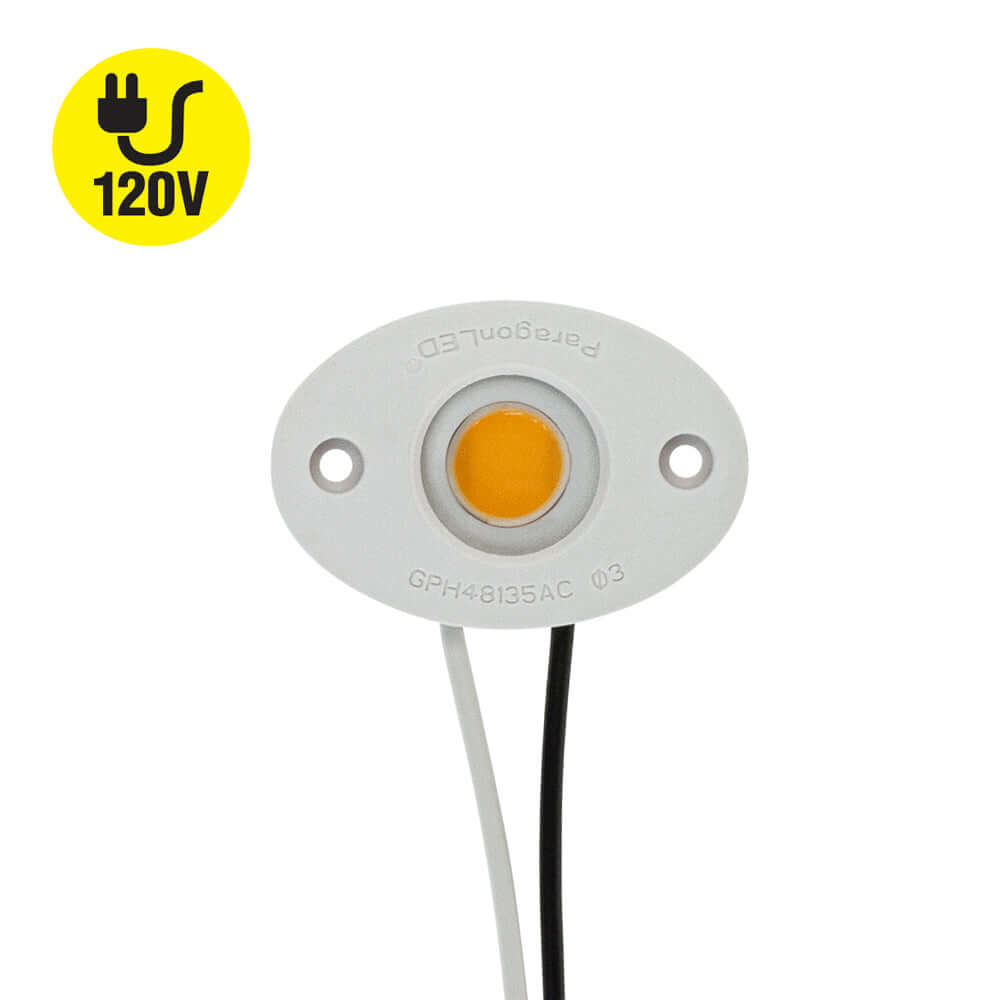

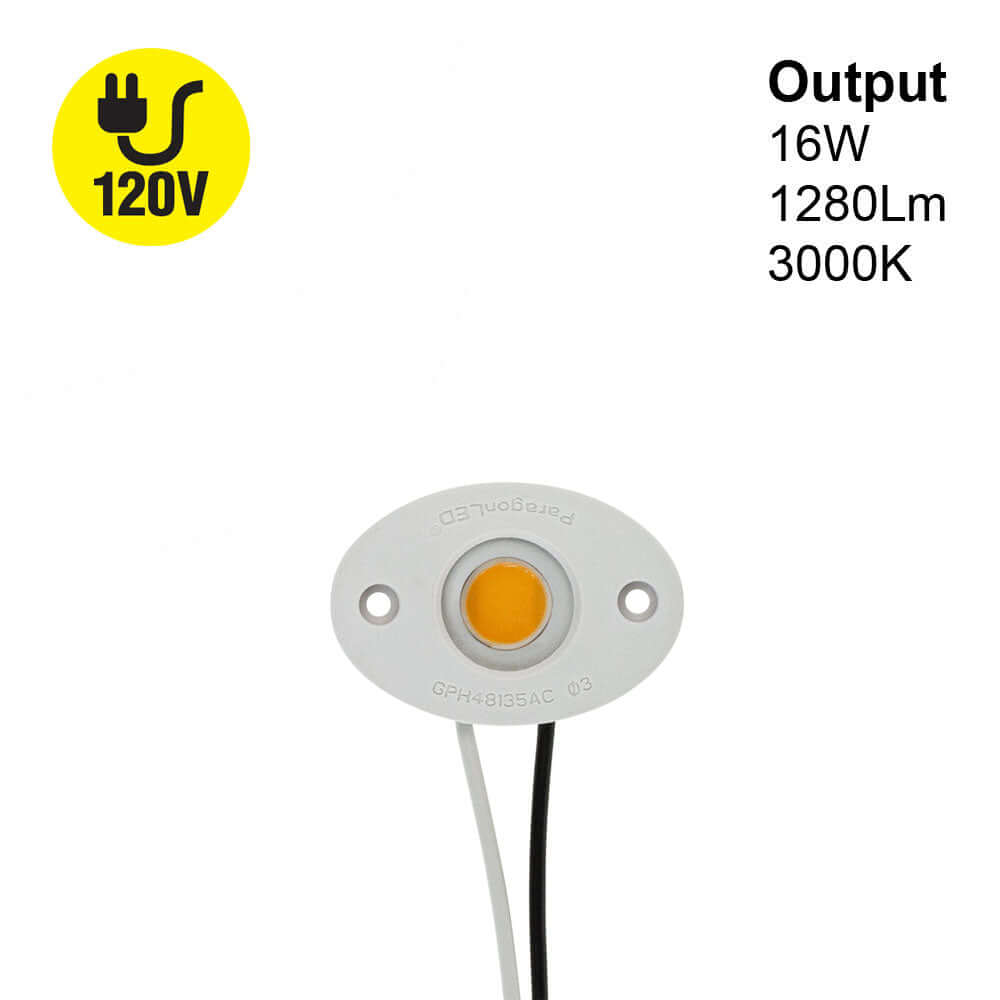

The CBAC-084-30135-120-3000-G12 Paragon LED Module is a COB LED module that comes with a GPH48135AC LED holder. It has a wattage of 16W and a voltage rating of 120V AC. The module produces a warm white light with a color temperature of 3000K and has a brightness of 1280 lumens.
This LED module is dimmable and has a rendering index of CRI>80. It has an IP20 rating which makes it suitable for indoor use in damp locations. The COB holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) and the COB module outer diameter is ∅27mm (1.06 in).
The operating temperature range is -60 ~ +105℃, the storage temperature range is -60 ~ +105℃, and the assembly process temperature should be kept below 300℃. The solder joint point should be below 105℃ and the dielectric breakdown voltage of the thermal pad should be greater than 4KV.

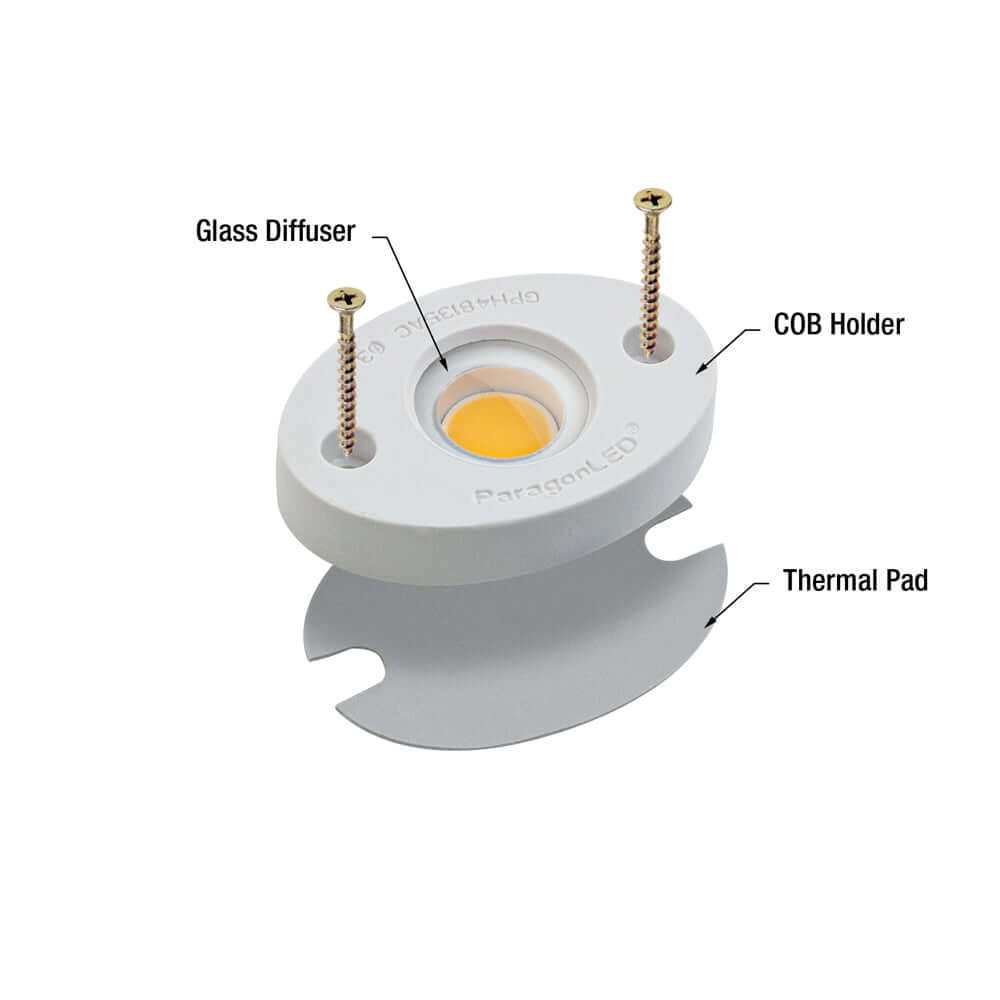

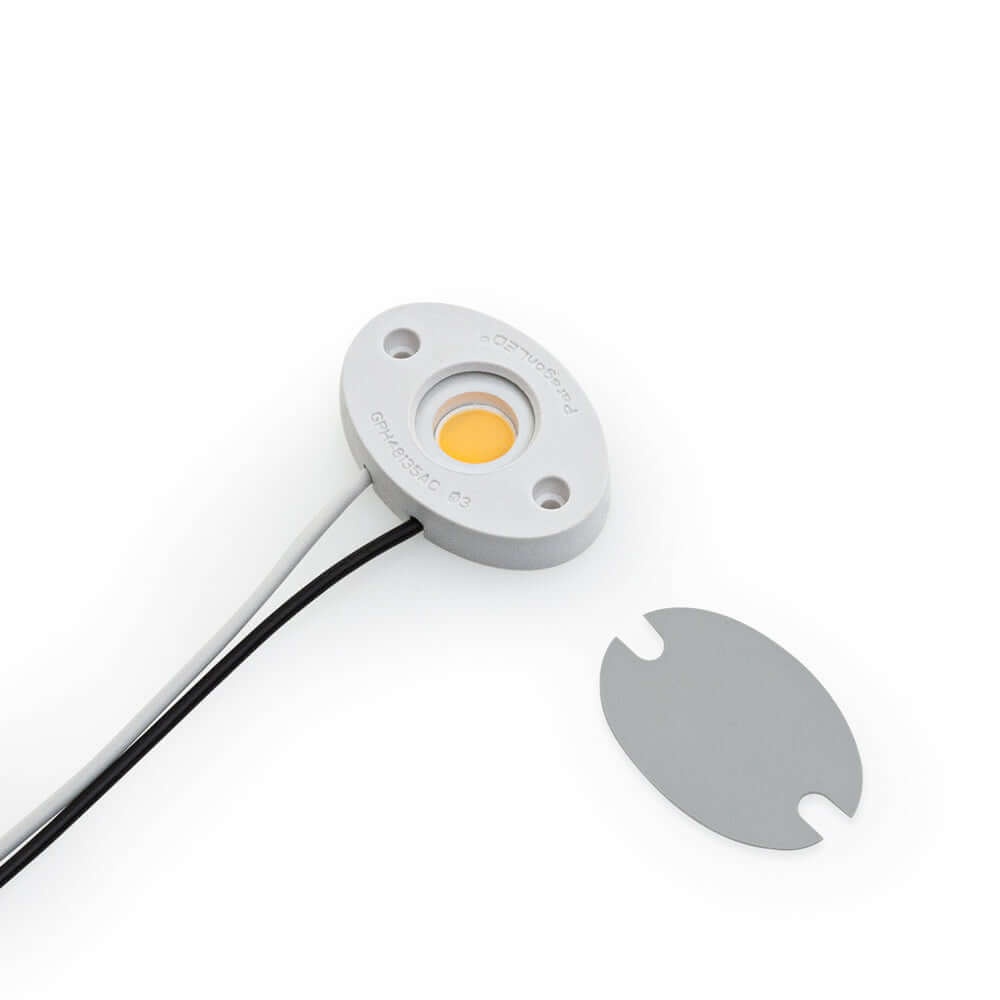

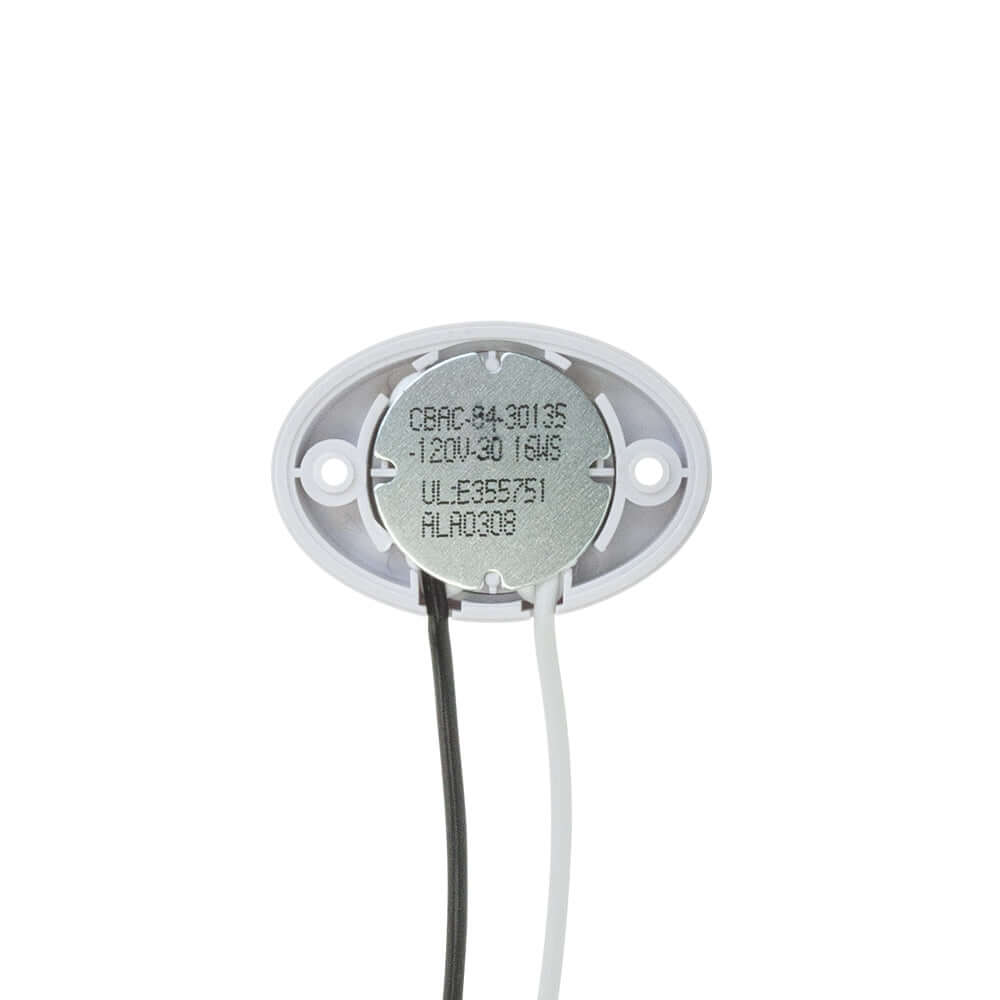

The package includes a COB module, a COB holder, and a thermal pad. The LED module has UL certification. To prevent overheating, an aluminum heat sink is required which helps in better heat dissipation, thereby increasing the life span of the module. COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies. This module is generally used in almost every kind of luminaire.
Features:Â
- COB LED module with GPH48135AC LED holder
- Wattage: 16W, Voltage: 120V AC
- Warm white light with 3000K color temperature and 1280 lumens brightness
- Dimmable with CRI>80 rendering index
- IP20 rated for indoor use in damp locations
- COB holder dimensions: ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), COB module outer diameter: ∅27mm (1.06 in)
- Operating temperature range: -60 ~ +105℃, Storage temperature range: -60 ~ +105℃
- Dielectric breakdown voltage of thermal pad: >4KV
- Package includes COB module, COB holder with thermal pad
- UL certified LED module
- Requires aluminum heat sink to prevent overheating and increase lifespan
- COB LEDs are brighter and consume less power with a higher quality beam output compared to older LED technologies
- Suitable for use in almost every kind of luminaire.
