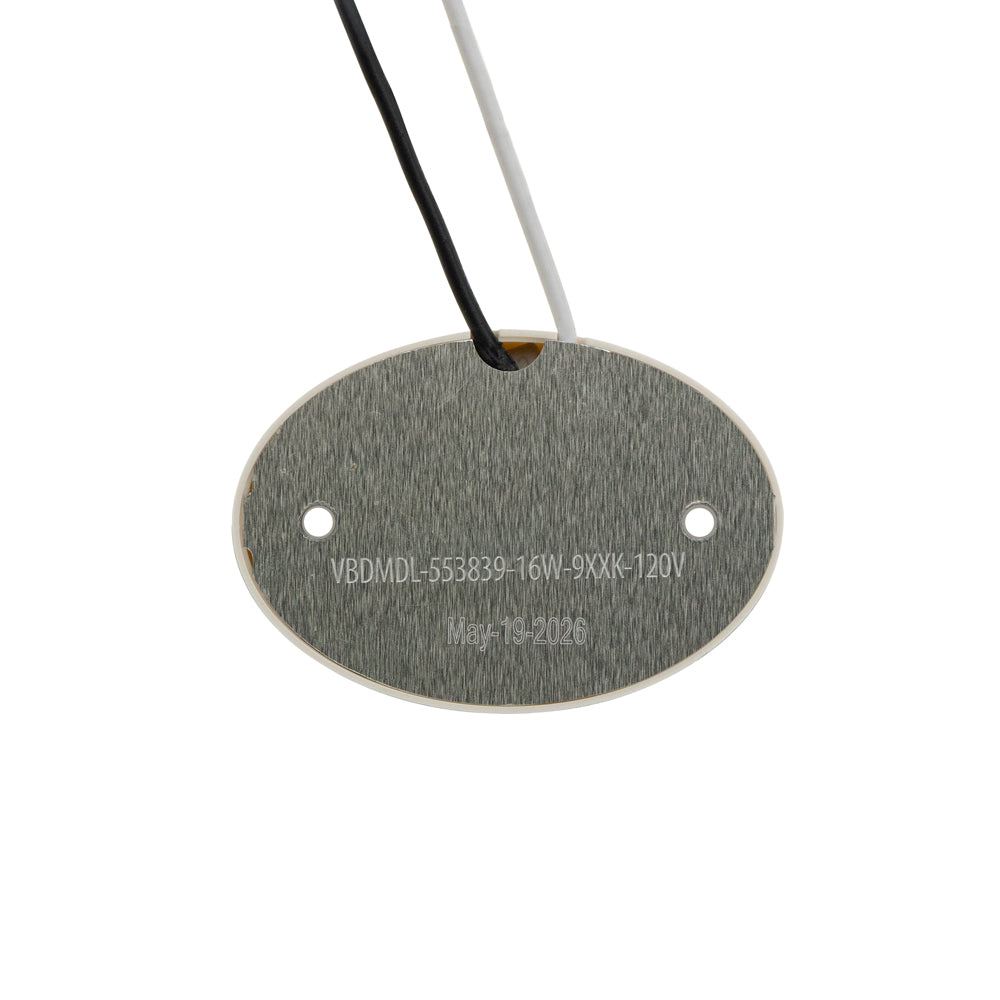

CBAC-84-30135-120-4000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 4000K(Natural White)
CBAC-84-30135-120-4000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 4000K(Natural White)
SKU: SKU:666561430535
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Product Description
| Product | Paragon LED Module |
| Model No | CBAC-84-30135-120-4000-G12 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| Wattage | 16WÂ |
| Voltage | 120V AC |
| Brightness | 1280 Lumens |
| Color Temperature | 4000K (Natural White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

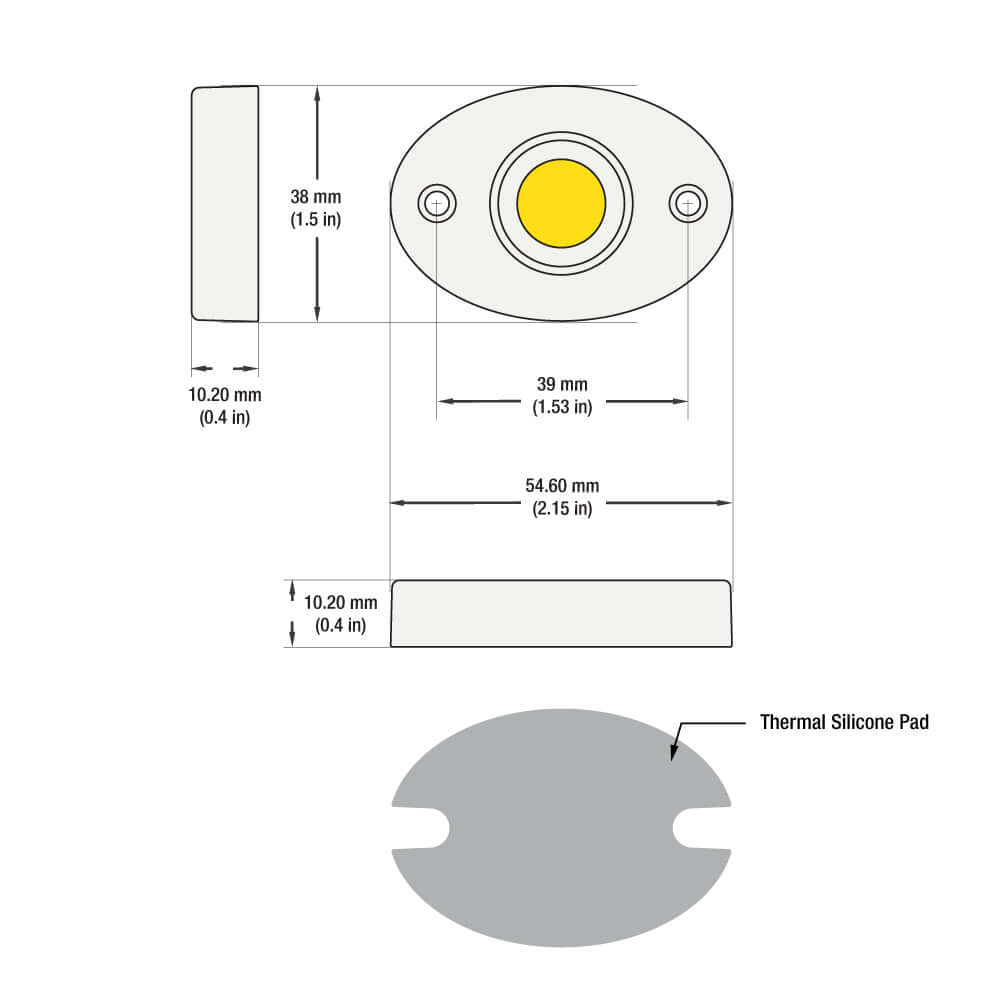

| COB Holder Dimensions | ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder with Thermal Pad |
| Certifications |  |

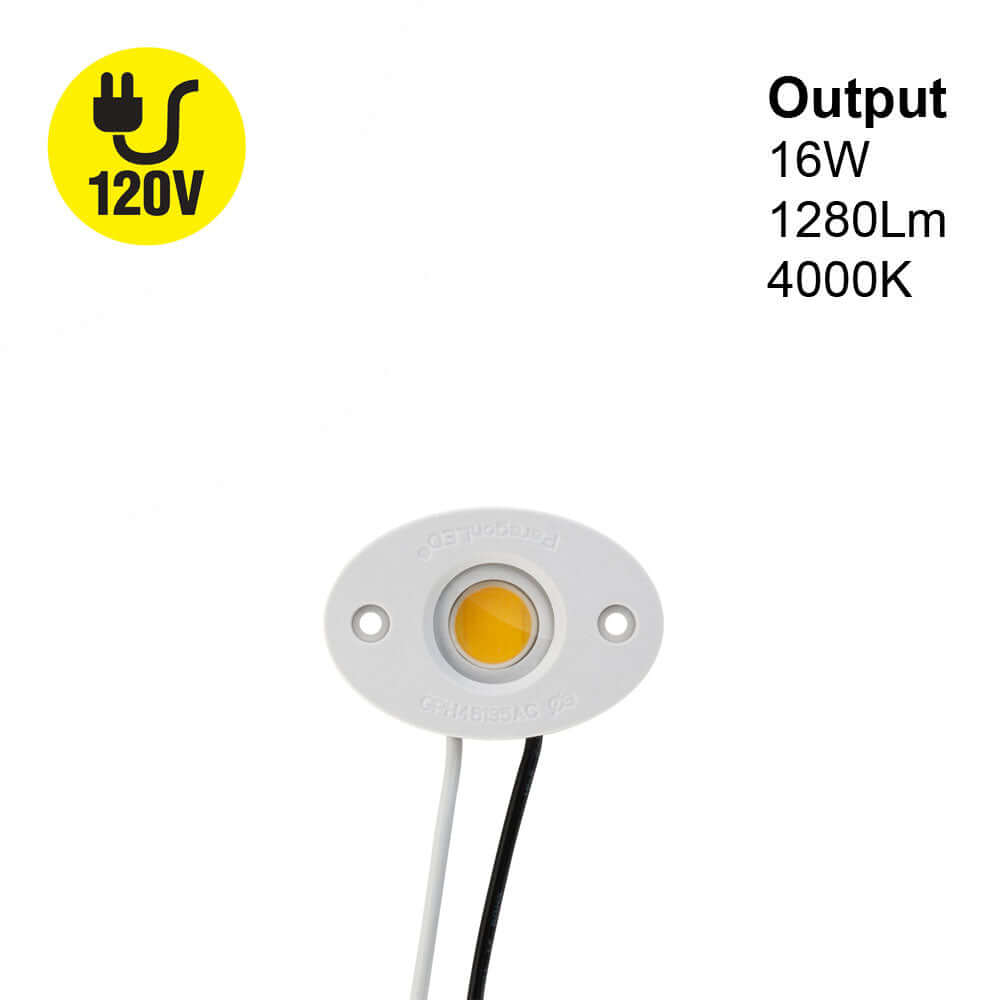

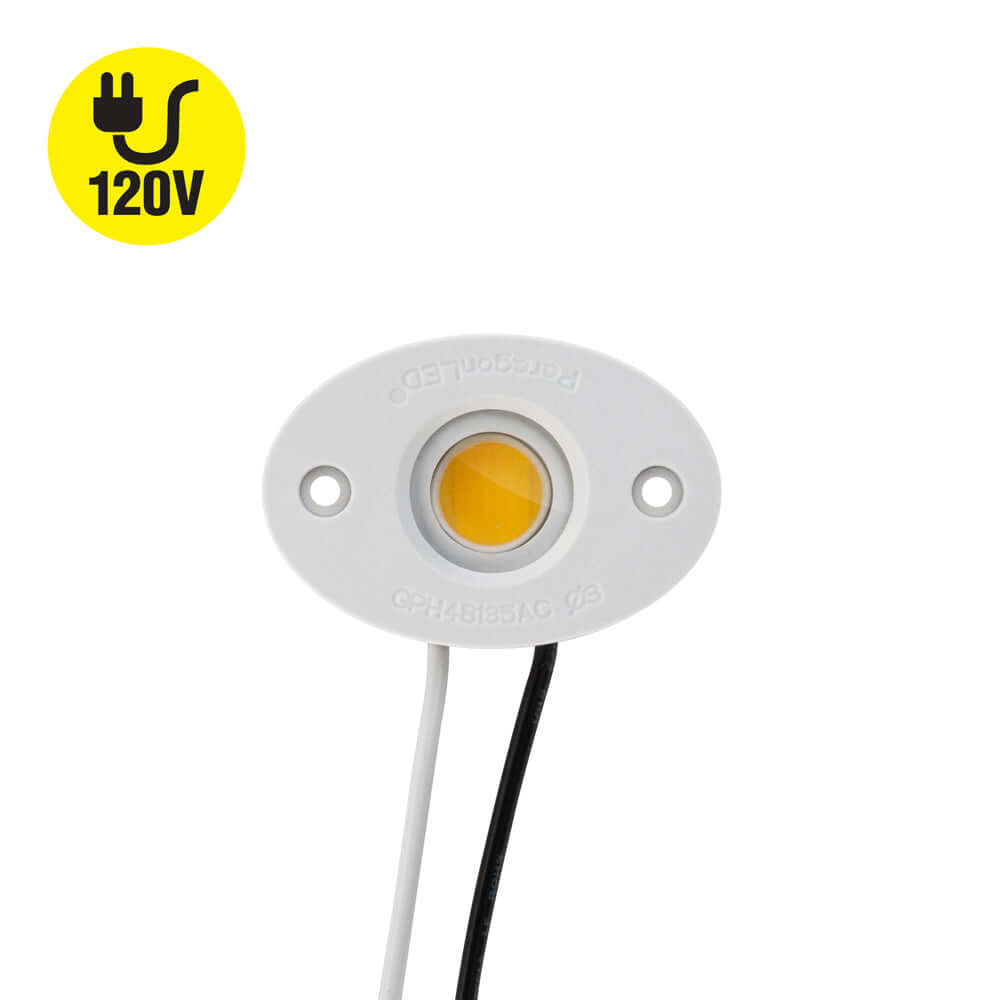

The CBAC-84-30135-120-4000-G12 COB Paragon LED Module is a high-quality lighting solution that offers low power consumption and high energy efficiency. The module features a COB LED that provides a brightness of 1280 lumens at a wattage of 16W, with a voltage of 120V AC. The color temperature of the light is 4000K, which is soft white and creates a warm and cozy atmosphere.

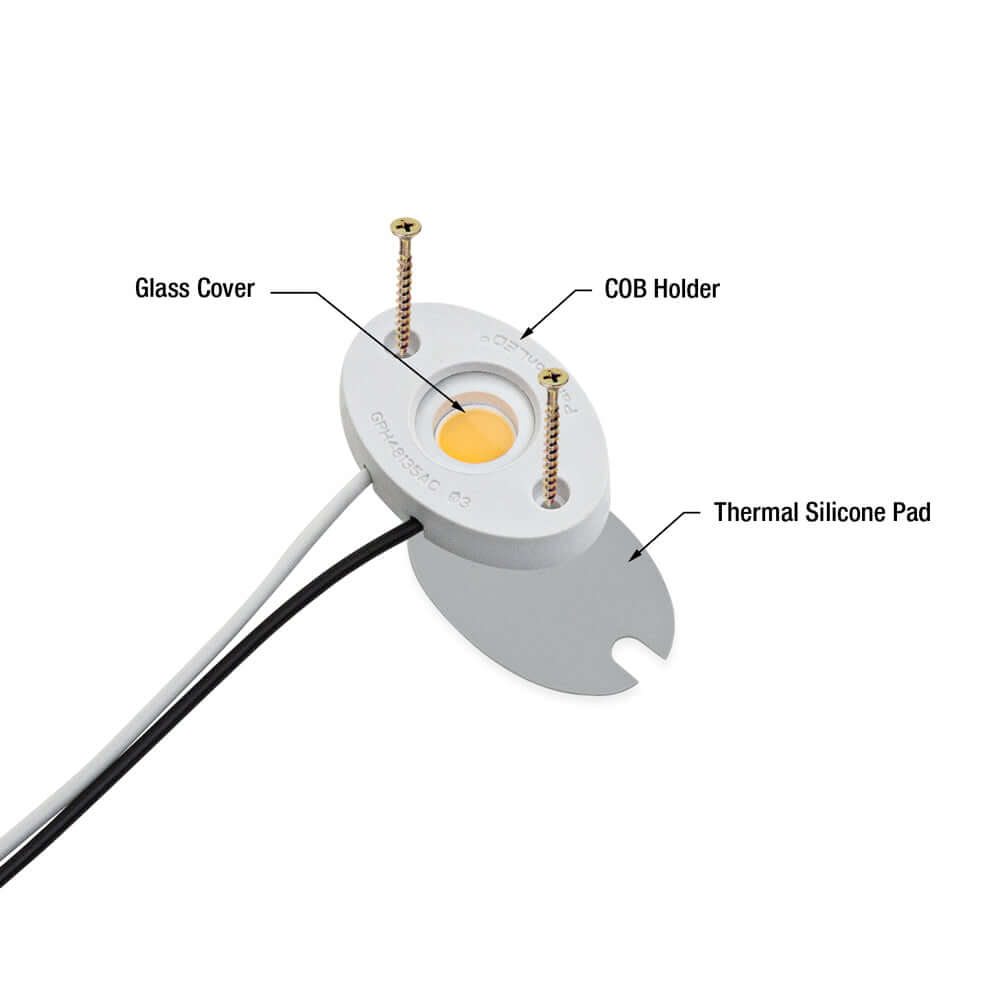

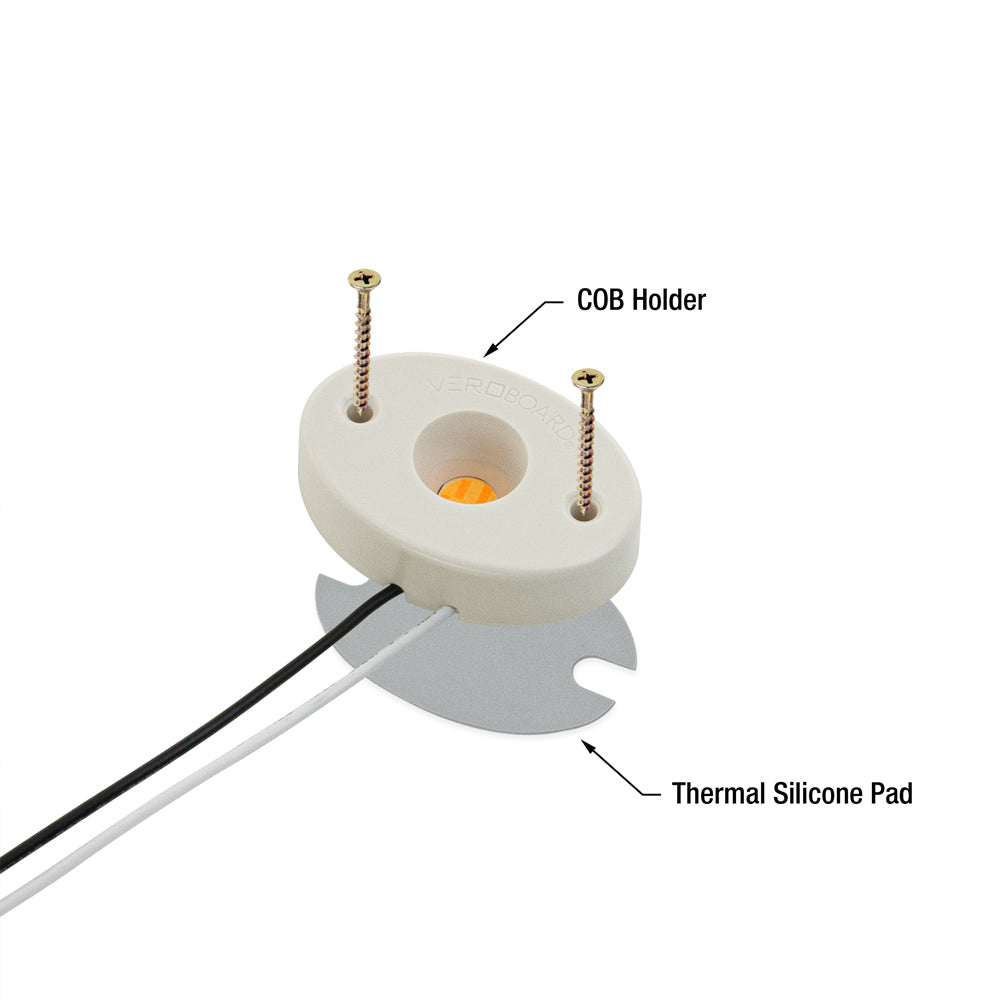

The module comes with a GPH48135AC LED holder, which allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), and the COB module's outer diameter is ∅27mm (1.06 in). The module also comes with a silicone grease thermal pad that provides a heat sink and helps in better heat dissipation, thereby increasing the module's lifespan.
The module has a dielectric breakdown voltage of thermal pad of >4KV and comes with certifications from UL. The module needs an aluminum heat sink to prevent overheating, which can cause serious luminous decay. COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies. It is important to ground light fixtures while designing lamps. COB LEDs are generally used in almost every kind of luminaire.
Features:
- 16W wattage and 120V AC voltage rating
- COB LED technology provides 1280 lumens of brightness
- Color temperature of 4000K produces warm and cozy light
- Comes with GPH48135AC LED holder
- Holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) and COB module outer diameter is ∅27mm (1.06 in)
- Includes silicone grease thermal pad for heat dissipation and increased lifespan
- Dimmable with CRI>80 rendering index and IP20 rating suitable for indoor use in damp locations
- Operating temperature range is -60 ~ +105℃ and assembly process temperature should be below 300℃
- Dielectric breakdown voltage of thermal pad of >4KV and certified by UL
- Aluminum heat sink required to prevent overheating and serious luminous decay
- COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies
- Used in almost every kind of luminaire and it is important to ground light fixtures during design
