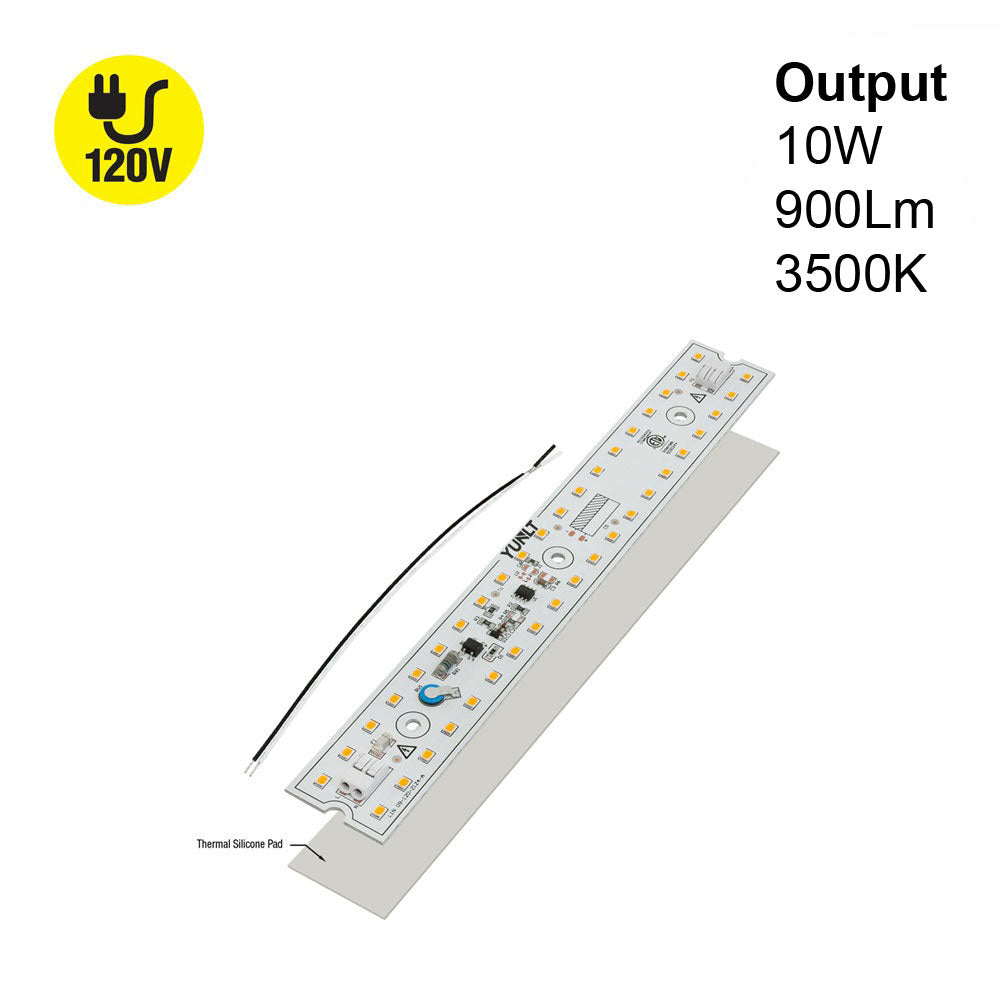

Product Description
| Product | LED Module |
| Model No | LIN 09-010W-935-120-S3-Z1A |
| No of LEDs | 40 |
| Wattage | 10W |
| Voltage | 120V AC |
| Luminous Flux | 900 lumens |
| Color Temperature | 3500K (Mid-Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Weight | 0.04 kg |
| Base Material | Aluminum |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

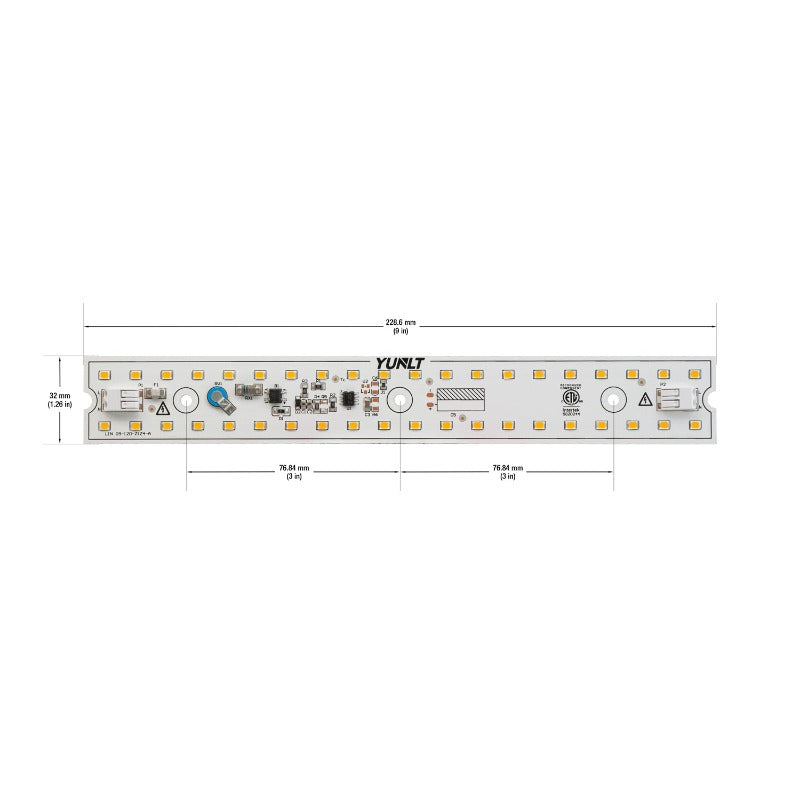

| Dimensions | 228.5mm (9 inch) x 32.0 mm (1.25 inch) |
| Diameter of the screw hole | 3.5mm (0.13 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
Features:
- High-quality LED lighting product for various applications
- Made up of 40 individual LED lights with a total wattage of 10W and a luminous flux of 900 lumens
- Voltage input of 120V AC
- Emits Mid-warm white color temperature of 3500K, creating a comfortable and inviting environment
- High color rendering index (CRI) of over 90, ensuring accurate and vibrant colors
- Dimmable LED Module allows you to adjust the brightness to suit your needs
- Powered by AC for convenient and easy installation
- Base material made of aluminum, providing efficient heat dissipation and ensuring the product stays cool even after prolonged use

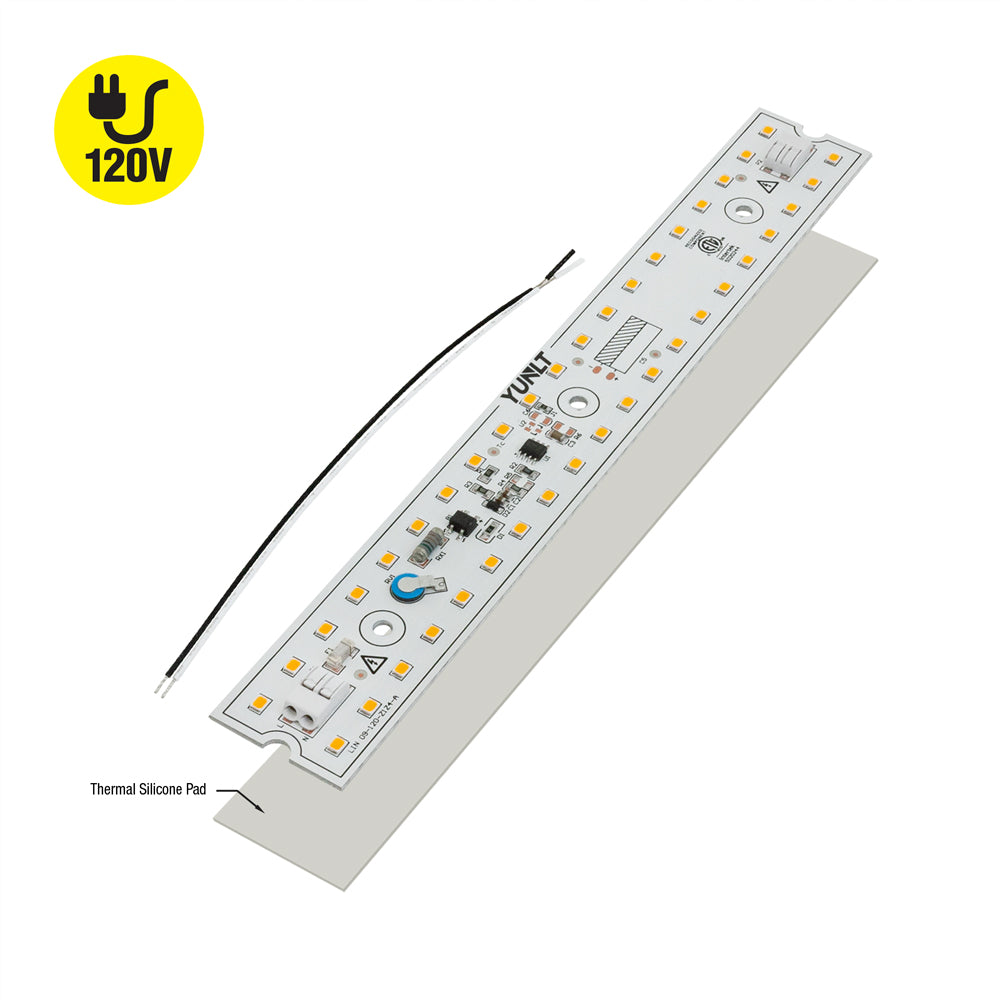

- Package components include LED module, thermal silicon pad, and 6-inch black and white power feed
- Dimensions of 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width, with a screw hole diameter of 3.5mm (0.13 inches)
- 9 inch Linear ZEGA LED Module 120V 10W 3500K
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
