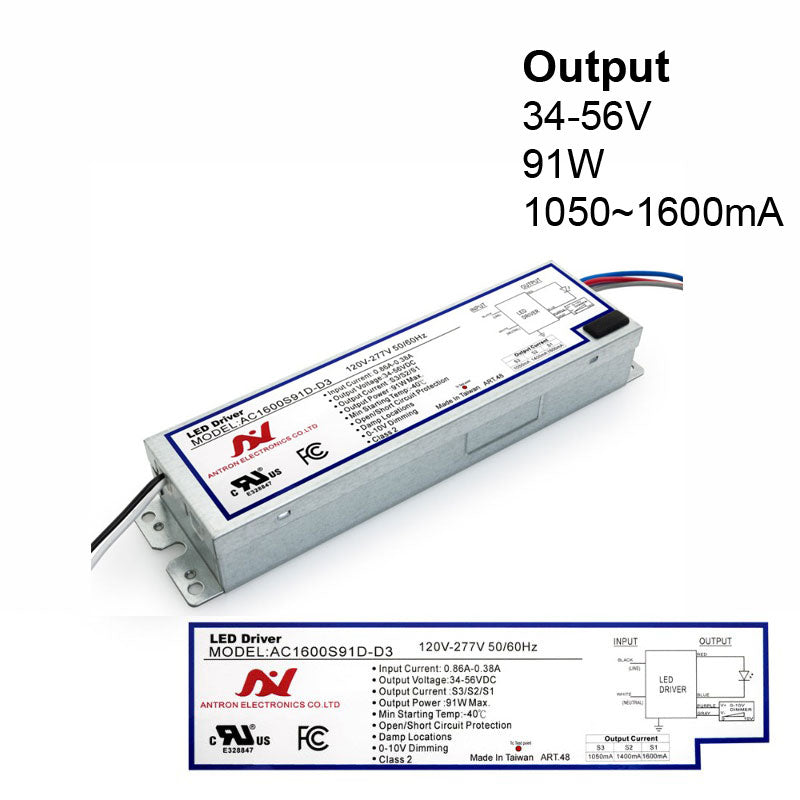

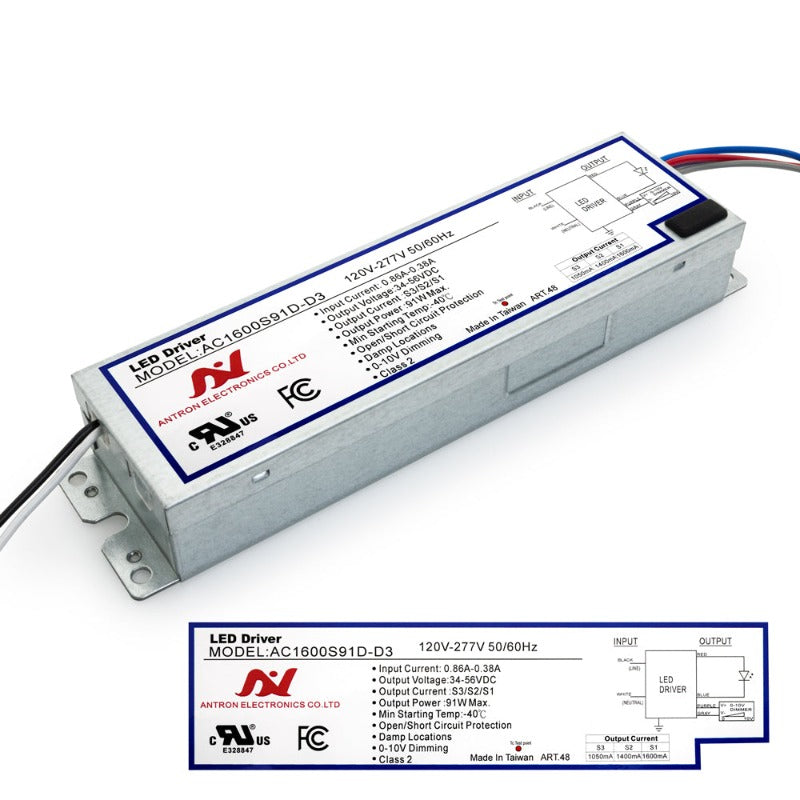

Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC1600S91D-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 0.86A-0.38A |
| Input Frequency | 50/60 Hz |
| Efficiency | 88% |
| Output Voltage | 34-56V |
| Output Power | 91W max |
| Output Regulated Current | Selectable current from 1050mA/1400mA/1600mA |
| Dimmable | Yes (0-10V dimming) |
| Weight | 1 kg |
| IP Rating | IP64 (Indoor Rated) |

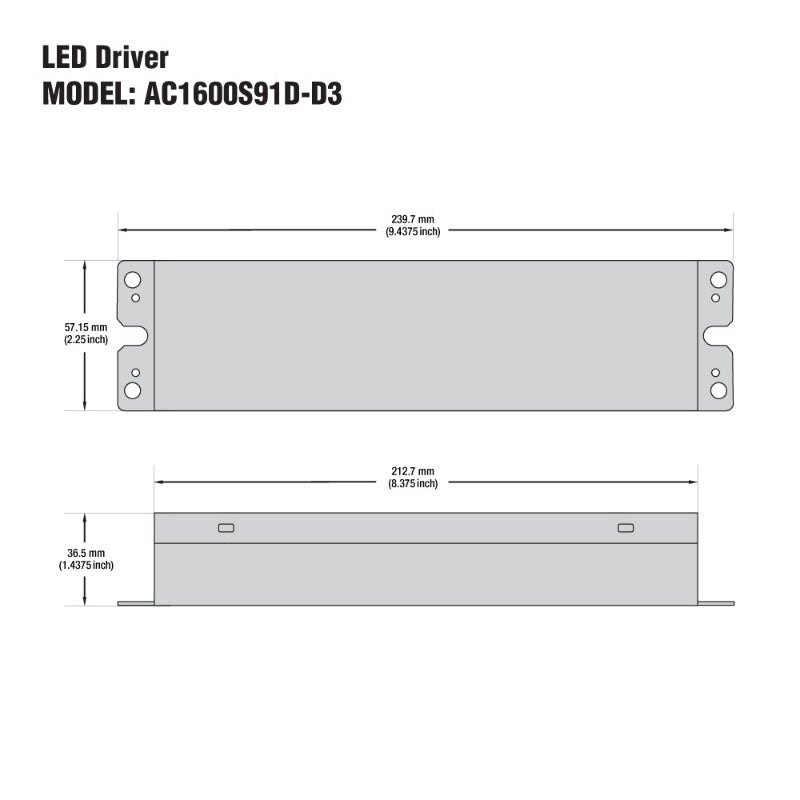

| Dimensions | 240 × 57.1 × 36.5 mm (9.43 x 2.2 x 1.4 in) |
| Class Certification | Class 2 |
| Certification |
![]() |
Features:
- The ANTRON AC1600S91D-D3 is a Constant Current LED Driver
- Provides a selectable output current of 1050mA, 1400mA, or 1600mA
- Maximum output power of 91W and a regulated output voltage of 34-56V
- Input voltage range of 120-277V AC, and the input current ranges from 0.86A-0.38A
- Dimmable with 3 in 1 dimming capability, including PWM, resistance, and 0-10V
- Efficiency rating of 88%
- Designed for indoor use with an IP64 rating, protecting against dust and splashing water from any direction
- Classified as Class 2, meaning that it is a low voltage device that is double insulated and does not require a ground connection
- Suitable for a range of indoor lighting applications that require constant current output with selectable current levels.
Wiring Diagram:
