Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC1400S60DL-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 0.6-0.26A |
| Input Frequency | 50/60Hz |
| Output Voltage | 26-43V |
| Output Power | 60W max |
| Output Regulated Current | Selectable current from 700mA/1050mA/1400mA |
| Dimmable | Yes (0-10V Dimming) |
| Weight | 0.6 kg |
| IP Rating | IP20 (Indoor Rated) |

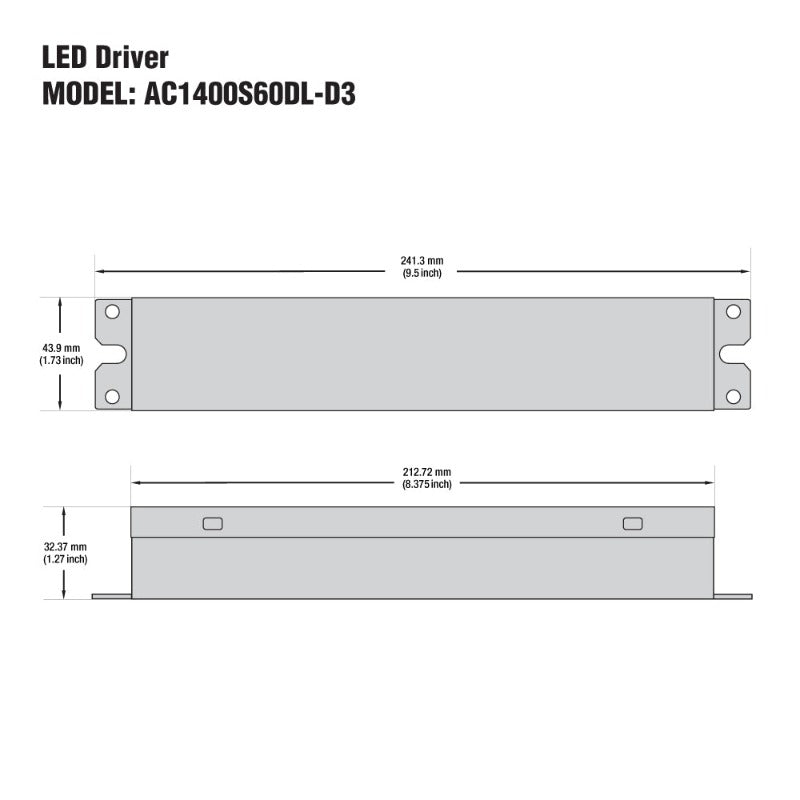

| Dimensions | 241.3 × 43.9 × 32.37 mm (9.5 x 1.73 x 1.27 in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The ANTRON AC1400S60DL-D3 is a Constant Current LED Driver with selectable output currents of 700mA, 1050mA, or 1400mA, a maximum power of 60W, and a regulated output voltage of 26-43V.
- It has an input voltage range of 120-277V AC with an input current range of 0.6-0.26A, and is dimmable with 0-10V dimming capability.
- This driver is designed for indoor use only and has an IP20 rating, protecting it against solid objects larger than 12.5mm in diameter but not against water. It is classified as Class 2, meaning it is a low voltage device that does not require a ground connection.
- The dimensions of this driver are 241.3 × 43.9 × 32.37 mm (9.5 x 1.73 x 1.27 in), making it suitable for use in a variety of lighting applications that require constant current output with selectable current levels.
Wiring Diagram:
