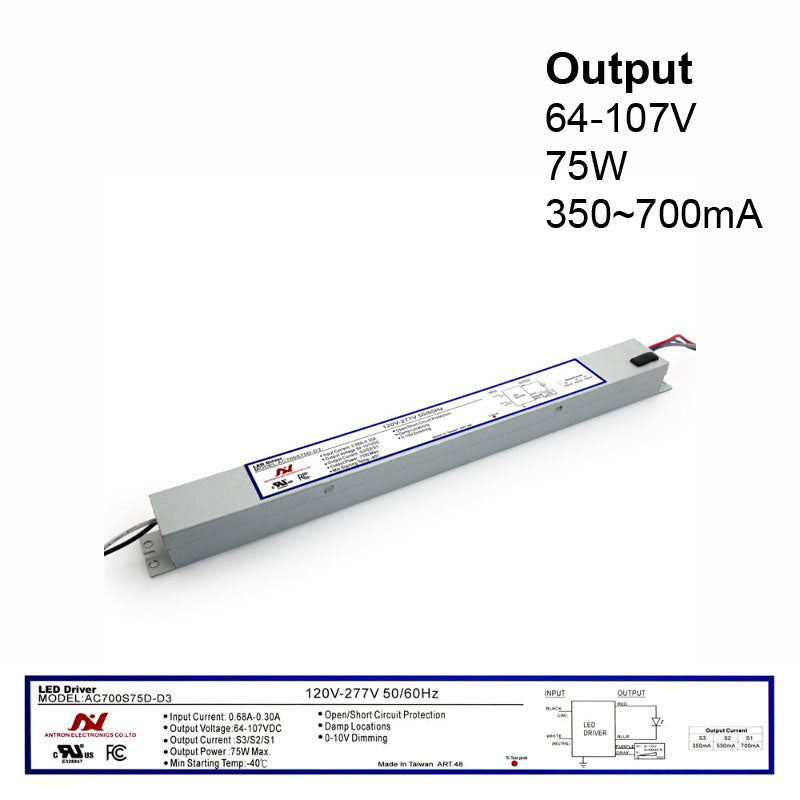

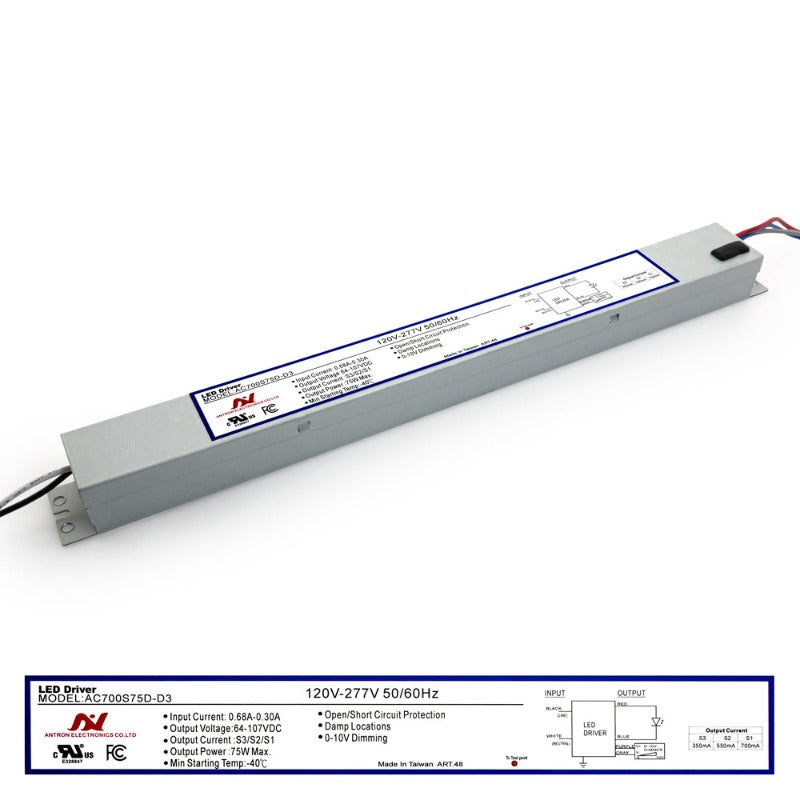

Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC700S75D-D3 |
| Input Voltage | 120-277V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 0.68-0.30A |
| Output Voltage | 64-107V |
| Output Power | 75W max |
| Output Regulated Current | Selectable current from 350mA/550mA/700mA |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Weight | 0.8 kg |

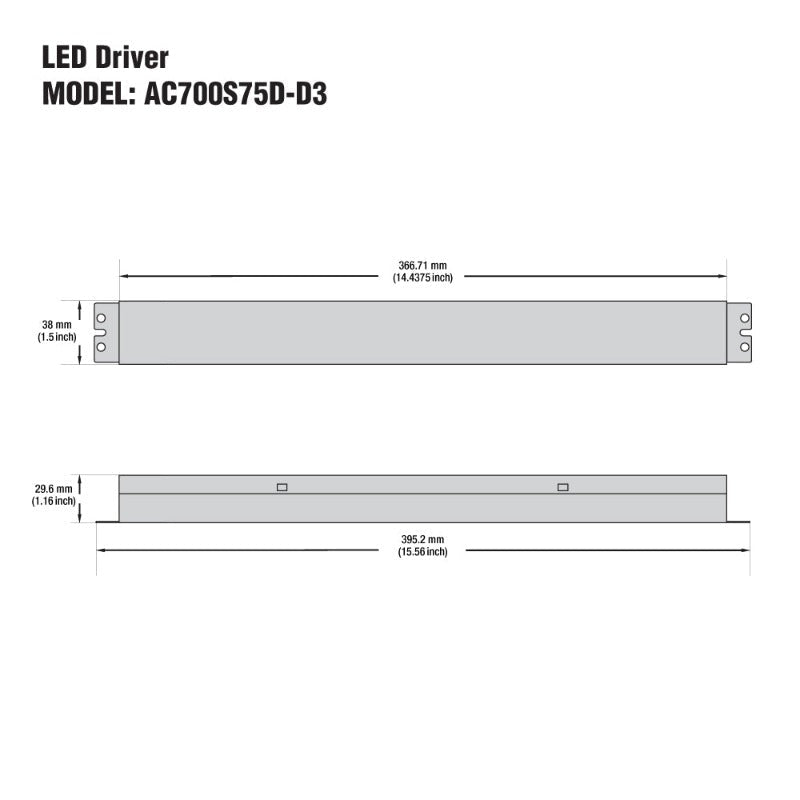

| Dimensions | 395 × 38 × 30 mm (15.56 x 1.5 x 1.16 in) |
| Certification |

|
Features:
- The ANTRON AC700S75D-D3 is a power supply device for LED lighting systems, providing a constant output current with selectable current options of 350mA, 550mA, and 700mA.
- It has an output voltage range of 64-107V with a maximum output power of 75W.
- The input voltage range is 120-277V AC with an input current range of 0.68-0.30A and a frequency of 50/60 Hz.
- It is dimmable with 0-10V dimming capabilities, enabling greater control over the connected LED lighting system.
- The AC700S75D-D3 LED driver is rated IP20 for indoor use only and is suitable for use in commercial, residential, and industrial environments.
- It has a compact form factor measuring 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in) and is easy to install and integrate into existing lighting systems.
Wiring Diagram:
