Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC2800S72D-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 0.68-0.3A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 16-26V |
| Output Power | 72W max |
| Output Regulated Current | Selectable current from 1800mA/2500mA/2800mA |
| Weight | 0.8 kg |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |

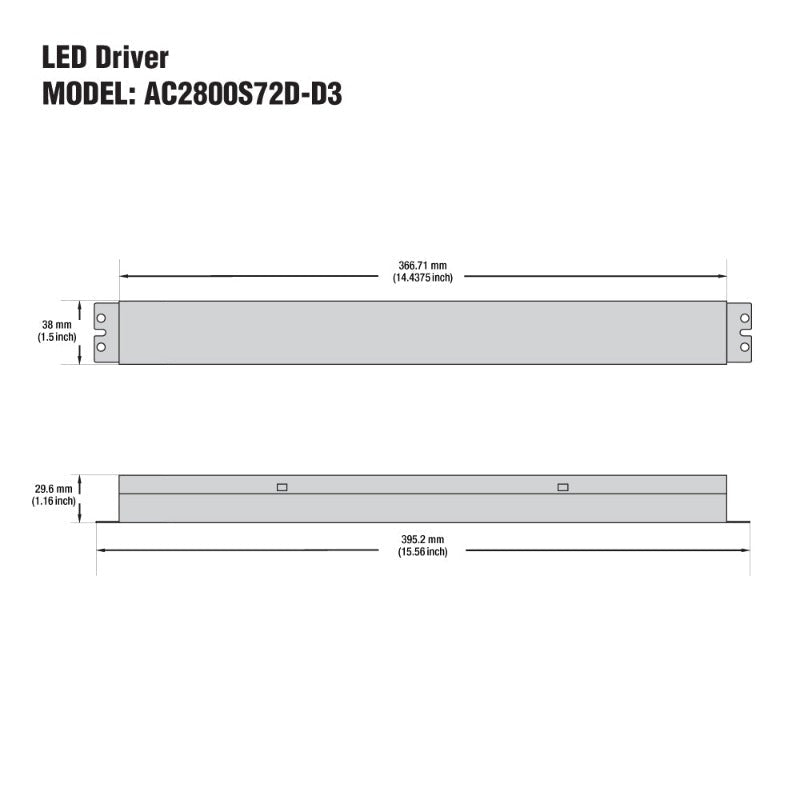

| Dimensions | 395 × 38 × 30 mm (15.56 x 1.5 x 1.16 in) |
| Certification |
   |
Features:

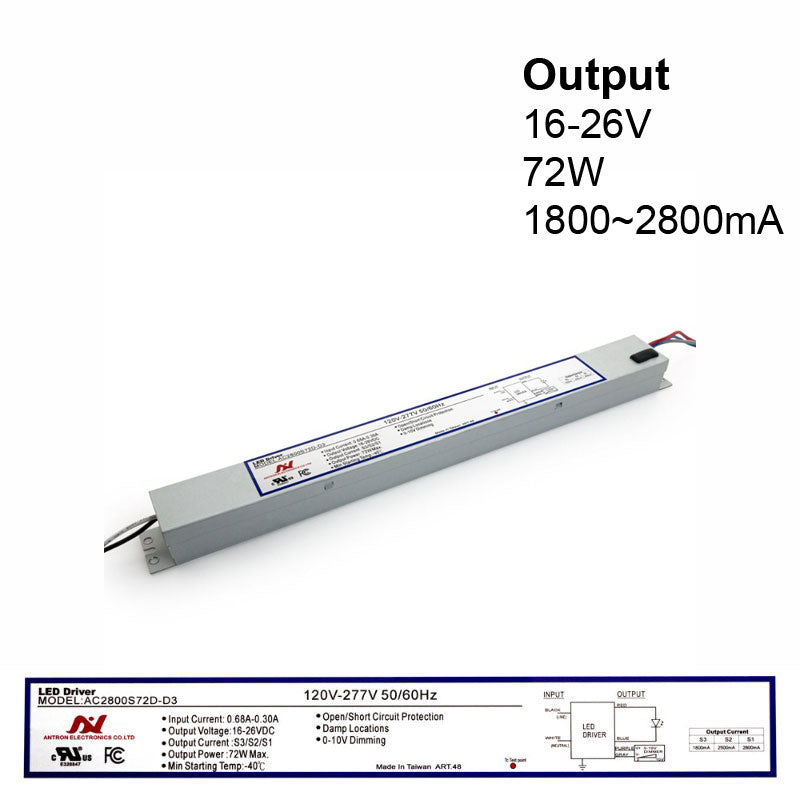

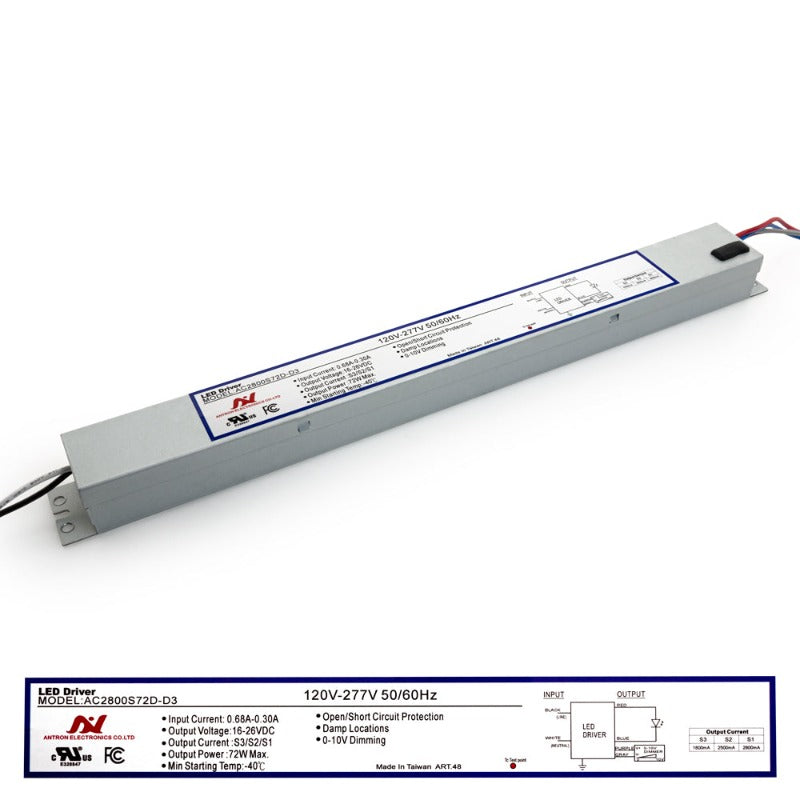

- The ANTRON AC2800S72D-D3 is a constant current LED driver that offers selectable current options of 1800mA, 2500mA, and 2800mA.
- It provides a constant output current to LED lighting systems with an output voltage range of 16-26V and a maximum output power of 72W.
- This LED driver has an input voltage range of 120-277V AC with an input current range of 0.68-0.3A and a frequency of 50/60 Hz.
- It is dimmable with 0-10V dimming capabilities, enabling greater control over the connected LED lighting system.
- The AC2800S72D-D3 LED driver is rated IP20 for indoor use only and has a compact form factor measuring 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in).
- It is suitable for use in commercial, residential, and industrial environments, offering selectable current options, dimming capabilities, and a compact form factor suitable for indoor use.
Wiring Diagram:
