 Product Description
| Product | Constant Current LED Driver |
| Model | AC700S42D |
| Input Voltage | 120-277V |
| Input Current | 0.44A-0.19A |
| Output Voltage | 35-60V DC |
| Frequency | 50/60Hz |
| Output Current | 700mA |
| Output Power | 42W Max. |
| Dimmable | Yes (0-10V Dimming) |
| Waterproof | No (Damp locations only) |

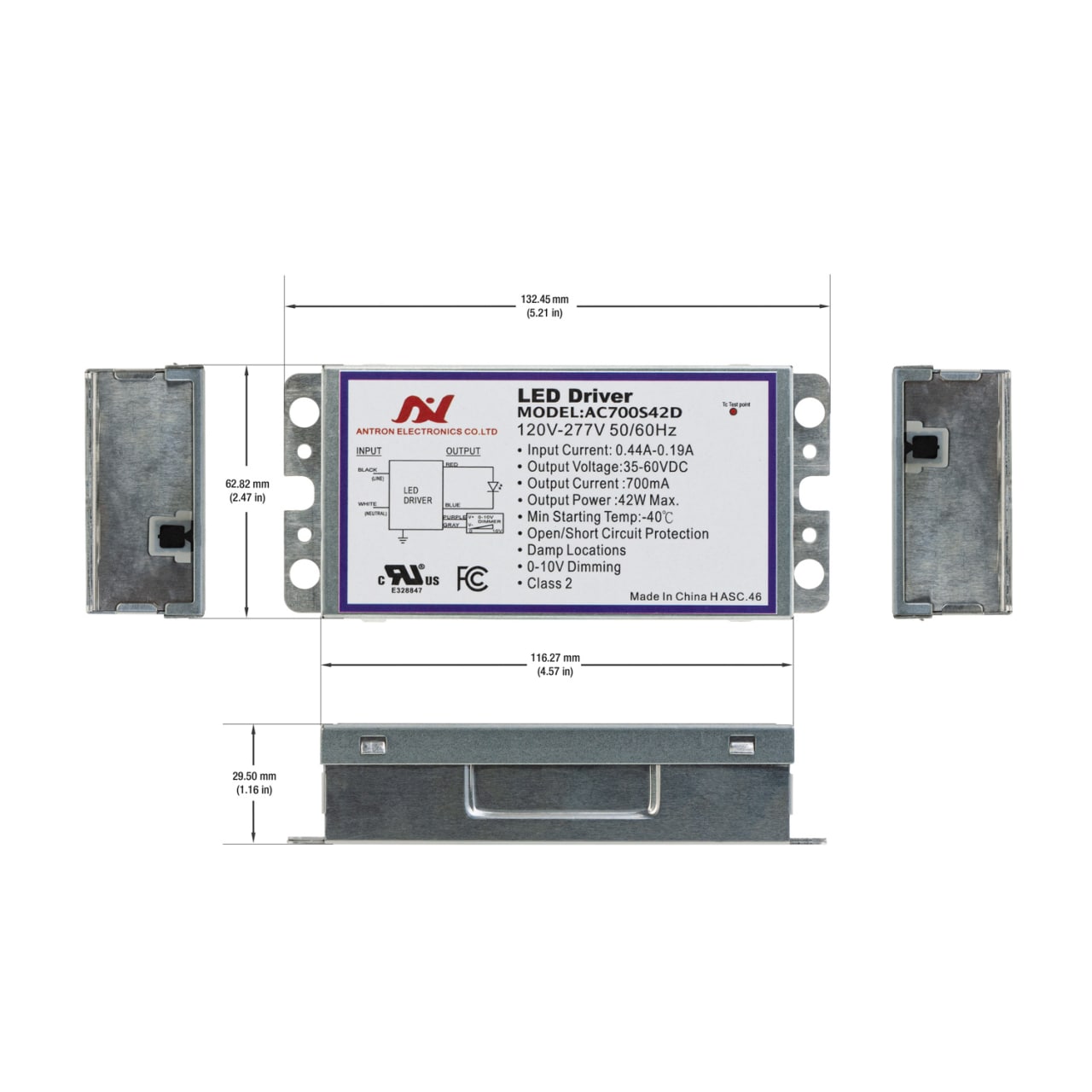

| Dimensions | 132.45 × 62.82 × 29.50mm (5.21 x 2.47 x 1.16 in) |
| Class Certification | Class 2Â |
| Starting Temperature | -40°C |
| Certification |  Â  |
Â

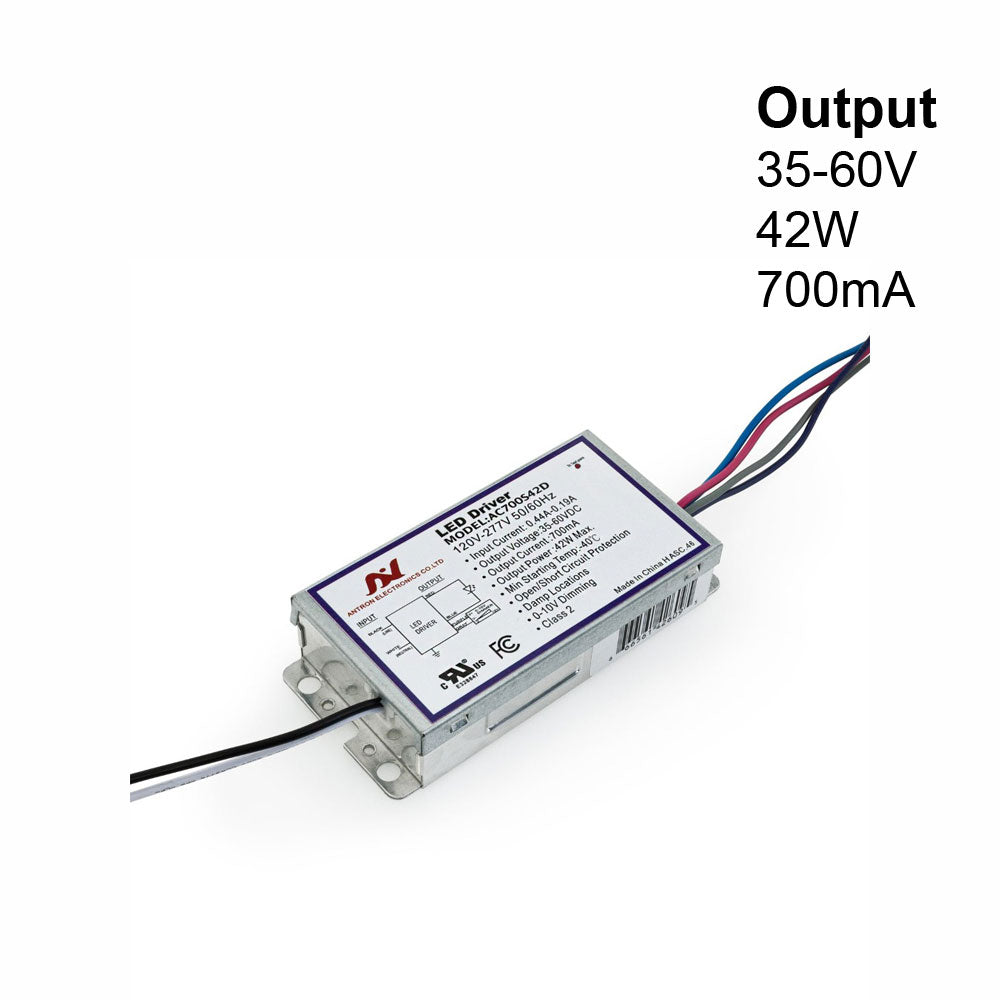

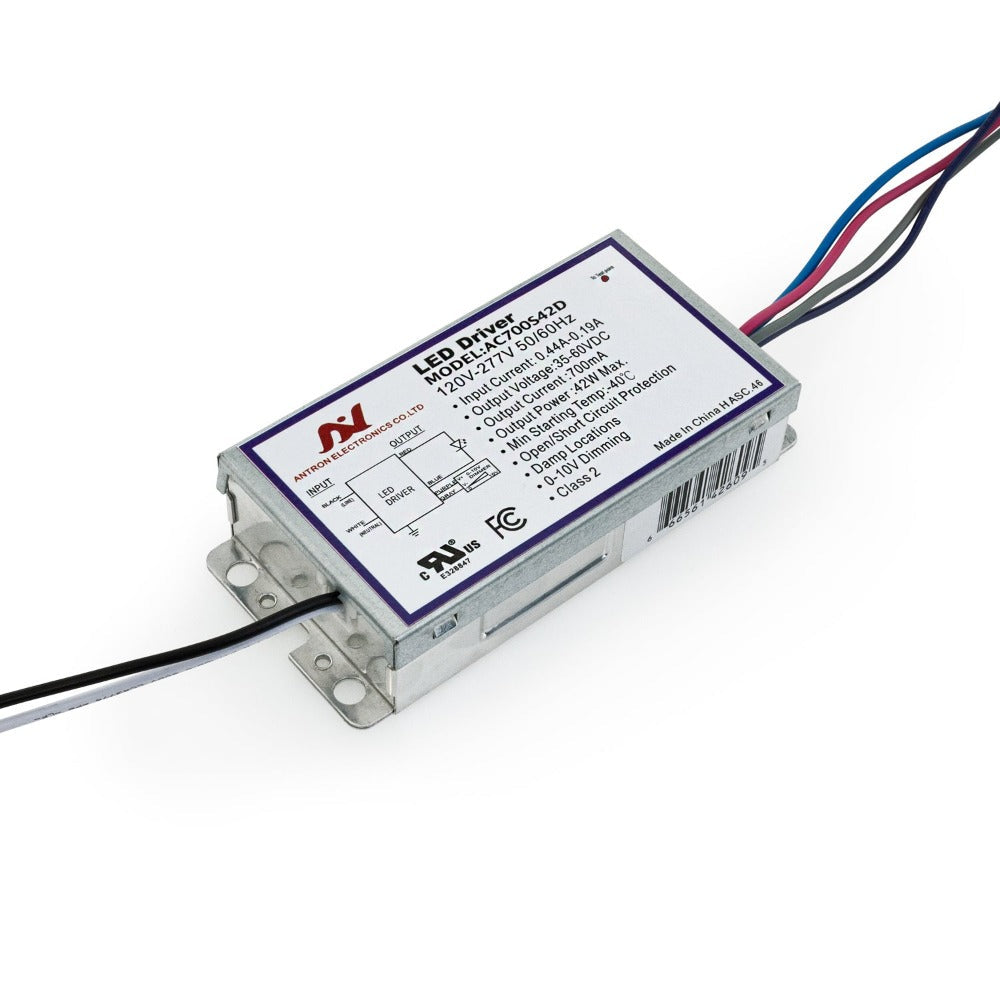

The Antron Constant Current LED Driver AC700S42D is a power supply device designed to provide a constant output current of 700mA and voltage range of 35-60V DC to LED lighting systems. This model has an input voltage range of 120-277V with a frequency of 50/60Hz and an input current range of 0.44A-0.19A.
This LED driver is capable of providing up to 42W of power, making it suitable for driving medium to high-power LED lighting systems. It is also dimmable, allowing for greater control over the brightness and intensity of the connected LEDs, with 0-10V dimming capabilities.
The AC700S42D LED driver is designed for damp locations only, and is not waterproof. It is also compact, measuring 132.45 × 62.82 × 29.50mm (5.21 x 2.47 x 1.16 in), and is designed for easy installation. It is certified as a Class 2 Power Supply, indicating that it meets specific safety standards for electrical devices.
Features:
- The Antron Constant Current LED Driver AC700S42D provides a constant output current of 700mA and a voltage range of 35-60V DC to LED lighting systems.
- It has an input voltage range of 120-277V with a frequency of 50/60Hz and an input current range of 0.44A-0.19A.
- This LED driver is capable of providing up to 42W of power and is dimmable, allowing for greater control over the brightness and intensity of the connected LEDs with 0-10V dimming capabilities.
- It is designed for damp locations only and is not waterproof.
- It is certified as a Class 2 Power Supply, indicating that it meets specific safety standards for electrical devices.
- The starting temperature of this LED driver is -40°C, ensuring reliable performance in extreme cold conditions.

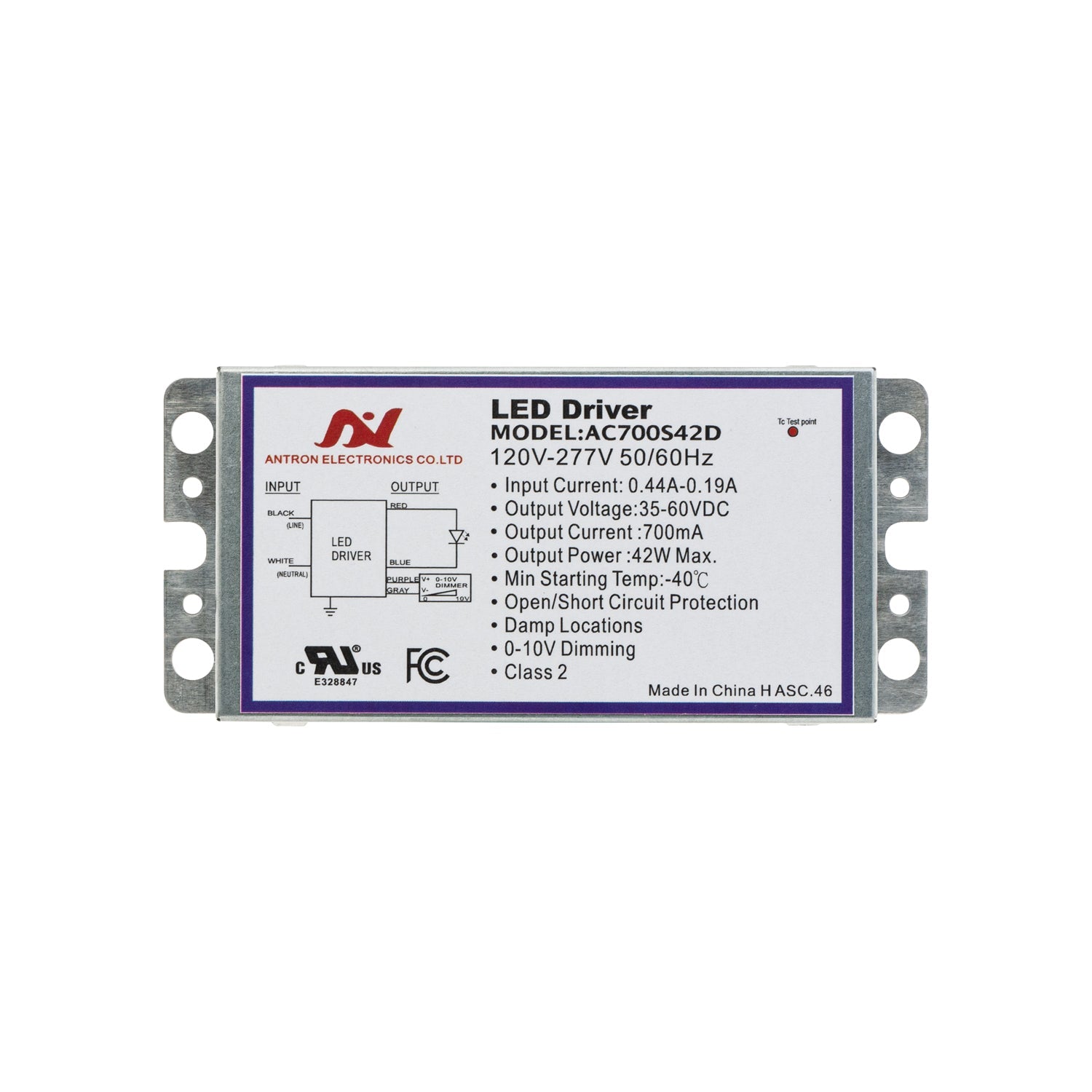

Wiring Diagram:
