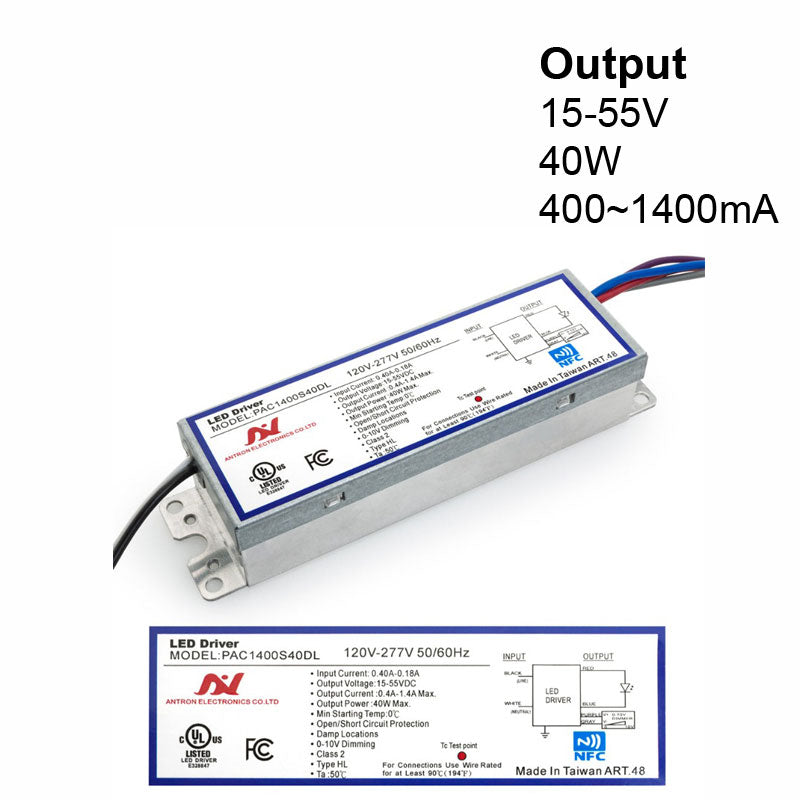

ANTRON PAC1400S40DL Constant Current Programmable LED Driver with Custom Output Current 400-1400mA 15-55V 40W max

ANTRON PAC1400S40DL Constant Current Programmable LED Driver with Custom Output Current 400-1400mA 15-55V 40W max

SKU:666561420284

$161.00 CAD
$161.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25




Product Description

Product Constant Current Programmable LED Driver
Model PAC1400S40DL
Input Voltage 120-277V AC
Input Current 0.4A-0.18A
Input Frequency 50/60 Hz
Output Voltage 15-55V
Output Power 40W max
Output Regulated Current Range Programmable Output Current
400mA, 450mA, 500mA, 550mA, 600mA,
650mA, 700mA, 750mA, 800mA, 850mA,900mA
950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA
Dimmable 3 in 1 Dimming ( PWM, 1-10V, Resistance)
IP Rating IP20 (Indoor Rated)

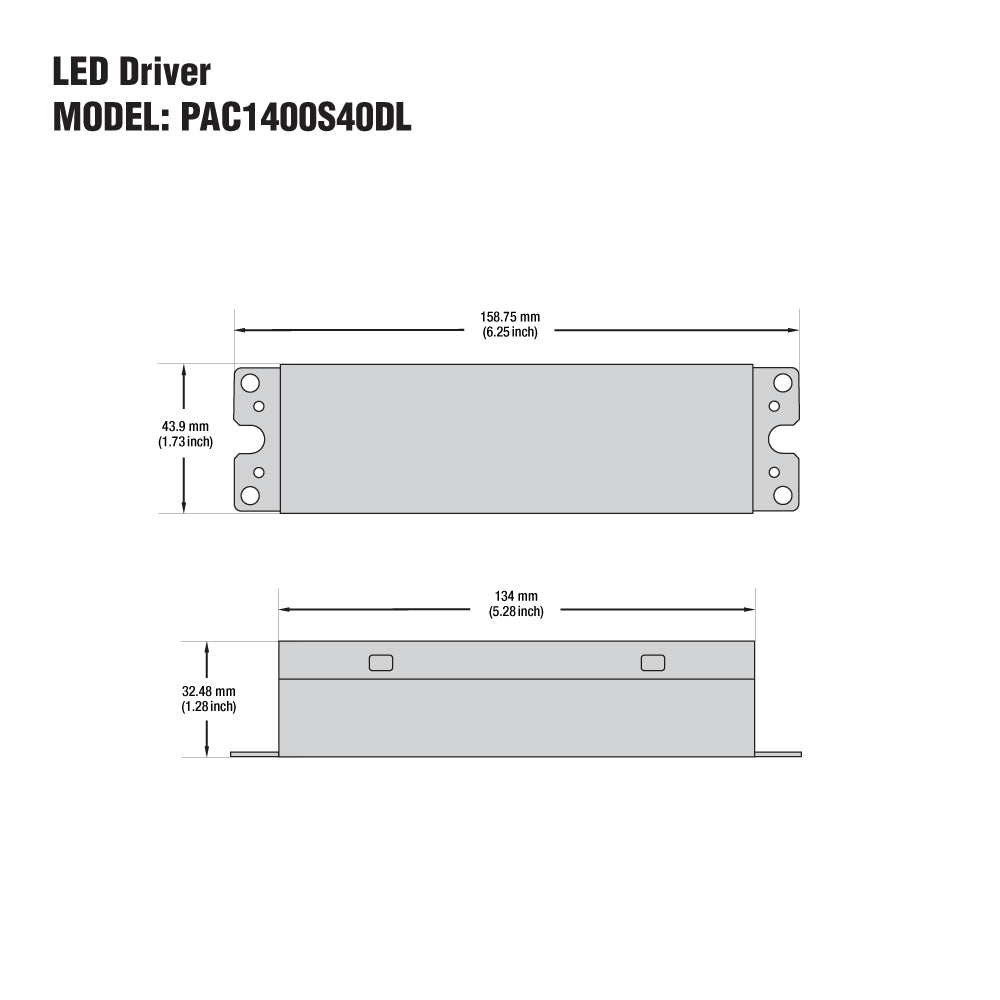

Dimensions 158.7 × 44 × 32.5 mm (6.25 x 1.73 x 1.28 in)
Class Certification Class 2 / TypeHL
Certification



The PAC1400S40DL is a constant current programmable LED driver designed to provide a custom output current range of 400-1400mA. It operates on an input voltage range of 120-277V AC and an input frequency of 50/60 Hz. The input current ranges from 0.4A-0.18A. The output voltage range is 15-55V, and the maximum output power is 40W.

The driver is equipped with 3-in-1 dimming capability, which includes PWM, 1-10V, and Resistance dimming options. The driver is IP20 rated, which means it is suitable for indoor use only.

The PAC1400S40DL has a compact size, measuring 15.8 × 4.4 × 3.25 cm (6.25 x 1.73 x 1.28 in), making it easy to install and integrate into lighting fixtures. It is classified as Class 2 and TypeHL certified, indicating that it has limited power output and is suitable for use in hazardous locations.

Features:

  • The PAC1400S40DL is a constant current programmable LED driver that provides a custom output current range of 400-1400mA.
  • It operates on an input voltage range of 120-277V AC and an input frequency of 50/60 Hz.
  • The driver has an input current range of 0.4A-0.18A, an output voltage range of 15-55V, and a maximum output power of 40W.
  • It is equipped with 3-in-1 dimming capability, including PWM, 1-10V, and Resistance dimming options.
  • The driver has an IP20 rating, making it suitable for indoor use only.
  • Its compact size of 15.8 × 4.4 × 3.25 cm (6.25 x 1.73 x 1.28 in) makes it easy to install and integrate into lighting fixtures.
  • It is classified as Class 2 and TypeHL certified, indicating that it has limited power output and is suitable for use in hazardous locations.
  • The PAC1400S40DL is suitable for a wide range of applications, including commercial, industrial, and residential lighting.

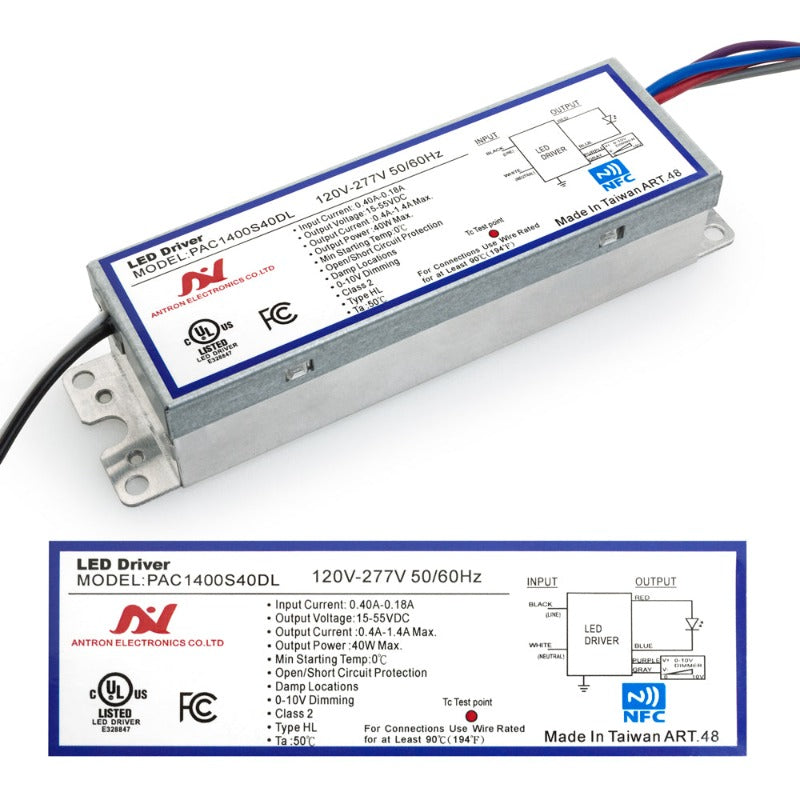

Wiring Diagram:
