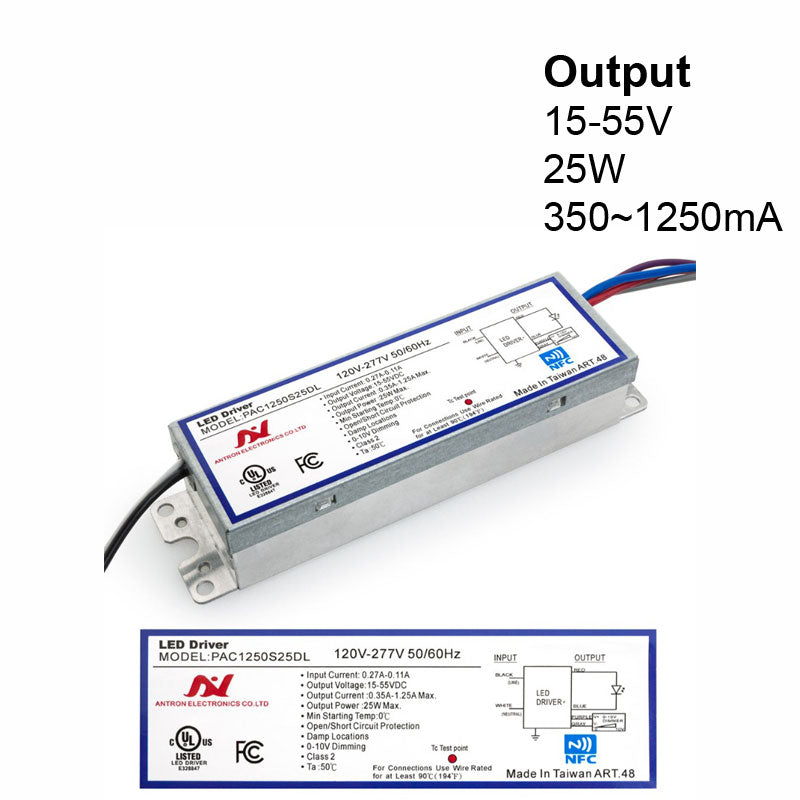

Product Description
| Product | Constant Current Programmable LED Driver |
| Model | PAC1250S25DL |
| Input Voltage | 120-277V AC |
| Input Current | 0.27A-0.11A |
| Output Voltage | 15-55V |
| Output Power | 25W max |
| Output regulated Current Range |
Programmable Output Current 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA,900mA 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA |
| Input Frequency | 50/60 Hz |
| Dimmable | 3 in 1 Dimming ( PWM, 1-10V, Resistance) |
| IP Rating | IP20 |
| Weight | 0.4 kg |

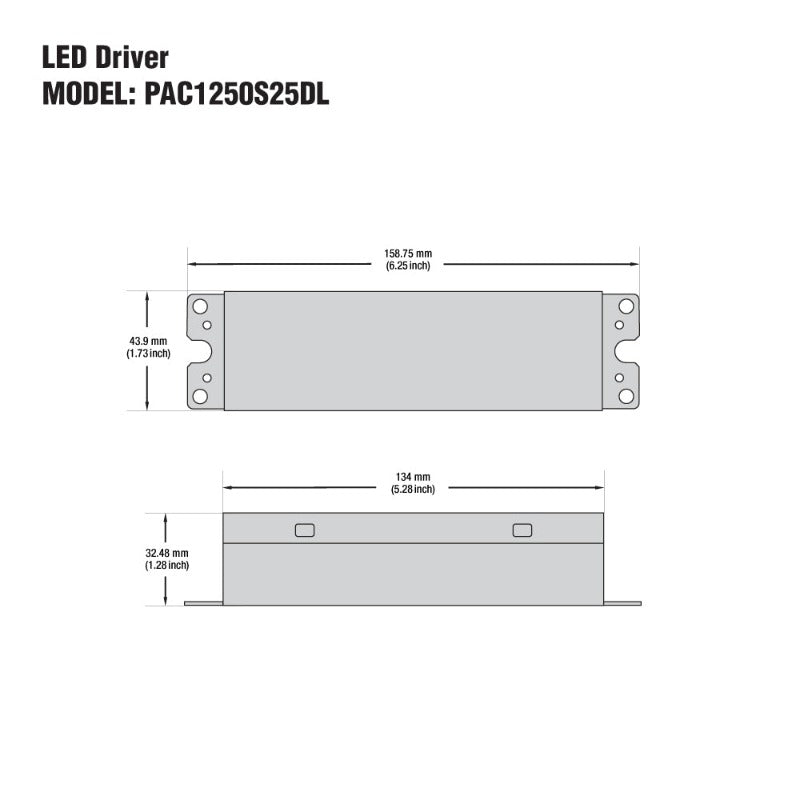

| Dimensions | 158.7 × 44 × 32.4 mm (6.25 x 1.73 x 1.28 in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The PAC1250S25DL is a constant current programmable LED driver
- It provides a custom output current range of 350-1250mA
- It operates on an input voltage range of 120-277V AC and an input frequency of 50/60 Hz
- The input current ranges from 0.27A-0.11A
- The output voltage range is 15-55V, and the maximum output power is 25W
- It has 3-in-1 dimming capability, which includes PWM, 1-10V, and Resistance dimming options
- The driver is IP20 rated, which means it is suitable for indoor use only
- The PAC1250S25DL has a compact size, measuring 15.87 × 4.4 × 3.24 cm (6.25 x 1.73 x 1.28 in)
- It is classified as Class 2 certified, indicating that it has limited power output
- This LED driver is efficient and versatile and can be customized to meet specific lighting requirements. It is suitable for a wide range of applications, including commercial, industrial, and residential lighting.

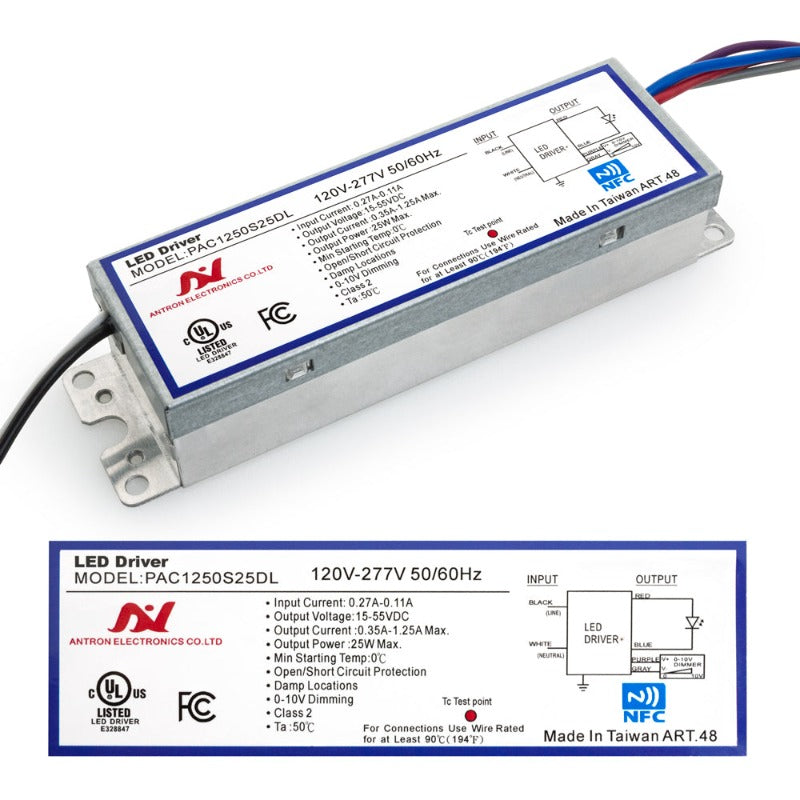

Wiring Diagram:
