Product Description

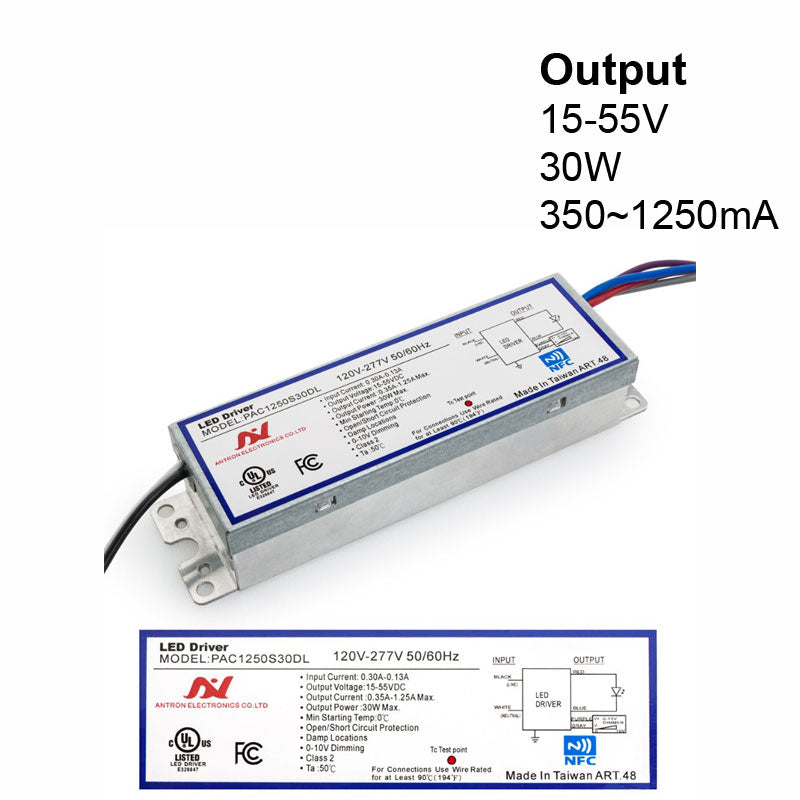

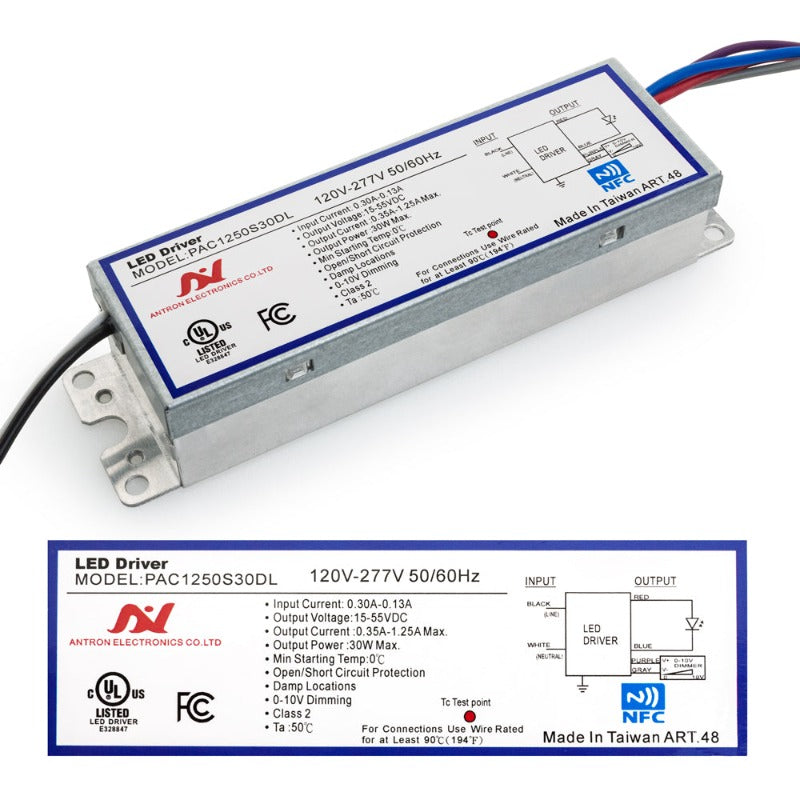

Product Constant Current Programmable LED Driver
Model PAC1250S30DL
Input Voltage 120-277V AC
Input Current 0.3A-0.13A
Input Frequency 50/60Hz
Output Voltage 15-55V
Output Power 30W max
Output regulated Current Range Programmable Output Current
350mA, 400mA, 450mA, 500mA, 550mA, 600mA,
650mA, 700mA, 750mA, 800mA, 850mA,900mA
950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA
Dimmable 3 in 1 Dimming ( PWM, 1-10V, Resistance)
Weight 0.5 kg
IP Rating IP20

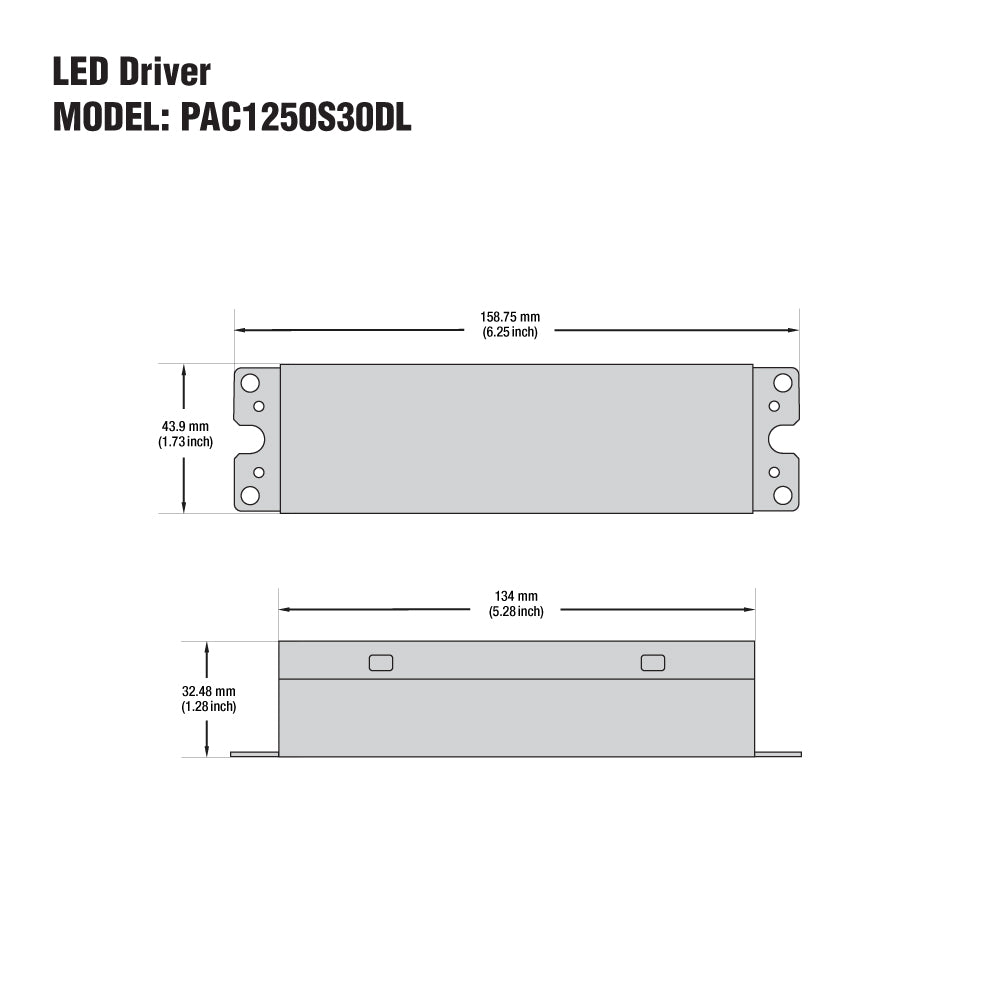

Dimensions 158.7 × 44 × 32.4 mm (6.24 x 1.7 x 1.27in)
Class Certification Class 2
Certification




Features:

  • The PAC1250S30DL is a Constant Current Programmable LED Driver
  • It provides custom output current levels ranging from 350-1250mA with a maximum output power of 30W
  • The regulated output voltage range is 15-55V, suitable for a variety of LED lighting applications
  • The input voltage can range from 120-277V AC, and the input current ranges from 0.3A to 0.13A
  • It is dimmable with 3 in 1 dimming capability, including PWM, 1-10V, and Resistance
  • The PAC1250S30DL has an IP20 rating, protecting it against solid objects larger than 12.5mm in diameter but not against water
  • It is classified as Class 2, a low voltage device that is double insulated and does not require a ground connection
  • The dimensions of the PAC1250S30DL are 15.87 × 4.4 × 3.24 cm (6.24 x 1.7 x 1.27in), making it a compact and versatile LED driver
  • It is suitable for a range of indoor lighting applications that require programmable output current levels, allowing for easy customization of current levels to suit specific lighting needs.

Wiring Diagram:
