Product Description
| Product | Constant Current Programmable LED Driver |
| Model | PAC1400S60DL |
| Input Voltage | 120-277V AC |
| Input Current | 0.6-0.26A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 27-55V |
| Output Power | 60W max |
| Output Regulated Current Range |
Programmable Output Current 700mA, 750mA, 800mA, 850mA,900mA 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA |
| Dimmable | 3 in 1 Dimming ( PWM, 1-10V, Resistance) |
| IP Rating | IP20 (Indoor rated) |
| Weight | 0.5 kg |
| Dimensions | 314.3 × 38 × 28.5 mm (12.3 x 1.5 x 1.1in) |
| Class Certification | Class 2 / Type HL |
| Certification |    |
Features:

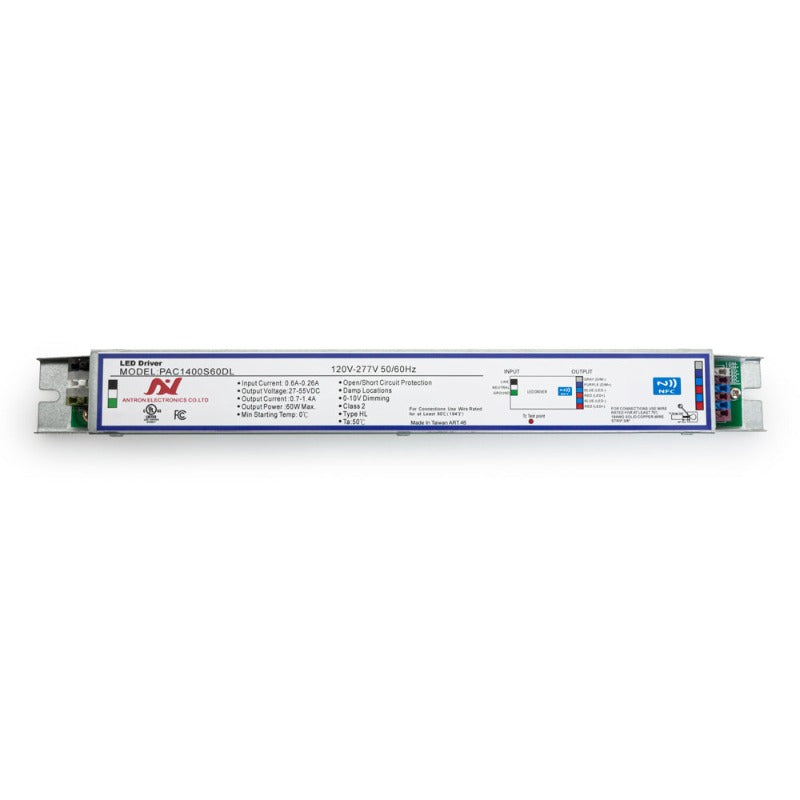

- The PAC1400S60DL is a constant current programmable LED driver
- Designed for a custom output current range of 700-1400mA
- Operates on an input voltage range of 120-277 V AC and an input frequency of 50/60 Hz
- Input current ranges from 0.6-0.26A
- Output voltage range is 27-55V, and the maximum output power is 60W
- Equipped with 3-in-1 dimming capability: PWM, 1-10V, and Resistance dimming options
- IP20 rated for indoor use only
- Compact size, measuring 31.43 × 3.8 × 2.85 cm, making it easy to install and integrate into lighting fixtures
- Classified as Class 2 and TypeHL certified, suitable for use in hazardous locations
- Efficient and versatile LED driver that can be customized to meet specific lighting requirements
- Suitable for a wide range of applications, including commercial, industrial, and residential lighting.
