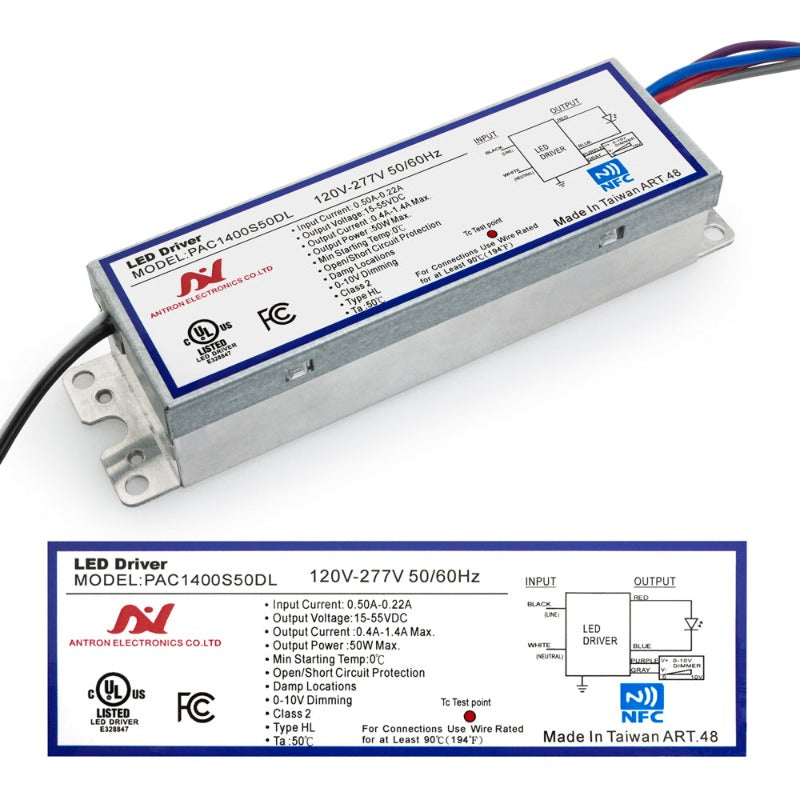

Product Description
| Product | Constant Current Programmable LED Driver |
| Model | PAC1400S50DL |
| Input Voltage | 120-277 V AC |
| Input Current | 0.5A-0.22A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 15-55V |
| Output Power | 50W max |
| Output Regulated Current Range |
Programmable Output Current 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA,900mA 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA |
| Dimmable | 3 in 1 Dimming ( PWM, 1-10V, Resistance) |
| Weight | 0.5 kg |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 158.7 × 44 × 32.5 mm (6.25 x 1.73 x 1.28 in) |
| Class Certification | Class 2 / TypeHL |
| Certification |

|
Features:
- The PAC1400S50DL is a constant current programmable LED driver designed to provide a custom output current range of 400-1400mA.
- It operates on an input voltage range of 120-277 V AC and an input frequency of 50/60 Hz.
- The input current ranges from 0.5A-0.22A, while the output voltage range is 15-55V and the maximum output power is 50W.
- It features 3-in-1 dimming capability, including PWM, 1-10V, and Resistance dimming options.
- The driver has an IP20 rating, which means it is suitable for indoor use only.
- The PAC1400S50DL has a compact size, measuring 15.8 × 4.4 × 3.25 cm (6.25 x 1.73 x 1.28 in), making it easy to install and integrate into lighting fixtures.
- It is classified as Class 2 and Type HL certified, indicating that it has limited power output and is suitable for use in hazardous locations.
- Overall, the PAC1400S50DL is an efficient and versatile LED driver that can be customized to meet specific lighting requirements, suitable for various applications such as commercial, industrial, and residential lighting.
Wiring Diagram:
