ANTRON 3V24S100D Constant Voltage LED Driver 0-10V Dimmable 347V 4A 24V 100W
ANTRON 3V24S100D Constant Voltage LED Driver 0-10V Dimmable 347V 4A 24V 100W
SKU: SKU:666561420314
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
 Product Description
| Model | 3V24S100D |
| Case Code | AM103 |
| Input Voltage | 347Â VAC |
| Input Current | 0.34A |
| Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Output regulated Current | 4.1A |
| Output Power | 100W |
| Dimmable | Yes (3 in 1 Dimming- PWM, 0-10V, resistance) |
| Waterproof | No (Damp locations only) |
| IP Rating | IP65 |

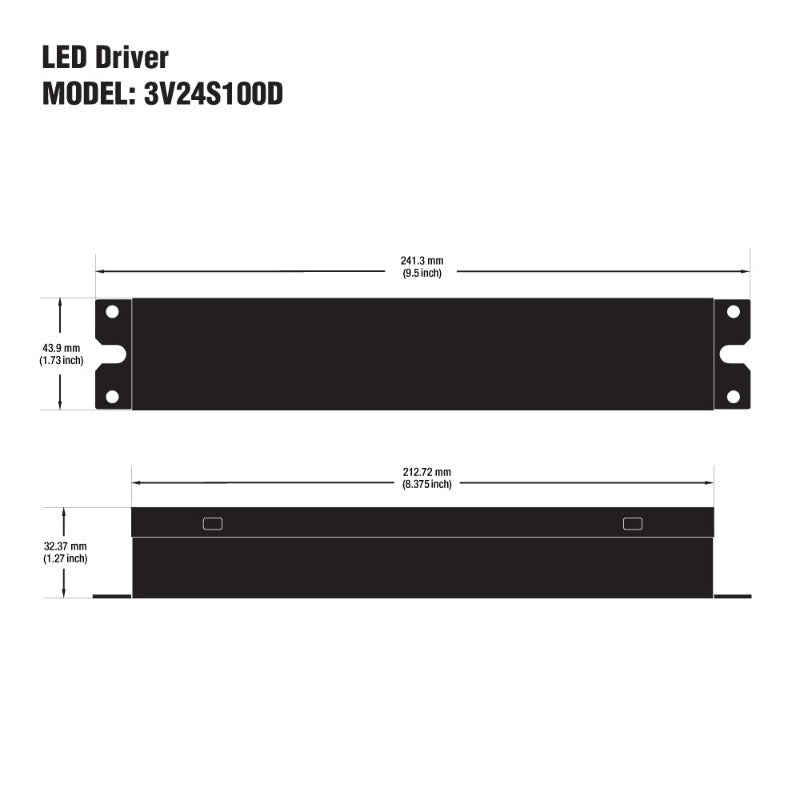

| Dimensions | 241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in) |
| Class Certification | Class 2 / Type TL |
| Starting Temperature | -40°C |
| Certification |   Â  |
| Open/Short/Over-Voltage/Over Temperature protection |
| Suitable for Damp locations |
Â

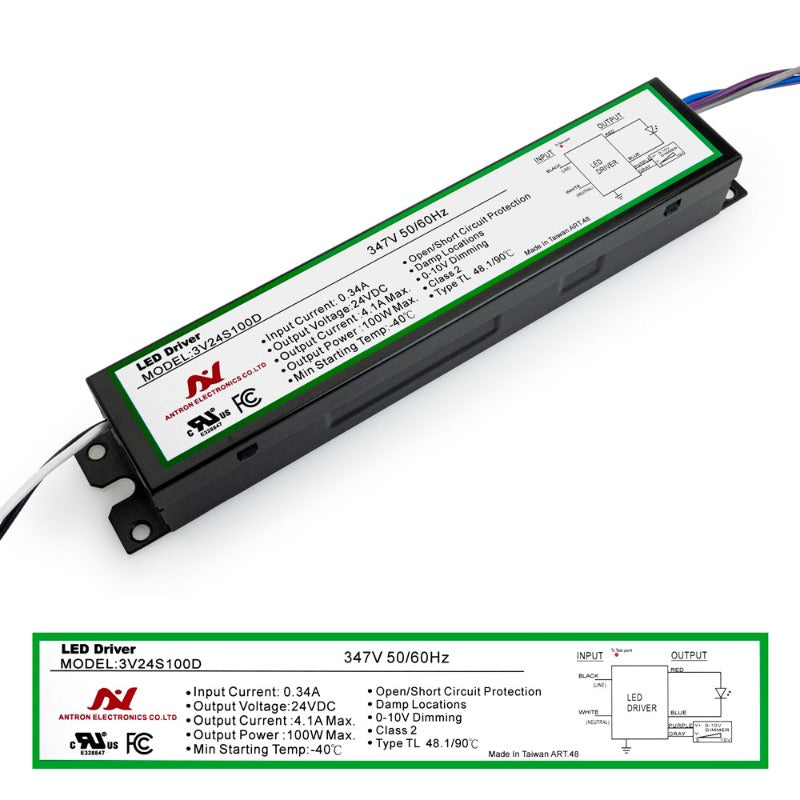

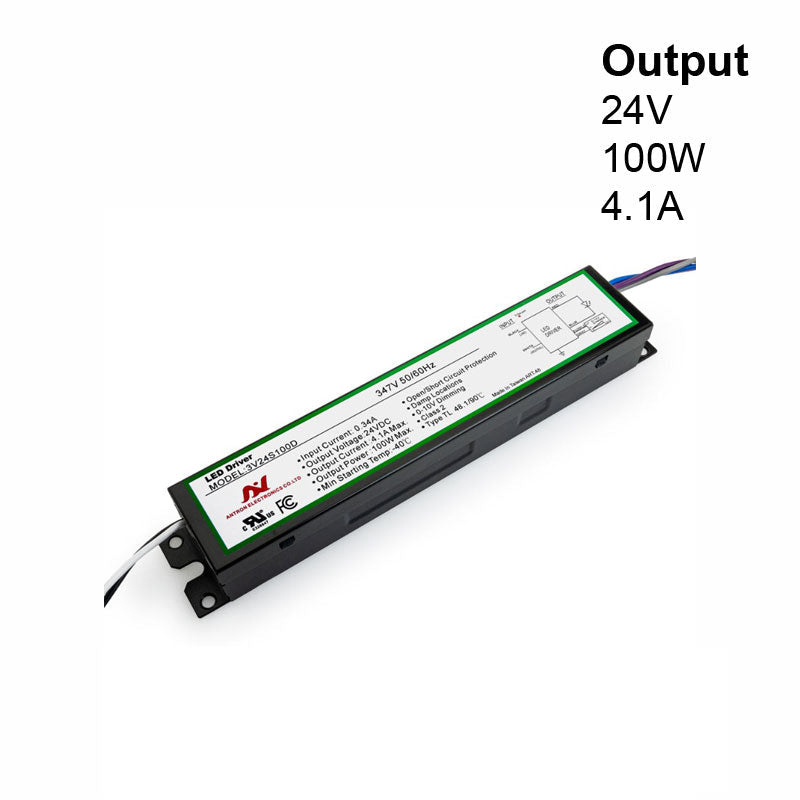

The ANTRON 3V24S100D Constant Voltage LED Driver is a high-quality LED driver designed to provide a constant voltage output of 24V DC for LED lighting systems. The model number for this driver is 3V24S100D, and it comes in a case code of AM103.
The input voltage range for this driver is 347V AC, with an input current of 0.34A and a frequency range of 50/60Hz. The output voltage is 24V DC with a regulated current output of 4.1A, and a maximum output power of 100W. This driver is designed for use in damp locations only and is not waterproof.
The 3V24S100D LED driver is dimmable and supports 3 in 1 dimming techniques including PWM, 0-10V, and resistance dimming. This allows for easy control of the brightness of the LED lighting system.
The driver is rated IP65, which means it is protected against dust and low-pressure water jets from any direction, making it suitable for use in outdoor applications. The driver is also Class 2 / Type TL certified, which means it has been designed with double insulation and is safe for use in a Class 2 circuit.
The starting temperature of the driver is -40°C, which means it can be used in extreme cold environments. The dimensions of the driver are 241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in), making it a compact and versatile option for LED lighting systems.
Features:
- The ANTRON 3V24S100D LED driver provides a constant voltage output of 24V DC for LED lighting systems, with a model number of 3V24S100D and a case code of AM103.
- The input voltage range is 347V AC, with an input current of 0.34A and a frequency range of 50/60Hz. The output voltage is 24V DC with a regulated current output of 4.1A and a maximum output power of 100W.
- The driver is designed for use in damp locations only and is not waterproof.
- It is dimmable and supports 3 in 1 dimming techniques including PWM, 0-10V, and resistance dimming.
- The driver is rated IP65, which means it is protected against dust and low-pressure water jets from any direction, making it suitable for use in outdoor applications.
- It is also Class 2 / Type TL certified, which means it has been designed with double insulation and is safe for use in a Class 2 circuit.
- The starting temperature of the driver is -40°C, making it suitable for use in extreme cold environments.
- The dimensions of the driver are 241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in), making it a compact and versatile option for LED lighting systems.
