Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC2450S98D-D4 |
| Input Voltage | 120-277V AC |
| Input Current | 0.93-0.4A |
| Input Frequency | 50/60 Hz |
| Efficiency | 88% |

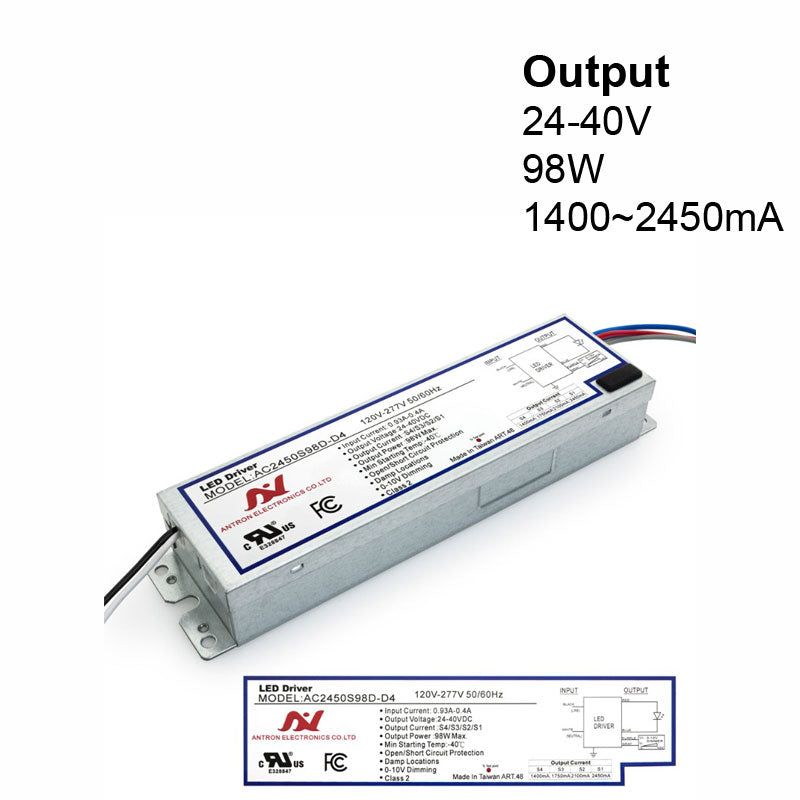

| Output Voltage | 24-40V |
| Output Power | 98W max |
| Output Current | Selectable current from 1400mA/1750mA/ 2100mA/ 2450mA |
| Weight | 0.9 kg |
| Dimmable | Yes (3 in 1 Dimming -PWM, Resistance, 0-10V) |
| IP Rating | IP64 (Indoor Rated) |

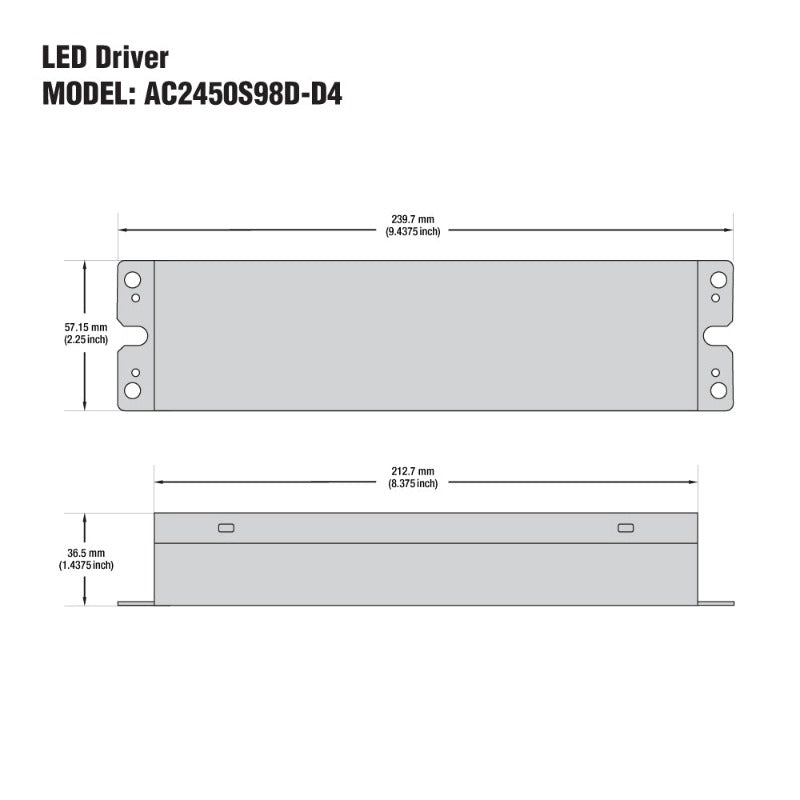

| Dimensions | 240 × 57.1 × 36.5 mm (9.43 x 2.25 x 1.43 in) |
| Class Certification | Class 2 |
| Surge Rating | 2KV |
| Certification |
   |
Features:

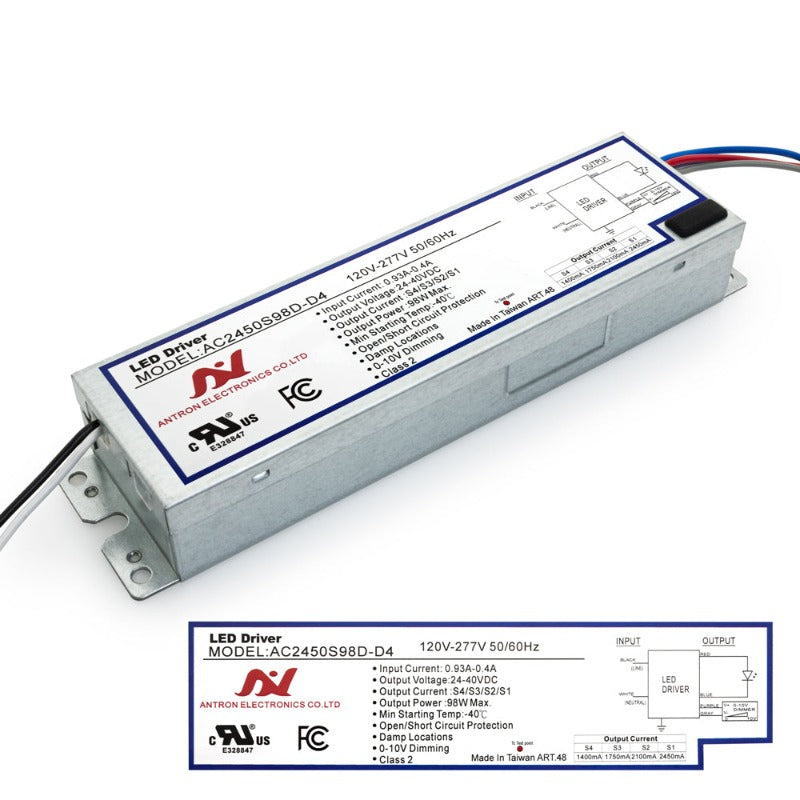

- ANTRON AC2450S98D-D4 is a Constant Current LED Driver with Selectable Current
- Model number is AC2450S98D-D4
- Provides selectable current output of 1400mA, 1750mA, 2100mA, or 2450mA
- Output power of 98W max
- Input voltage range: 120-277V AC
- Input current range: 0.93-0.4A
- Input frequency: 50/60 Hz
- Efficiency of 88%
- Output voltage range: 24-40V
- Dimmable and can be controlled using 3 in 1 dimming techniques - PWM, Resistance, and 0-10V
- Rated IP64 suitable for indoor use and can withstand dust and water splashes
- Dimensions: 24 × 5.71 × 3.65 cm (9.43 x 2.25 x 1.43 in)
- Surge protection up to 2KV
- Ideal for various LED lighting applications such as architectural lighting, commercial lighting, and industrial lighting
- Constant current output ensures stable and consistent light output
- Suitable for applications where uniform lighting is required.
Wiring Diagram:
