• Bridgelux Constant Current COB LED Module 500mA 10W BXRA-56C1100-B
  • Bridgelux Constant Current COB LED Module 500mA 10W BXRA-56C1100-B
  • Bridgelux Constant Current COB LED Module 500mA 10W BXRA-56C1100-B
  • Bridgelux Constant Current COB LED Module 500mA 10W BXRA-56C1100-B
1 5

BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)

BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)

SKU:666561417055

$35.00 CAD
$35.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

Product Constant Current LED Module
Model BXRA-56C1100-B
Brand Bridgelux
Current
 500mA
Voltage Range 18.6- 22.8V
Typical Voltage 20.7V
Power 10.4W
LED Type COB
Luminous Flux 810-1320 lumens
Efficacy 128 Lm/W
Color Temperature 5600K (Cool White)
Rendering Index CRI>90
Dimmable Yes
Junction temperature (Tj) 25ºC
Operating Case Temperature Max Range (Tc) 105°C

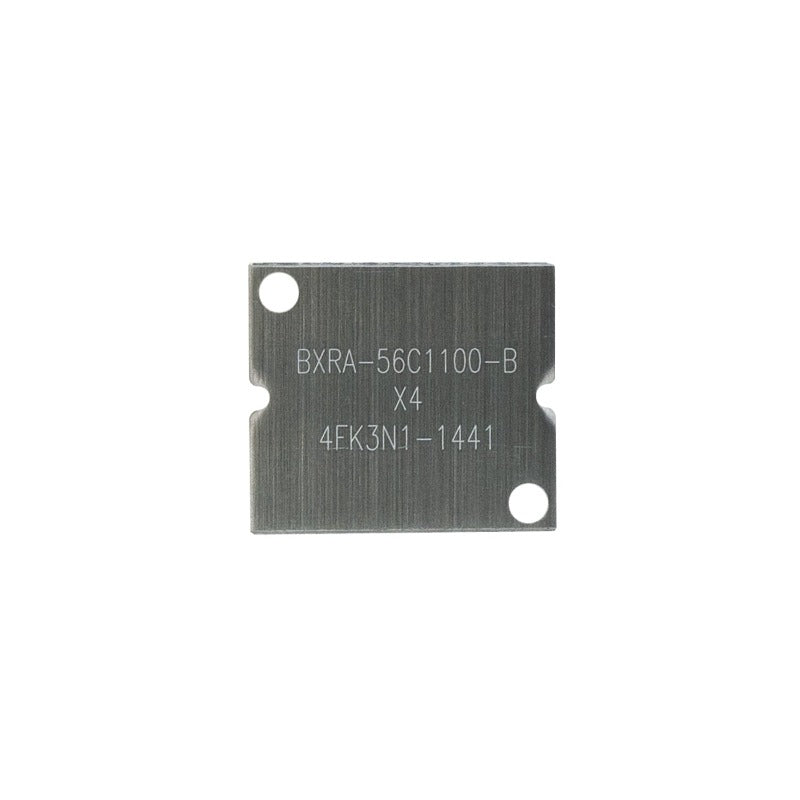

Material: Metallic base
Soldering Temperature 350ºC
Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

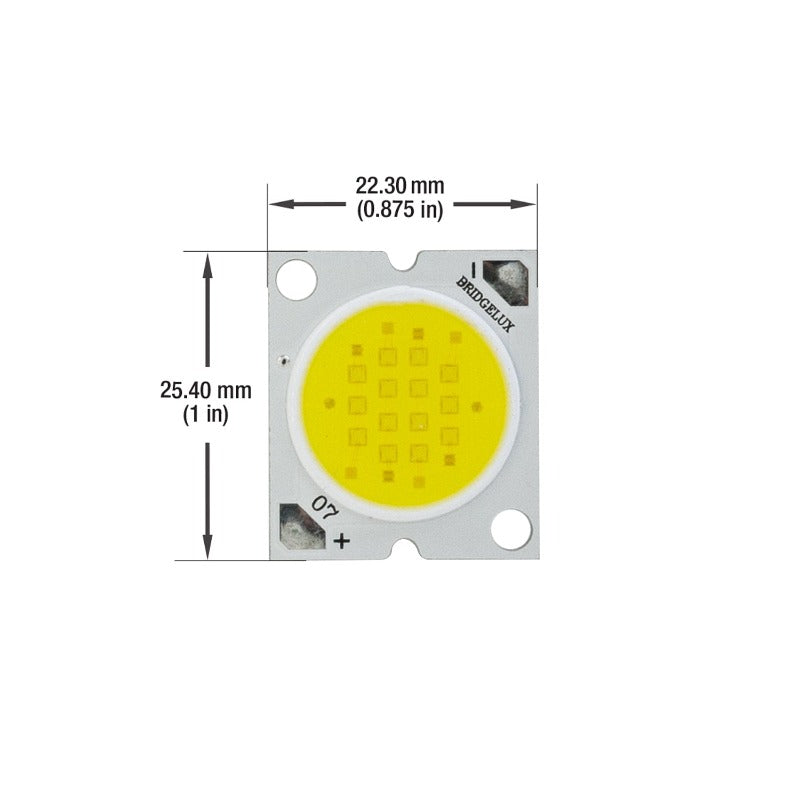

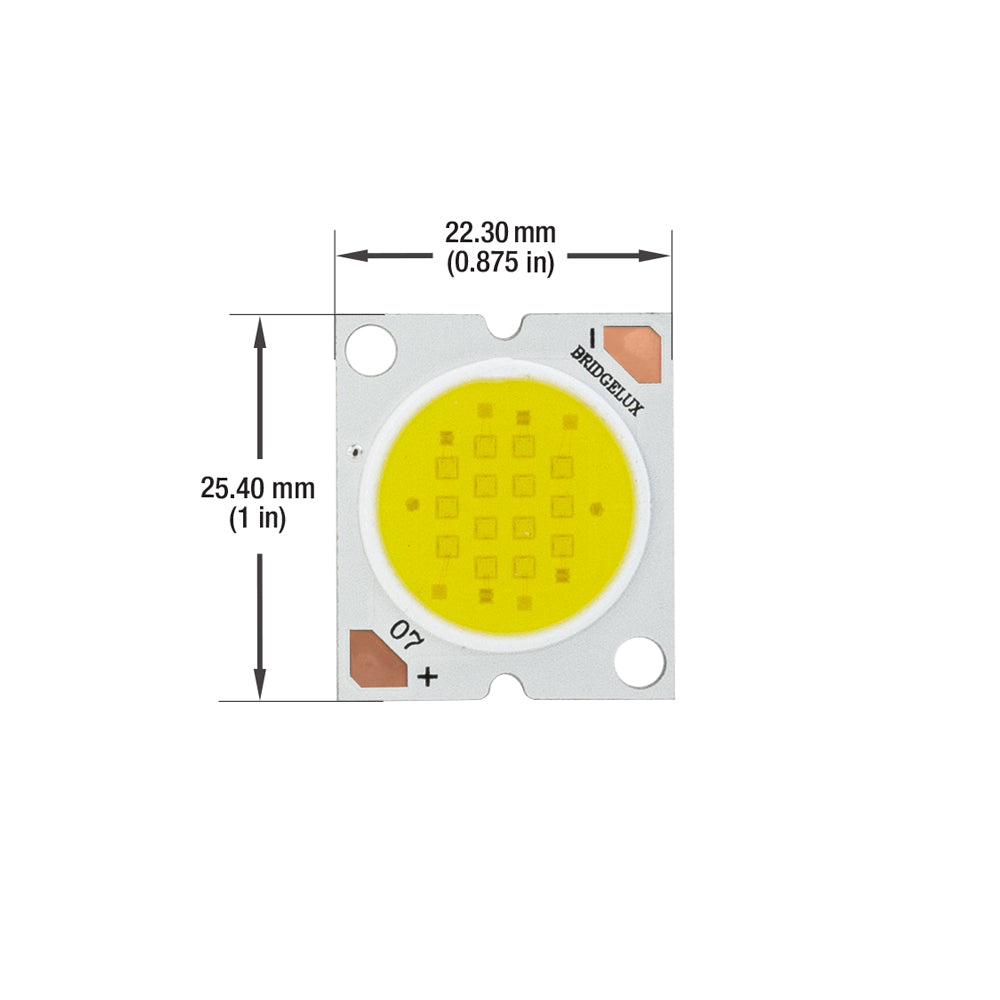

Dimensions 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in)

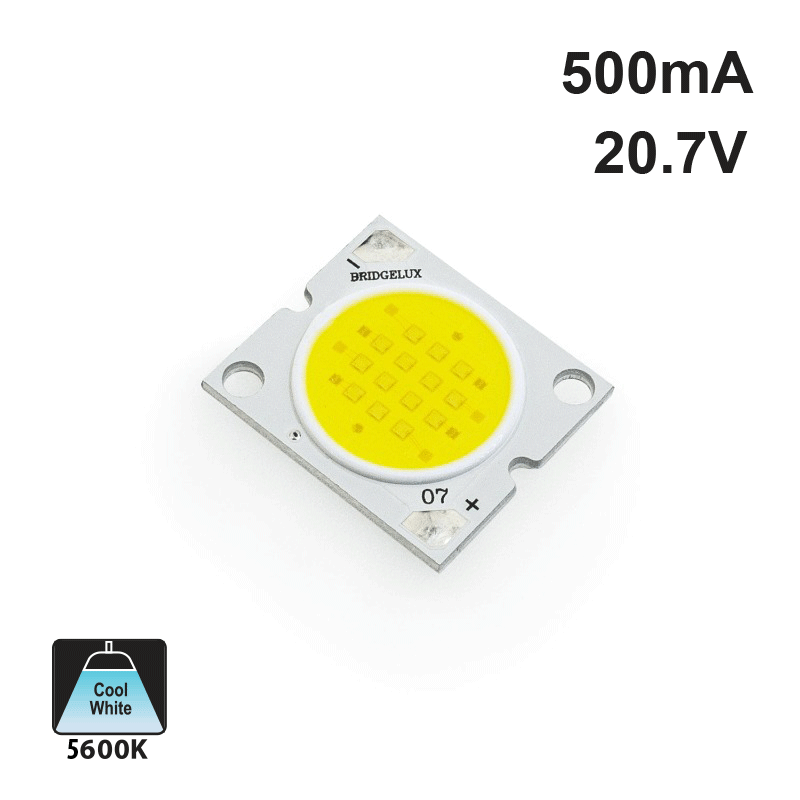

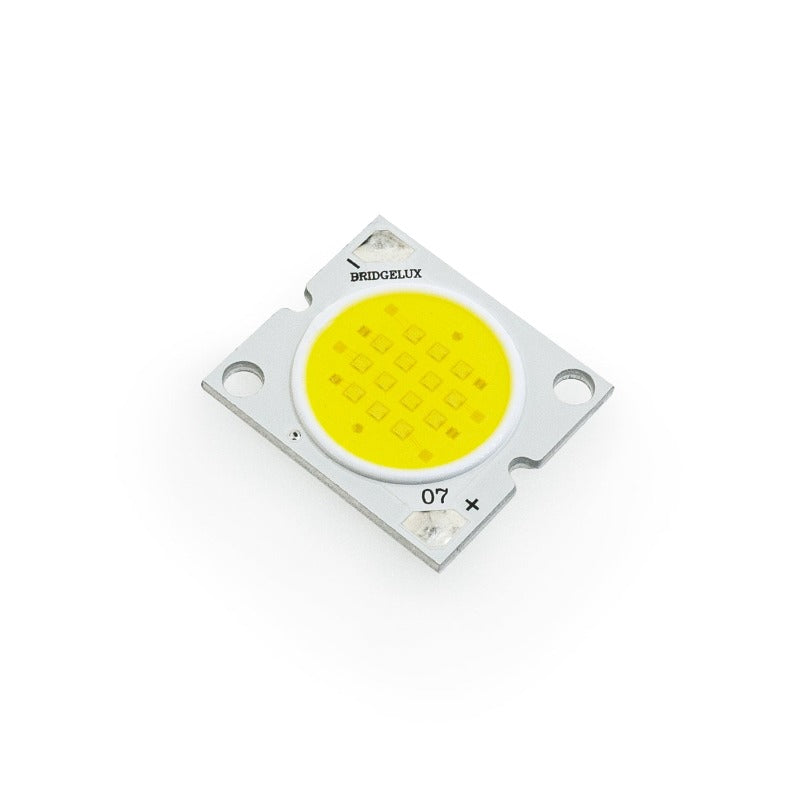

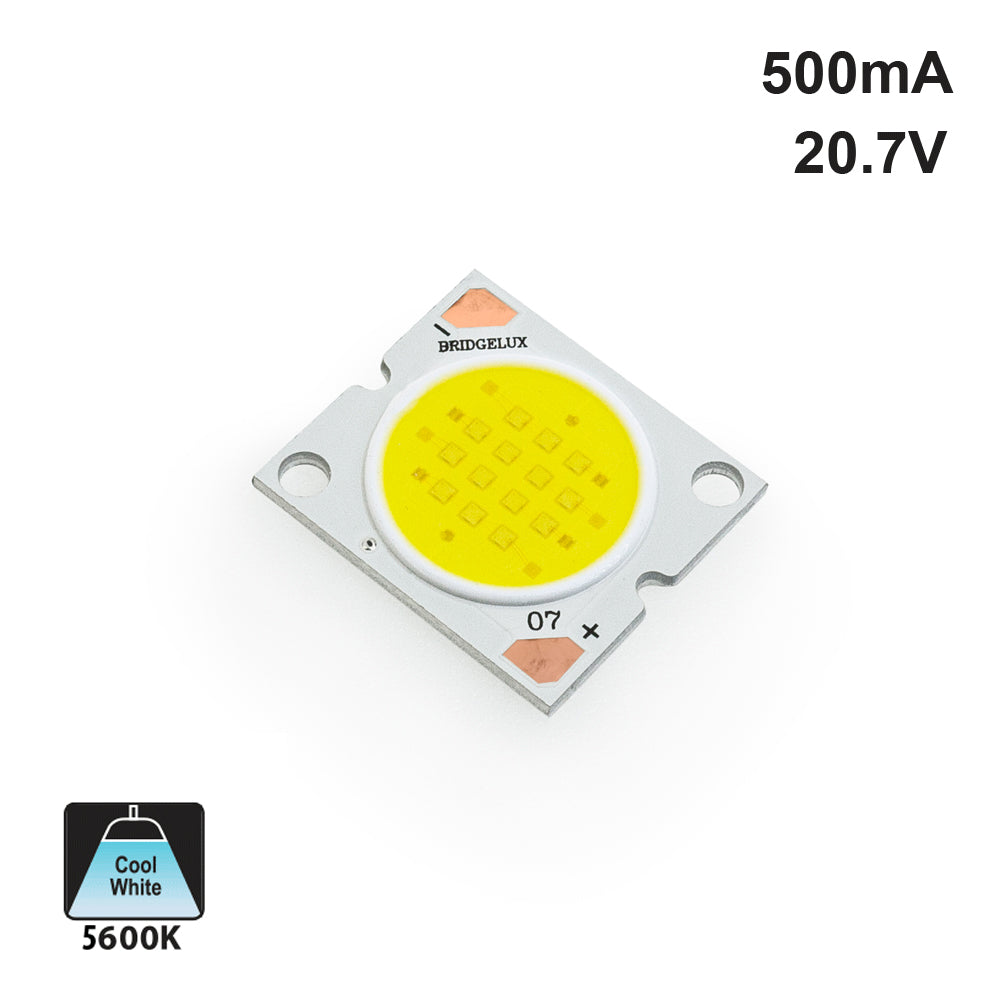

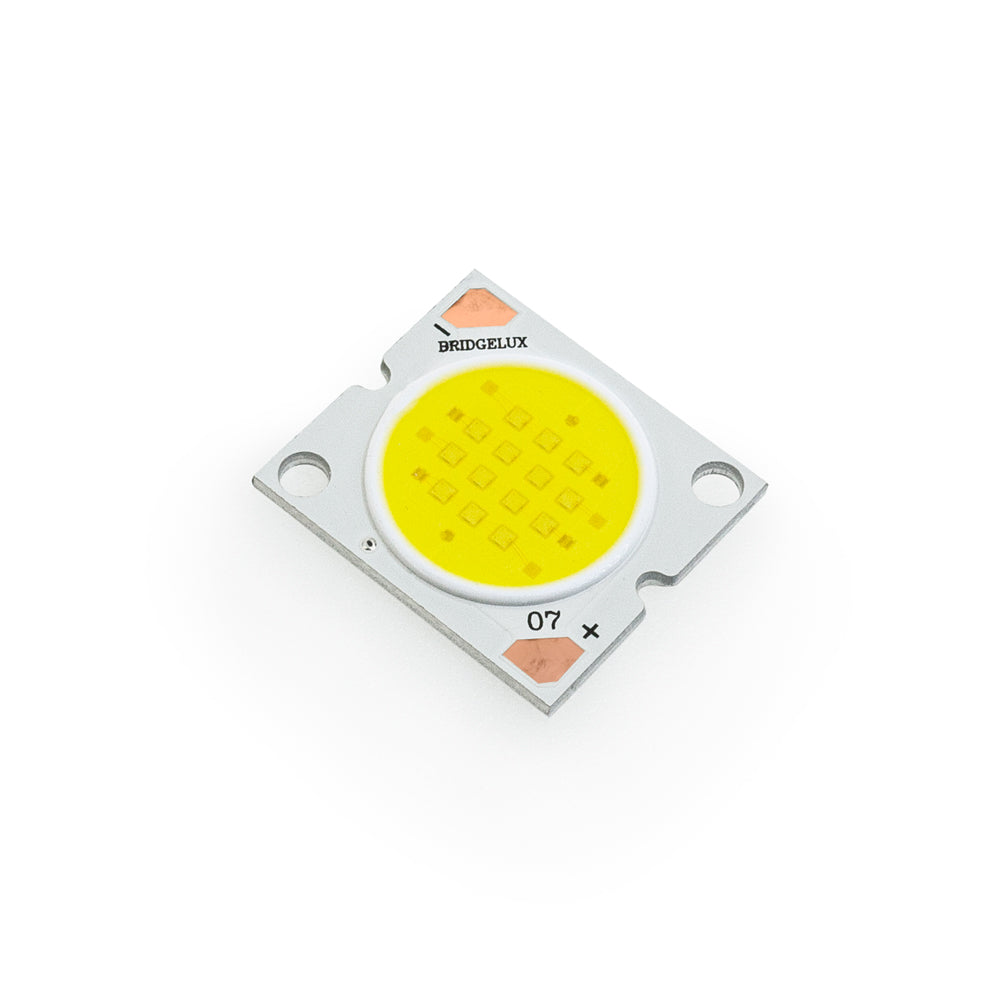

The BXRA-56C1100-B Constant Current COB LED Module is a high-quality lighting component produced by the renowned brand Bridgelux. This LED module operates at a current of 500mA, with a voltage range of 18.6-22.8V and a typical voltage of 20.7V. It has a power output of 10.4W, making it a powerful and energy-efficient lighting source.

This LED module uses Chip-on-Board (COB) technology, which provides high-quality, uniform, and consistent light with pixelation technology. It has a luminous flux output of 810-1320 lumens and an efficacy of 128 Lm/W, making it an energy-efficient lighting option.

The color temperature of this LED module is 5600K (Cool White), which produces a bright and crisp light that is ideal for various lighting applications. It has a rendering index of CRI>90, which ensures that the colors appear natural and vibrant.

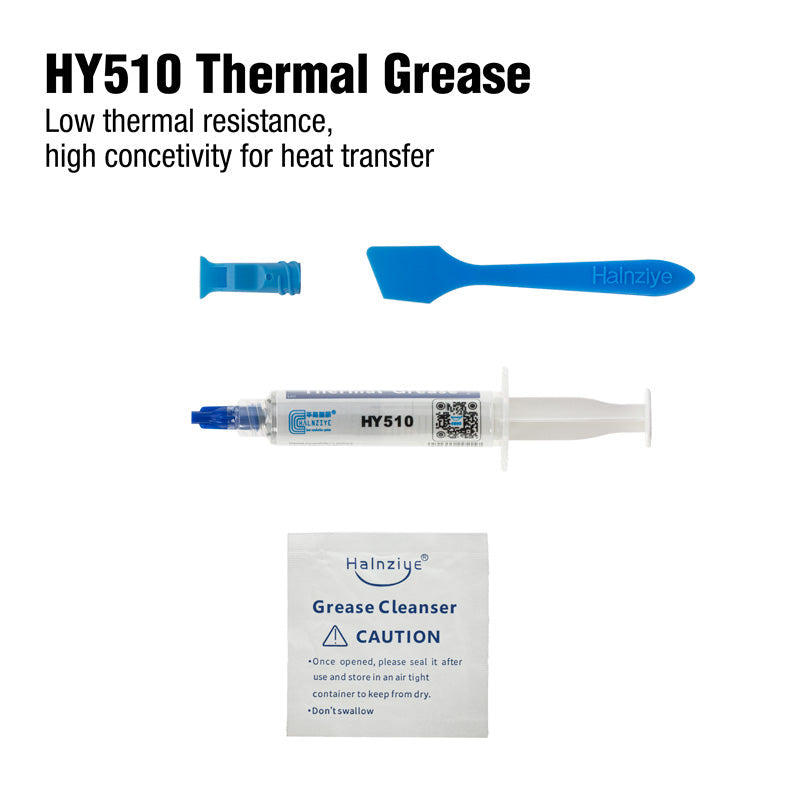

It is recommended to use Thermal Grease or Thermal Pad for installation. The package content includes the LED module and Thermal Grease HY510 (5gr).

Features:

  • High-quality lighting component produced by Bridgelux
  • Operates at a current of 500mA, with a voltage range of 18.6-22.8V and a typical voltage of 20.7V
  • Power output of 10.4W, making it a powerful and energy-efficient lighting source
  • Chip-on-Board (COB) technology provides high-quality, uniform, and consistent light with pixelation technology
  • Luminous flux output of 810-1320 lumens and an efficacy of 128 Lm/W, making it an energy-efficient lighting option
  • Color temperature of 5600K (Cool White) produces a bright and crisp light ideal for various lighting applications
  • Rendering index of CRI>90 ensures that colors appear natural and vibrant
  • Dimmable for greater control over lighting output
  • Junction temperature of 25ºC and an operating case temperature max range of 105°C ensure optimal performance and longevity
  • Metallic construction and dimensions of 22.30 x 25.40 mm (0.875 x 1 in)
  • Package content includes LED module and Thermal Grease HY510 (5gr)
  • Excellent lighting solution that provides high-quality illumination while being energy-efficient, reliable, and versatile
  • Use Thermal Grease or Thermal Pad for installation.
    View full details
