BXRA-27G2000-B-03 Constant Current COB LED Module, 700mA 25W 2700K(Soft White)
BXRA-27G2000-B-03 Constant Current COB LED Module, 700mA 25W 2700K(Soft White)
SKU: SKU:666561417109
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Product Description
| Product | Constant Current LED Module |
| Model | BXRA-27G2000-B-03 |
| Brand | Bridgelux |
|
Current |
700mA |
| Voltage | 32.6- 39.8V |
| Typical Voltage | 37V |
| Power | 25.9W |
| LED Type | COB |
| Luminous Flux | 1750-1975 lumens |
| Efficacy | 76 lm/W |
| Color Temperature | 2700K (Soft White) |
| Rendering Index | CRI>90 |
| Dimmable | Yes |
| Junction temperature (Tj) (Max rating) | 150ºC |
| Operating case temperature (Tc) (Max rating) | 105ºC |
| Material | Metallic base |
| Soldering Temperature: (Max rating) | 350ºC |
| Thermal Grease | We will include thermal grease to cover the quantity of LED modules ordered. |

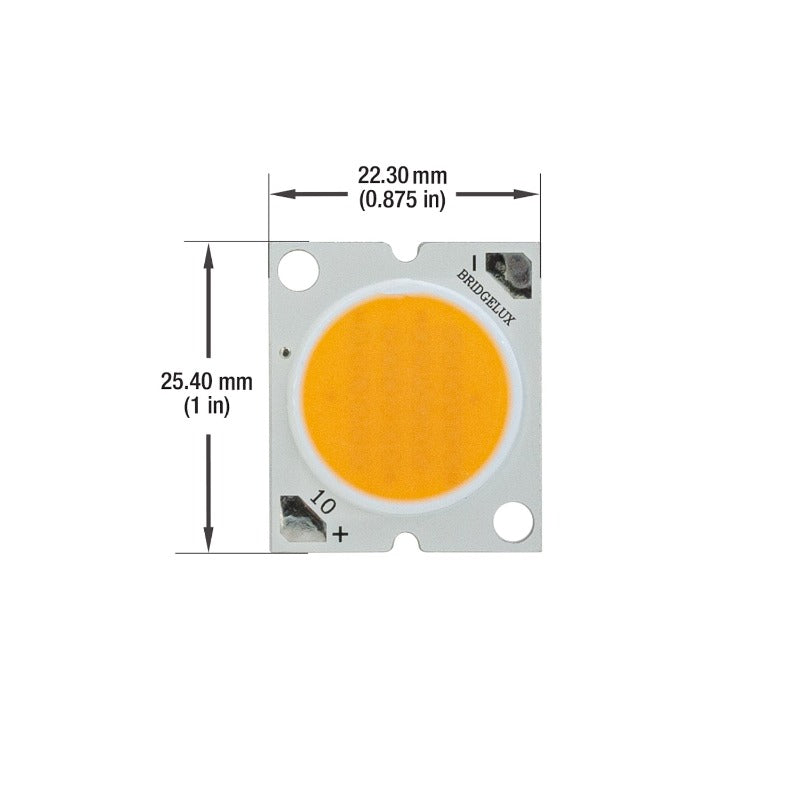

| Dimensions | 22.8 x 25.8 x 1.5mm (0.89 x 1.1 x 0.05in) |
Â

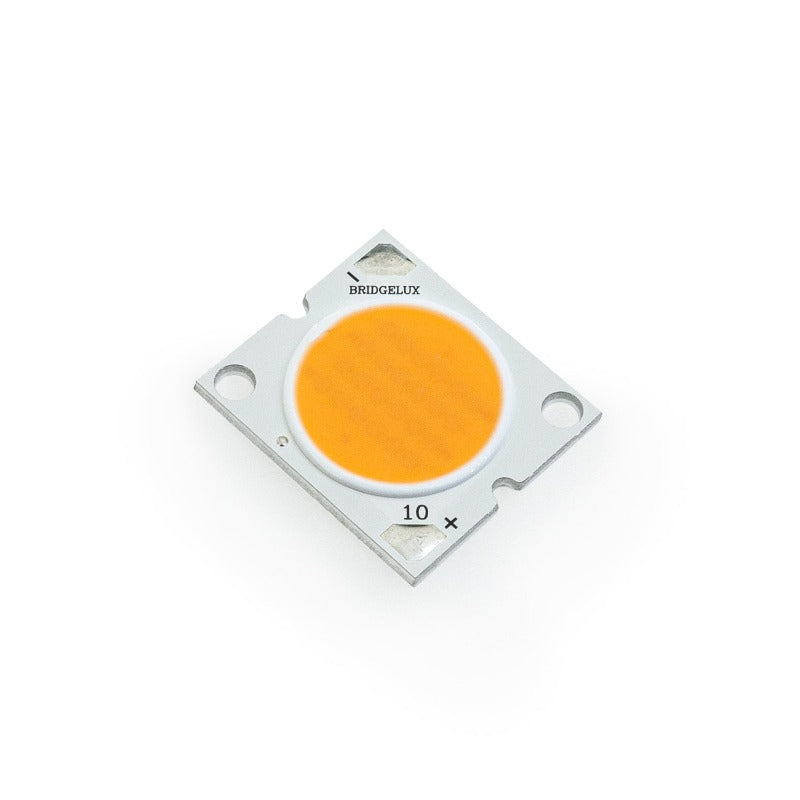

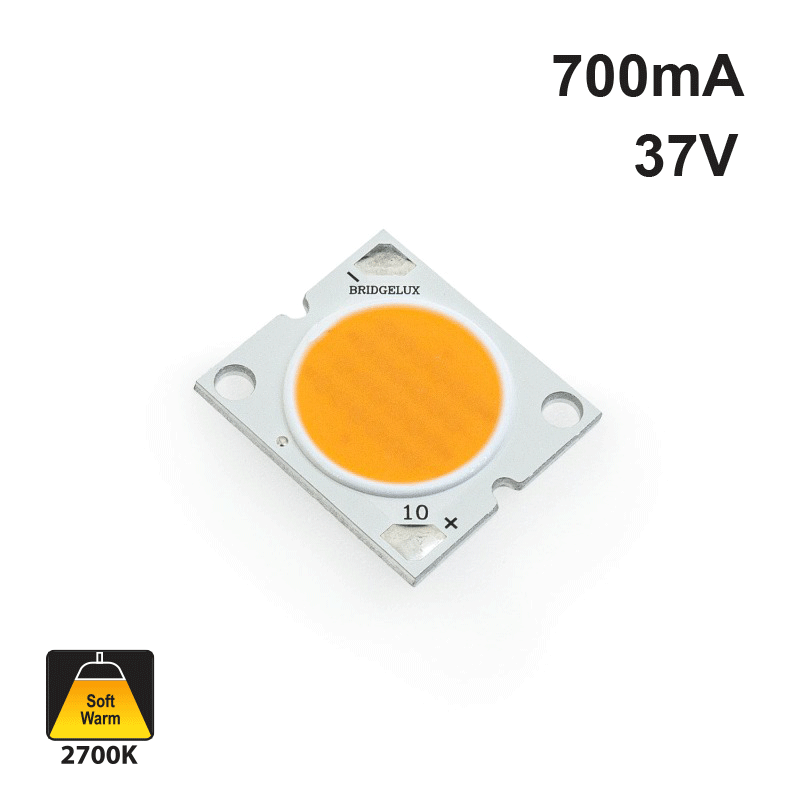

The BXRA-27G2000-B-03 Constant Current COB LED Module is a high-quality lighting component produced by the renowned brand Bridgelux. This LED module operates at a current of 700mA, with a voltage range of 32.6-39.8V and a typical voltage of 37V. It has a power output of 25.9W, making it a powerful and energy-efficient lighting source.
This LED module uses Chip-on-Board (COB) technology, which provides high-quality, uniform, and consistent light with pixelation technology. It has a luminous flux output of 1750-1975 lumens and an efficacy of 76 lm/W, making it an energy-efficient lighting option.
The color temperature of this LED module is 2700K (Soft White), which produces a warm and cozy light that is ideal for various indoor lighting applications. It has a rendering index of CRI>90, which ensures that the colors appear natural and vibrant.

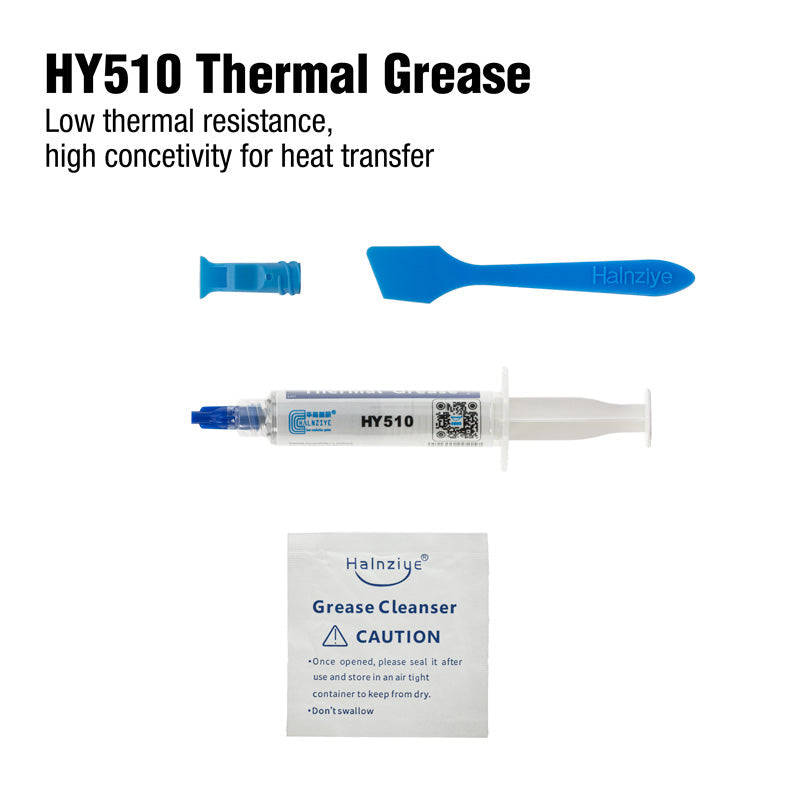

It is recommended to use Thermal Grease or Thermal Pad for installation. The package content includes the LED module and Thermal Grease HY510 (5gr).
Features:
- High-quality lighting component produced by the renowned brand Bridgelux.
- Operates at a current of 700mA, with a voltage range of 32.6-39.8V and a typical voltage of 37V.
- Power output of 25.9W, making it a powerful and energy-efficient lighting source.
- Uses Chip-on-Board (COB) technology, providing high-quality, uniform, and consistent light with pixelation technology.
- Luminous flux output of 1750-1975 lumens and an efficacy of 76 lm/W, making it an energy-efficient lighting option.
- Color temperature of 2700K (Soft White), producing a warm and cozy light that is ideal for various indoor lighting applications.
- Rendering index of CRI>90, ensuring that the colors appear natural and vibrant.
- Dimmable, allowing for greater control over the lighting output.
- Junction temperature (Tj) of 150ºC and an operating case temperature (Tc) max rating of 105ºC, ensuring optimal performance and longevity.
- Material used in the construction of this LED module is metallic, and it has dimensions of 22.8 x 25.8 mm (0.89 x 1.1 in).
- Package content includes the LED module and Thermal Grease HY510 (5gr).
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
- Energy-efficient, reliable, and versatile lighting solution.
- Use Thermal Grease or Thermal Pad for installation.
