CBAC-042-36185-120V-2700K COB Paragon LED Module with H48185 LED Holder, 120V 11W 2700K(Soft White)
CBAC-042-36185-120V-2700K COB Paragon LED Module with H48185 LED Holder, 120V 11W 2700K(Soft White)
SKU: SKU:666561433475
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Product Description
| Product | Paragon LED Module |

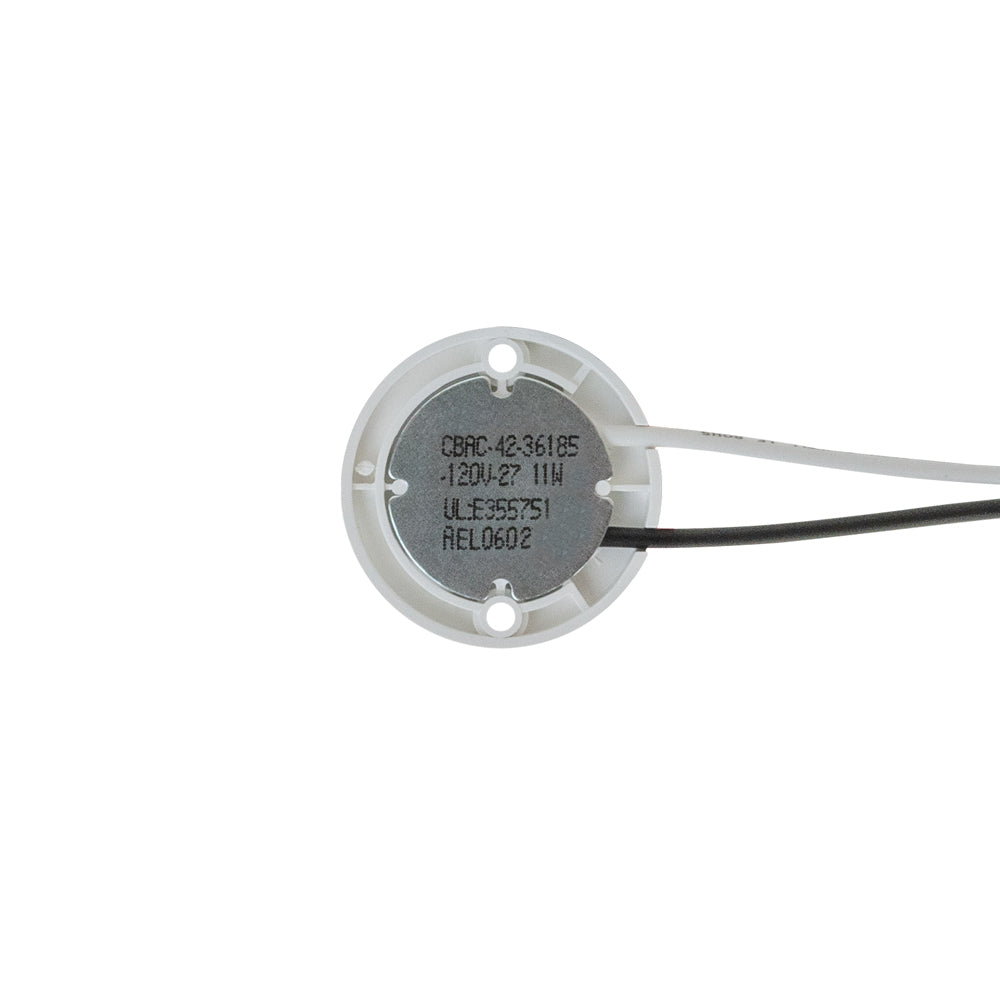

| Model No | CBAC-042-36185-120V-2700K |
| COB Holder Model No | H48185 |
|
LED Type |
COB LED |
| Wattage | 11WÂ |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Color Temperature | 2700K (Soft White) |

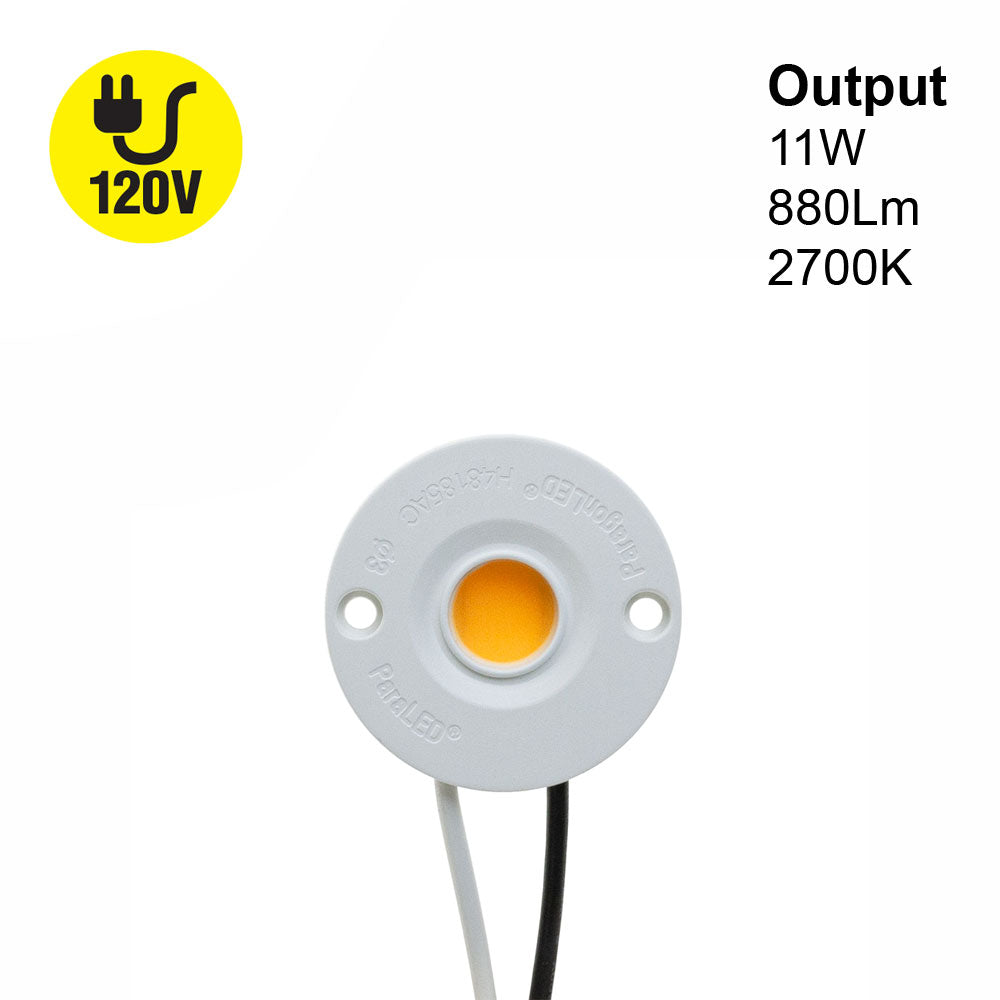

| Brightness | 880 Lumens |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

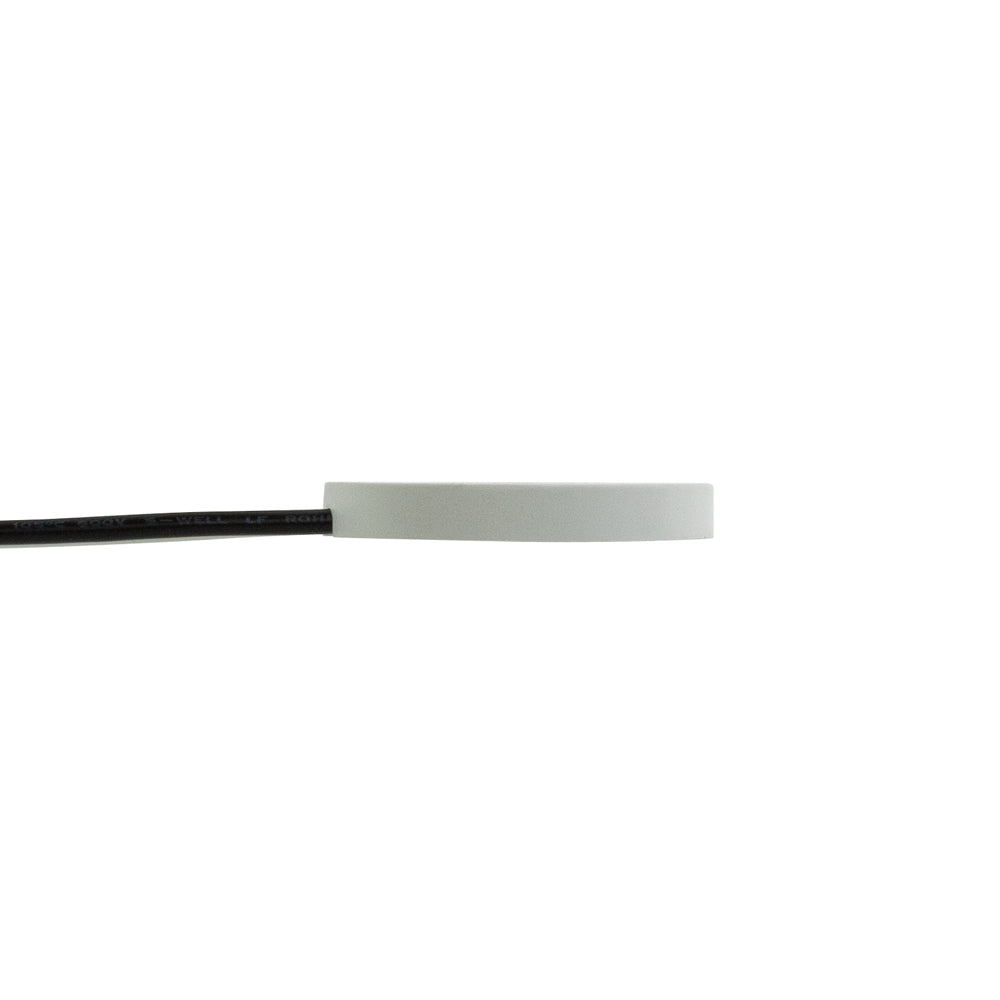

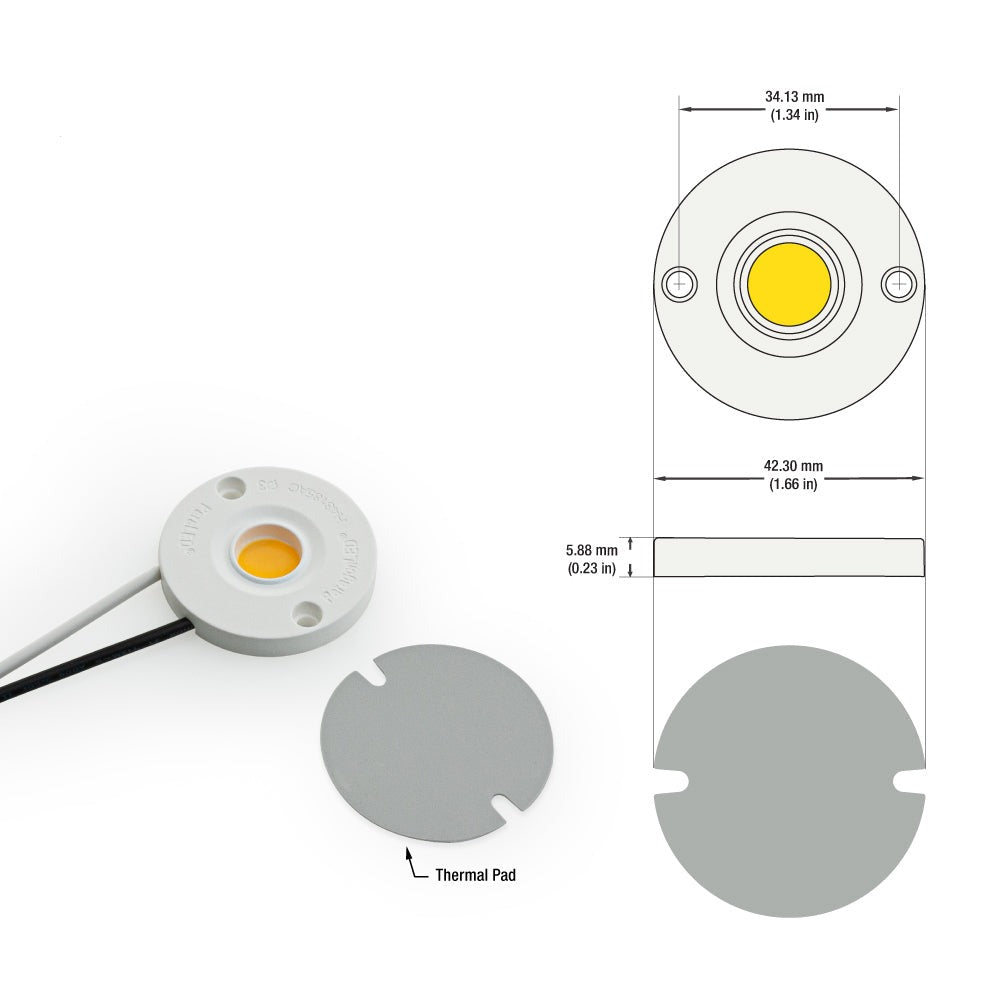

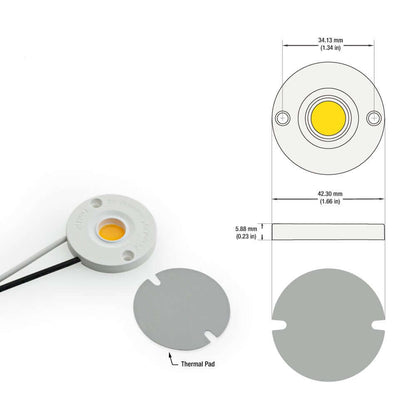

| COB Holder Dimensions | ∅42.3mm (1.6 in) x H5.88mm (0.23 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

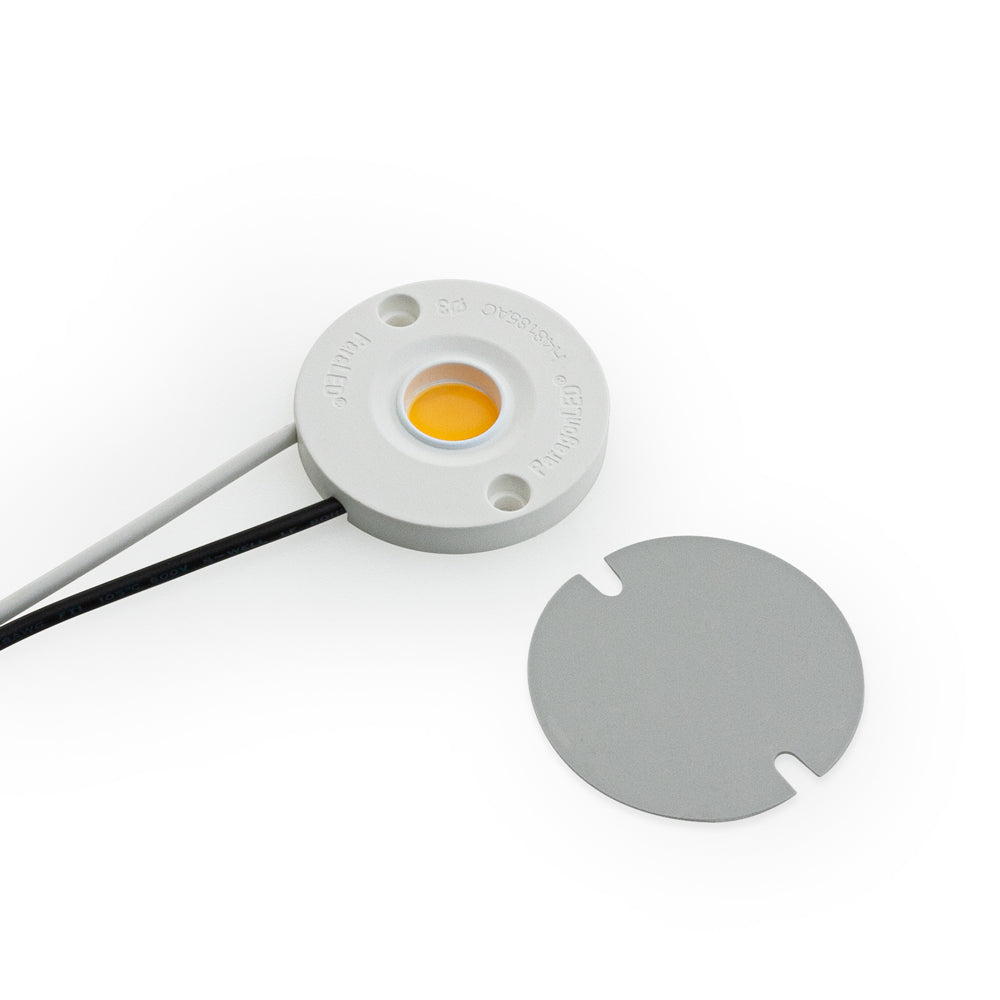

| Included Content | COB Module, PC lampshade (Diffuser), COB LED Array Holder, Thermal Pad |
| Certifications |  |

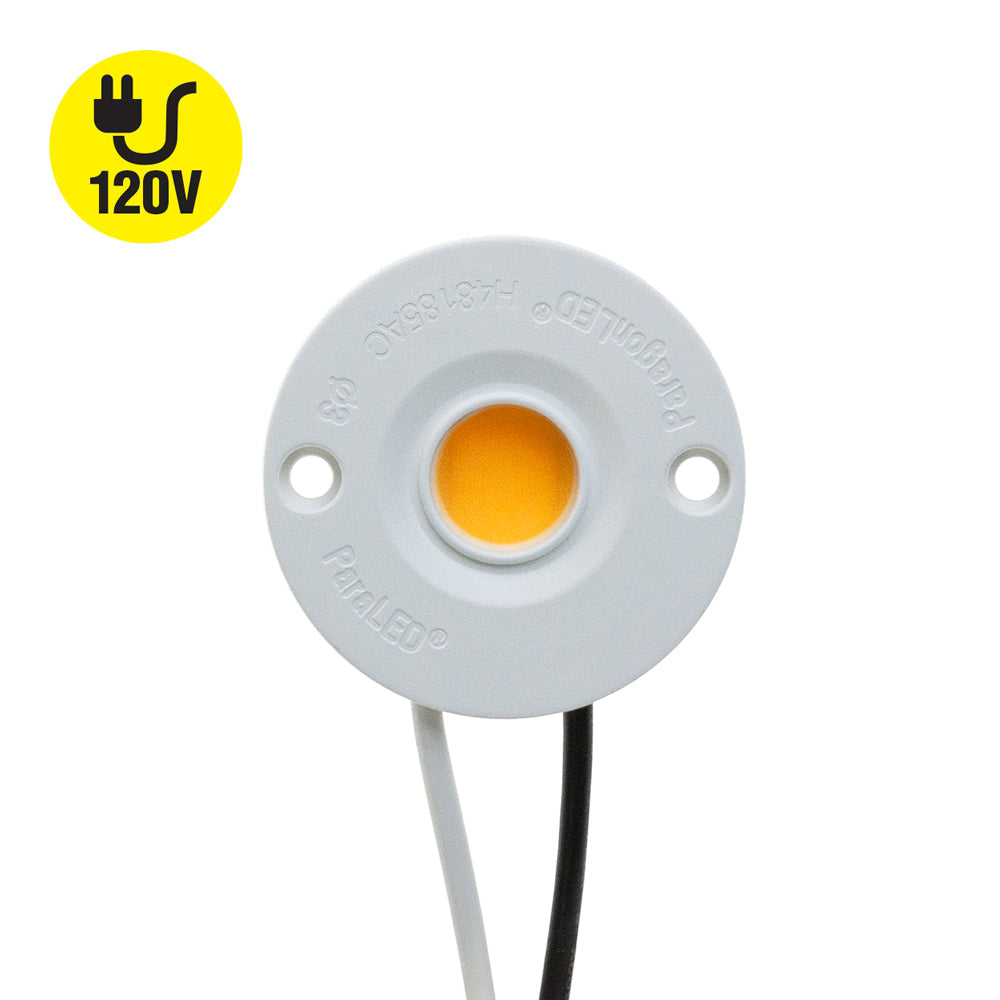

The CBAC-042-36185-120V-2700KÂ Paragon LED Module is a COB LED module designed for indoor use with a power consumption of 11W and a voltage rating of 120V AC. It has a color temperature of 2700K, which produces a soft white light. The module is dimmable and has a high color rendering index of over 90, ensuring that colors are displayed accurately.

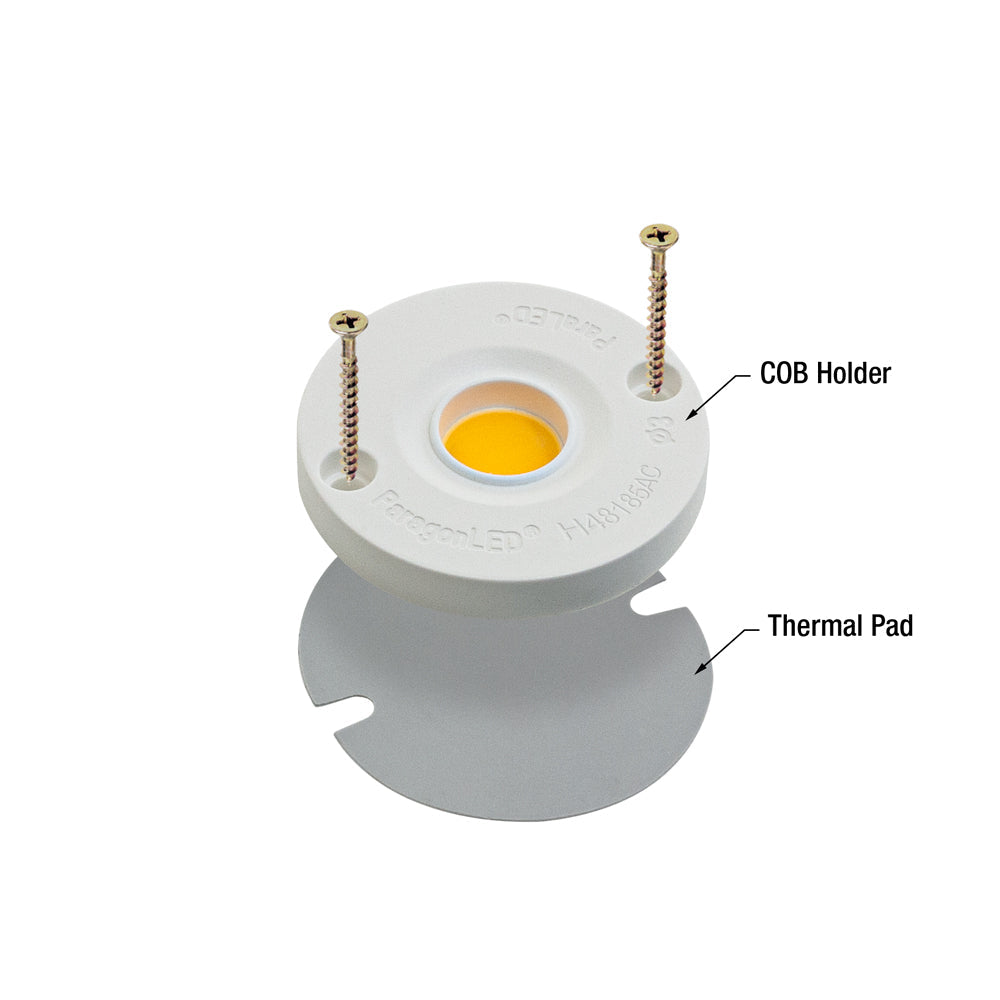

The module comes with a H48185 COB LED holder that allows for easy mechanical and electrical connections, as well as secure attachment to a heat sink. The COB holder has dimensions of ∅42.3mm (1.6 in) x H5.88mm (0.23 in).Â
To prevent overheating and ensure the longevity of the module, it is recommended to use an aluminum heat sink when designing lamps with this module. The silicone grease thermal pad that comes with the module provides additional heat dissipation.
The module also includes a polycarbonate diffuser that can be easily attached or detached. The diffuser protects the module and helps to reduce glare and refract the light in a wider beam. This product is certified by UL and is suitable for use in damp locations.
Features:
- COB LED module designed for indoor use with a power consumption of 11W and a voltage rating of 120V AC
- Color temperature of 2700K, producing a soft white light
- Dimmable module with a high color rendering index of over 90, ensuring accurate color display
- Comes with a H48185 COB LED holder that allows for easy mechanical and electrical connections and secure attachment to a heat sink
- COB holder dimensions: ∅42.3mm (1.6 in) x H5.88mm (0.23 in)
- Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity of the module
- Includes a polycarbonate diffuser that can be easily attached or detached to protect the module, reduce glare, and refract light in a wider beam
- Certified by UL and suitable for use in damp locations
- Important to ground light fixtures when designing lamps to ensure safe operation
- Operating temperature range: -40 ~ +105℃, storage temperature range: -40 ~ +105℃
- Assembly process temperature should not exceed 300℃ and the solder joint point temperature should not exceed 105℃
- Dielectric breakdown voltage of the thermal pad is greater than 4KV
