Product Description

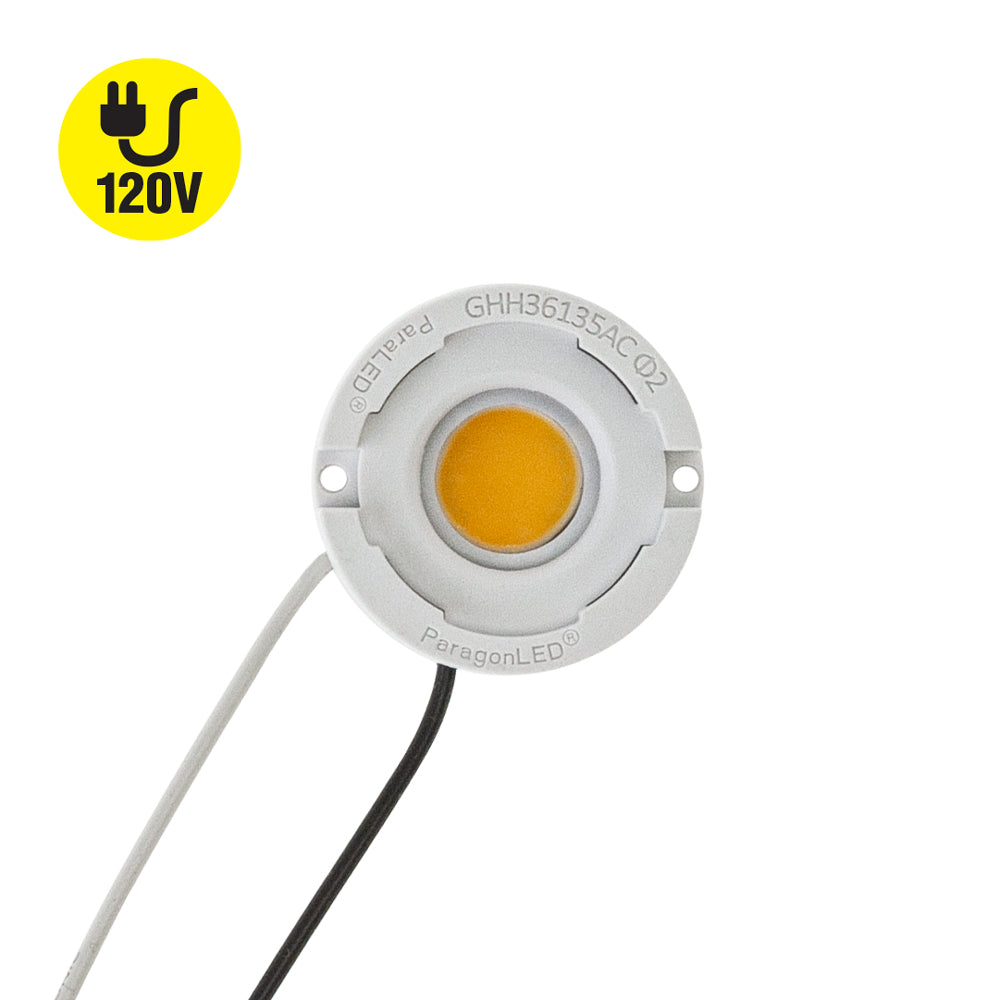

| Product | Paragon LED Module |
| Model No | CBHT-042-30135-120V-40-G03 |
| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 6W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 560 lumens |
| Color Temperature | 4000K (Natural White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| Weight | 0.02 kg |
| COB Holder Dimensions | ∅35.7mm (1.4 in) x H11.60mm (0.45 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Array Holder, Thermal Pad |
| Certifications |  |
Features:
- Power factor greater than 0.98
- Luminous intensity of 560 lumens
- Color temperature of 4000K (Natural White)
- Dimmable feature
- High rendering index of greater than 90 (CRI>90)
- IP20 rating, suitable for use in damp locations
- Operating temperature range: -40 to +105℃
- Dielectric breakdown voltage of thermal pad greater than 4KV
- Package includes COB Module, COB LED Array Holder, and Thermal Pad
- Certified by UL
- Aluminum heat sink required for installation to prevent overheating
- Polycarbonate diffuser included to reduce glare and refract light in a wider beam
- COB holder allows for mechanical securing, electrical connection, and pressing to heat sink
- Silicone grease thermal pad provides heat sink and better heat dissipation
- Suitable for almost every kind of luminaire
- Important to ground light fixtures while designing lamps
