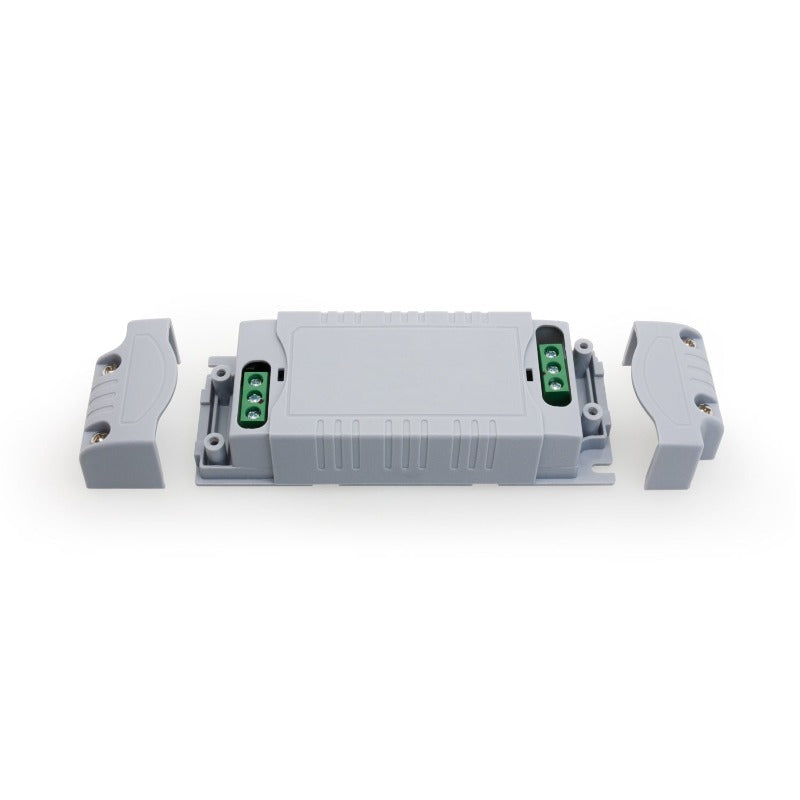

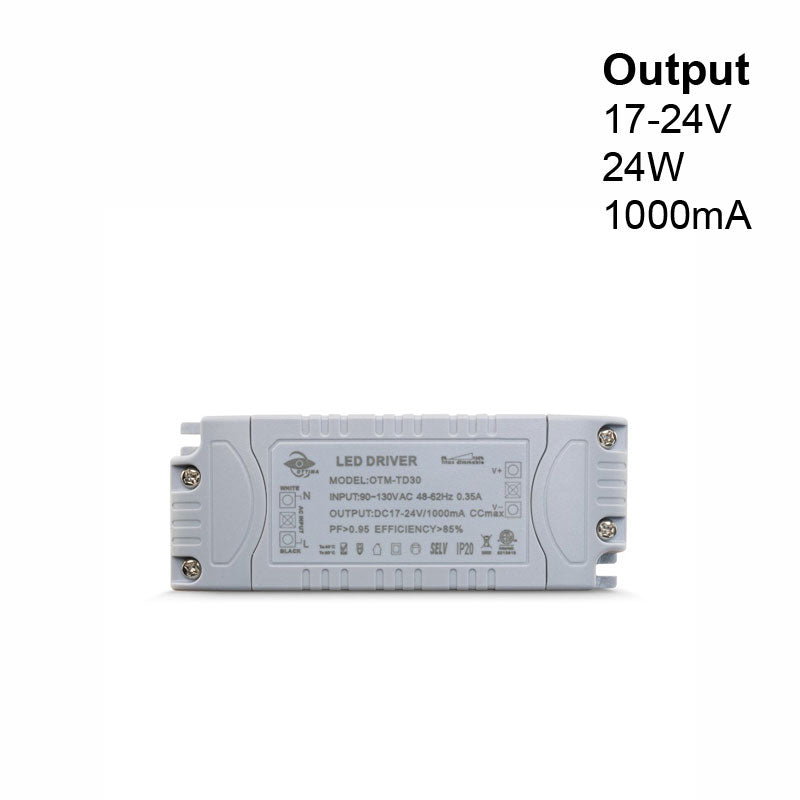

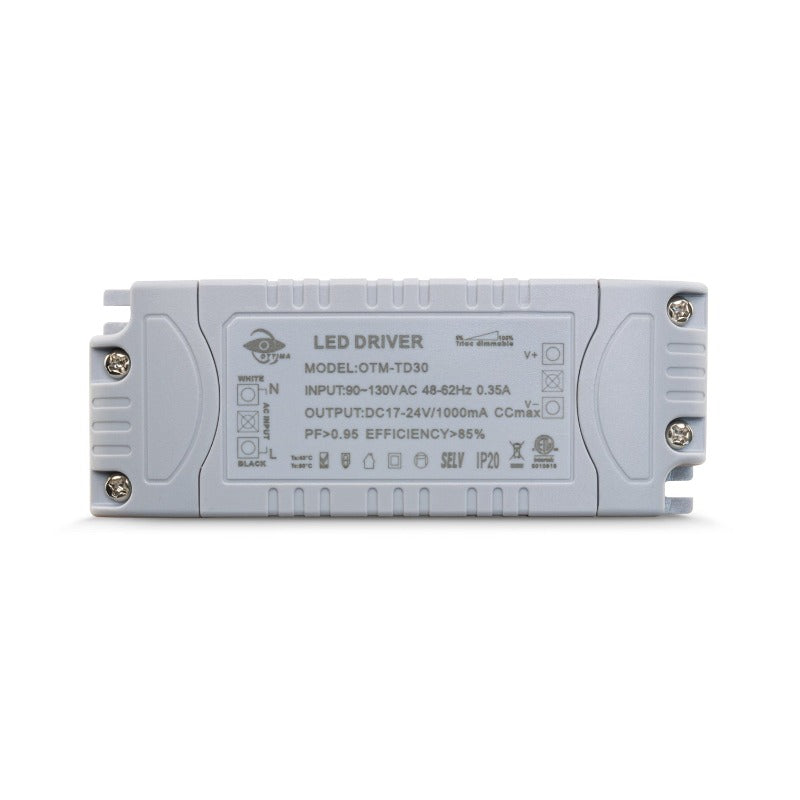

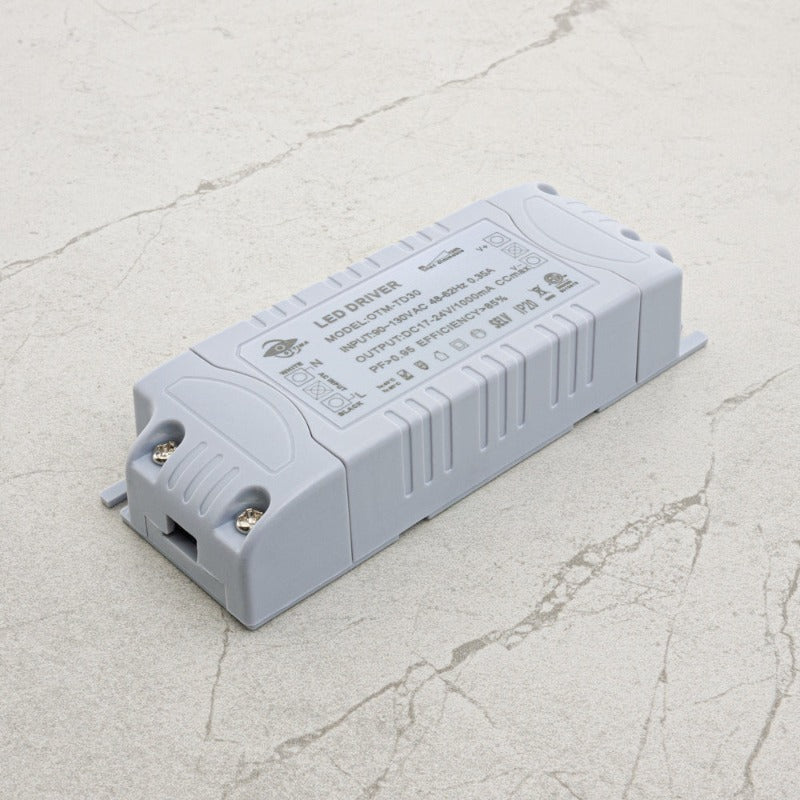

OTTIMA OTM-TD30 Constant Current LED Driver, 1000mA 17-24V 24W

OTTIMA OTM-TD30 Constant Current LED Driver, 1000mA 17-24V 24W

Ask Question!

SKU:666561424961

$57.93 CAD
$57.93 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Product Constant Current LED Drivers
Model OTM-TD30
Input Voltage 90-130V AC
Input Current 0.35A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 1000mA
Output Power  24W
Output Voltage 17-24V DC
Dimmable Yes (Triac Dimming)
Weight 1 kg
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)

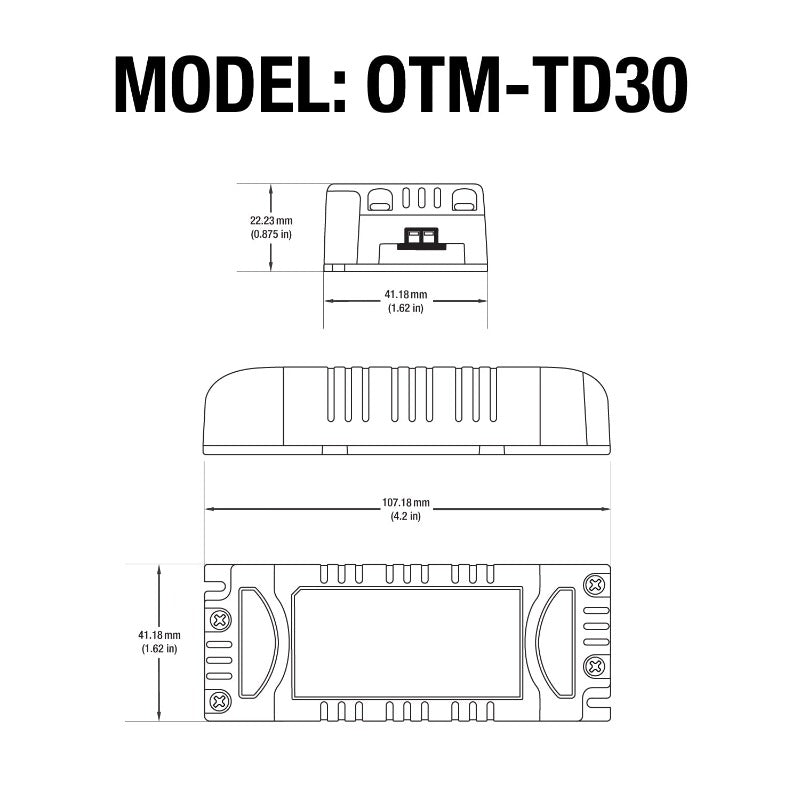

Dimensions 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in)
Class Certification Class II
Certification




Features:

  • The OTTIMA OTM-TD30 is a Constant Current LED Driver with a regulated current output of 1000mA.
  • It has an input voltage range of 90-130V AC, input current of 0.35A and input frequency of 48-62Hz.
  • The driver has a high Power Factor of PF>0.95 and an efficiency rating of greater than 85%.
  • Its output power is 24W, and the output voltage range is 17-24V DC.
  • The LED driver is compatible with Triac dimming for adjustable lighting intensity.
  • The OTM-TD30 is Class II certified, providing double insulation protection against electric shock.
