Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD12 |
| Input Voltage | 90-130V AC |
| Input Current | 0.15A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 1000mA |
| Output Power | 12W |
| Output Voltage | 7-12V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Weight | 0.08 kg |

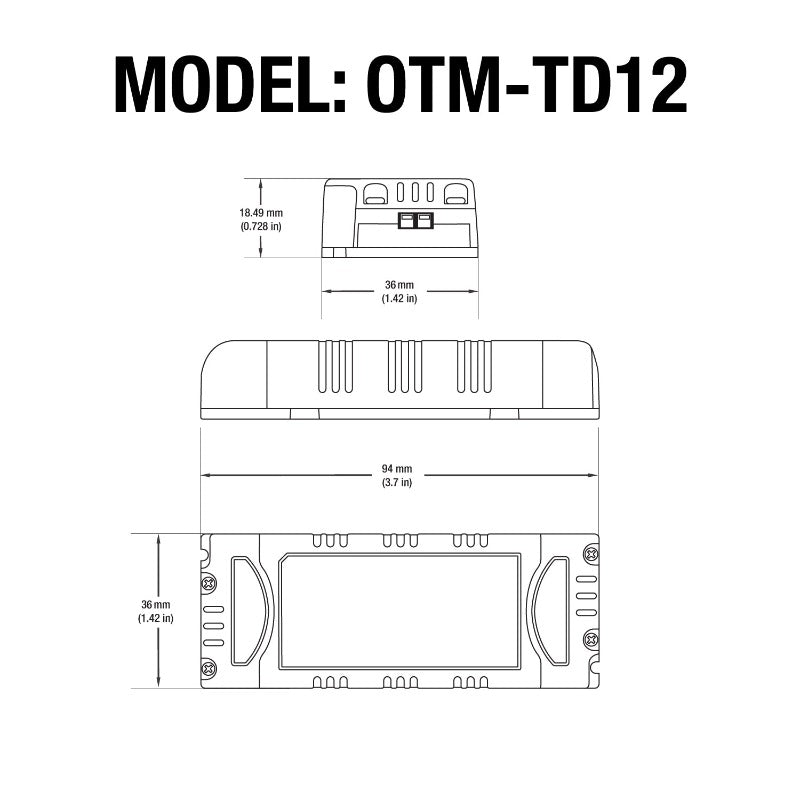

| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
Features:
- The OTTIMA OTM-TD12 Constant Current LED Driver supplies a regulated constant current to LED lights.
- The model number of this driver is OTM-TD12.
- It has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz.
- It has a high power factor (PF) of greater than 0.95 and an efficiency of greater than 85%.
- The output regulated current is 1000mA, and its output power is 12W.
- The output voltage range is 7-12V DC.
- It is dimmable with Triac Dimming for easy control of the LED light levels.
- The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
- It is rated IP20, suitable for indoor use only.
- It is certified as Class II, which means it has double insulation and does not require a grounding wire.
