OTTIMA OTM-TD20 Constant Current LED Driver, 1120mA 10-15V 16.8W

Name: OTTIMA OTM-TD20 Constant Current LED Driver, 1120mA 10-15V 16.8W
Brand: OTTIMA
SKU: 666561424909
Price: 55.37 CAD
Availability: InStock

Ask Question!

SKU: SKU:666561424909

$55.37 CAD

Sale Sold out

Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—

Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Quantity to add

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

10–24 items: 15% off
25–49 items: 18% off
50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Product Description

Product	Constant Current LED Driver
Model	OTM-TD20
Input Voltage	90-130V AC
Input Current	0.24A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%
Output Regulated Current	1120mA
Output max Power	16.8W
Output Max Voltage	10-15V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Indoor use only)
Weight	0.08 kg

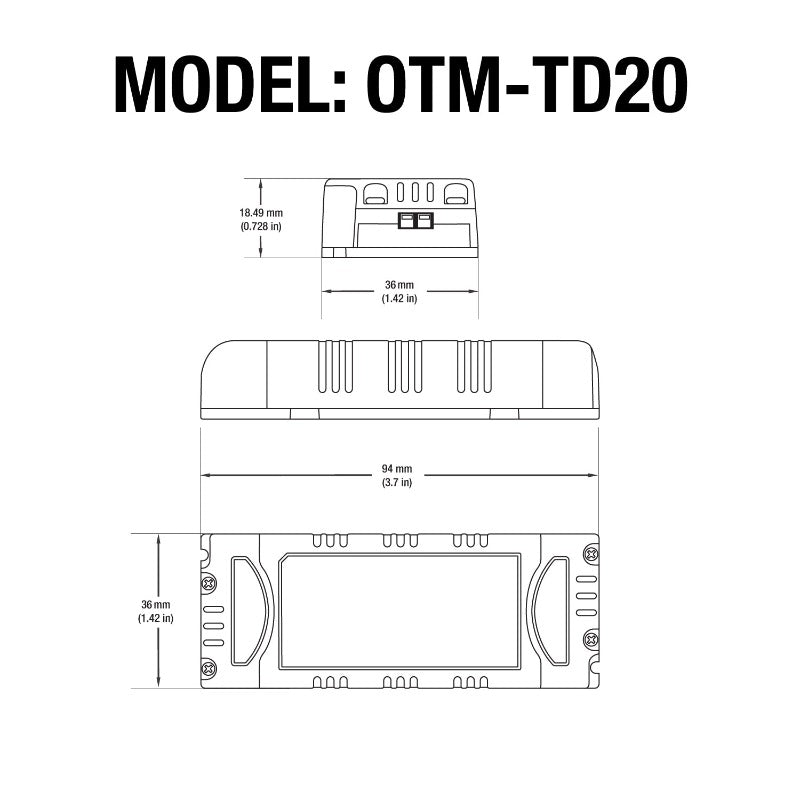

Dimensions	94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification	Class II
Certification

Features:

The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating.
Input voltage range: 90-130V AC, input current: 0.24A, and input frequency: 48-62Hz.
Power factor is greater than 0.95 and efficiency is greater than 85%.
Regulated output current: 1120mA and maximum power: 16.8W.
Output voltage range: 10-15V DC.
Dimmable with Triac Dimming for adjusting light intensity.
Maximum ambient temperature (Ta): 40°C and case temperature (Tc): 90°C.
Dimensions: 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in).
Classified as Class II, which means it has two layers of insulation protection.
Compact and efficient LED driver suitable for indoor use.
